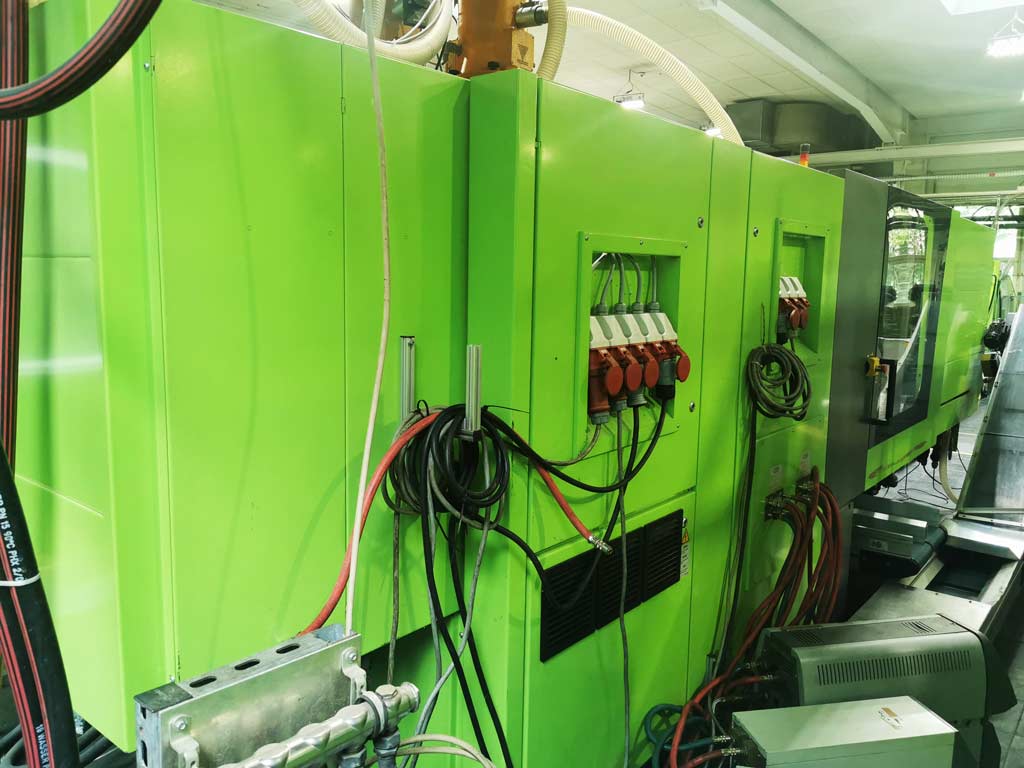

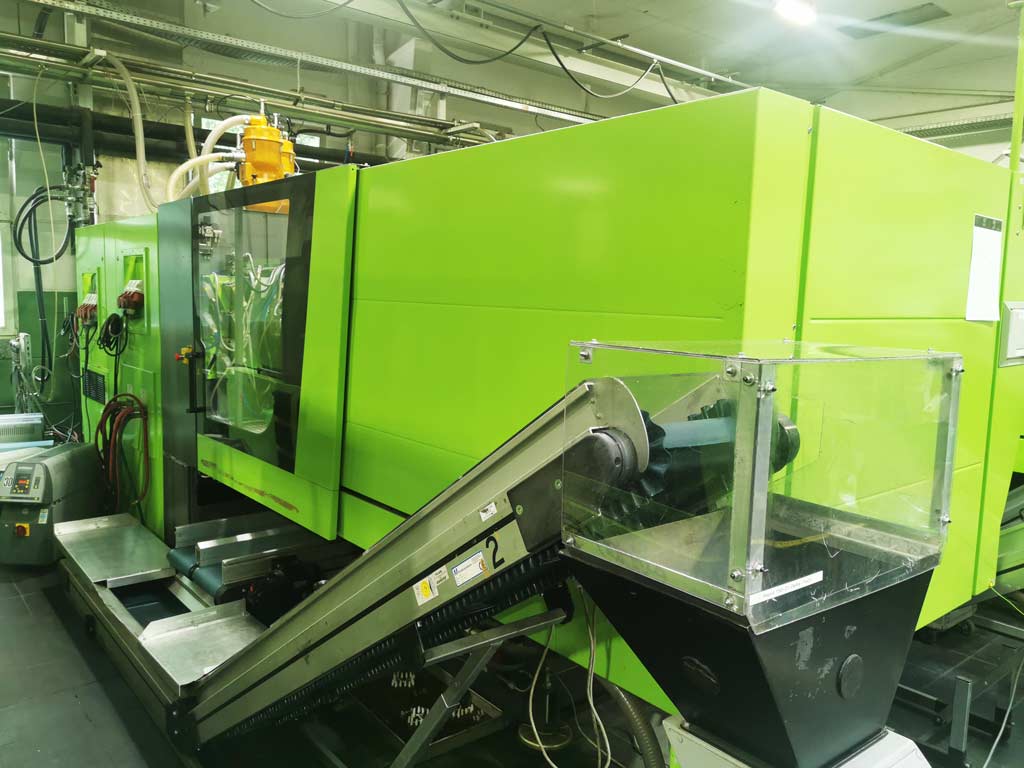

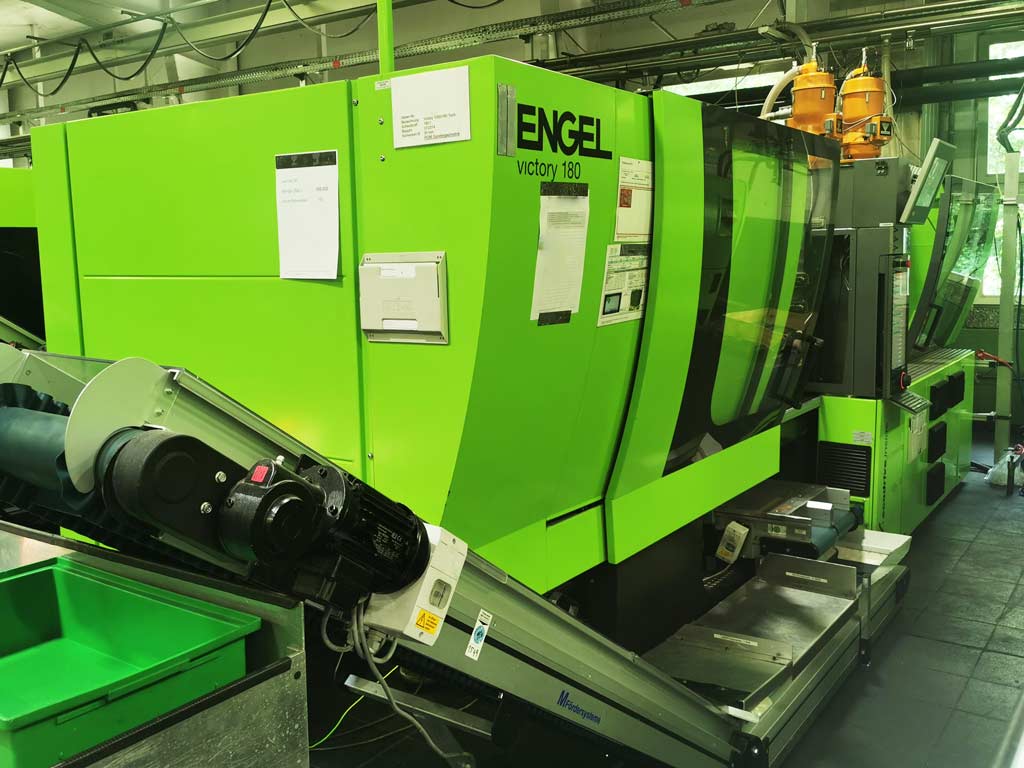

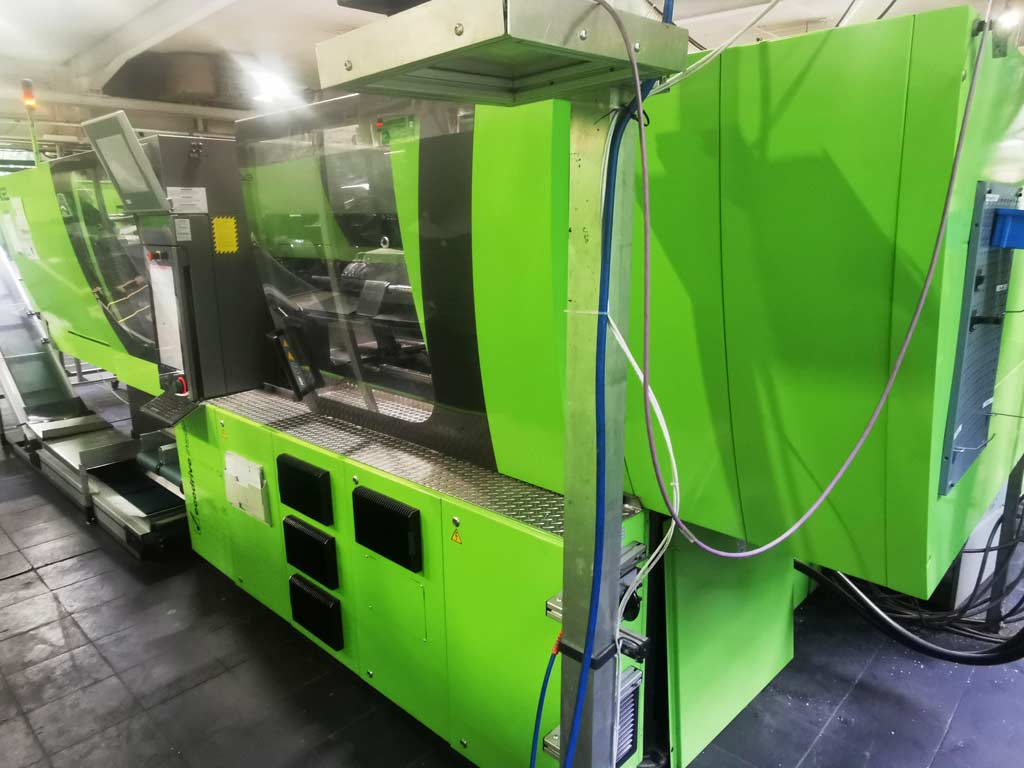

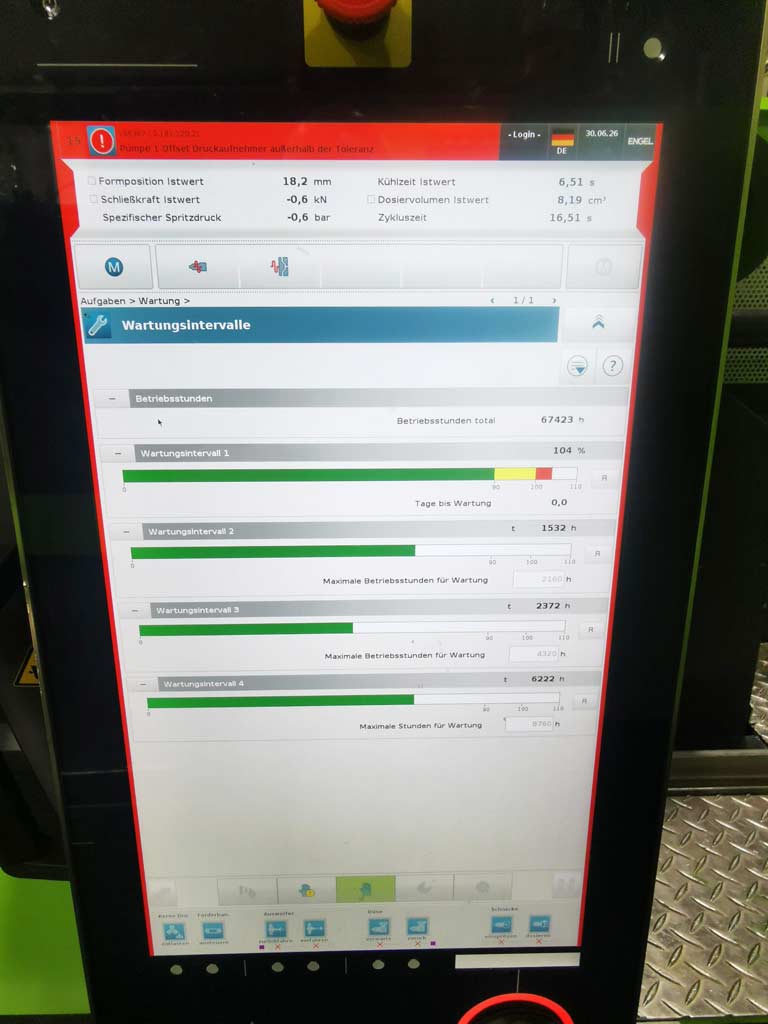

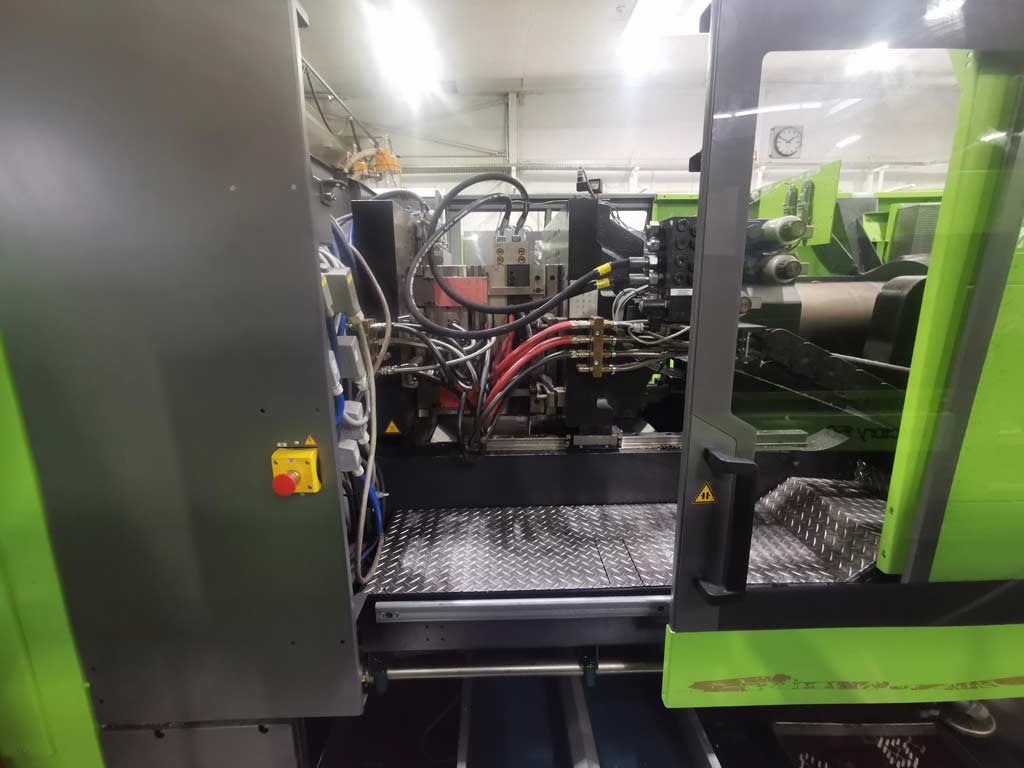

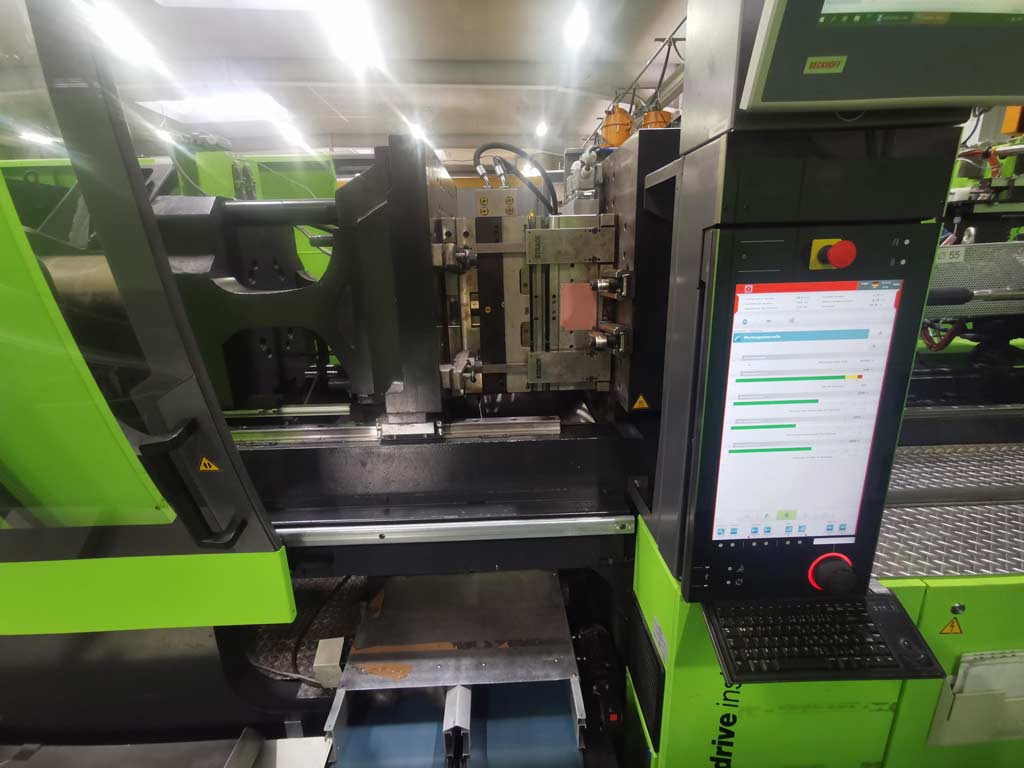

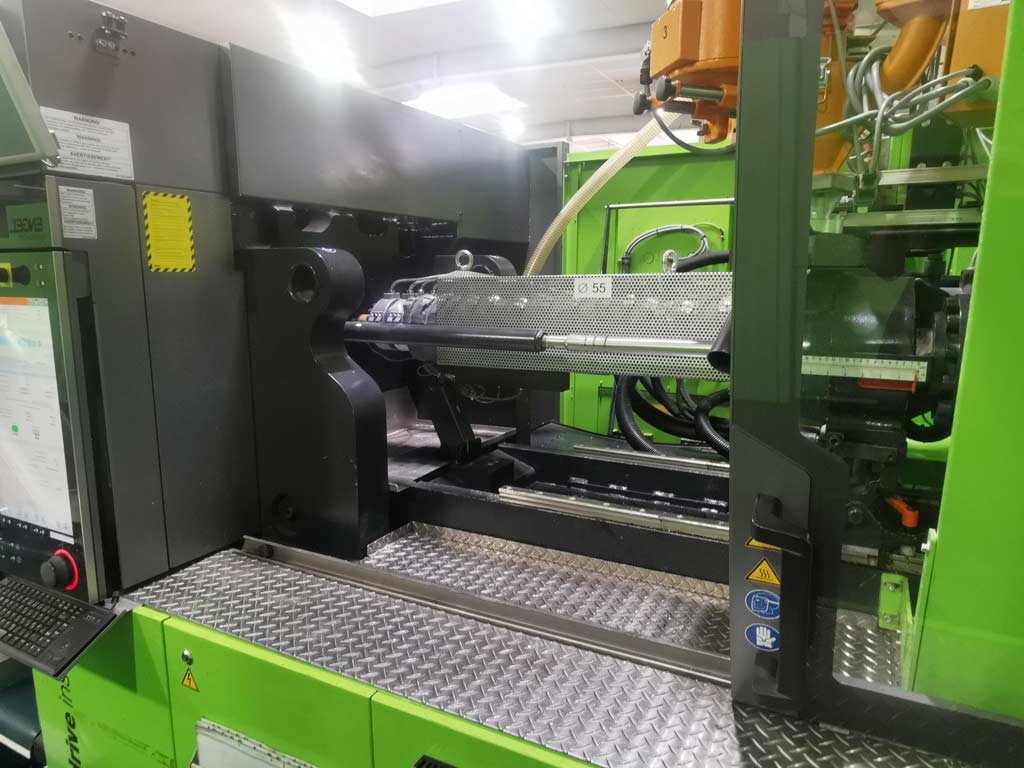

| Opis An ENGEL injection molding machine is offered. Clamping force: 1800kN, opening force: 96kN, max. opening stroke: 750mm, min. mold height: 300mm, max. platen distance: 1050mm, clear tie-bar spacing: tie-bar-less, mold mounting platens X/Y: 880mm/830mm, max. mold weight: 1500kg at center of gravity 230mm, ejector stroke: 180mm, ejector force forward/backward: 80kN/33kN, screw diameter: 55mm, metering stroke: 215mm, max. stroke volume: 510cm³, injection rate: 255cm³/s, max. injection pressure: 2050bar, nozzle stroke: 350mm, nozzle contact force: 67kN, injection unit heating capacity: 16.3kW, heating zones incl. nozzle: 5, barrel: M9 bimetallic barrel, integrated hot runner control zones: 24×220V, mold cooling circuits: 6×10l/min, hydraulic oil capacity: approx. 540l, operating hours: 67423h (as of 30.06.2026). The machine will be available from December. Machine dimensions X/Y/Z: approx. 6275mm/1888mm/2100mm, weight without mold: approx. 12200kg. Documentation available. An on-site inspection is possible. |
|
| Producent | Engel |
|---|---|
| Typ | Victory 1050/180 tech |
| Rok produkcji | 2014 |
| Cena | Na zapytanie |
| Nr. oferty | INNO32166 |
