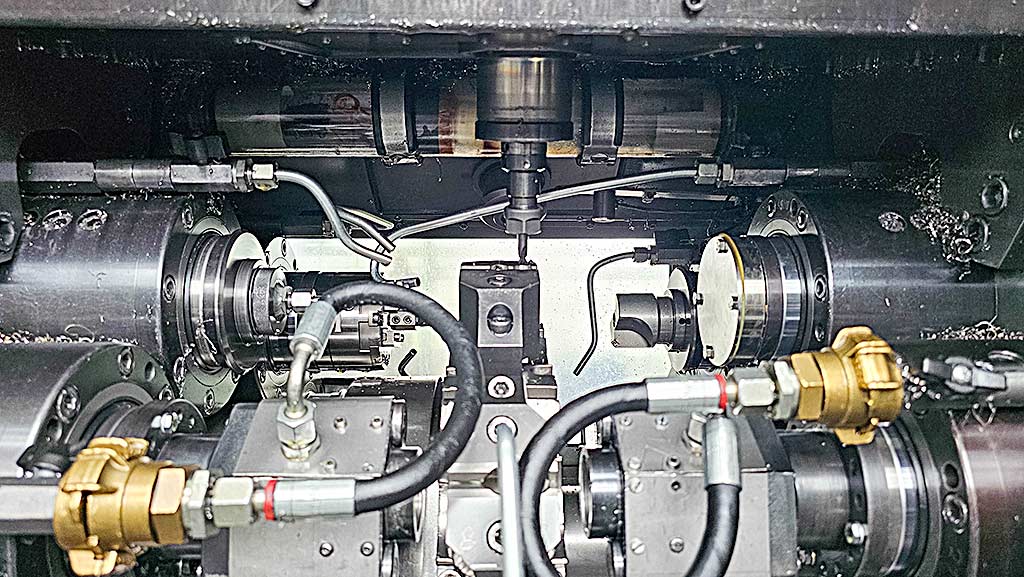

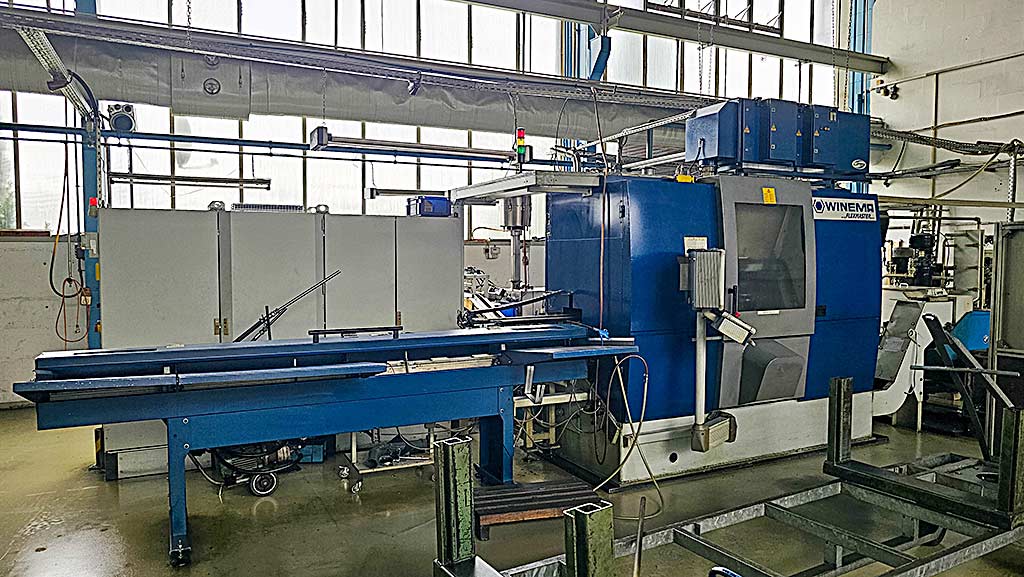

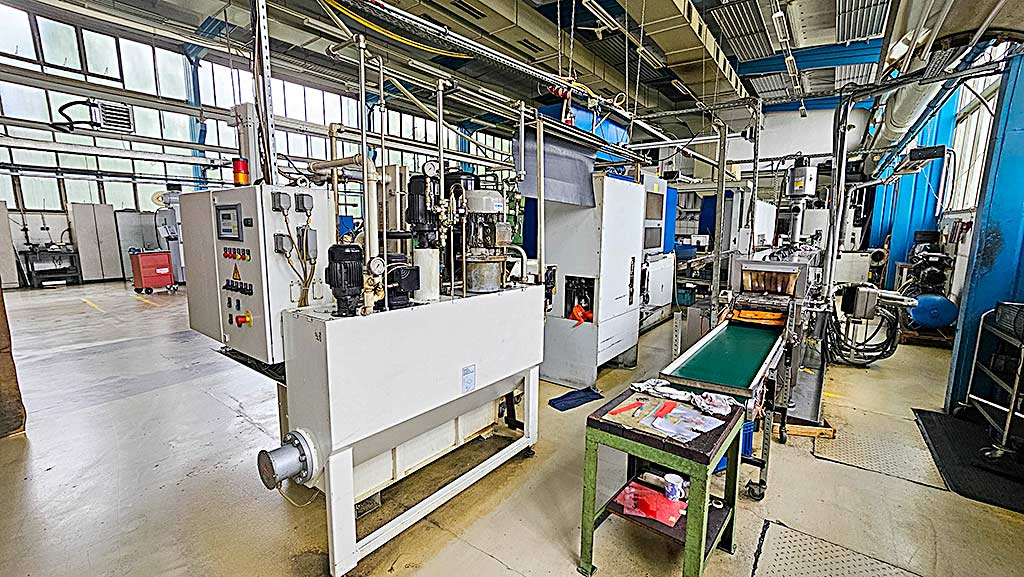

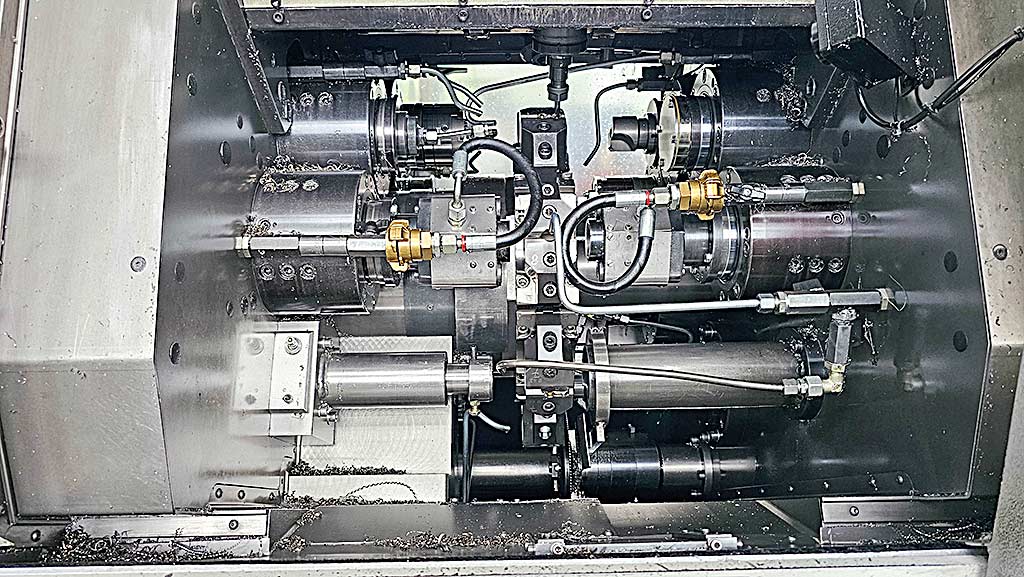

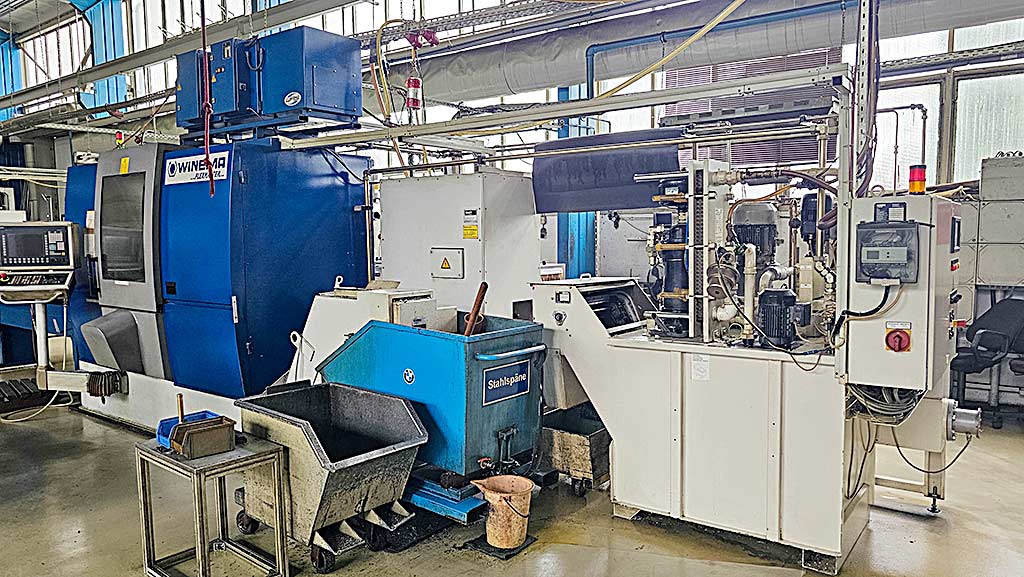

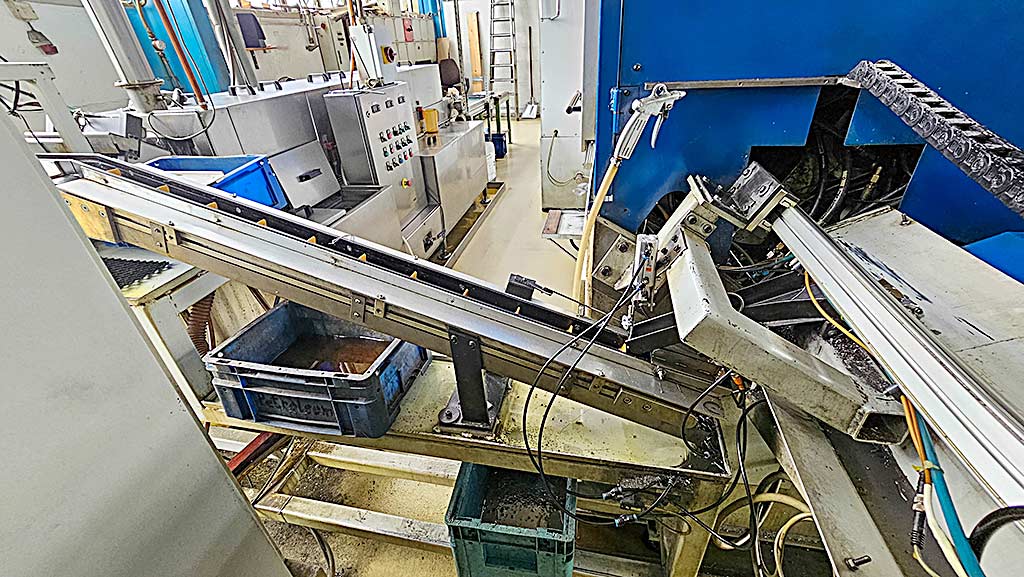

| Opis A complete Winema CNC rotary transfer production line including interlinking, peripherals and a washing system is available. 1) Winema RV20 Flexmaster rotary transfer machining center, stations: 6, machining positions: 12, max. material passage: 42mm, internal thread 1: M16x1.5, internal thread 2: M20x1.5, holes: 8.7mm/15mm/17mm/18mm, reaming: 9mm/15mm/18mm, cycle time: approx. 7s, throughput capacity: approx. 500parts/h, control system: Siemens Sinumerik 840D. 2) Winema bar loading magazine, tube support: 800mm, max. tube thickness: 2mm, max. bar length: 3200mm. 3) Knoll Turbofilter coolant cleaning system, dirty tank volume: 500l, clean tank volume: 150l, filter fineness: 50mm. 4) Knoll cooling unit, cooling capacity: 15kW, max. oil temperature: 30°C. 5) UAS oil mist extraction system, separation efficiency: 96%-98%. 6) Interlinked continuous washing system with automatic parts transfer. 7) Hydraulic system. 8) Conveyor units. 9) Fire extinguishing system. This is a complete and interlinked system for NC control valve production. The production of additional components can presumably be set up. Documentation available. An on-site inspection is possible. |
|
| Producent | Winema |
|---|---|
| Typ | RV 20 Flexmaster |
| Rok produkcji | nieznany |
| Cena | Na zapytanie |
| Nr. oferty | INNO31586 |
