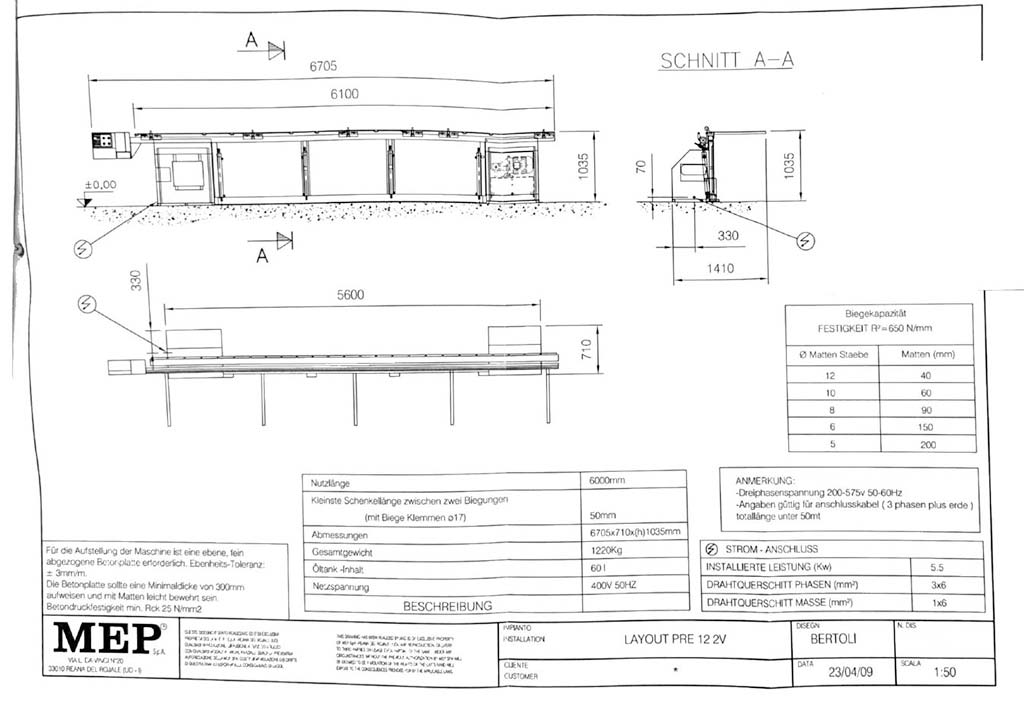

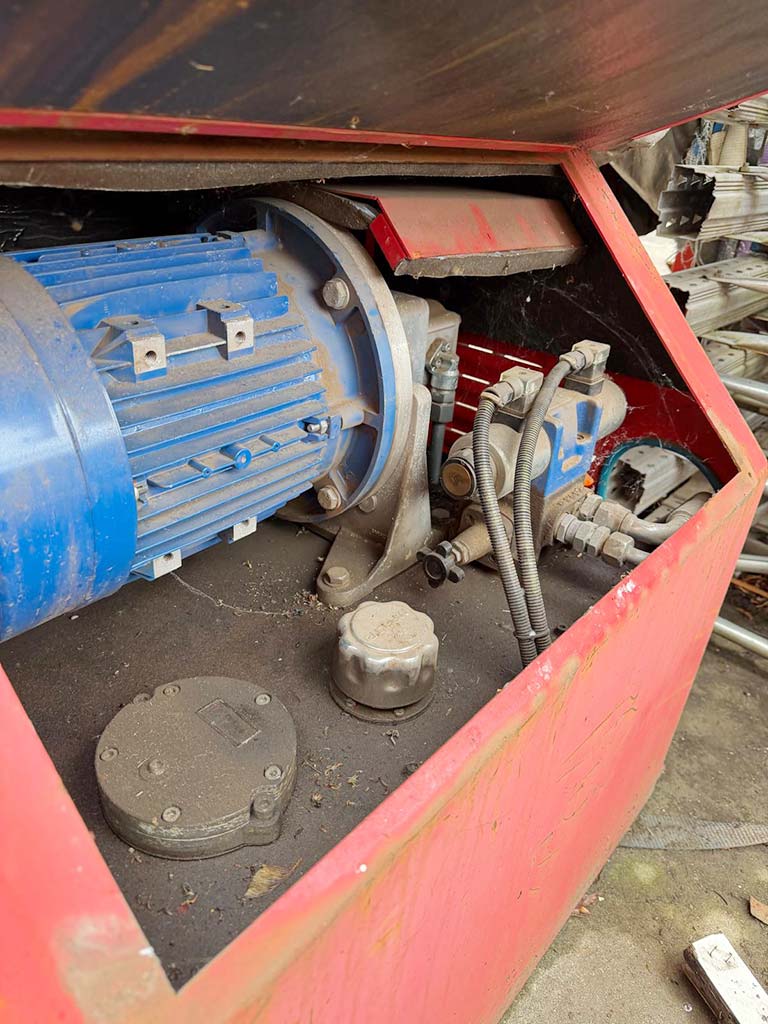

| Opis Working height: 1035mm, usable width: 6000mm, max. usable length: 6000mm, max. wire diameter: 12mm, max. tensile strength: 650N/mm², bending capacity (number of bars): Ø12mm: 40 bars, Ø10mm: 60 bars, Ø8mm: 90 bars, Ø6mm: 150 bars, Ø5mm: 200 bars, geometry/bending data: smallest leg between two angles: 50mm (with bending finger Ø17mm), standard bending finger: no.60, Ø40mm, number of programmable bending angles: 20, memory positions: 100, speeds: first speed: 45°: max. 5.8s, 90°: max. 8.7s, 180°: max. 13.7s, second speed: 45°: max. 2.9s (complete cycle forward/backward), 90°: max. 4.4s (complete cycle forward/backward), 180°: max. 6.8s (complete cycle forward/backward), mechanics/hydraulics: 4 double-acting hydraulic cylinders, hydraulic unit with pumps, solenoid valves, pressure regulators, safety valves, delivery without oil, operation/control: control panel with keyboard and numeric display, manual and automatic operation, foot pedal control, emergency stop button and emergency stop foot pedal, installed power: 5.5kW, length: 6705mm, width: 710mm, height: 1035mm, weight: 1220kg, oil tank capacity: 60l, electrical connection: phases: 3x6mm², ground: 1x6mm², equipment: support frame with control cabinet and hydraulic unit, fixed and movable bending bar, standard spare parts set, foot pedal (1x) + emergency stop foot pedal (1x), documentation available, on-site inspection is possible. |
|
| Producent | Mep |
|---|---|
| Typ | Mod. PRE 12 2v |
| Rok produkcji | 2009 |
| Cena | Na zapytanie |
| Nr. oferty | INNO31204 |
