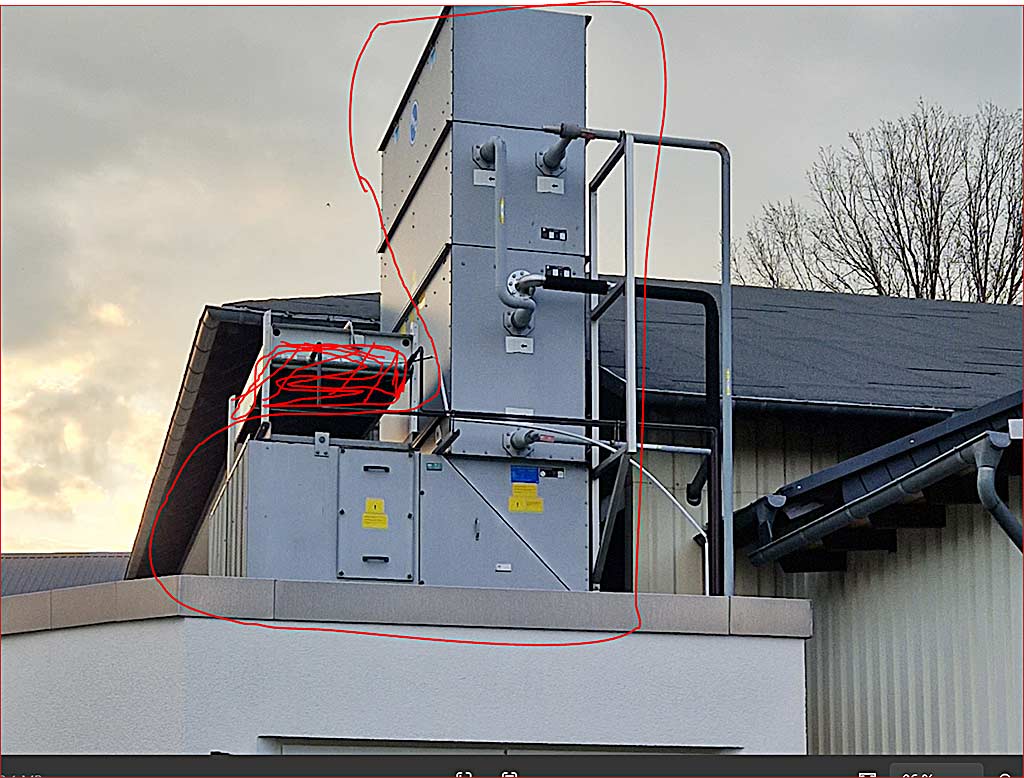

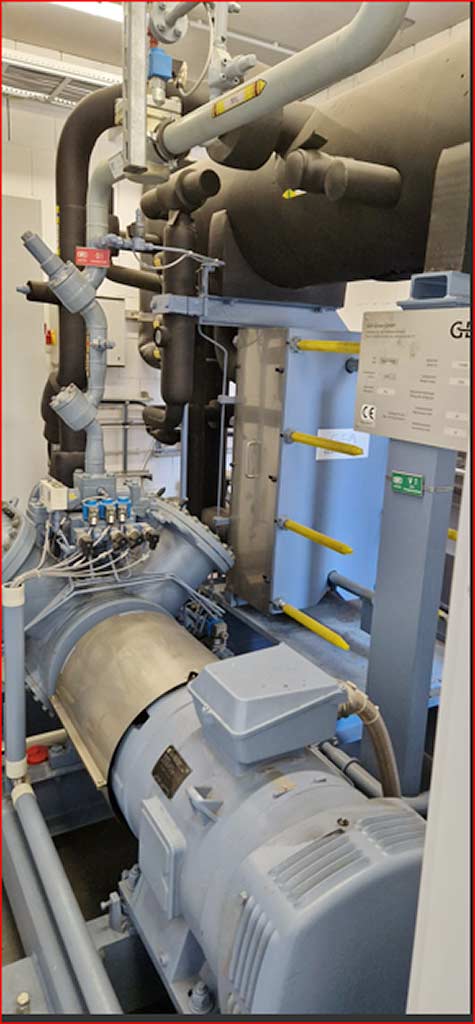

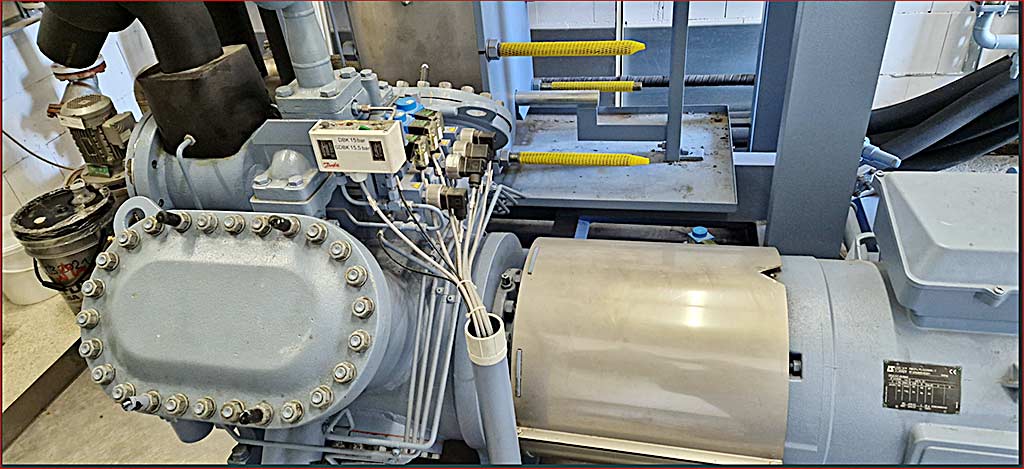

| Opis A compact ammonia refrigeration system GEA with evaporative condenser and pump-operated plate evaporator is available. Design: split design, refrigeration capacity: 247kW, compressor speed: 1450rpm, evaporation temperature: 0.7°C, condenser capacity: 300kW, wet-bulb temperature: 21°C, max. condensing temperature: 35°C, refrigerant: NH3, max. operating pressure high pressure/low pressure: 23bar/16bar. Secondary refrigerant: electrolysis water, secondary refrigerant temperature inlet/outlet: 6°C/2°C, secondary refrigerant volume flow: 54m³/h, secondary refrigerant pressure drop: 53kPa, refrigerant charge: 50kg, oil charge: 20l, compressor: Grasso 410. Machine dimensions X/Y/Z: approx. 4300mm/2000mm/2800mm, weight: approx. 6500kg. Documentation available. An on-site inspection is possible. |
|
| Producent | Gea |
|---|---|

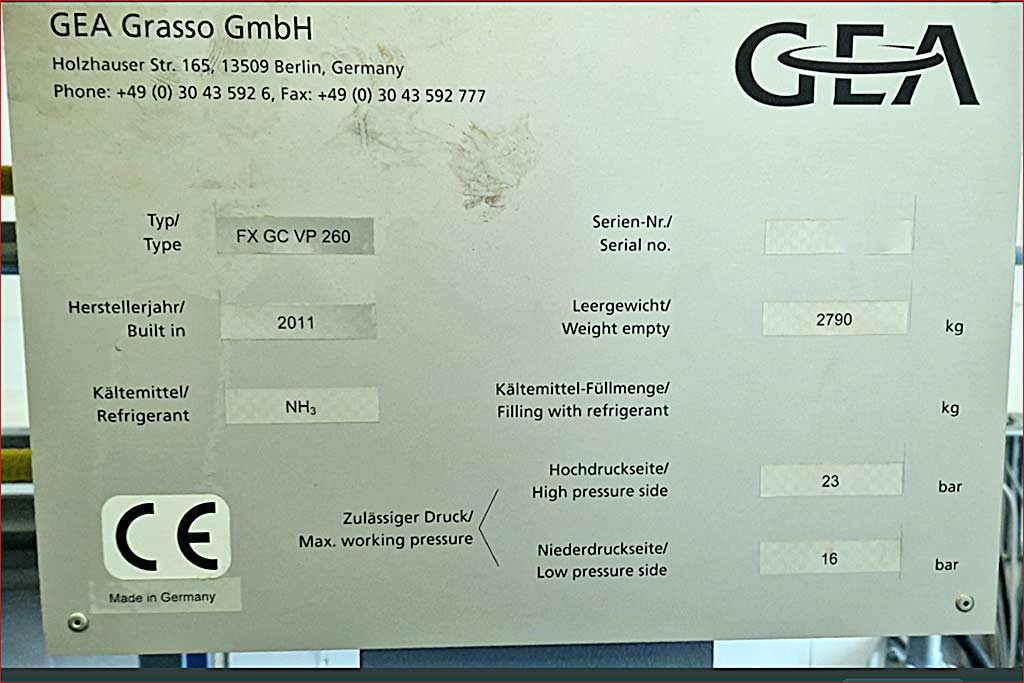

| Typ | FX GC VP 260 |
| Rok produkcji | 2011 |
| Cena | Na zapytanie |
| Nr. oferty | INNO30569 |
