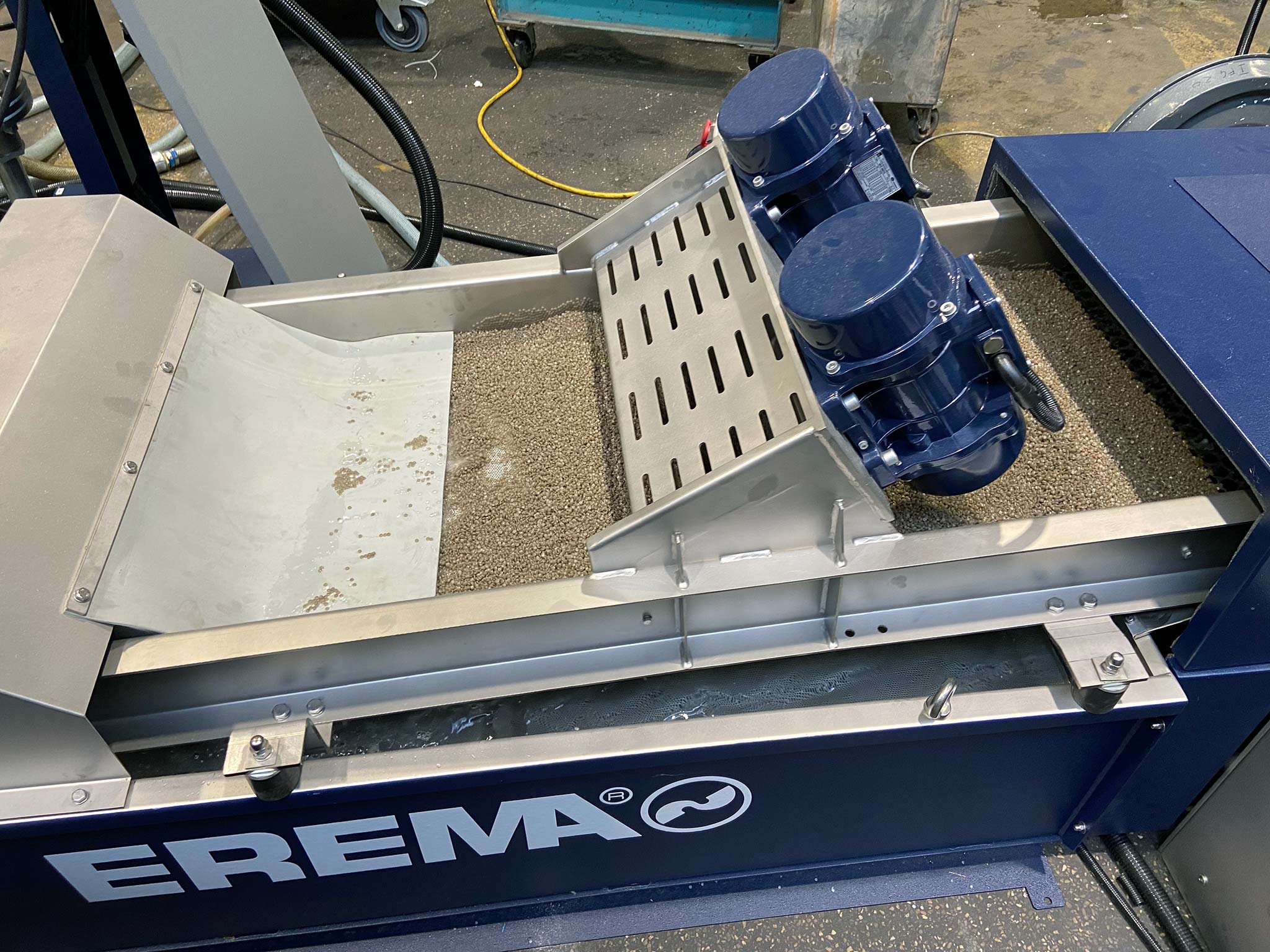

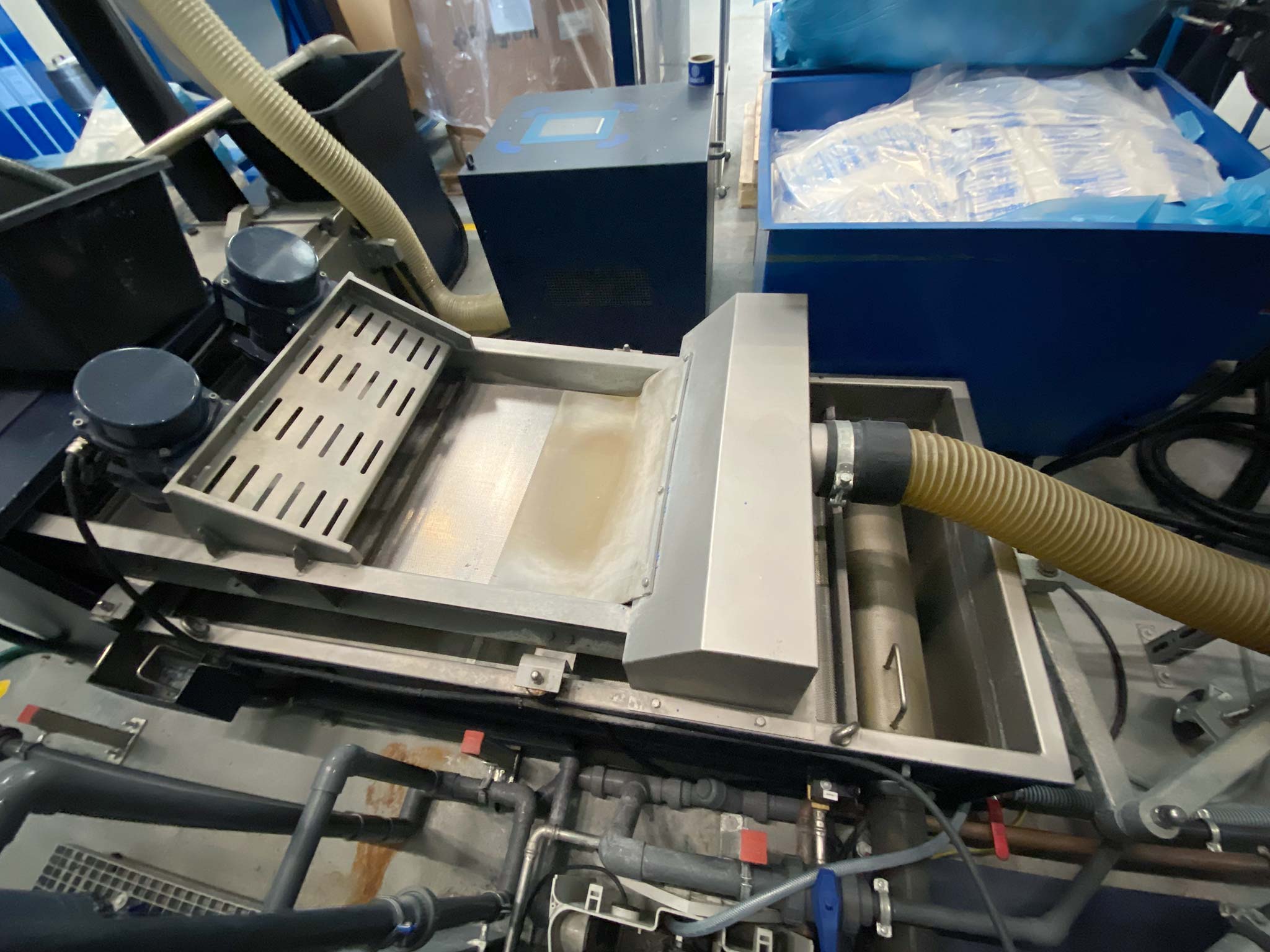

| Opis Recycling system with regranulation line, conveyor belt, roller infeed, granulate dosing unit, twin-screw stuffing unit and bagging station, 1) Regranulation line, components: Piovan feeding, backflush filter, extraction system, process-water tank, hot-die-face granulation, granulate dewatering screen, water pump station, granulate scale, granulate centrifugal dryer, granulate conveying system, filling station, swivel side wall for PCU hood. Throughput capacity MDPE, LDPE: 650-725kg/h, PCU drive: 132kW, weight: 12,680kg, extraction system air capacity: max. 3000m³/h, weight: 174kg, process-water tank filling volume: approx. 860l, backflush filter screen diameter: 215mm, number of screen packs: 4, hot-die-face granulation number of knives: 4, knife head speed: 1420/min, granulate dewatering screen dimensions: 1900x700mm, oversize separation: less than 20mm, trough volume: 470l, granulate centrifugal dryer drive power: 7.5kW, granulate conveying system air capacity: max. 1900m³/h, length (without BigBag station): approx. 11,642mm, width: approx. 8000mm, 2) Conveyor belt with hopper, level sensor and double-layer metal detector, weight: approx. 950kg, belt dimensions: 7000x1100mm, with cleats, metal detector coil aperture: 1300x400mm, detection: all metals, measuring accuracy: Fe= M6 nut, V2A= M10 nut, technology: digital, alarm: visual and acoustic, 3) Roller infeed, infeed cross-section: 450x150mm, drive power: 1x 1.5kW, max. infeed speed: 20m/min, 4) Granulate dosing unit, operating principle: gravimetric, bulk density: 0.6kg/dm³, dosing range: 4-40kg/h, 5) Twin-screw stuffing unit, bulk density: 0.6kg/dm³, throughput capacity: max. 100kg/h, screw diameter: 40mm, 6) Bagging station, frame: for 2 BigBags, diverter: pneumatic, with level sensor, operating hours reading: 6400h. With complete documentation, additional spare parts are optionally available. An on-site inspection is possible. |
|
| Producent | Erema |
|---|---|
| Typ | INTAREMA 1310 TVEplus RegrindPro |
| Rok produkcji | 2022 |
| Cena | Na zapytanie |
| Nr. oferty | INNO30451 |
