| Opis Printing technology: piezo DOD printheads: Xaar 1001, resolution: 720x360dpi, drying: 1xUV GOZ and 1xUV FOZ Höhnle with 7,2kW, pinning system (LED) after printing unit 1+5, extraction: in the drying unit for cooling the UV lamps and for odor minimization and improvement of sensory conditions, inert gas system: oxygen-reduced curing unit (inert gas system), consumption: under 6m³/h, printing: roll-to-roll, web width: 350mm, print width: 330mm, repeat length: min./max. printable section length 10-1000mm, print tolerance: single spacing +/-0,2mm, cumulative spacing: +/-1,5mm (over one meter), register: register accuracy +/-50μm, max. speed: 48m/min with 4 colors depending on ink coverage, white at 30m/min, speed must be preselected from 18 to 48m/min, print pre-treatment: corona with 1500VA, web cleaning: polymer rollers LC 350, air shafts: for cores with 76mm diameter for unwinding and rewinding, air shaft clamping pneumatic, clamping releasable to allow rotation of the winding mandrel, max. roll diameter for unwinding and rewinding: 610mm, max. roll weight for unwinding and rewinding: 120kg. power consumption: approx. 39kVA/60A, air consumption: 100NL/min, cooling capacity: approx. 60.000BTU/h =18kW, data interface: USB2.0, Ethernet, data format: PDF-X1 or X3 or EPS or AI, length: 4550mm, width: 1750mm, height: 2200mm, weight: approx. 3t. With documentation, chiller unit and inks. The machine is fault-free, complete and ready for operation, and has been serviced regularly. On-site inspection is possible. |
|
| Producent | Durst |
|---|---|

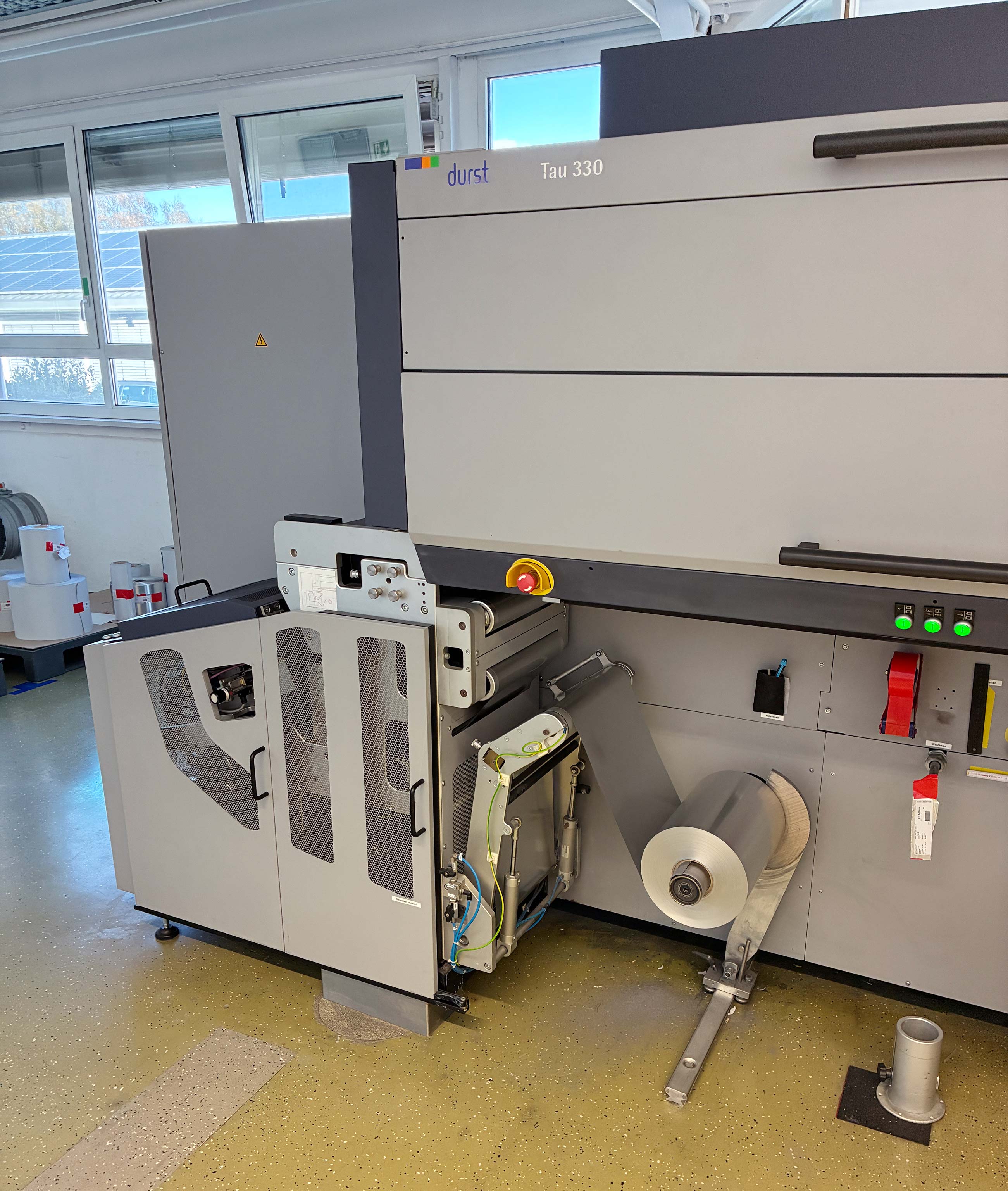

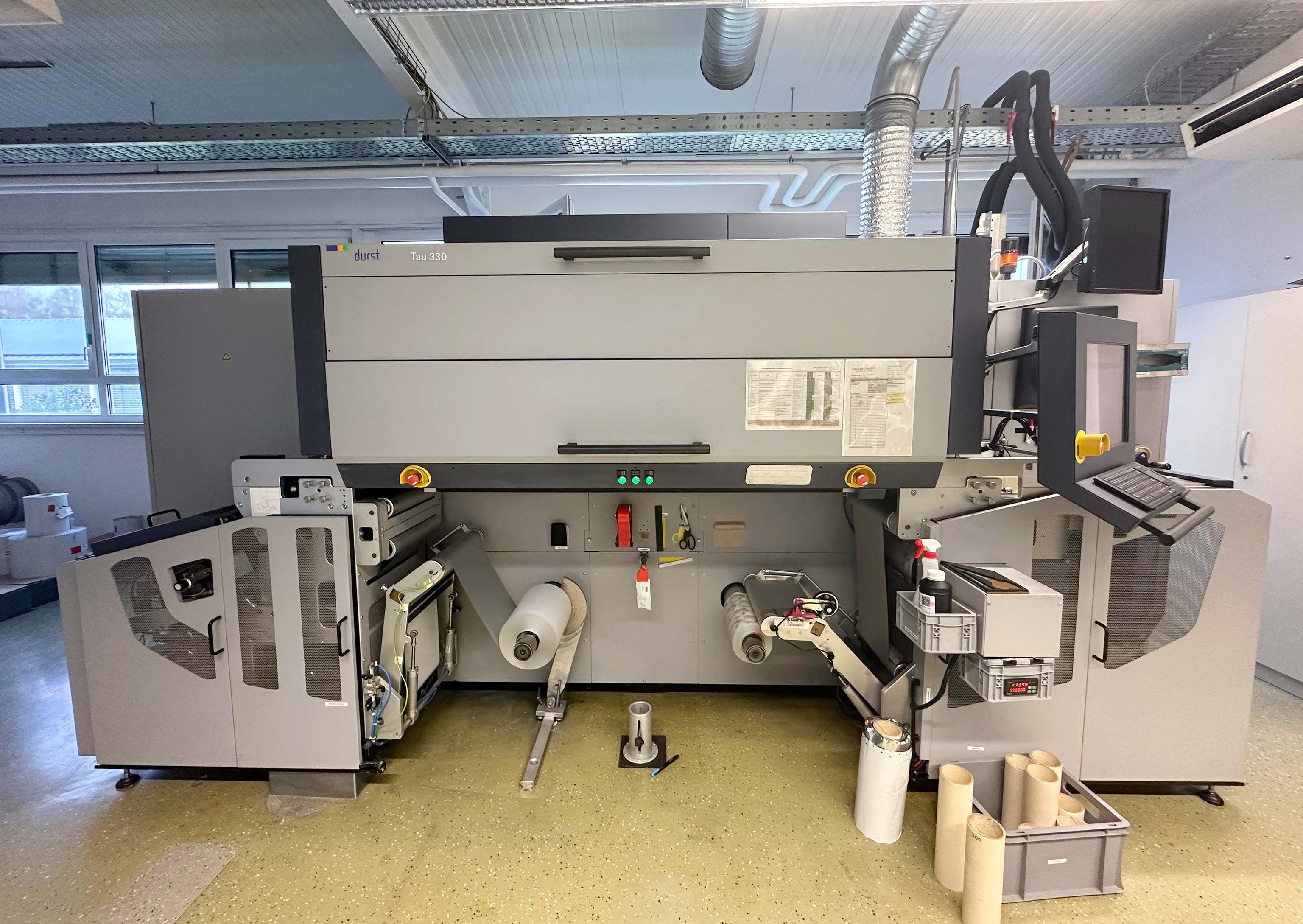

| Typ | Tau 330 |
| Rok produkcji | 2014 |
| Cena | Na zapytanie |
| Nr. oferty | INNO30402 |
