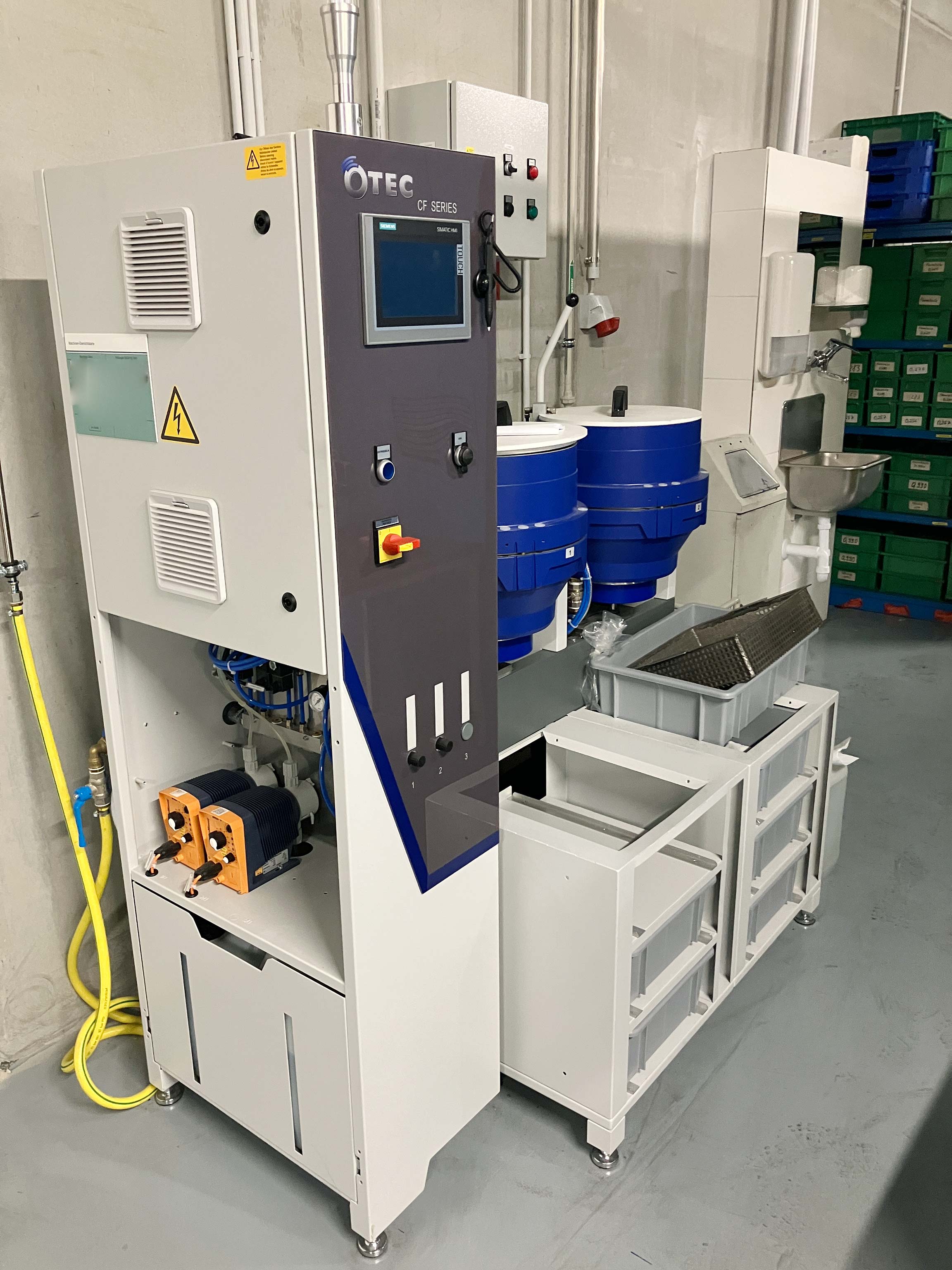

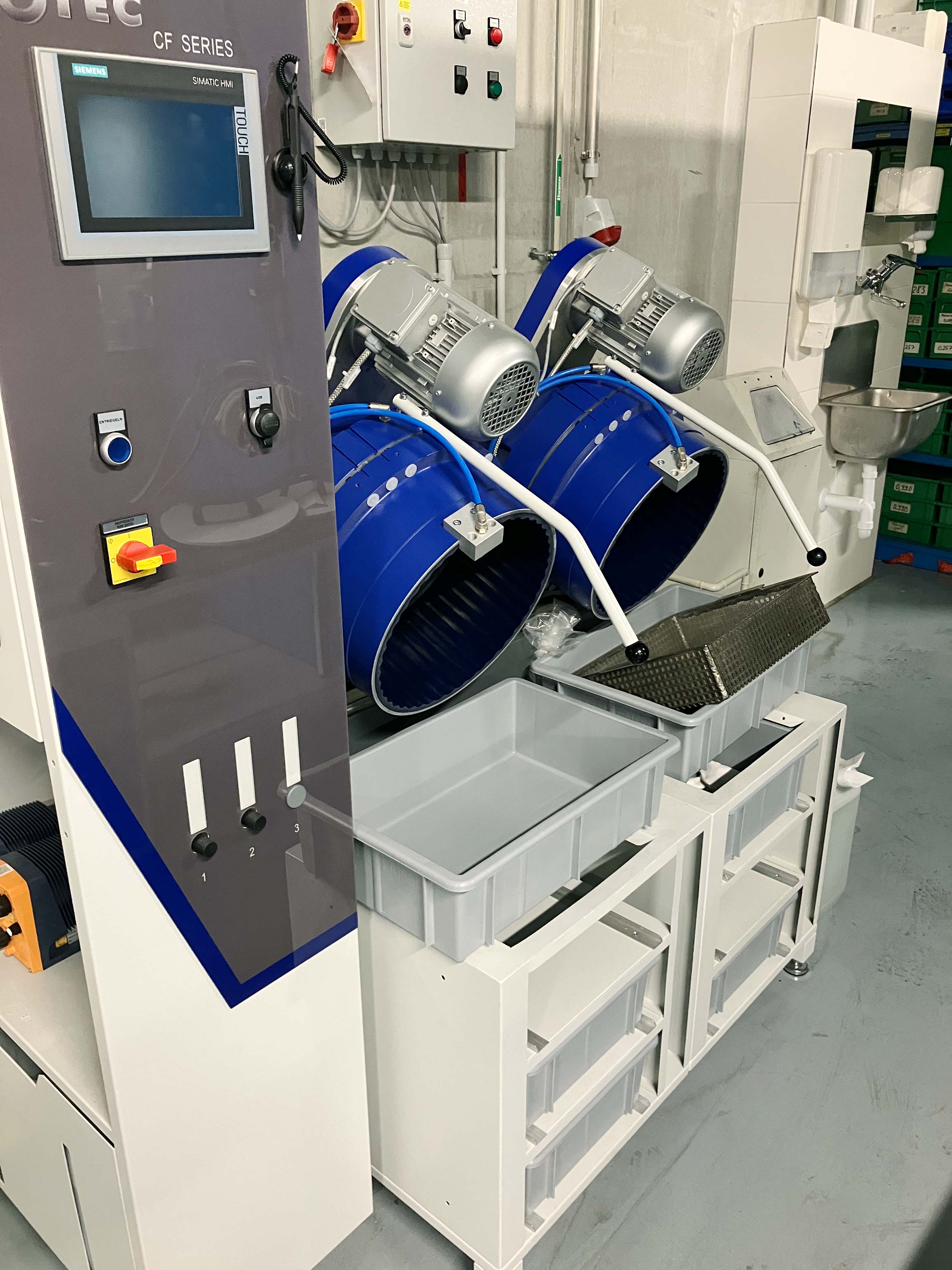

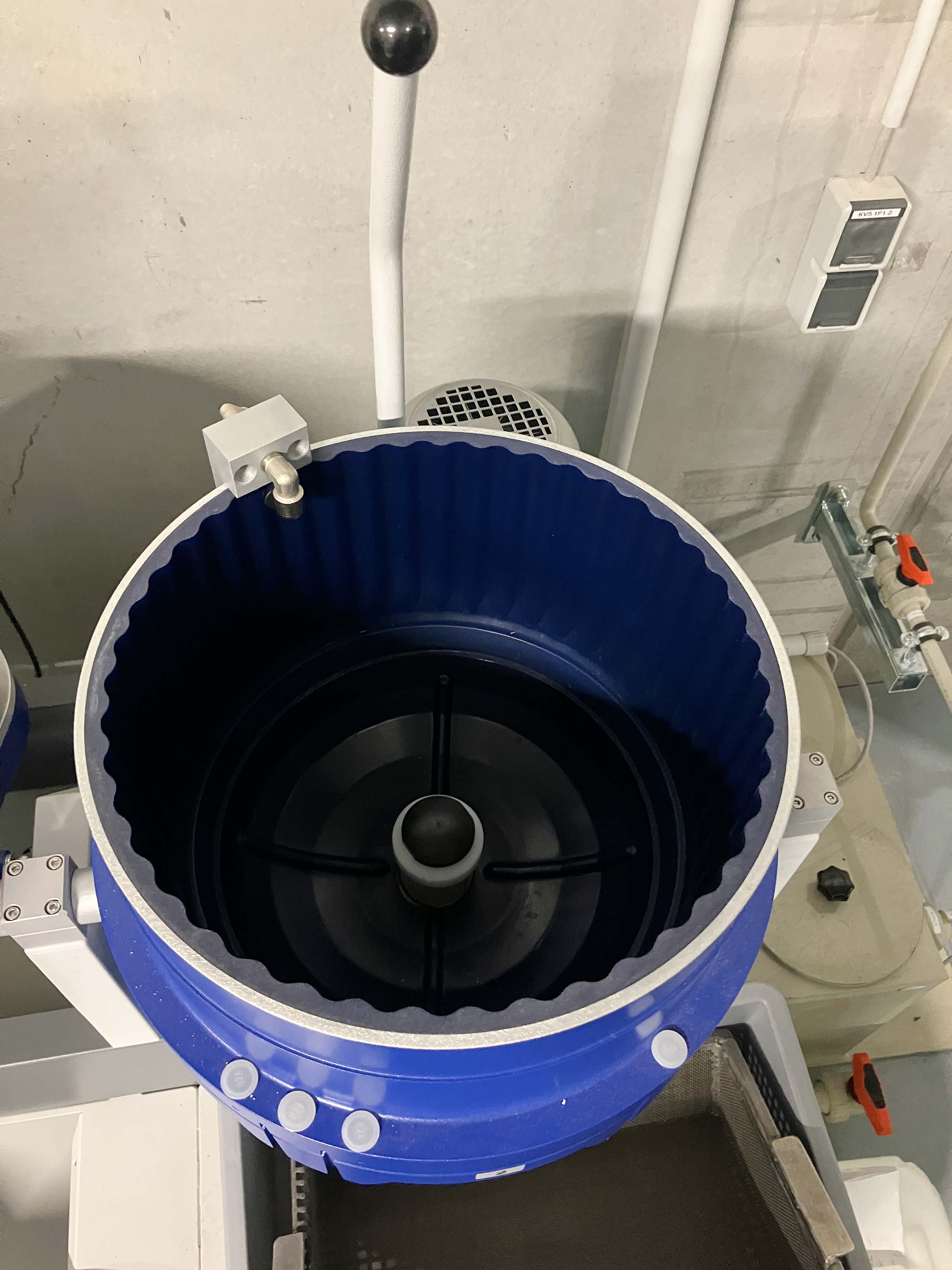

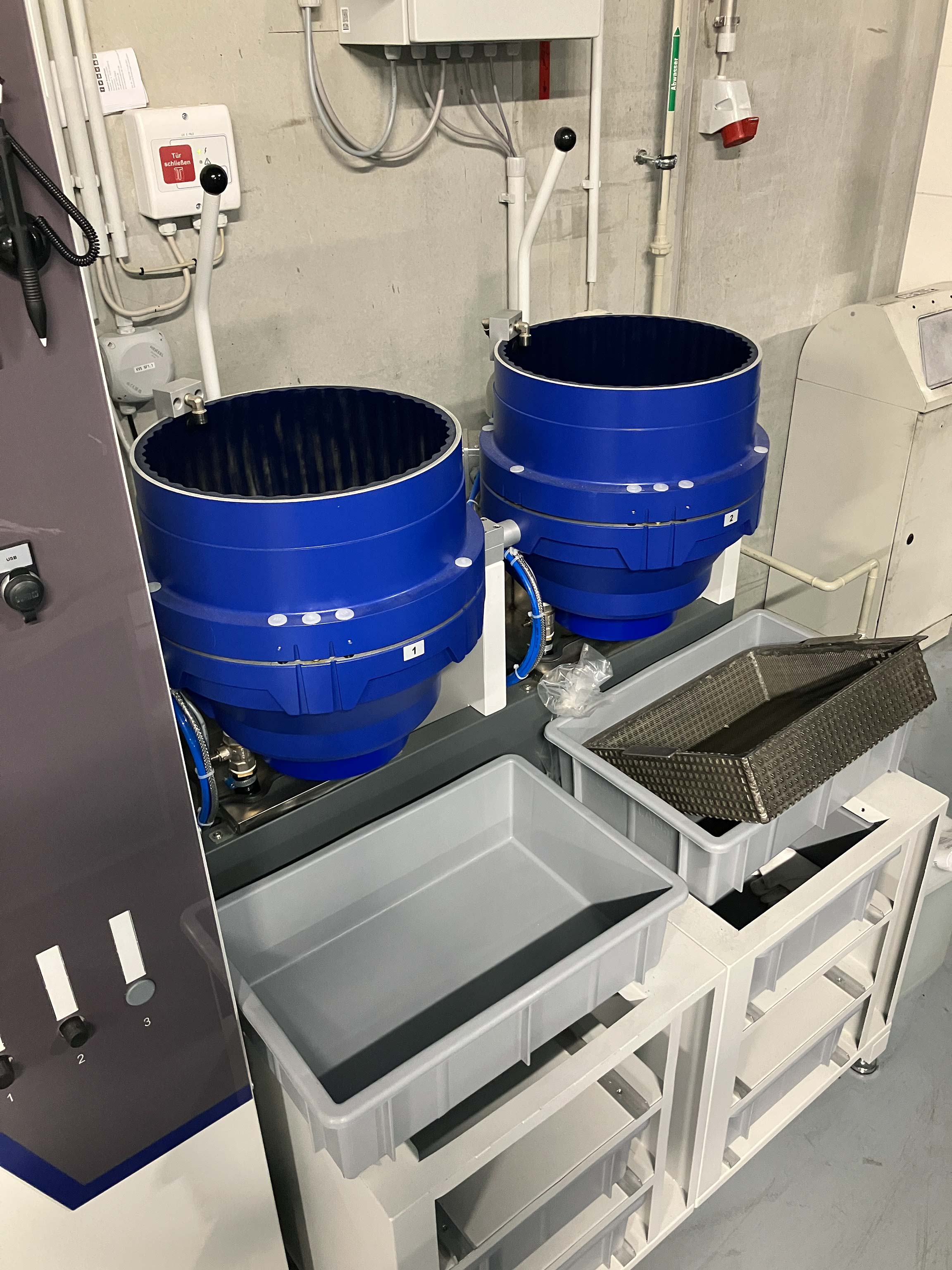

| Opis Basic equipment: thermally cross-linked wear-resistant PU working container lining (profiled), rotary table with flow-optimized carrier bars for sensitive workpieces, complete water drainage via stainless steel hollow shaft for wet processing, high-precision bearing of the rotary table (with corrosion-resistant ceramic sealing system for wet processing), 2x drive motor 0.9kVA with thermal protection, machine frame in steel construction. Control of the machining process via PLC with display of processing time, table speed, compound dosing, start delay, process interruption and operating hours, setting of time and speed parameters via touchscreen, start/stop buttons for program sequence, storage of 500 machining programs, table speed control via frequency converter, main switch/reset switch, with signal light green/yellow/red, with USB interface. 2x working containers each with 18l container volume, container inner diameter: 330mm. Operating voltage: 230/400V (slip gap operation), 50/60Hz, VS max. 16A, control voltage: 24V, protection class: IP 54, color: RAL7012 basalt grey and RAL7035 light grey, containers in RAL 5002, standards: VDE, UVV, CE, control cabinet with touchscreen CF 2x18 ZGZG, control: S7/1200, 2x working containers CF 18 ZG round ribs + PU-R, ceramic ring, for gapless operation of the working container during wet processing, 2x lids for working container CF 18 wet, water connection without valve, CF-9/18, connection diameter: 13mm, for removal of dirt particles from fresh water and circulation, longer service life for flow meter, 2x dosing unit WZG 2 CF 9/18, compound drawer 1 CF - 9/18, extension without hand sieves CF 2x18. Connected load: 2kVA, weight: 330kg. With documentation, without accessories. An on-site inspection is possible. |
|
| Producent | Otec |
|---|---|
| Typ | CF2x18 |
| Rok produkcji | 2023 |
| Cena | Na zapytanie |
| Nr. oferty | INNO29816 |
