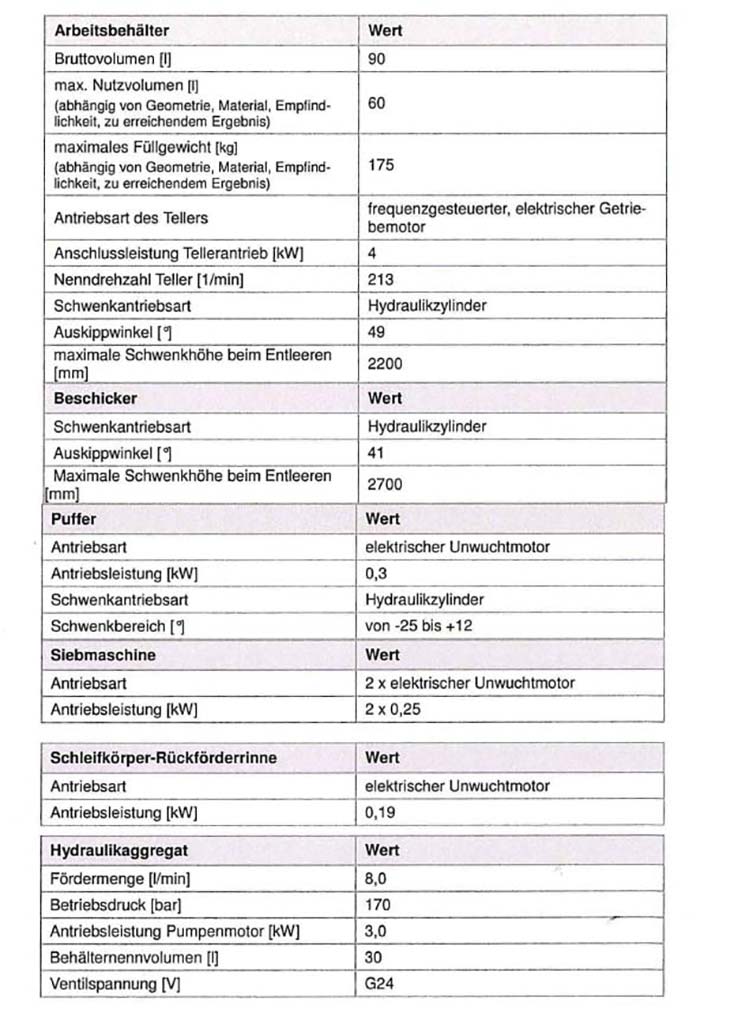

| Opis Gross volume: 90l, max. usable volume: 60l, max. filling weight: 175kg, drive type of the table: frequency-controlled electric gear motor, connected load table drive: 4kW, nominal speed table: 213/min, tilting drive type: hydraulic cylinder, tilting angle: 49°, max. tilting height when emptying: 2200mm, loader tilting drive type: hydraulic cylinder, tilting angle: 41°, max. tilting height when emptying: 2700mm, buffer drive type: electric unbalanced motor, drive power: 0.3kW, tilting drive type: hydraulic cylinder, tilting range: -25° to 12°, screening machine drive type: 2x electric unbalanced motor, drive power: 2x 0.25kW, media return chute drive type: electric unbalanced motor, drive power: 0.19kW, delivery rate hydraulic unit: 8.0l/min, operating pressure: 170bar, drive power pump motor: 3kW, tank volume: 30l, valve voltage: G24, length: 2812mm, width: 2094mm, operating hours: 14,021h, motor running hours: 427h. Application areas: edge rounding, coarse and fine grinding, descaling, degreasing, shining, polishing, deburring, cleaning. With documentation, an on-site inspection is possible. |
|
| Producent | Walther Trowal |
|---|---|
| Typ | TT 90-A/2C-V9 |
| Rok produkcji | 2018 |
| Cena | Na zapytanie |
| Nr. oferty | INNO29802 |
