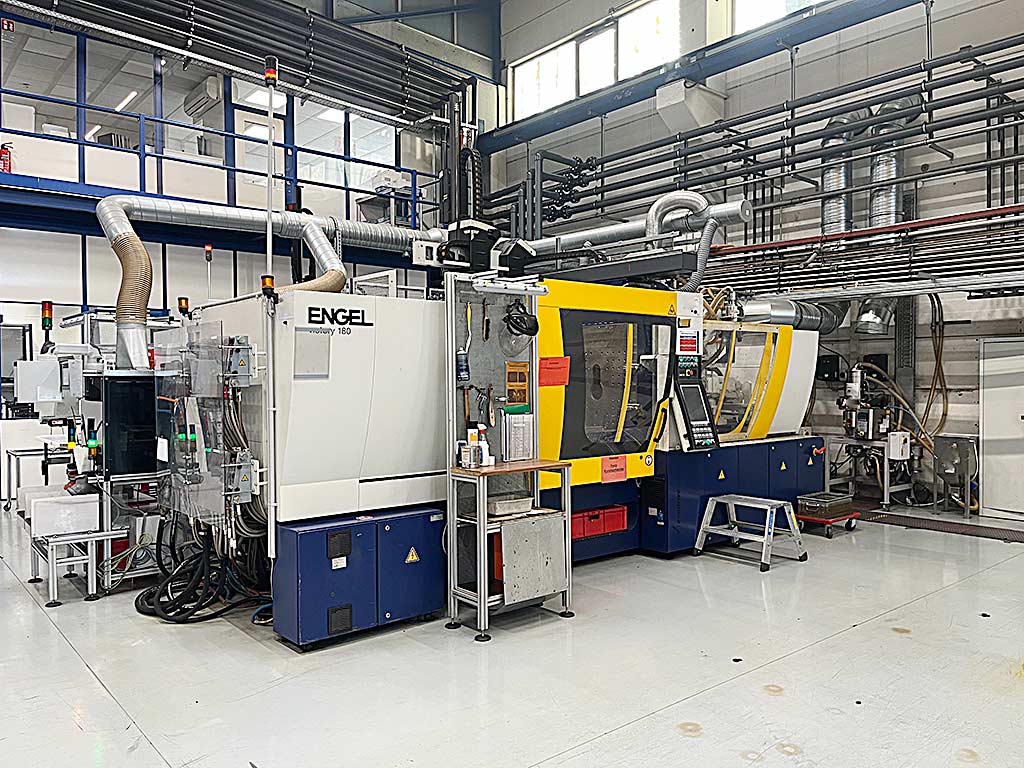

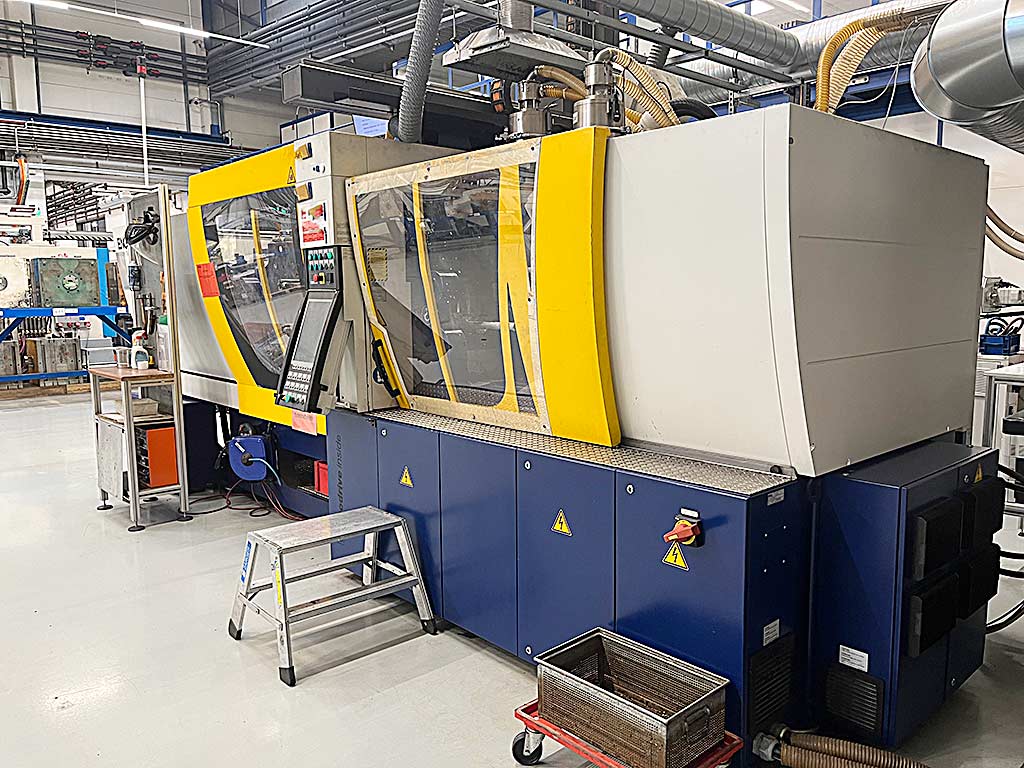

| Opis A two-component injection moulding machine Engel with piggyback configuration, including Engel Viper 40 robot and safety enclosure, is available. Clamping force: 1800kN, nozzle diameter: 35mm, min. mould installation height: 270mm, max. platen distance: 1020mm, tie bar spacing: 980mm, centering: 180mm. Screw diameter 1/2: 22mm/15mm, injection pressure 1/2: 2392bar/2203bar, injection weight 1/2: 66g/19.5g. Robot year of manufacture: 2014, robot travel X/Y/Z: 700mm/1300mm/2360mm. Machine dimensions X/Y: approx. 6700mm/2100mm, control: CC400, operating hours: approx. 38567h. The 22mm screw needs to be replaced. Without conveyor belt. Documentation available. An on-site inspection is possible. |
|
| Producent | Engel |
|---|---|
| Typ | VC 200/60/180 HL |
| Rok produkcji | 2014 |
| Cena | Na zapytanie |
| Nr. oferty | INNO29663 |
