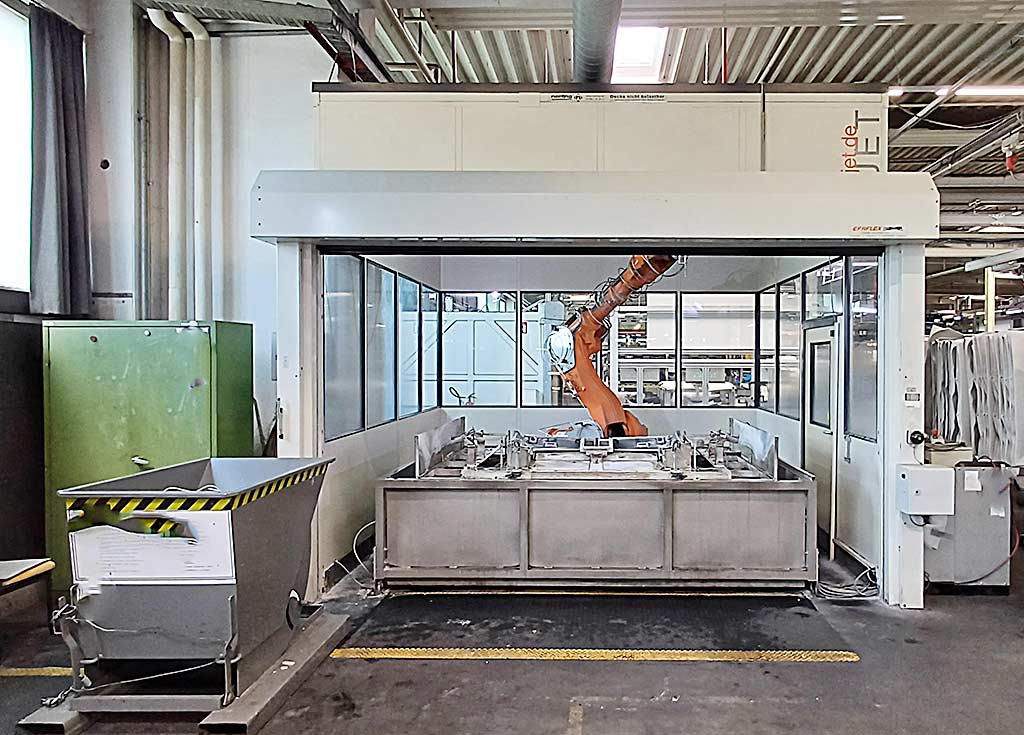

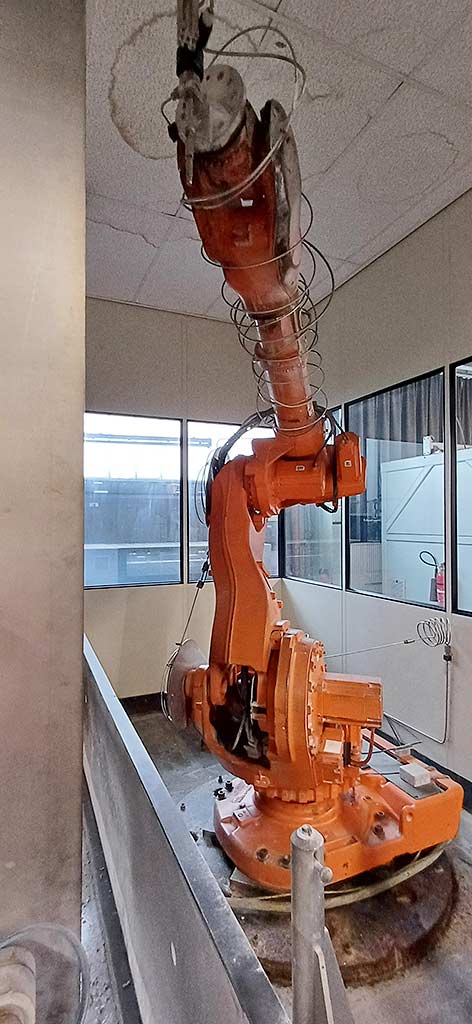

| Opis A robot-based waterjet cutting system without a high-pressure pump is available. 1) Industrial robot ABB IRB 6600 M2004, axes: 6, load capacity: 175kg, reach: approx. 2800mm, repeat accuracy: +/-0.05mm, robot weight: approx. 1750kg. 2) Water basin catcher TF3020, working area X/Y: 3000mm/2000mm, basin dimensions X/Y/Z: approx. 3150mm/2150mm/700mm. 3) High-pressure cutting head, reaction time: 0.1s, operating pressure: 400MPa (4000bar), weight including collimation tube: approx. 1500g. 4) 3D collimation tube extension for pure water operation. 5) 1/4 inch HD filter MF4-56, filter insert: 56µm, connection type: HP4, operating pressure: 450MPa (4500bar). 6) Complete high-pressure piping of the robot. 7) Pneumatic components for controlling the cutting valves and metering slides. 8) High-speed motor. 9) Protective housing for the entire robot system, parapet height: 1090mm, wall thickness: 45mm, sound insulation: approx. 25dB(A), internal dimensions X/Y/Z: approx. 3955mm/3955mm/3470mm, external dimensions X/Y/Z: approx. 4050mm/4050mm/3600mm. Total system dimensions X/Y/Z: approx. 4500mm/4000mm/3700mm, total system weight: approx. 3500kg. Documentation available. On-site inspection is possible. |
|
| Producent | Abb |
|---|---|
| Typ | IRB 6600 M2004 |
| Rok produkcji | 2005 |
| Cena | Na zapytanie |
| Nr. oferty | INNO29421 |
