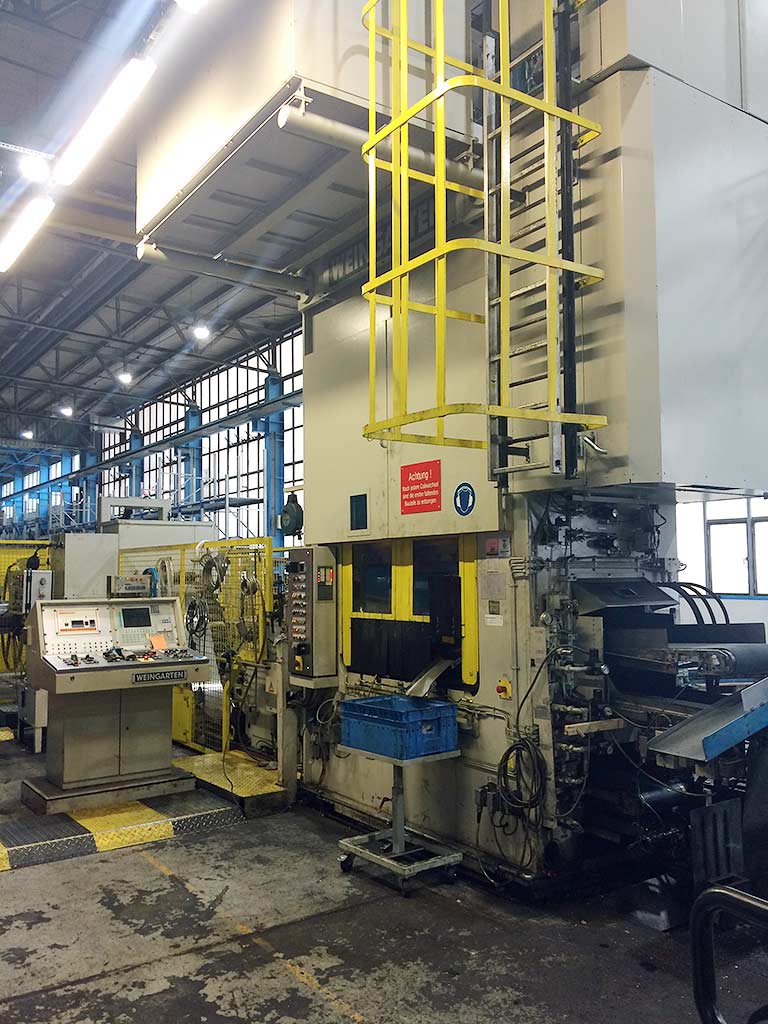

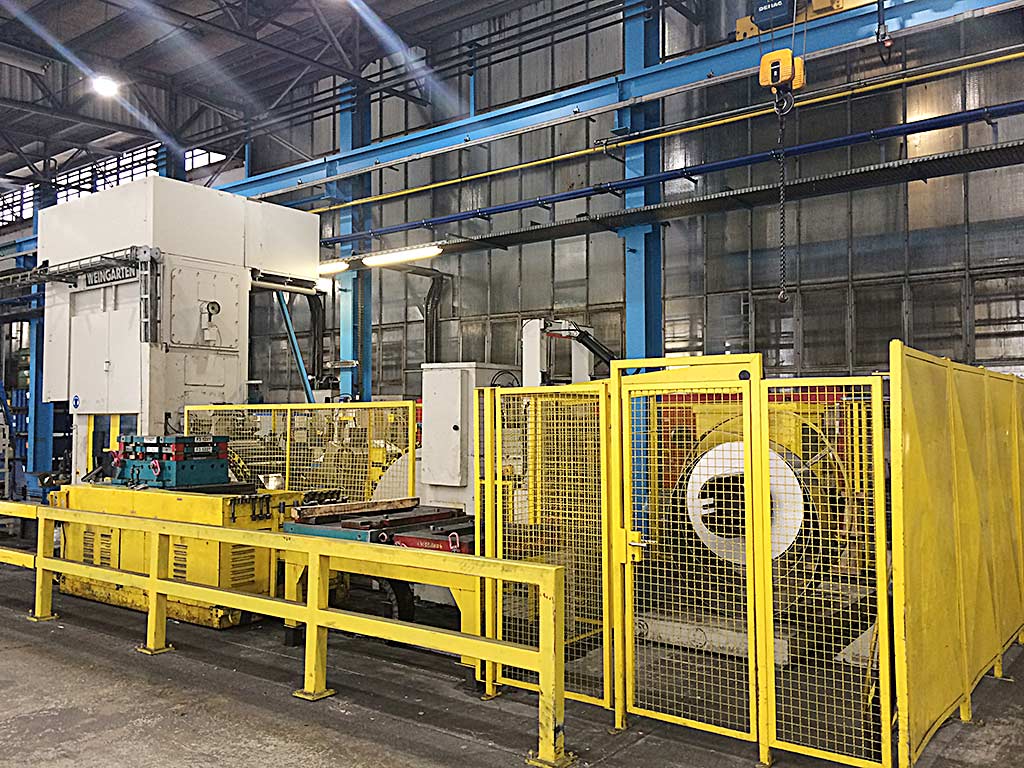

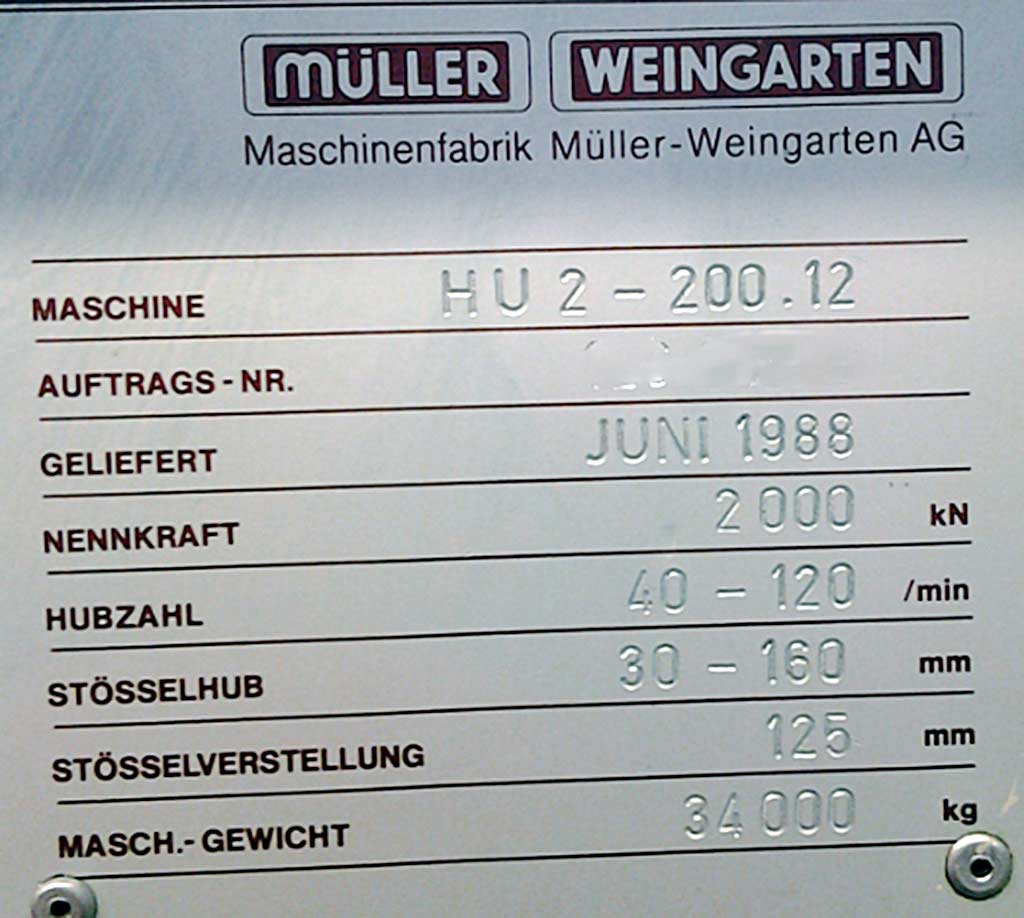

| Opis A Müller Weingarten double-column cutting and forming press including a strip straightening unit, a roll feed unit, a decoiler, a 2-roll strip take-off, a straightening machine and a strip transfer table is available. Total system dimensions X/Y/Z: approx. 12m/4m/5m. 1) Müller Weingarten two-column automatic cutting and forming machine, year of manufacture: 1988, pressing force: 2000kN, stroke rate: 120 strokes/min, ram stroke: 30mm-160mm, ram adjustment: 125mm, column width: 1500mm, table dimensions X/Y: 1250mm/1250mm, ram area X/Y: 1250mm/1000mm, weight: approx. 35000kg. 2) WE 60 roll feed unit, strip width: 500mm, feed length: 999mm, strip thickness: 0.5mm-3mm, feed accuracy: +/-0.1mm, roll diameter: 160mm, weight: approx. 700kg. 3) Strip straightening line, strip width min./max.: 30mm/600mm, strip thickness min./max.: 0,5mm-3mm, strip material: steel/aluminum, strip strength: 40kp/m², max. coil weight: 2x3000kp, max. coil diameter: 1500mm, working direction: left-right. 4) Decoiler 3000.2, spreading: sliding wedge/hydraulic, spreading range: 460mm-630mm. 5) 2-roller strip take-off, throughput width: 600mm, roller diameter: 120mm, rollers: 2. 6) Straightener 30.600/9, throughput width: 600mm, roller diameter: 30mm, number of rollers: 9, cross-section: 1200mm²/2, max. strip speed: 40m/min. 7) Strip transfer table, throughput width: 600mm, roll diameter: 100mm, number of rolls: 40, dimensions X/Y/Z: approx. 4050mm/1300mm/2300mm. This is a complete system. The control unit must be replaced. Documentation available. On-site inspection is possible. |
|
| Producent | Weingarten |
|---|---|
| Typ | HU 2-200 |
| Rok produkcji | 1988 |
| Cena | Na zapytanie |
| Nr. oferty | INNO29271 |
