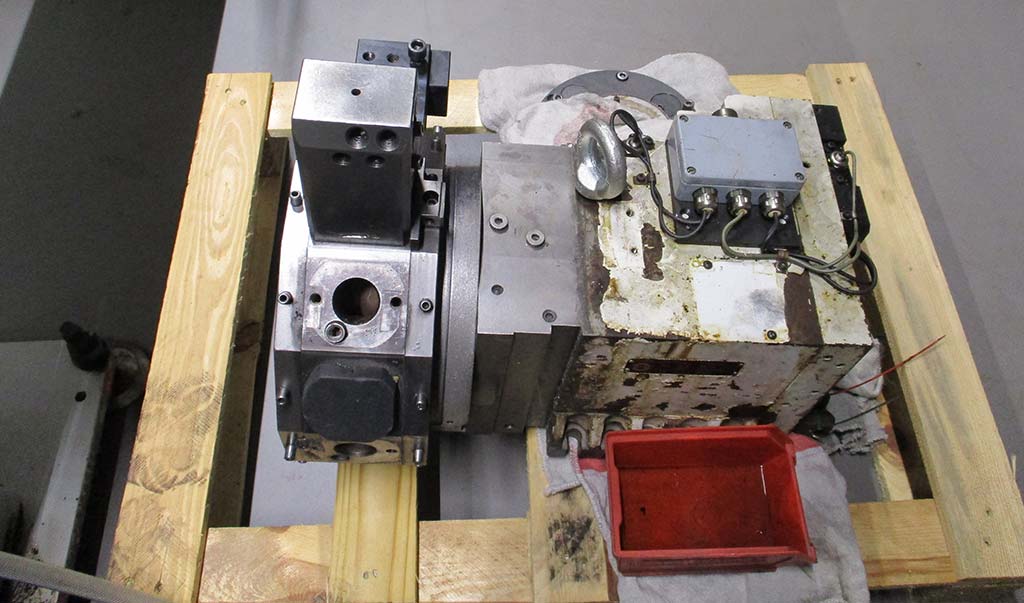

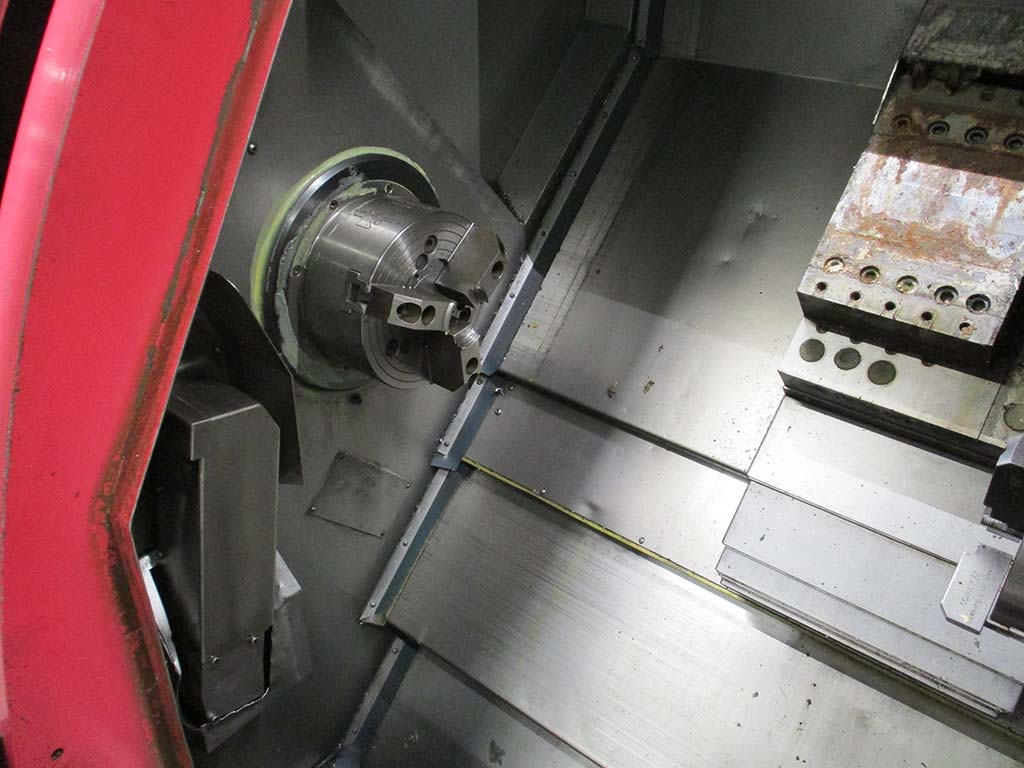

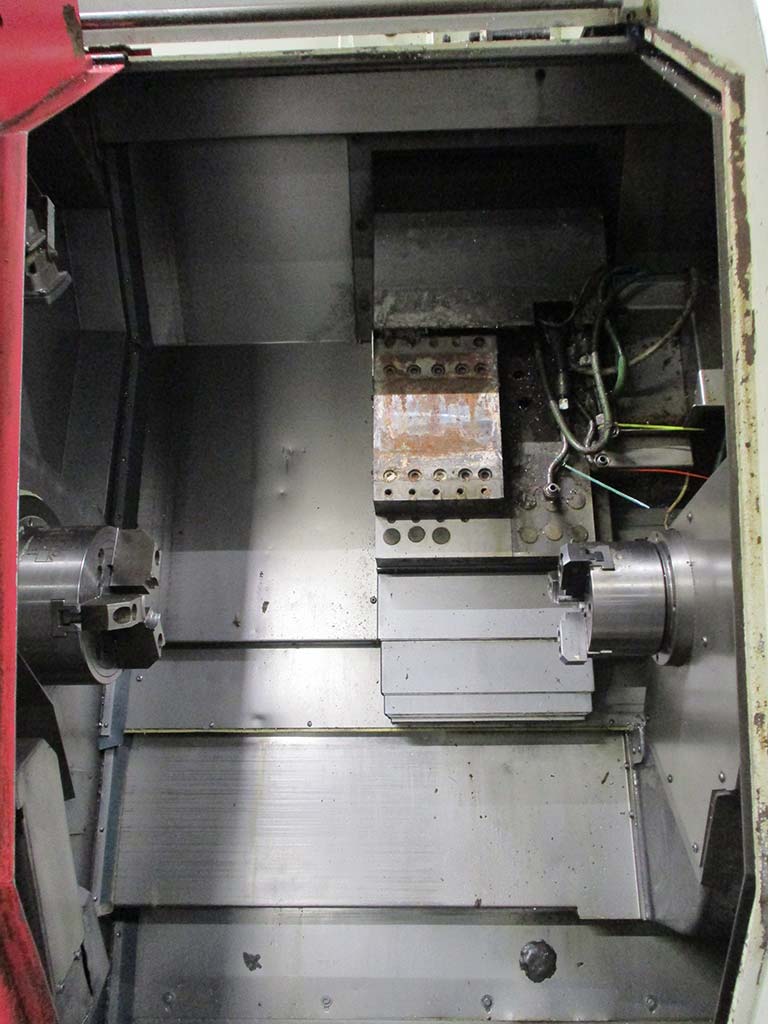

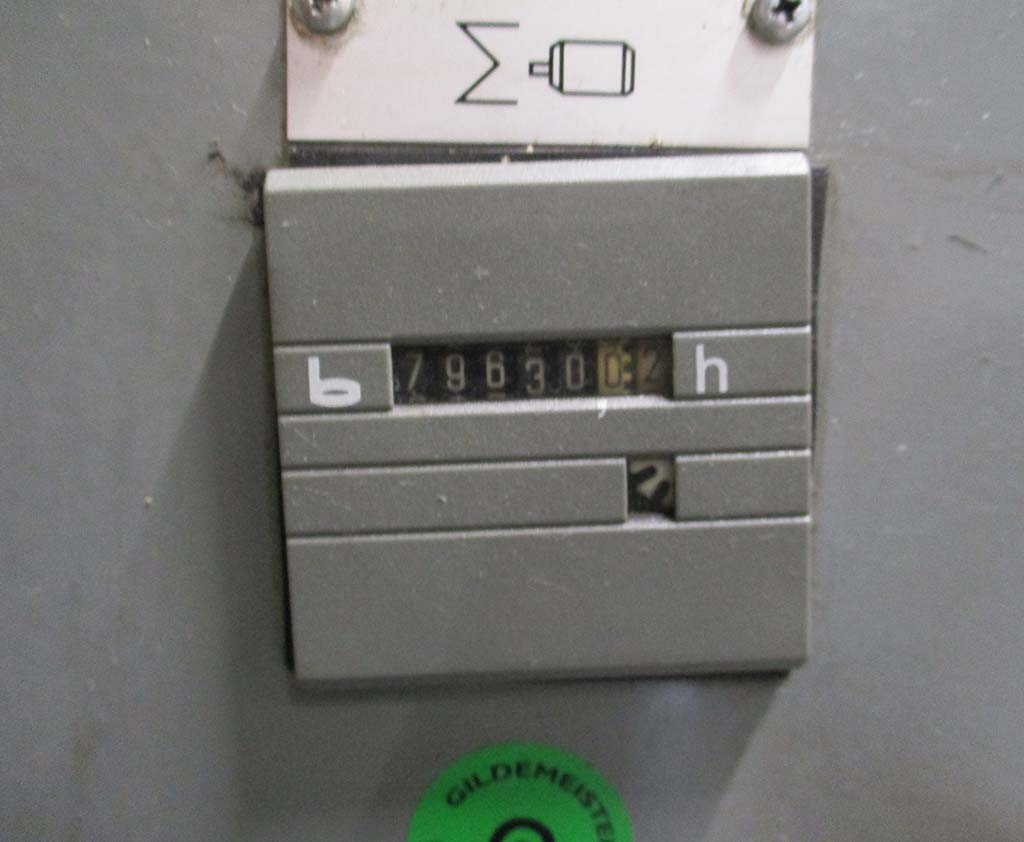

| Description X-axis travel: 220mm, Z-axis travel: 635mm, swing diameter over bedway cover: 570mm, swing diameter over cross-slide cover: 420mm, main spindle nose diameter: 170mm h5, main spindle diameter at front bearing: 120mm, main spindle bore: 79mm, drive power at 100% duty cycle: 21kW, max. torque: 240Nm, spindle speed range: 25-5,000rpm, C-axis speed: 100rpm, holding torque: 200Nm, counter spindle nose diameter: 120mm h5, counter spindle diameter at front bearing: 90mm, spindle bore: 56mm, chuck diameter: 140mm, drive power at 100% duty cycle: 9kW, max. torque: 72Nm, spindle speed range: 25-5,000rpm, travel: 575mm, rapid traverse speed: 24m/min, Z-axis feed force: 7kN, X-axis feed force: 3.5kN, X-axis rapid traverse speed: 20m/min, Z-axis rapid traverse speed: 24m/min, X/Z ball screw dimensions: 32x10mm, length: 3565mm, width: 1700mm, height: 1700mm, weight: 4.7t, operating hours: 79,630h, the machine is currently not operational due to damage to the tool turret, an on-site inspection is possible. |
|

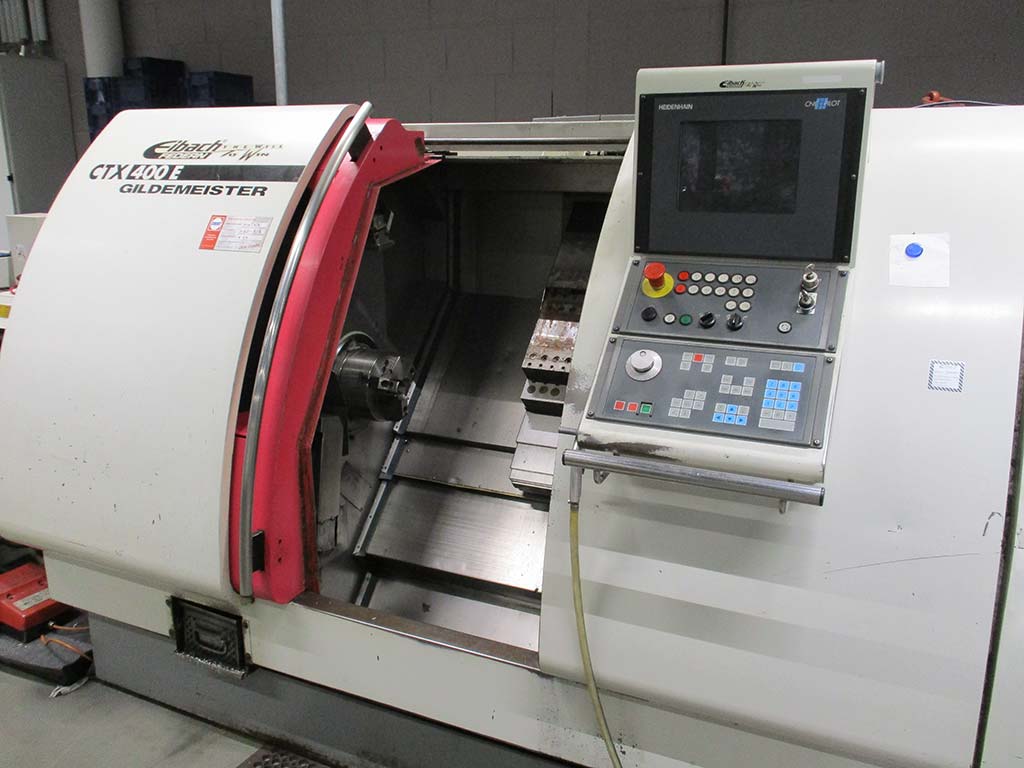

| Make | Gildemeister |
|---|---|
| Model | CTX 400E |
| Year of manufacture | 1997 |
| Price | On application |
| Offer No | INNO32689 |
