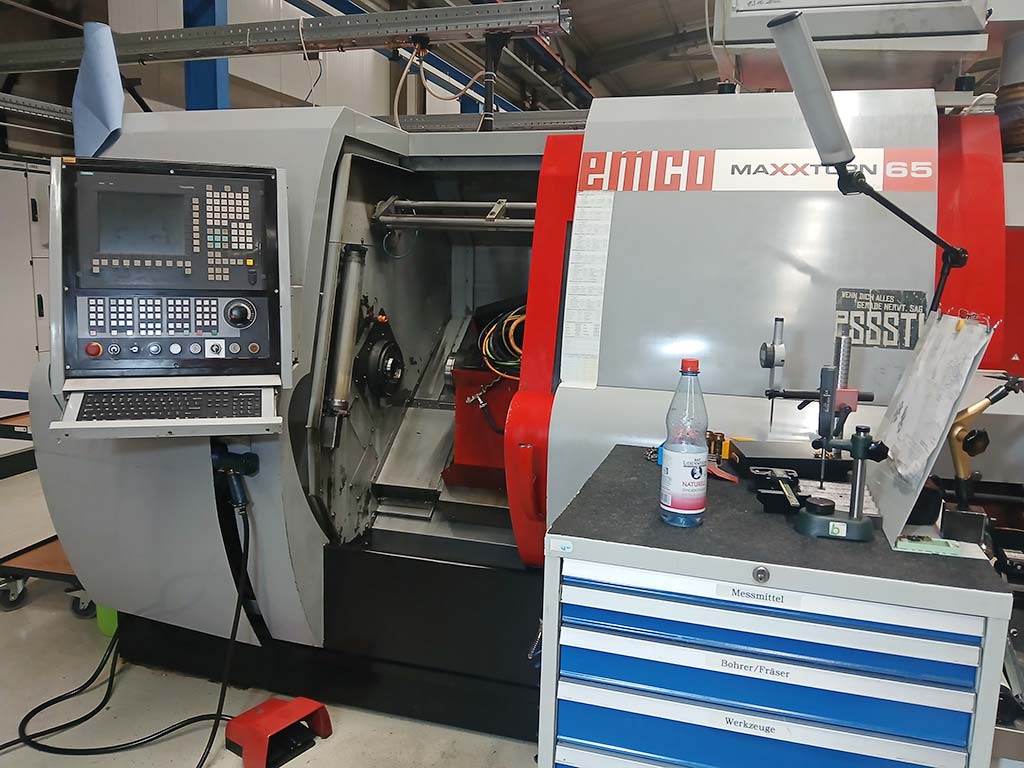

| Description X-axis: 260mm, Y-axis: 100mm (±50mm), Z1-/Z2-axis: 800/800mm, swing diameter over bed: 660mm, swing diameter over cross slide: 540mm, distance between spindle noses: 1050mm, max. turning diameter: 500mm, max. workpiece length: 1000mm, max. bar capacity: 65mm, spindle speed: 0-5,000rpm, torque: 25Nm, drive power: 6.7kW, number of driven tools: 12, number of tool stations: 12, shank diameter for boring bars: 40mm, tool change time: 0.7s, speed range of driven tools: 0-12,000rpm, torque of driven tools: 30Nm, drive power of driven tools: 10kW, compressed air connection: 6bar, connected load: 40kVA, control: Sinumerik 810D PCU20, length: 3320mm, width: 2070mm, height: 2341mm, total weight: 8.45t, operating hours: 89,129h, with documentation and service reports, regularly maintained. An on-site inspection is possible. |
|
| Make | Emco |
|---|---|
| Model | MAXXTURN 65 |
| Year of manufacture | 2007 |
| Price | On application |
| Offer No | INNO32550 |
