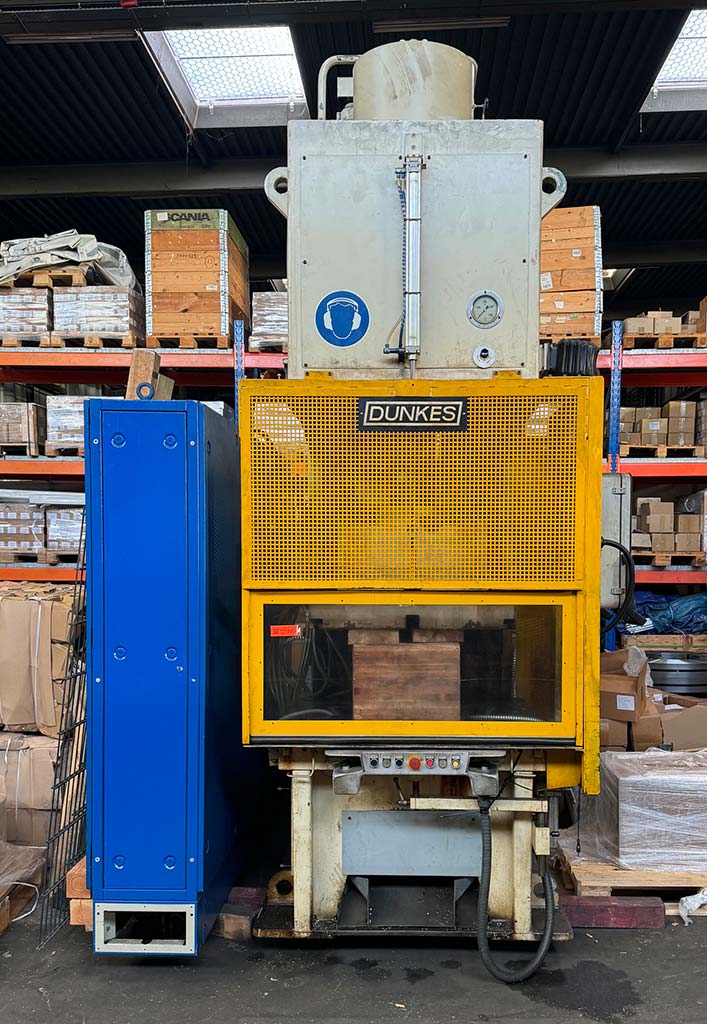

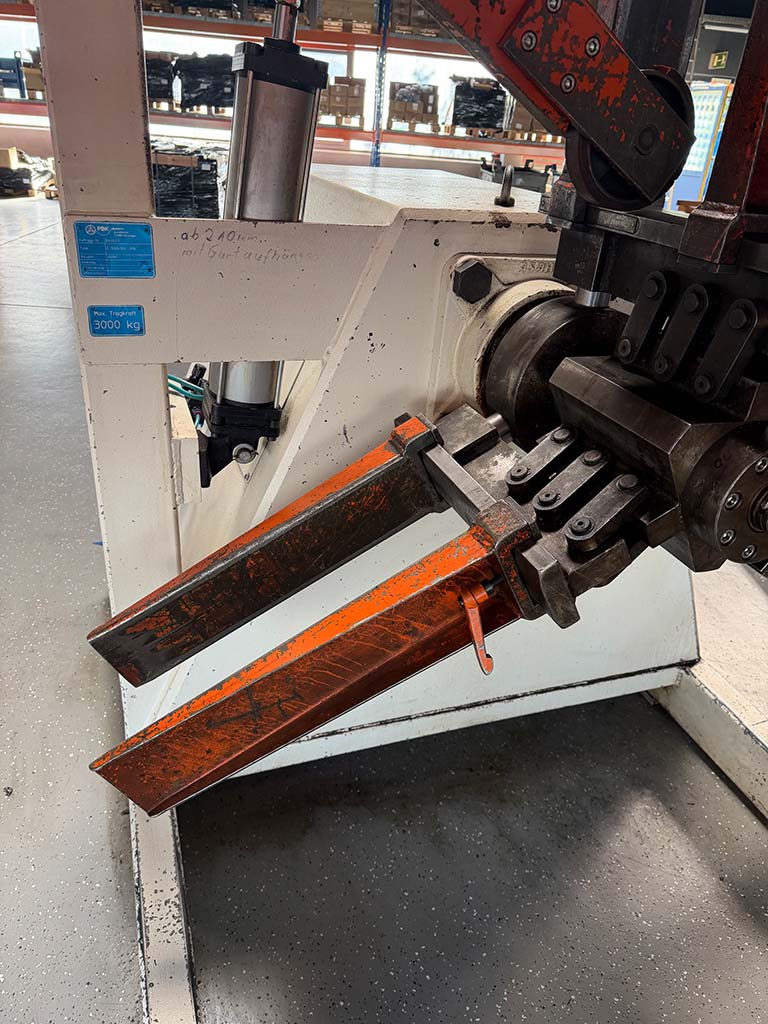

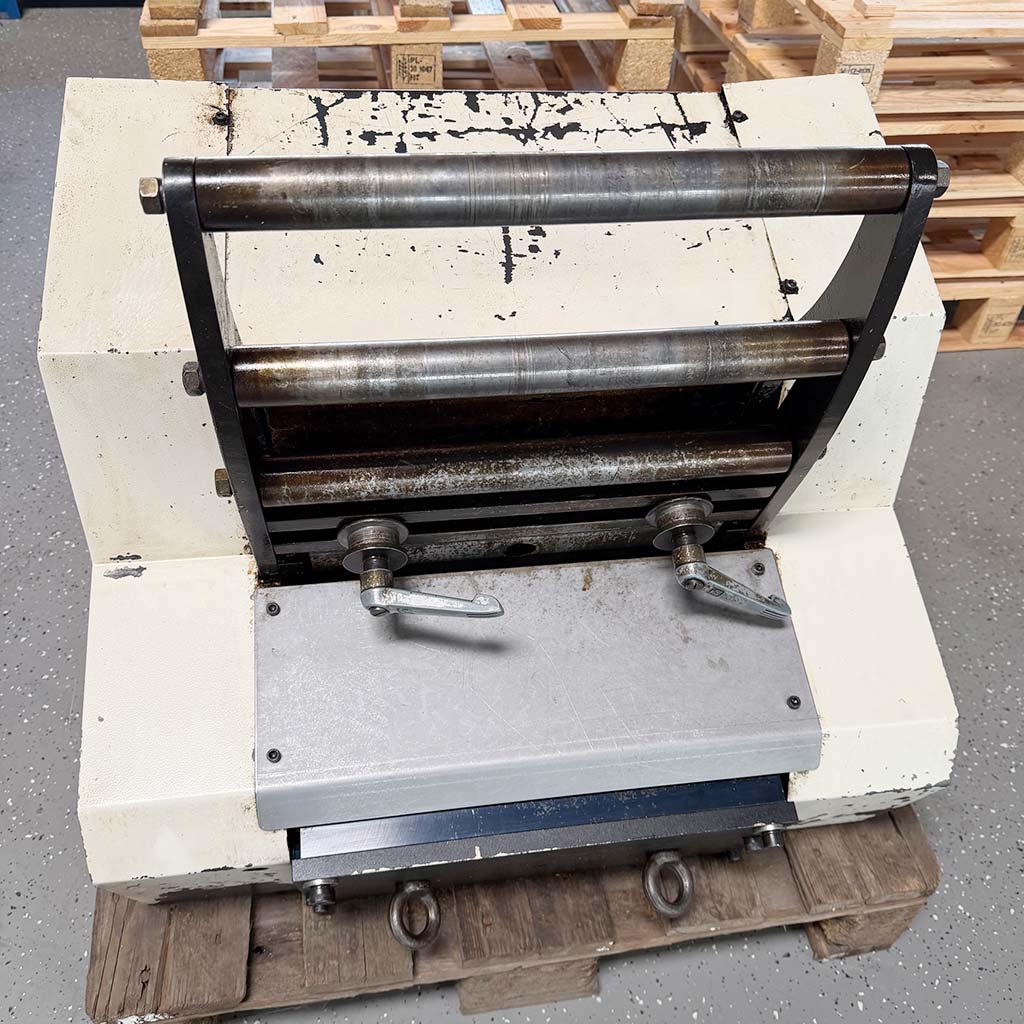

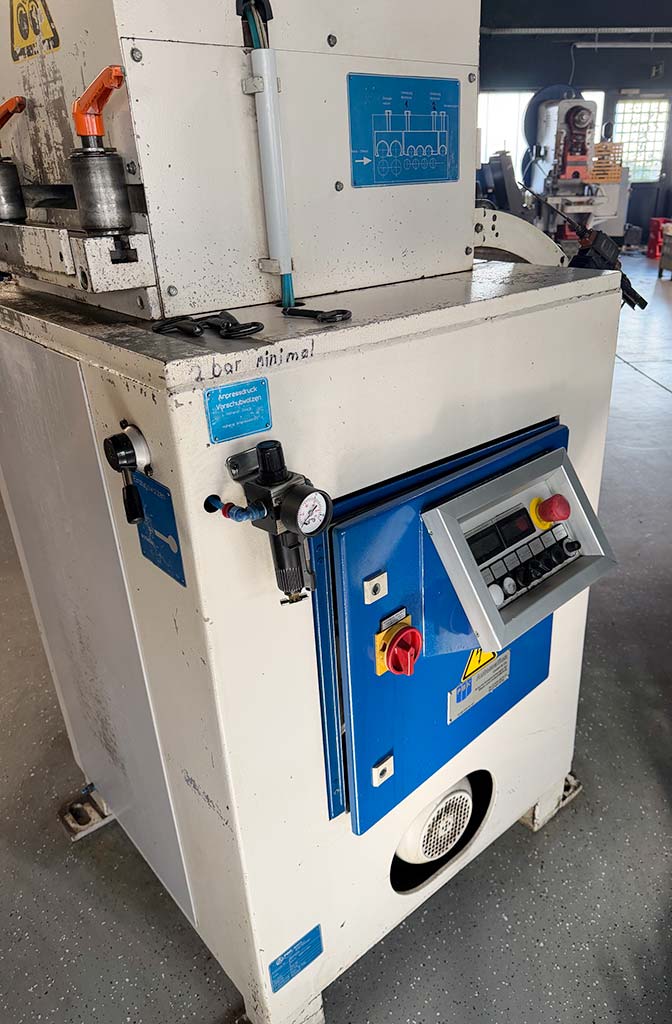

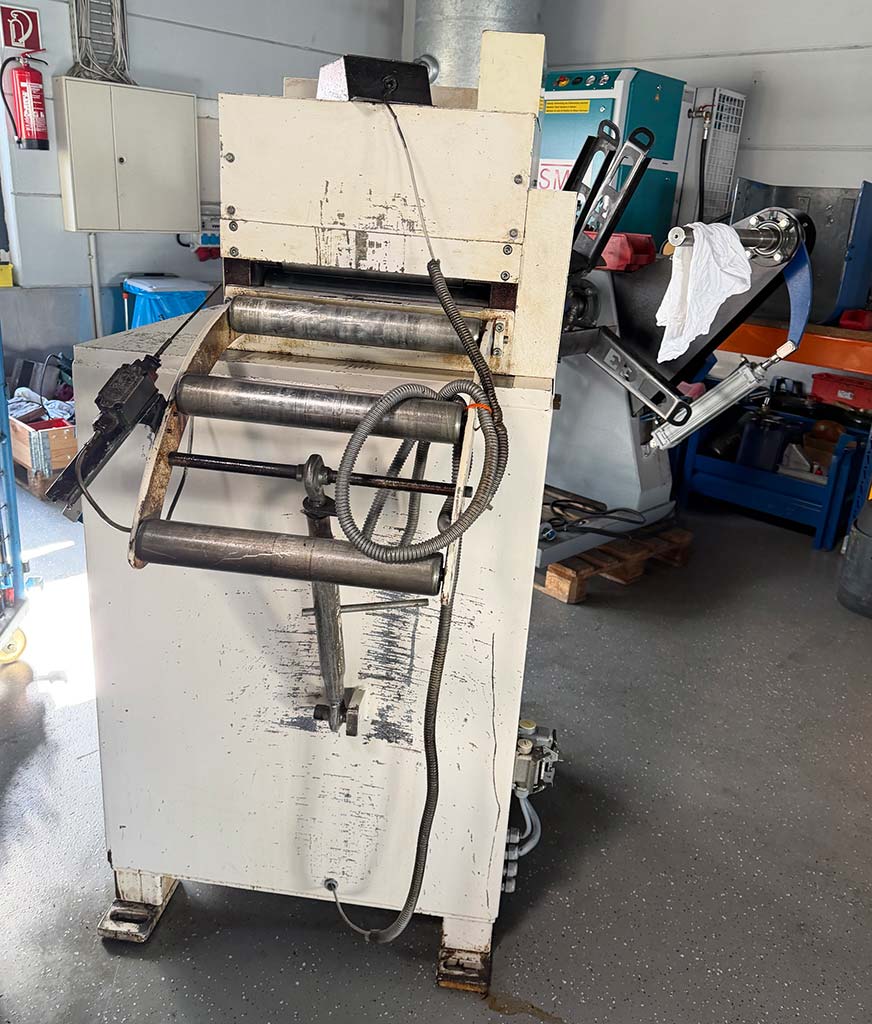

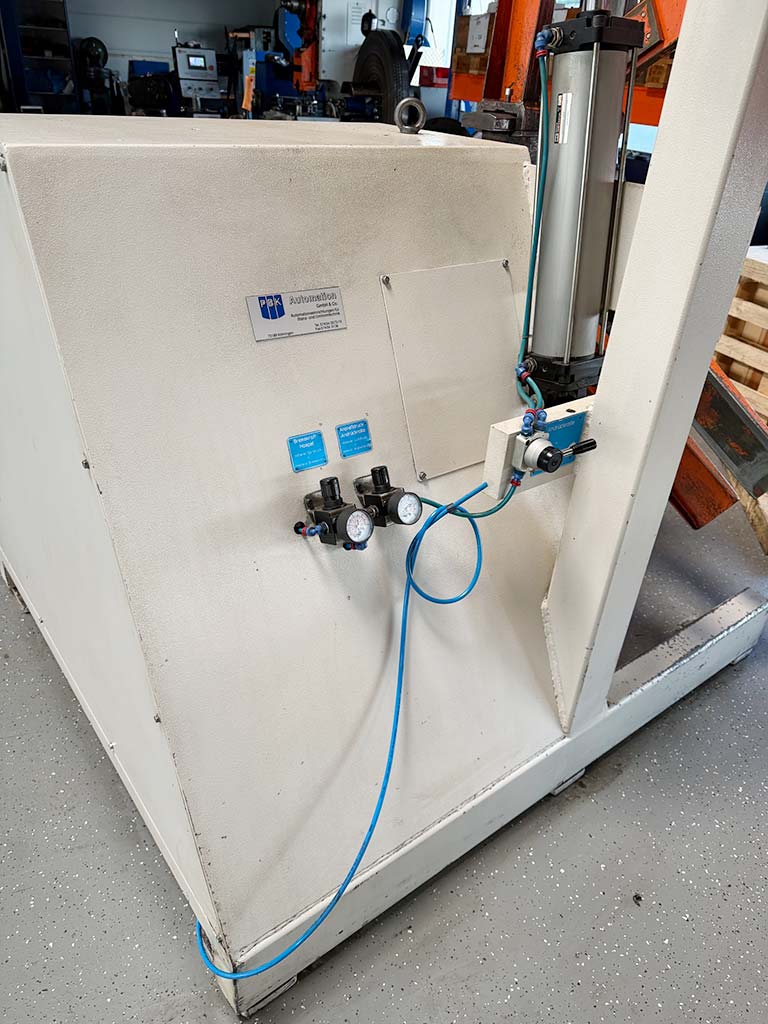

| Description A decoiling, straightening and stamping line with roller feed, straightening machine, decoiler and hydraulic press is available, 1) Roller feed WV-U-80/DSM 300 P-N, working direction: left to right, max. strip width: 300mm, strip thickness: 0.1-5mm, max. strip cross-section: 1,000mm², roller diameter: 80mm, max. feed speed: 120m/min, max. roller contact force: 4.5kN, feed accuracy: ±0.05mm, adjustable pneumatic pressure: approx. 5bar, 2) Straightening machine RSTC W60/7/300, working direction: left to right, passage width: 320mm, max. strip width: 300mm, strip thickness: 0.4-5mm, max. strip cross-section: 1,050mm², straightening and correction roller diameter: 60mm, feed roller diameter: 80mm, strip speed: 0-30m/min, feed rollers: 4, straightening rollers: 7, correction roller: 1, drive power: 3kW, 3) Decoiler E 3000/300 OMB, working direction: left to right, max. load capacity: 30kN, expansion range: 470-520mm, max. coil outer diameter: 1,500mm, strip width: 300mm, main shaft height above floor: 1,000mm, weight: 1.2t, 4) Hydraulic Single-Column Press Dunkes, pressing force: 125t, including documentation. On-site inspection is possible. |
|
| Make | Pbk Automation |
|---|---|
| Model | unknown |
| Year of manufacture | 1995 |
| Price | On application |
| Offer No | INNO32532 |
