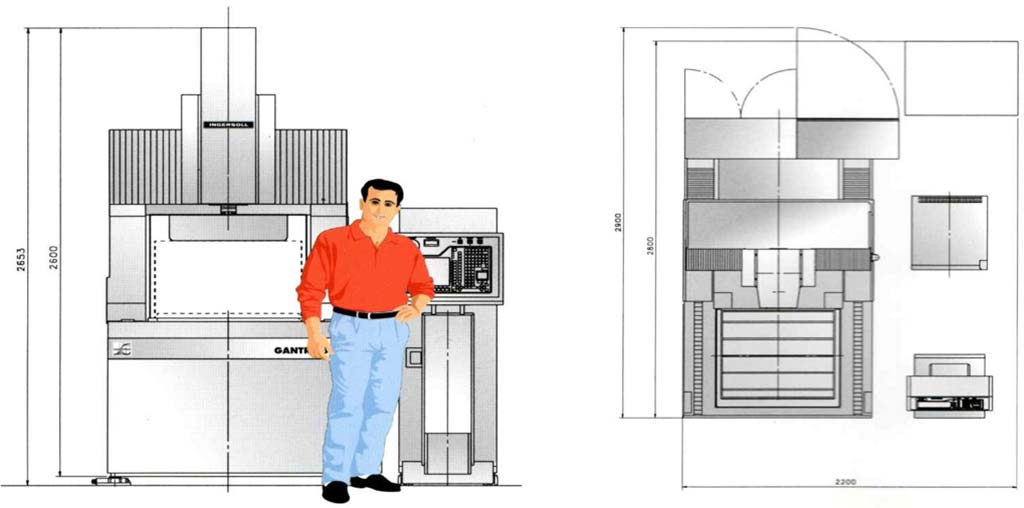

| Description X-axis: 525mm, Y-axis: 400mm, Z-axis: 450mm, Y-axis at electrode change and loading position: 675mm, internal dimensions of working tank: 750x650x420mm, max. dielectric level: 375mm, max. head load: 100kg, distance from tool carrier plate to worktable: 135-585mm, integrated C-axis speed, adjustable: 1-20rpm, measuring resolution: 0.001°, load capacity with manual electrode change: 50kg, load capacity with automatic electrode change: 15kg, support surface: 730x630mm, worktable load capacity: 1,000kg, connected load: 7kVA, fuse protection: 25A, length: 2900mm, width: 2200mm, height: 2653mm, machine weight: 4.4t, generator weight: 200kg, with documentation, C-axis, EW20 electrode changer, TAE M10 cooling unit, CO2 fire extinguishing system, 4µm filter system, locators, MultiProg software, an on-site inspection is possible. |
|
| Make | Ingersoll Hansen |
|---|---|
| Model | GANTRY 500 |
| Year of manufacture | 1996 |
| Price | On application |
| Offer No | INNO32429 |
