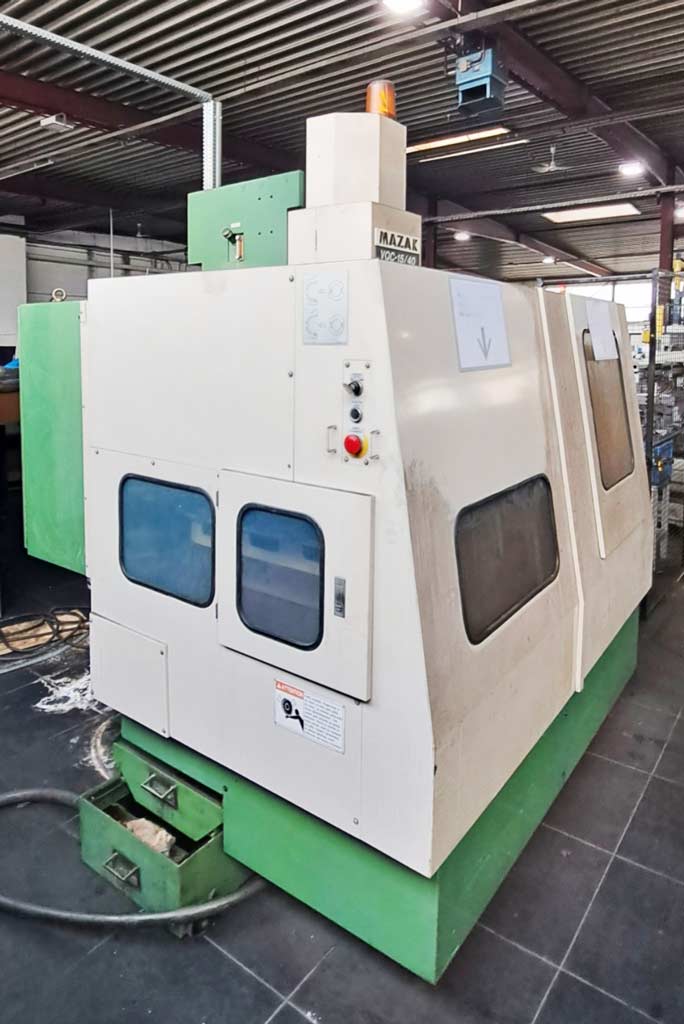

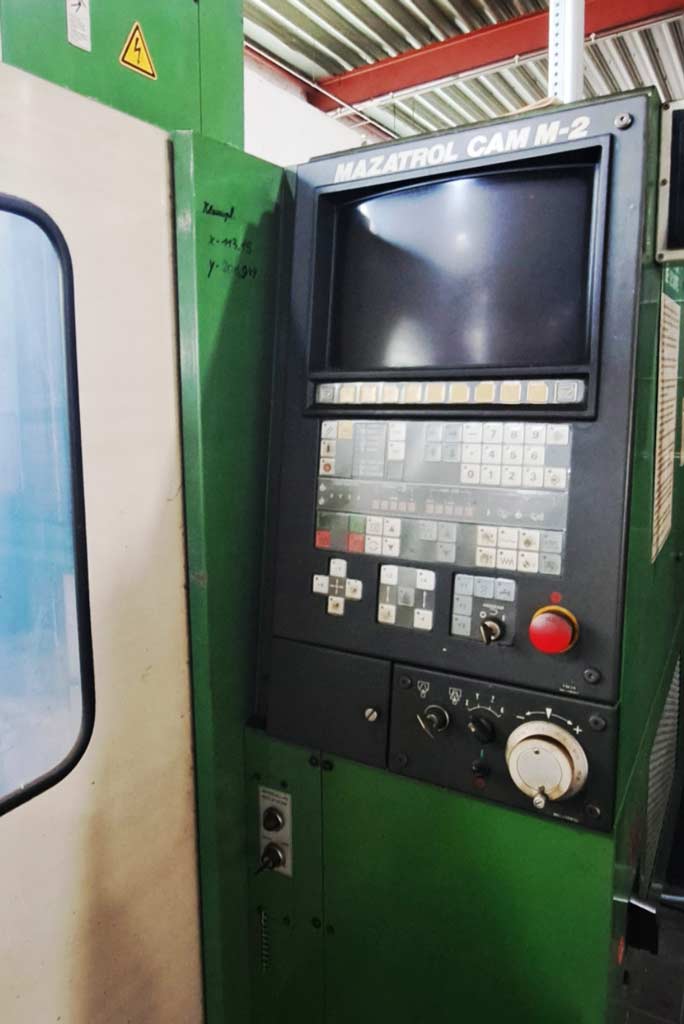

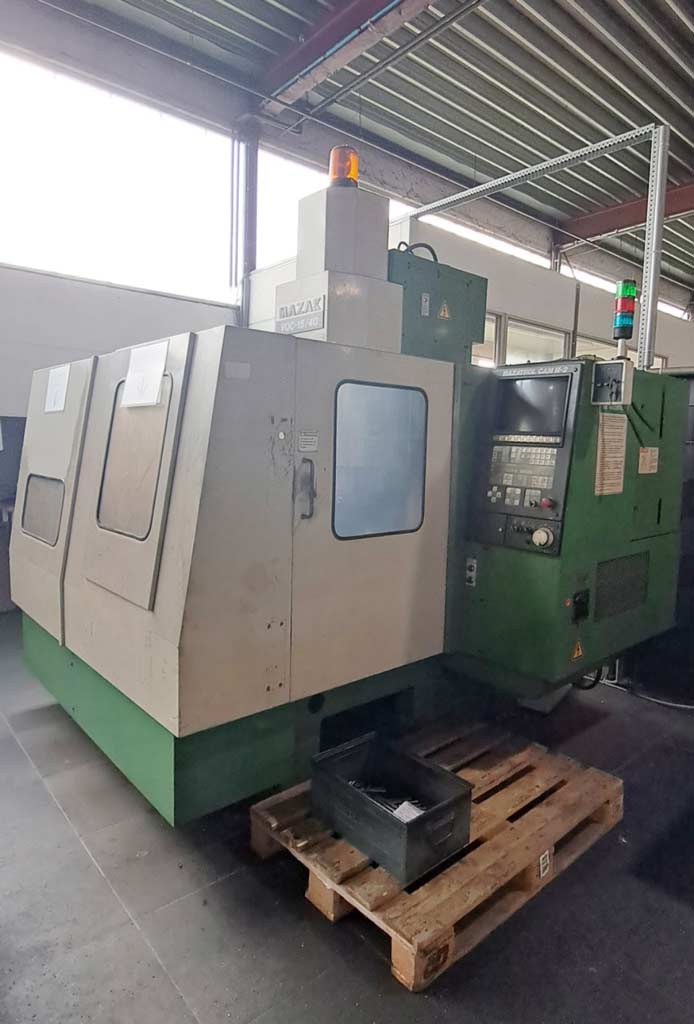

| Description A vertical CNC machining center is offered. X/Y/Z-axis travels: 560mm/410mm/381mm, spindle speed: 60-6000rpm, drive power: 3.7/5.5kW, table size: 410mm × 900mm, max. table load: 300kg, tool shank: ISO 40 (MAS-BT40), rapid traverse X/Y/Z: 24/24/18m/min, control: Mazatrol CAM M-2. Equipped with original parameter lists. Weight: approx. 4200kg, overall dimensions X/Y/Z: approx. 2300mm/2000mm/2641mm. The program is missing because the machine has been disconnected from power for several years. Documentation available. Inspection possible by appointment. |
|

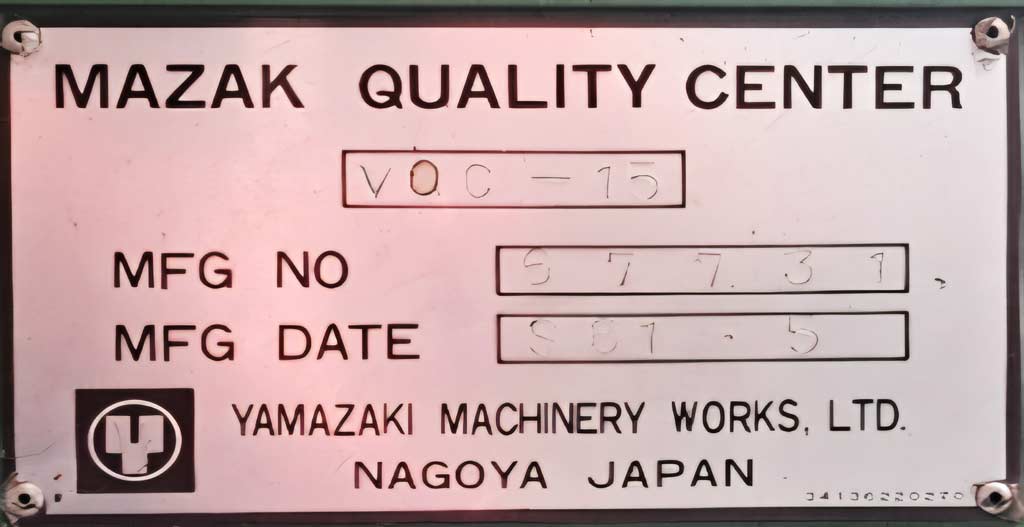

| Make | Mazak |
|---|---|
| Model | VQC 15/40 |
| Year of manufacture | 1986 |
| Price | On application |
| Offer No | INNO32375 |
