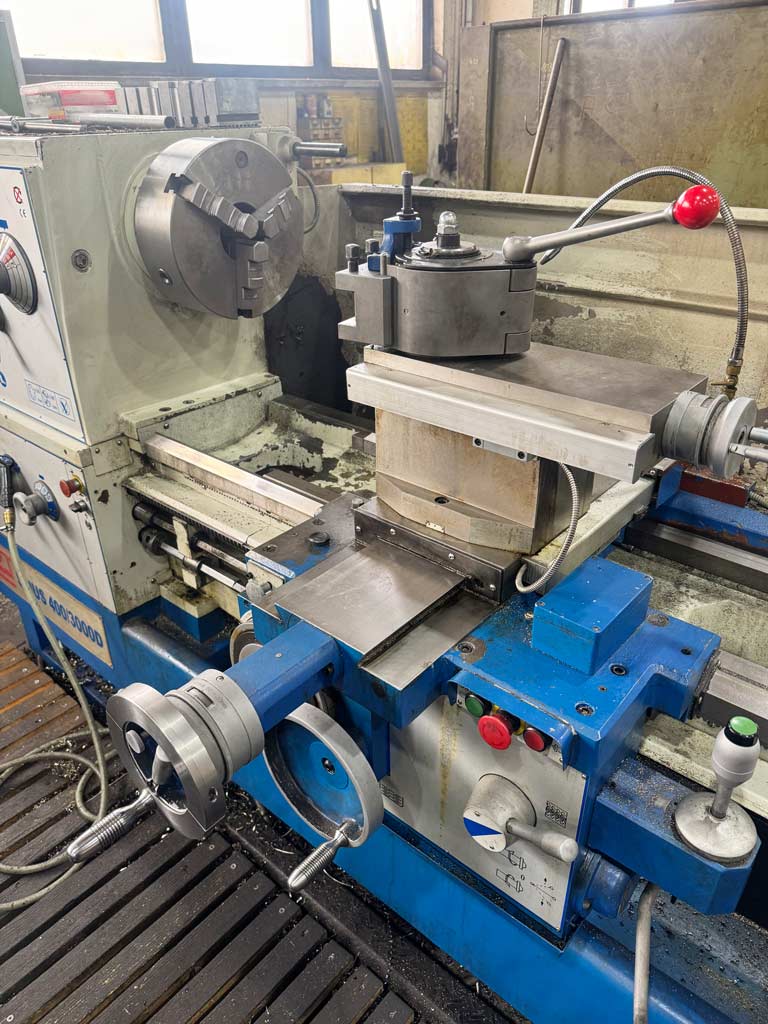

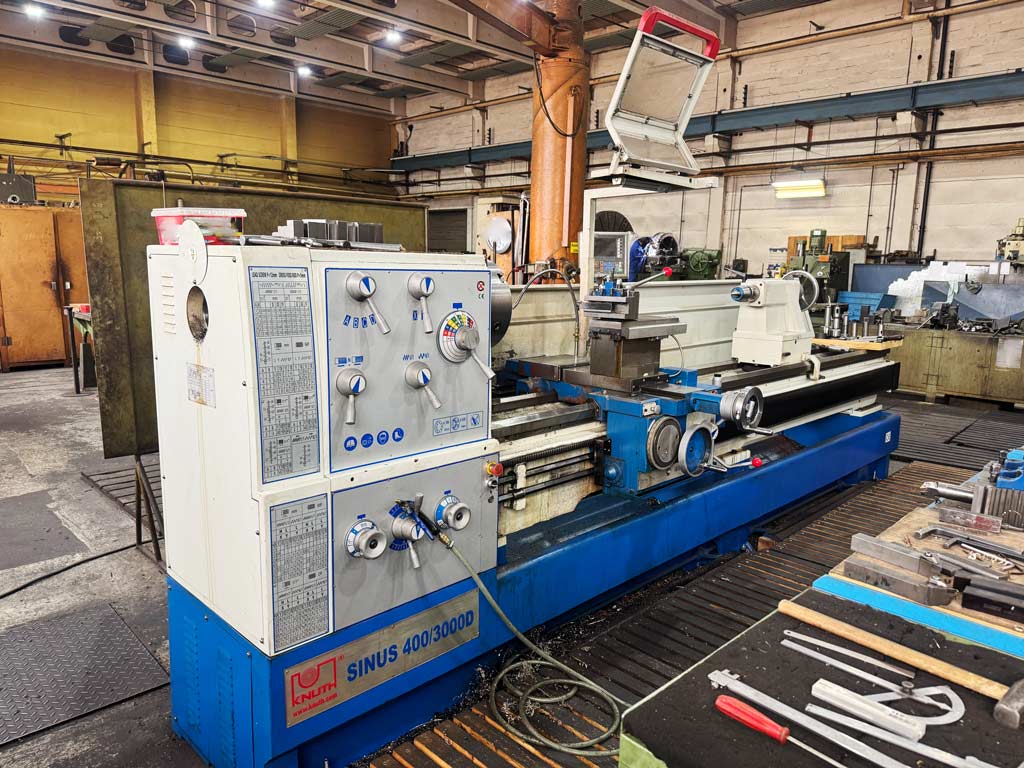

| Description Workpiece length: 3000mm, swing over bed/carriage: 800mm/570mm, turning diameter without gap bridge: 1035mm, gap bridge length: 330mm, bed width: 400mm, travel X/Z: 420mm/230mm, max. spindle speed: 1600rpm, spindle bore: 105mm, spindle mount: D1-8, spindle taper: MT5, tailstock taper: MT5, tailstock quill diameter: 90mm, tailstock quill stroke: 235mm, main drive motor power: 7.5kW. Machine dimensions X/Y/Z: approx. 4740mm/1140mm/1910mm, weight: approx. 3870kg. Including measuring system. Documentation available. An on-site inspection is possible. |
|
| Make | Knuth |
|---|---|
| Model | Sinus 400/3000 D |
| Year of manufacture | 2023 |
| Price | On application |
| Offer No | INNO32283 |
