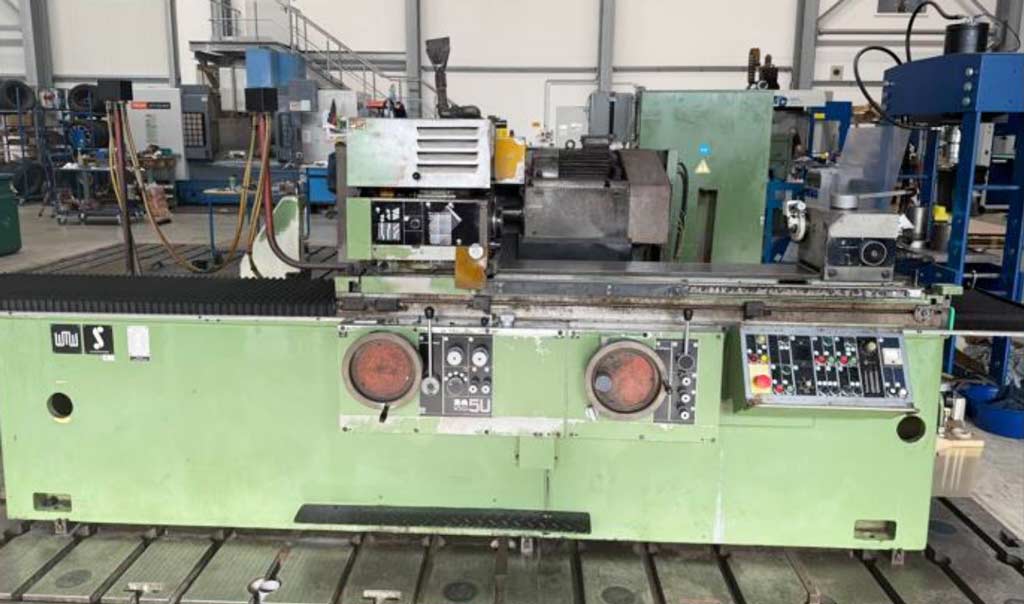

| Description Center height: 180mm, distance between centers: 1000mm, max. grinding diameter: 355mm, stop accuracy: 1µm, max. workpiece weight: 500kg, max. workpiece weight when machining in the chuck: 120kg, max. workhead spindle speed: 355rpm, workhead spindle power: 1.5kW, Morse taper: MK5, workhead swivel range toward the grinding wheel/away from the grinding wheel: 90°/10°, quill travel: 40mm, table feed during longitudinal grinding: 0.05m/min-5m/min, travel during longitudinal grinding: 4mm-2180mm, dwell time at reversal point: 0s-5s, max. grinding spindle speed: 1860rpm, grinding wheel dimensions diameter/width/bore: 630mm/125mm/305mm. Weight: approx. 5100kg. The machine has been geometrically reconditioned. Documentation available. An on-site inspection is possible. |
|

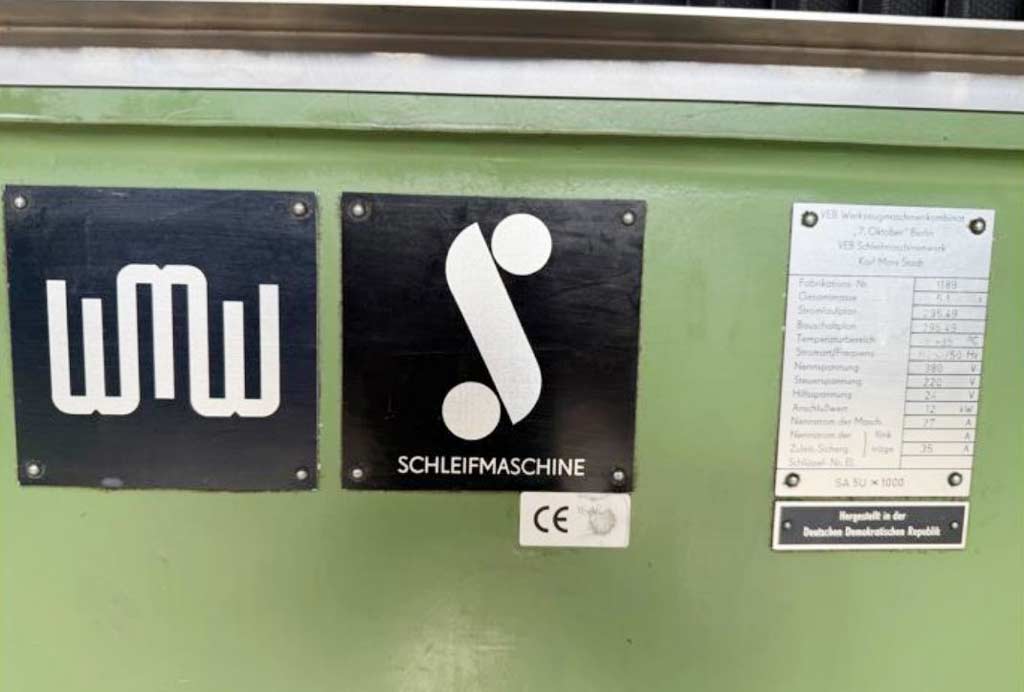

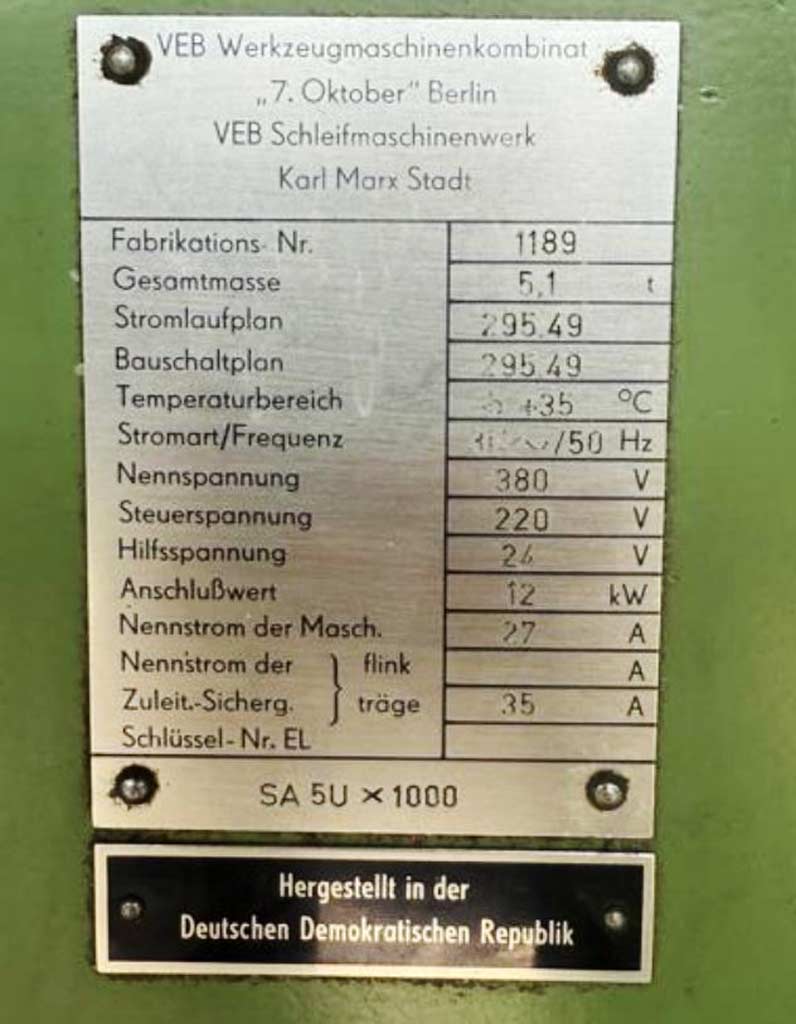

| Make | Wmw |
|---|---|
| Model | SA 5U x 1000 |
| Year of manufacture | unknown |
| Price | On application |
| Offer No | INNO32265 |
