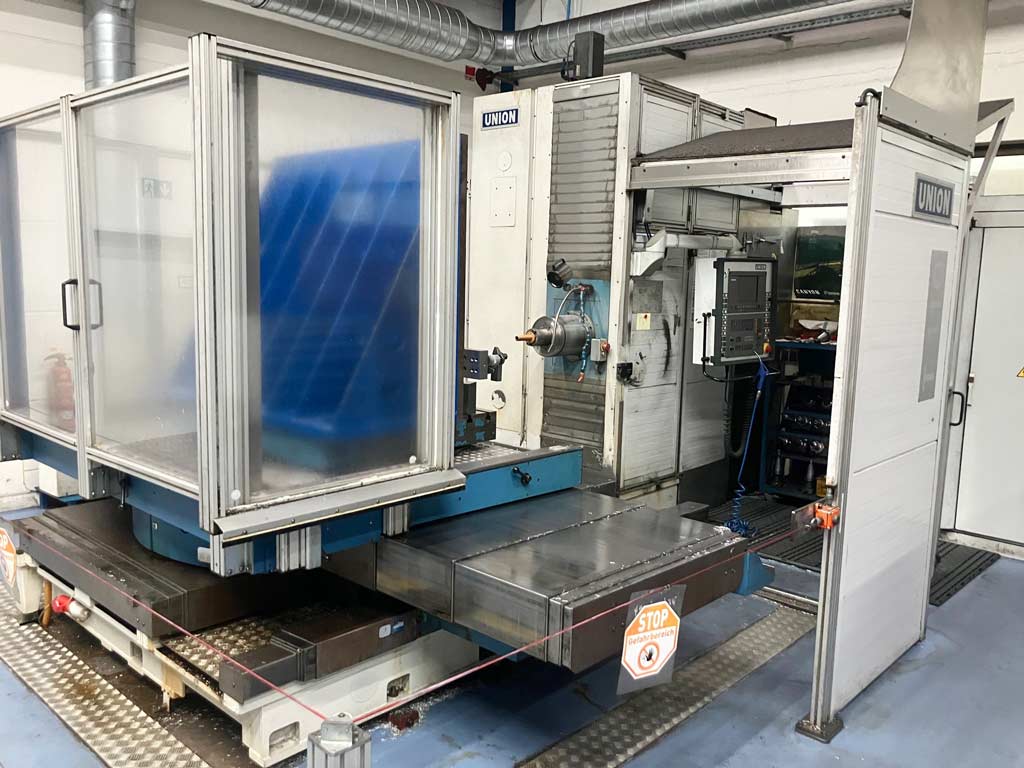

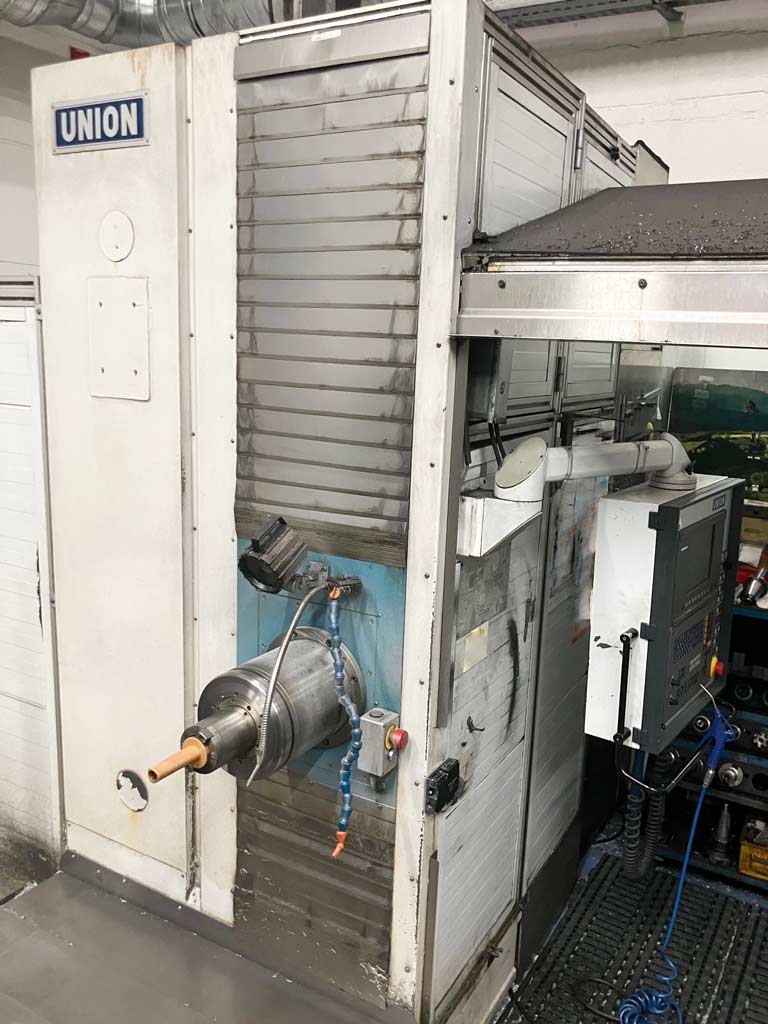

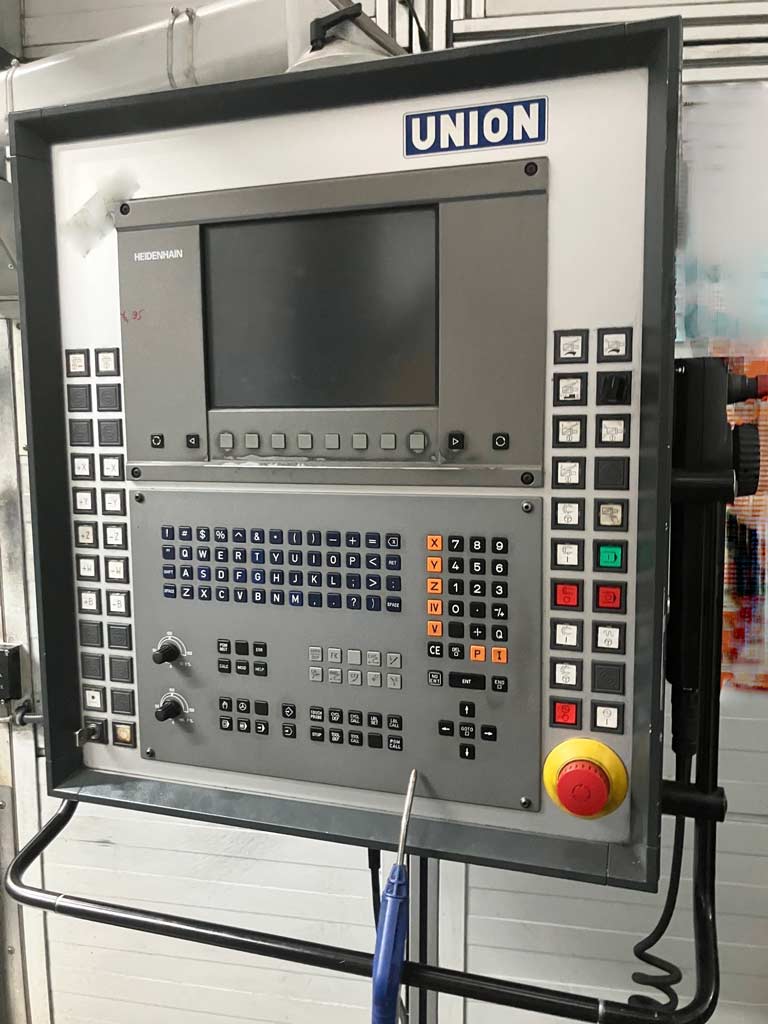

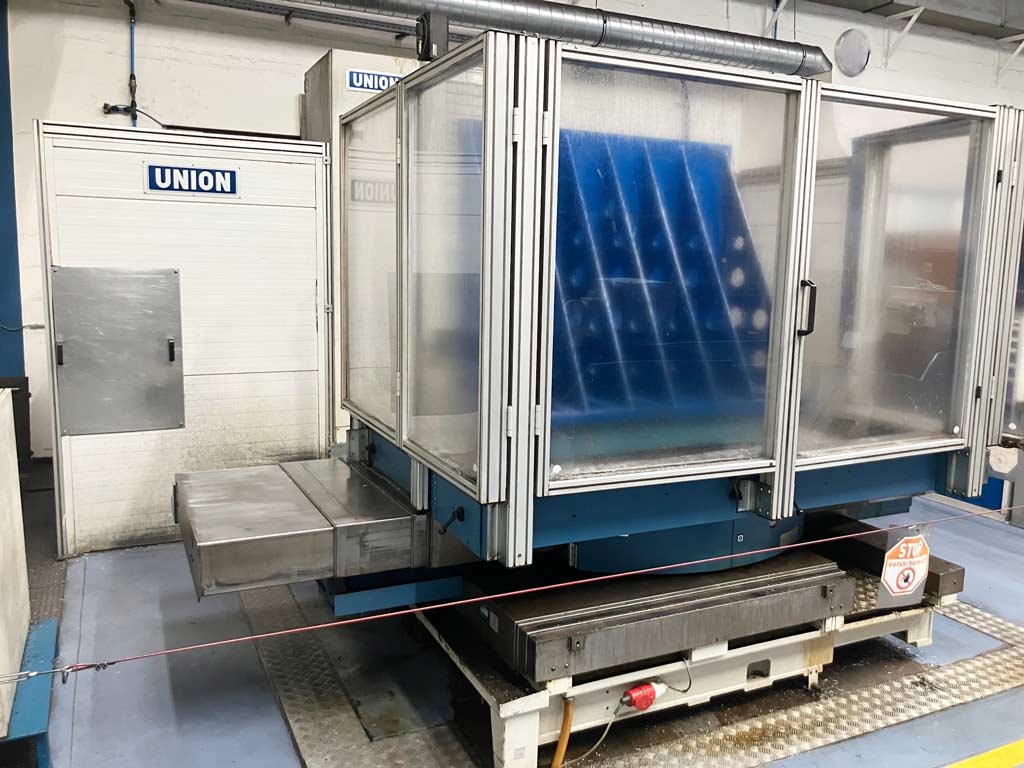

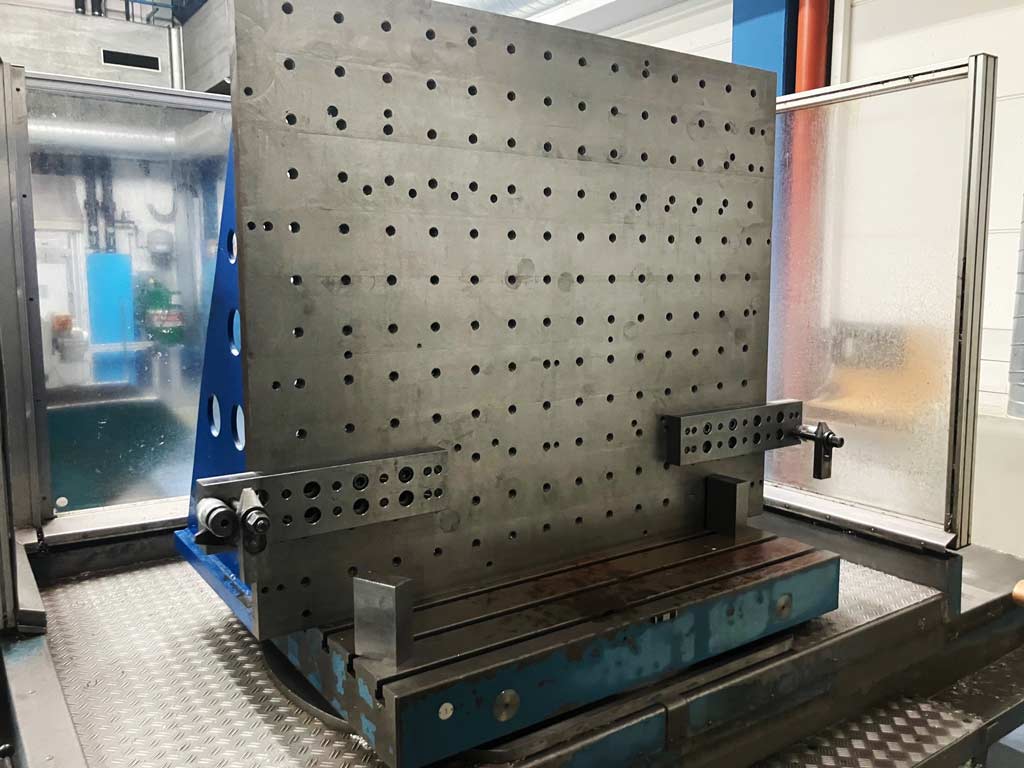

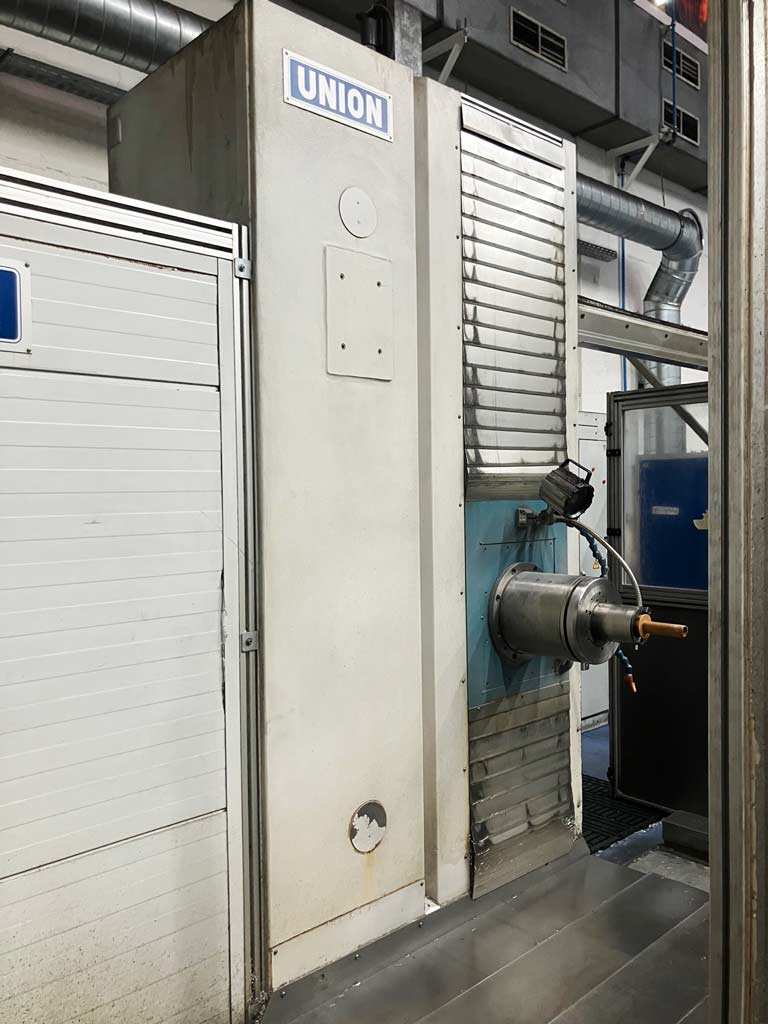

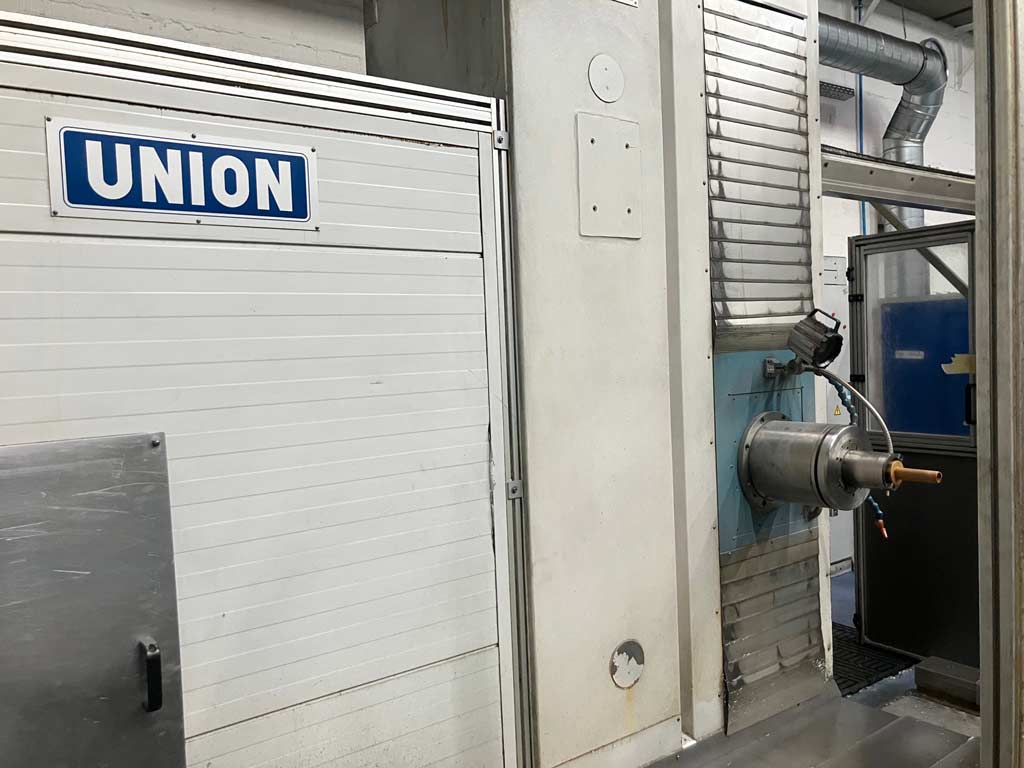

| Description Travel X/Y/Z/W: 1500mm/1250mm/1000mm/550mm, B-axis: 360°, boring spindle diameter: 110mm, spindle speed: 4000rpm, gear ranges: 2, rapid traverse: 15m/min, tool taper: SK50, table dimensions X/Y: 1000mm/1250mm, T-slot width: 22mm, height of clamping surface above floor: 1050mm, max. table load: 6000kg, control: Heidenhain TNC 426. With electronic handwheel. Weight: approx. 13500kg. An on-site inspection is possible. |
|
| Make | Union |
|---|---|
| Model | T110 |
| Year of manufacture | 2001 |
| Price | On application |
| Offer No | INNO32249 |
