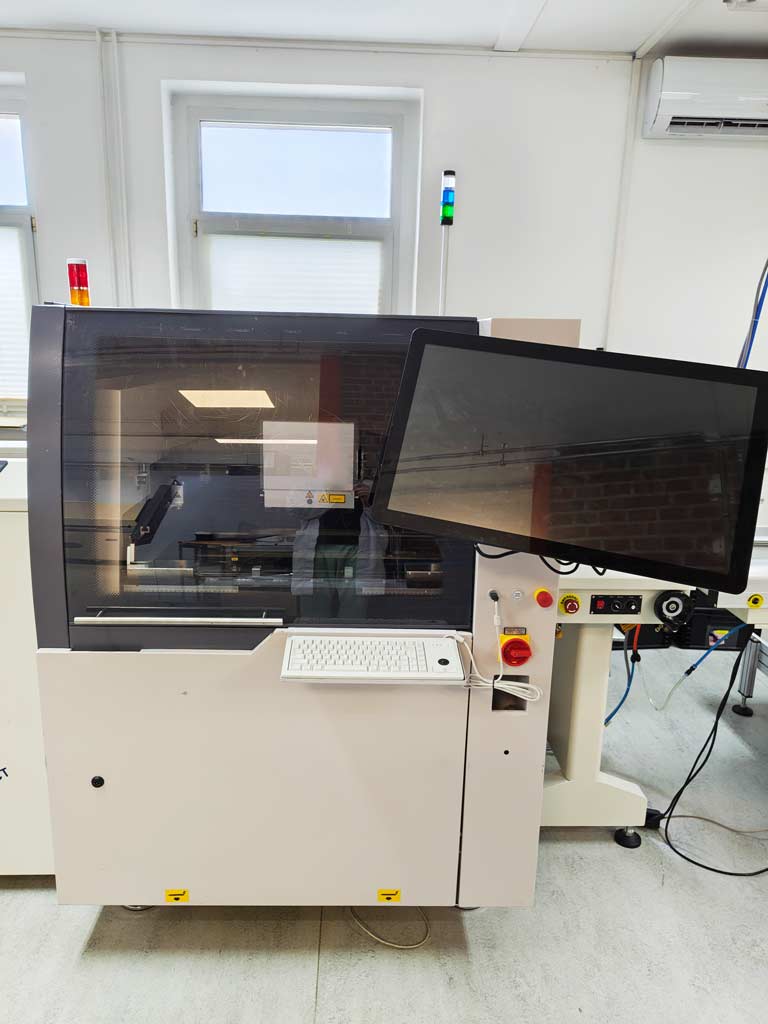

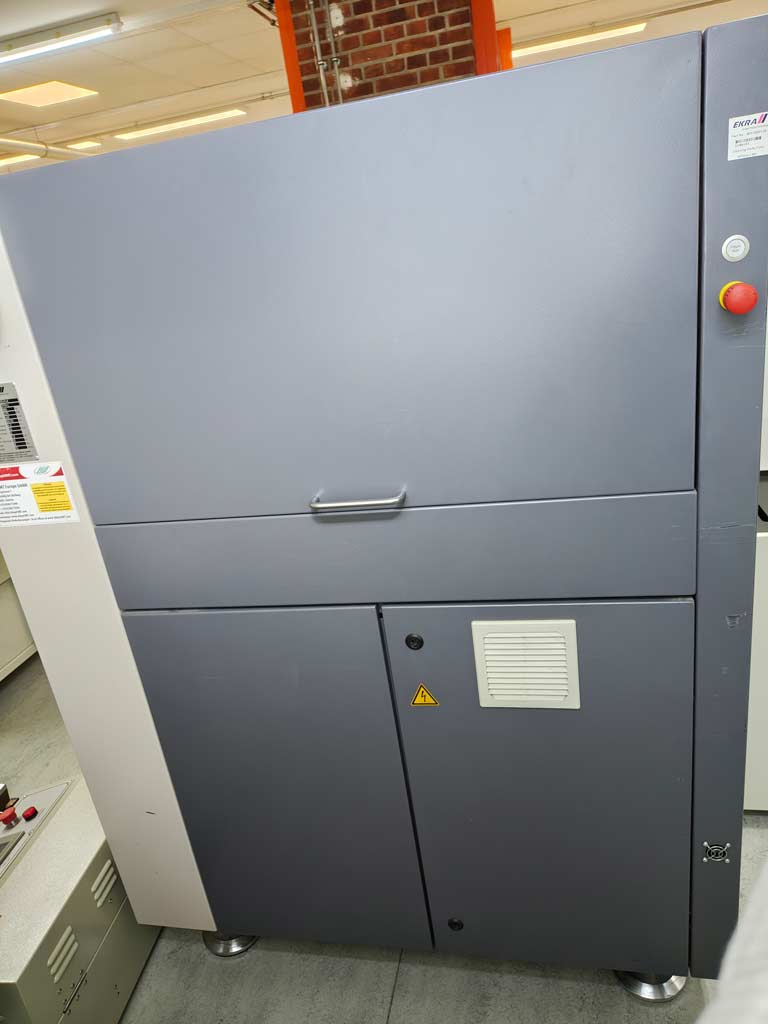

| Description Offered is a fully automatic EKRA screen and stencil printing system. Max. print format X/Y: 508mm/508mm, min. print format X/Y: 80mm/50mm, max. frame size X/Y: 740mm/740mm, substrate thickness range: 0.5mm-6mm, max. squeegee speed: 200mm/s, squeegee pressure range: 10N-250N, repeatability: +/-12.5µm, 6 Sigma, cycle time: 8s + printing time. Including solder paste height inspection, 2.5D SPI and fixtures for VarioGrid support bars as well as iPAG dispensing system. The machine was serviced in April 2025. Machine dimensions X/Y/Z: approx. 1140mm/1866mm/1503mm, weight: 980kg. Documentation available. Inspection possible by appointment. |
|

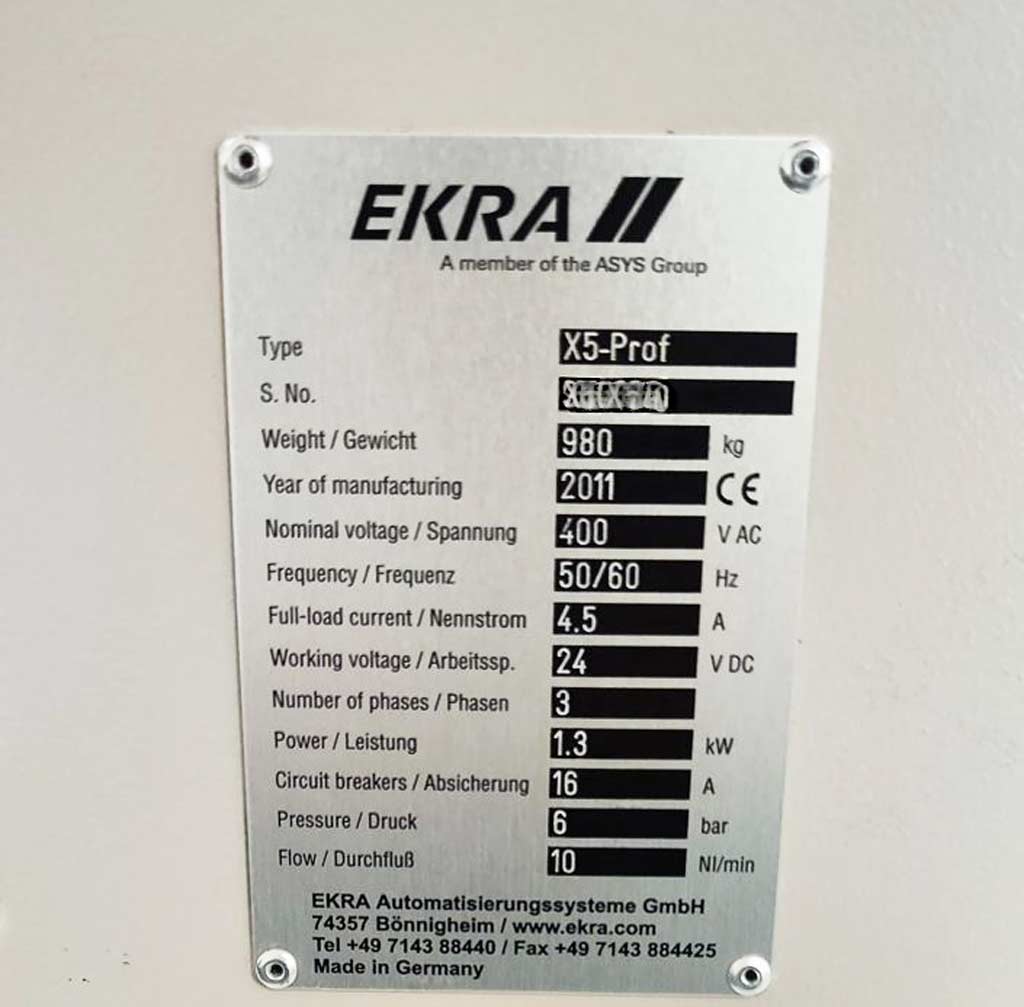

| Make | Ekra |
|---|---|
| Model | X5-Prof |
| Year of manufacture | 2011 |
| Price | On application |
| Offer No | INNO32149 |
