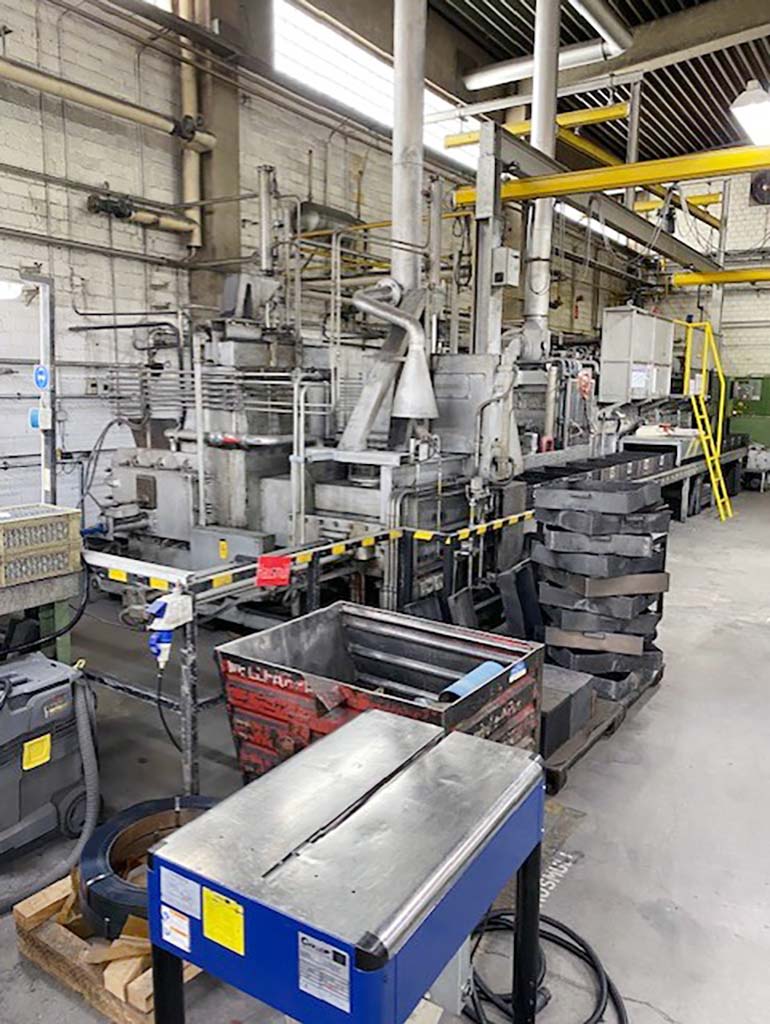

| Description Usable furnace width: 600mm, usable furnace height: 310mm, clear passage height: 350mm, furnace zone length: 3500mm, number of heating zones: 3, radiant tube control: On/Off, radiant tube monitoring: via UV cell, max. temperature: 1050°C, operating temperature: approx. 800-1000°C, material processed: transformer and slit-strip cores, net/gross throughput: 750/860kg/h, max. grate load: 250kg, permissible grate weight: 50kg, cycle time per grate: approx. 20min, heating, equalizing, holding: approx. 850°C, approx. 120min, cooling: from approx. 850°C to below approx. 200°C in approx. 180min, number of grates: inlet lock: 1, annealing furnace: 6, furnace neck: 1, cooling section: 9, outlet lock: 0, grate return transport (buffer): 18, grate width: 600mm, grate length: 600mm, grate height: 60mm, overall grate height: 210mm, frame height: 150mm, weight per grate: approx. 50kg, annealing furnace length: 5000mm, cooling zone length: 5700mm, overall furnace system length: 15,100mm, loading height of the system: 700mm, with an Exogas Generator Gebrüder Hammer GmbH and documentation. An on-site inspection is possible. |
|
| Make | Aichelin |
|---|---|
| Model | DLGs 100/350 |
| Year of manufacture | 1977 |
| Price | On application |
| Offer No | INNO32148 |
