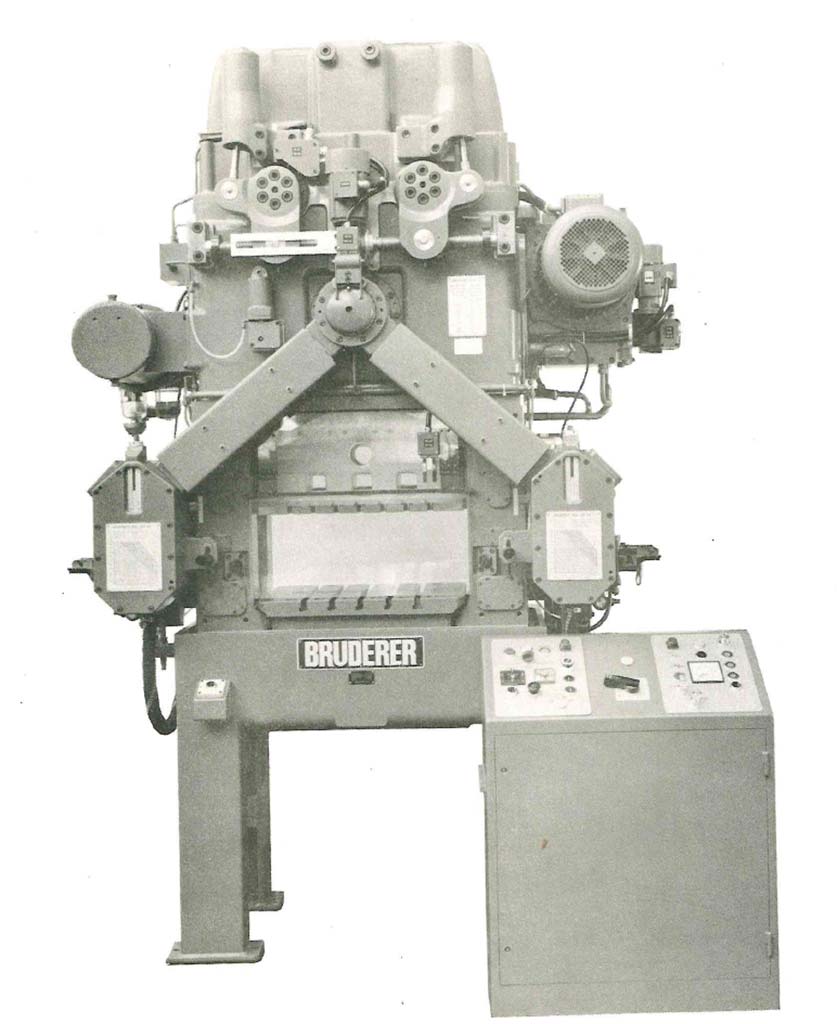

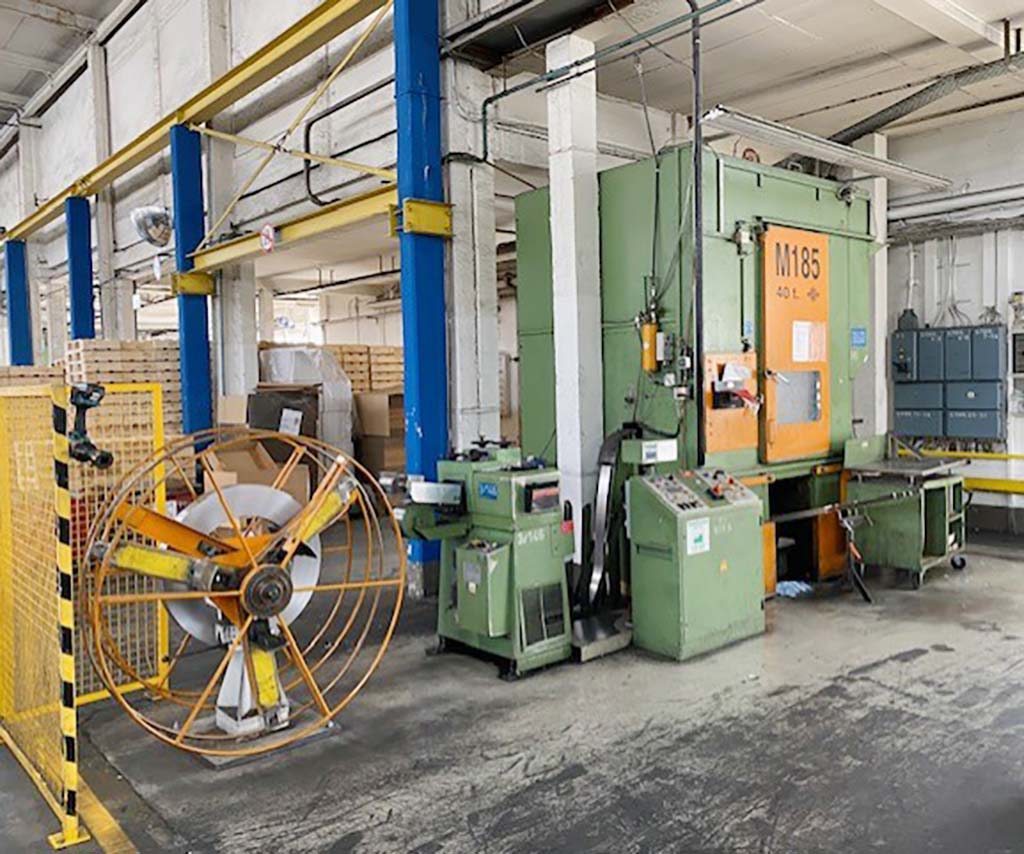

| Description Max. pressing force: 400kN, stroke rate: 100-1200/min, connected load: 18kW, compressed air connection: R 1/2inch, 6-10bar, adjustable strokes: 13, 15, 19, 25, 32, 38, 44, 51, 57mm, max. fixed stroke (special version): 57mm, ram height adjustment: 60mm, tool installation height: 4 Mm 677, max. width of tool installation opening: 690mm, max. strip passage width: 190mm, strip feed height above clamping plate: 60-140mm, bed opening: 640x220mm, lower clamping plate: 4 Mm 671, upper clamping plate: 4 Mm 672, installation dimensions: 4 Mm 667, length: 1695mm, width: 2185mm, height: 3010mm, weight with feed unit: 6.37t. Equipment: drive control, tool clamping plate, installation dimensions, upper clamping plate, hand protection device, BBV 41.202/150 strip feed unit, strip-end monitoring, transport and lifting device, complete documentation, installation, operating and maintenance instructions and machine tools. An on-site inspection is possible. |
|
| Make | Bruderer |
|---|---|
| Model | BSTA 41 |
| Year of manufacture | 1986 |
| Price | On application |
| Offer No | INNO32146 |
