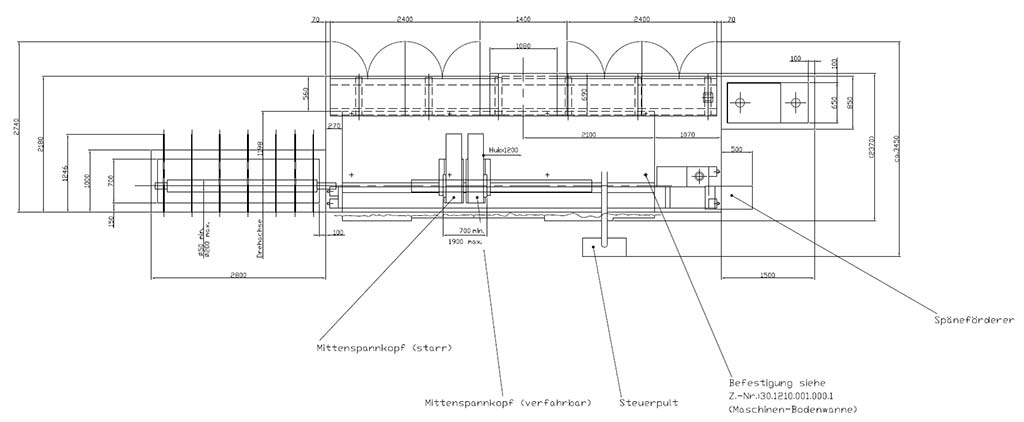

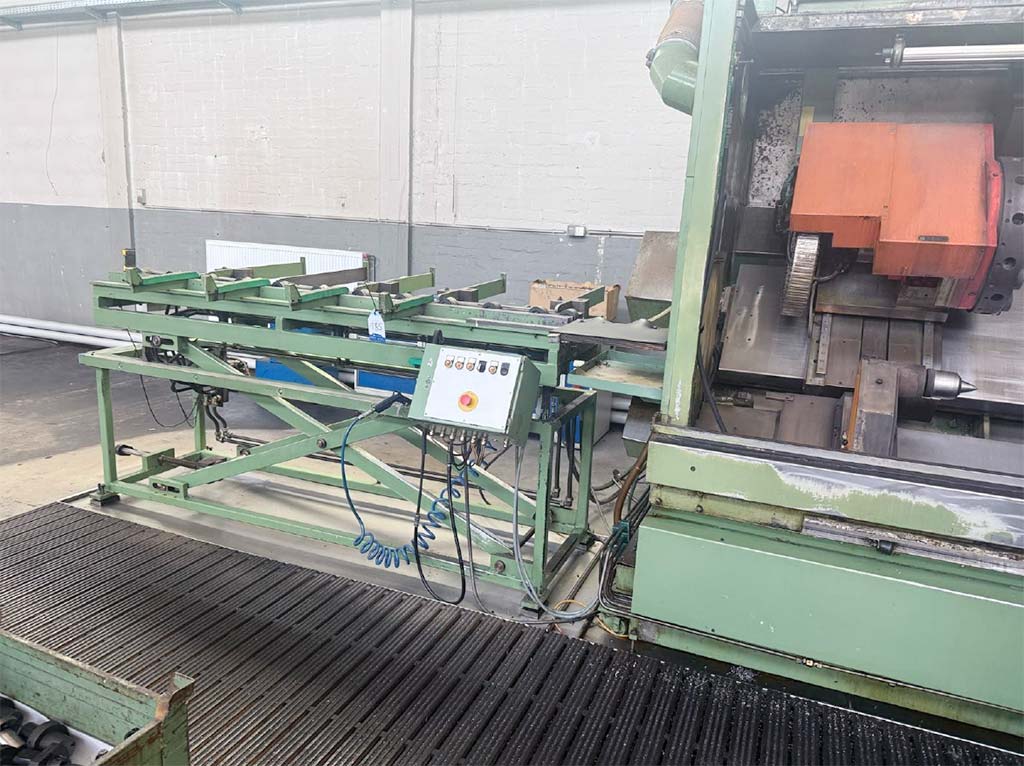

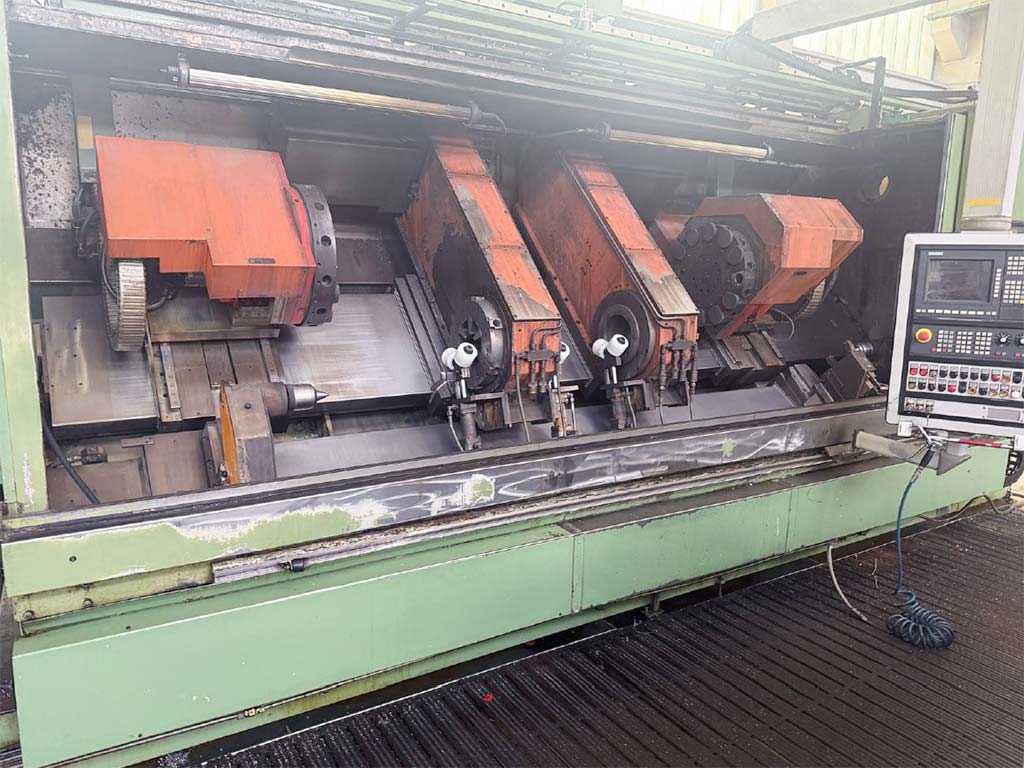

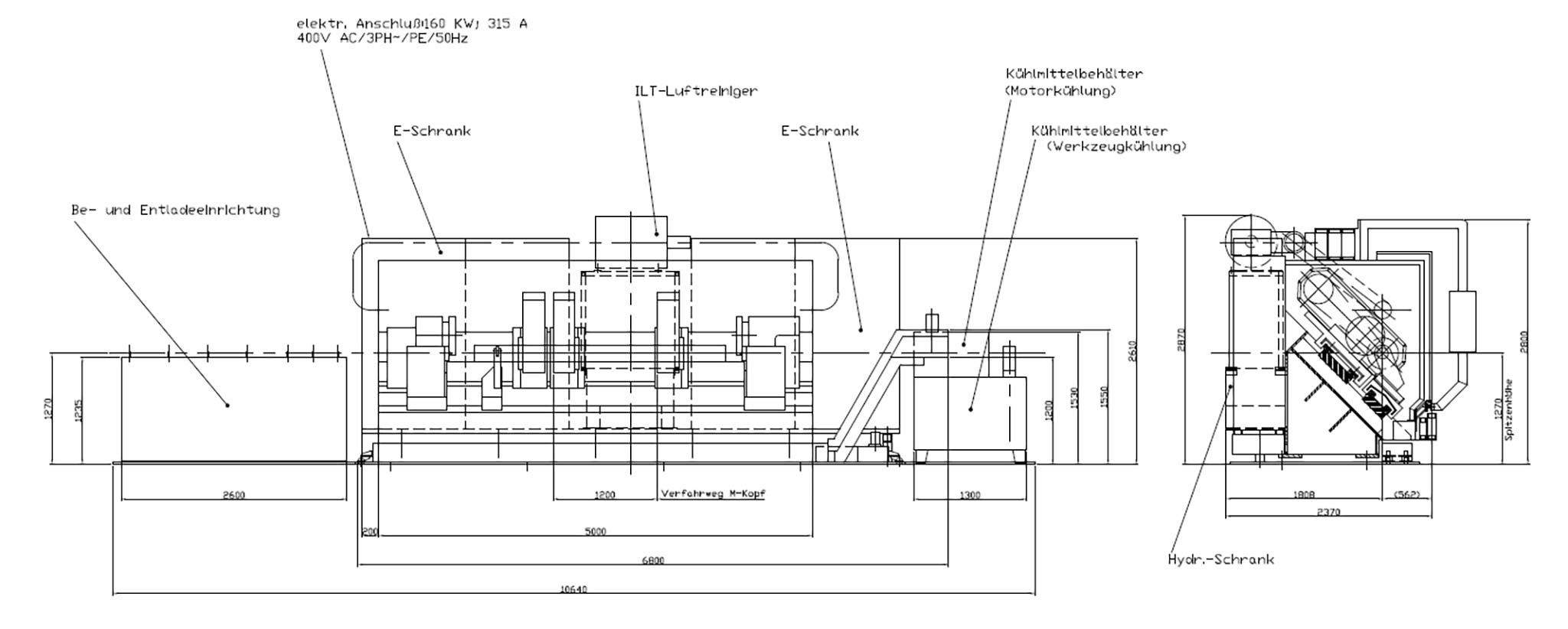

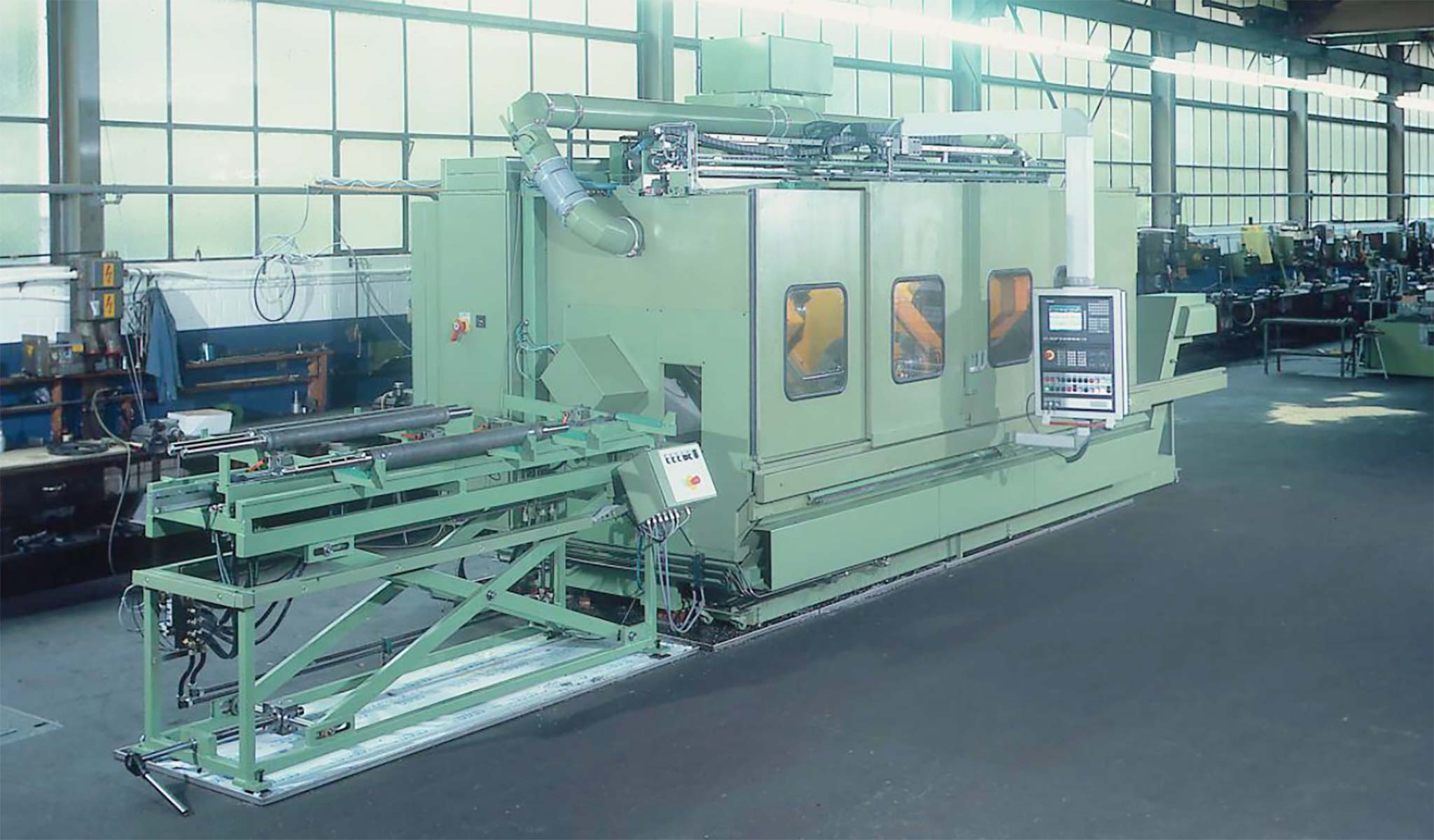

| Description Workpiece length: 700-2400mm, workpiece diameter: 50-200mm, main spindle drive power: 2x 37kW, max. chuck through-bore: 210mm, chuck piston stroke: 25mm, chuck stroke per jaw: 11.1mm, max. chuck actuating force: 52.5kN, max. chuck actuating pressure: 30bar, max. chuck speed: 2000/min, loading and unloading unit range: 2600mm, center clamping head travel: 1200mm, center clamping head stroke: 1200mm, main fuse: 315A, connected load: 150kW, overall length: approx. 10,640mm, main section length: 6800mm, width: 2370mm, height: 2860mm, overall height including superstructure: 3450mm, operating hours: 3143h. With chip conveyor, loading and unloading unit, fixed center clamping head, movable center clamping head, control panel, ILT air cleaner, electrical cabinet, hydraulic cabinet, coolant tank for motor cooling and coolant tank for tool cooling and documentation. Partially overhauled by the manufacturer in 2021. An on-site inspection is possible. |
|

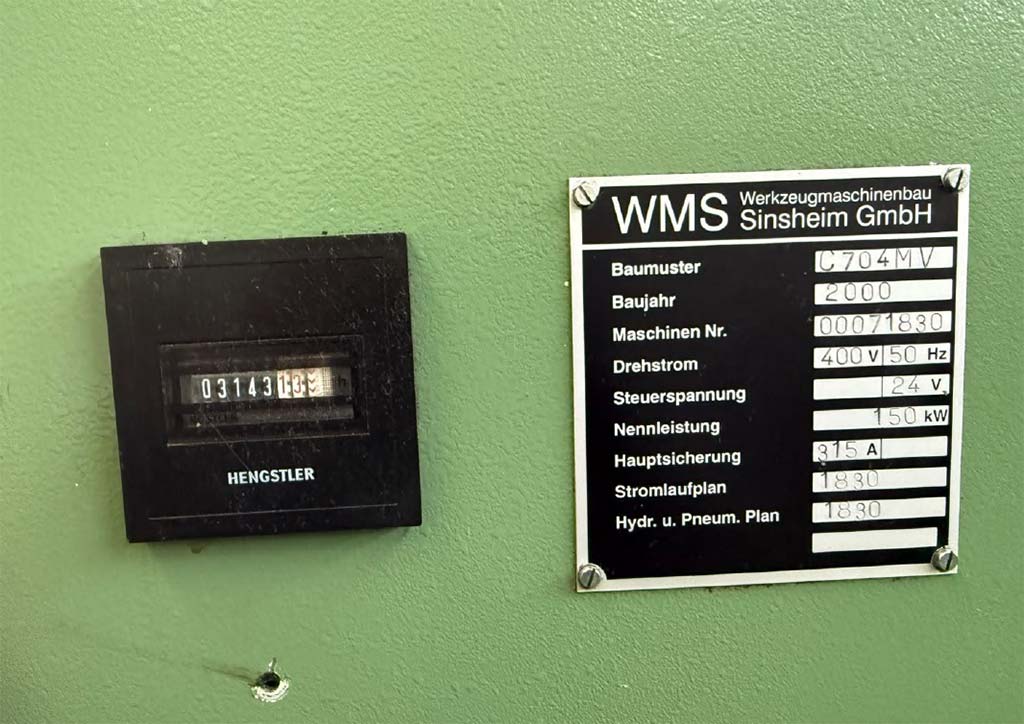

| Make | Werkzeugmaschinenbau Sinsheim |
|---|---|
| Model | C 704 MV |
| Year of manufacture | 2000 |
| Price | On application |
| Offer No | INNO32138 |
