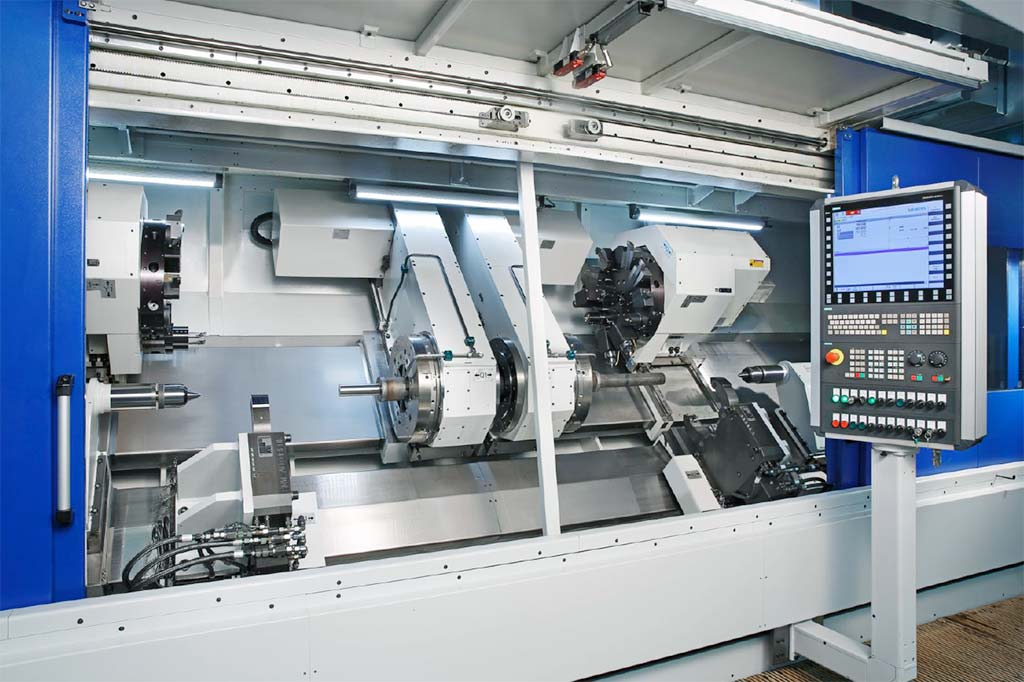

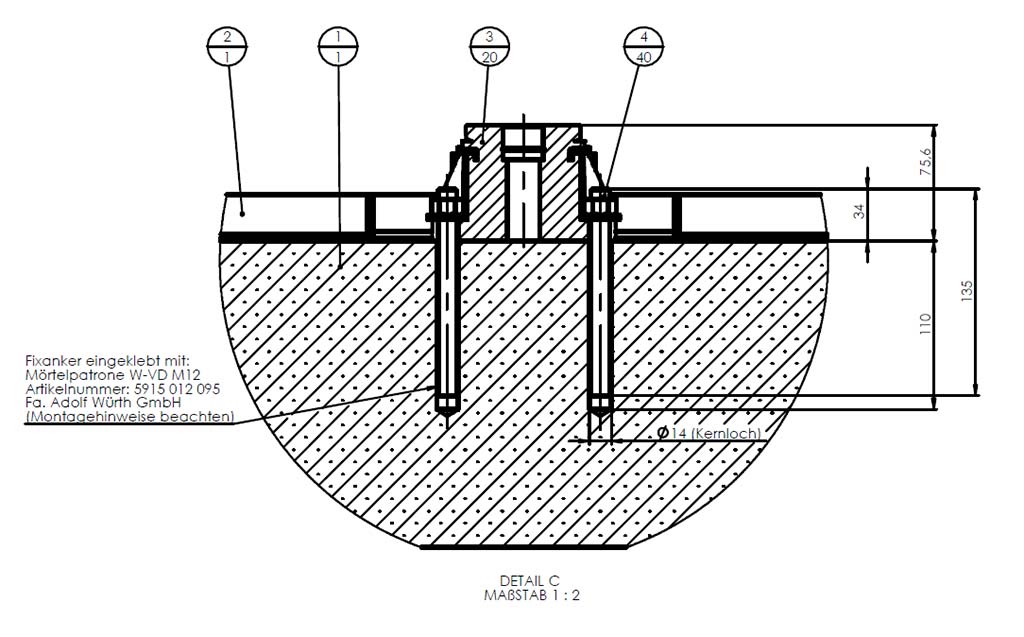

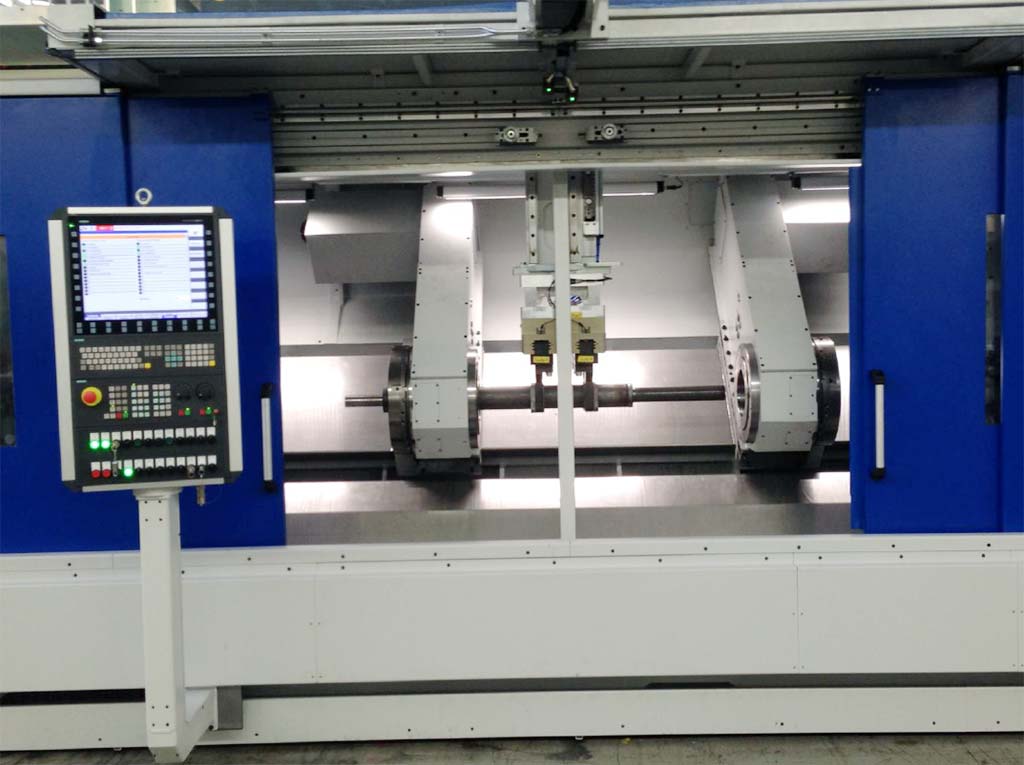

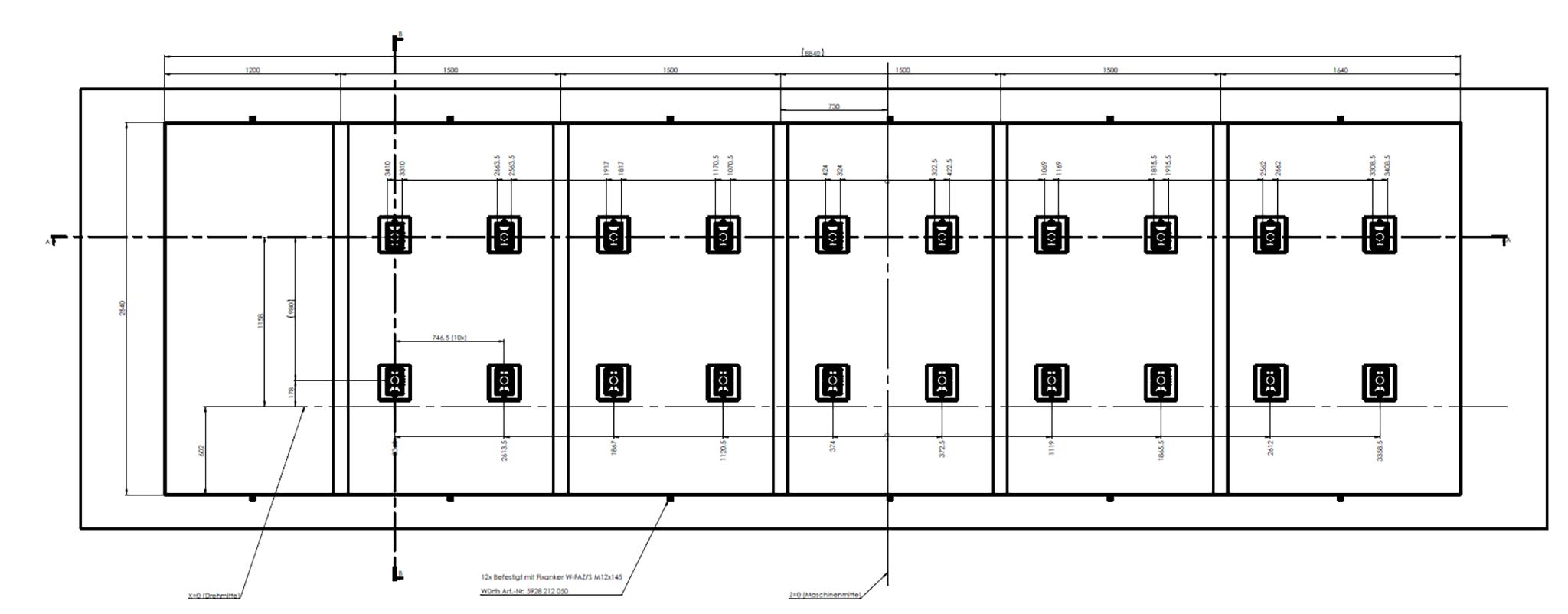

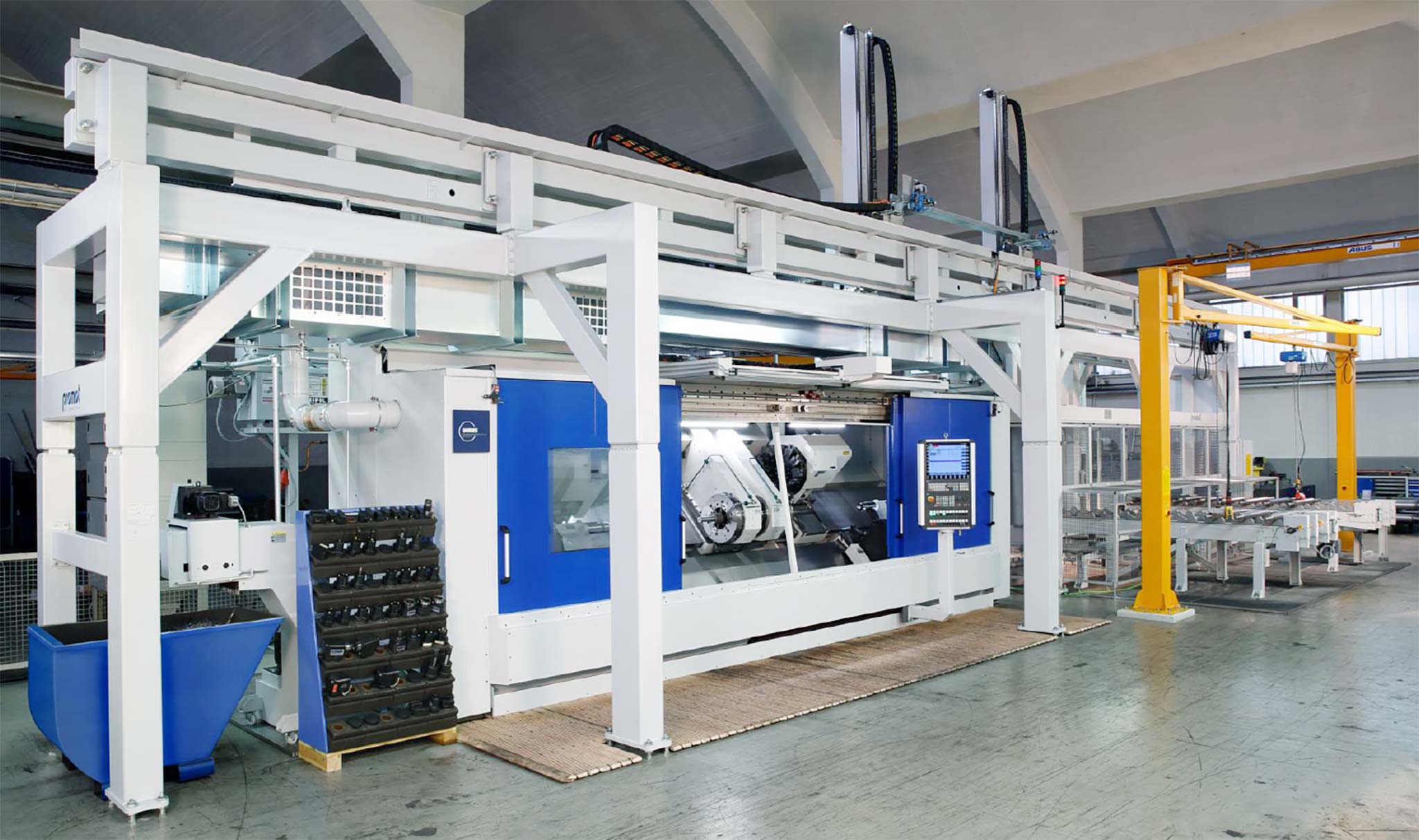

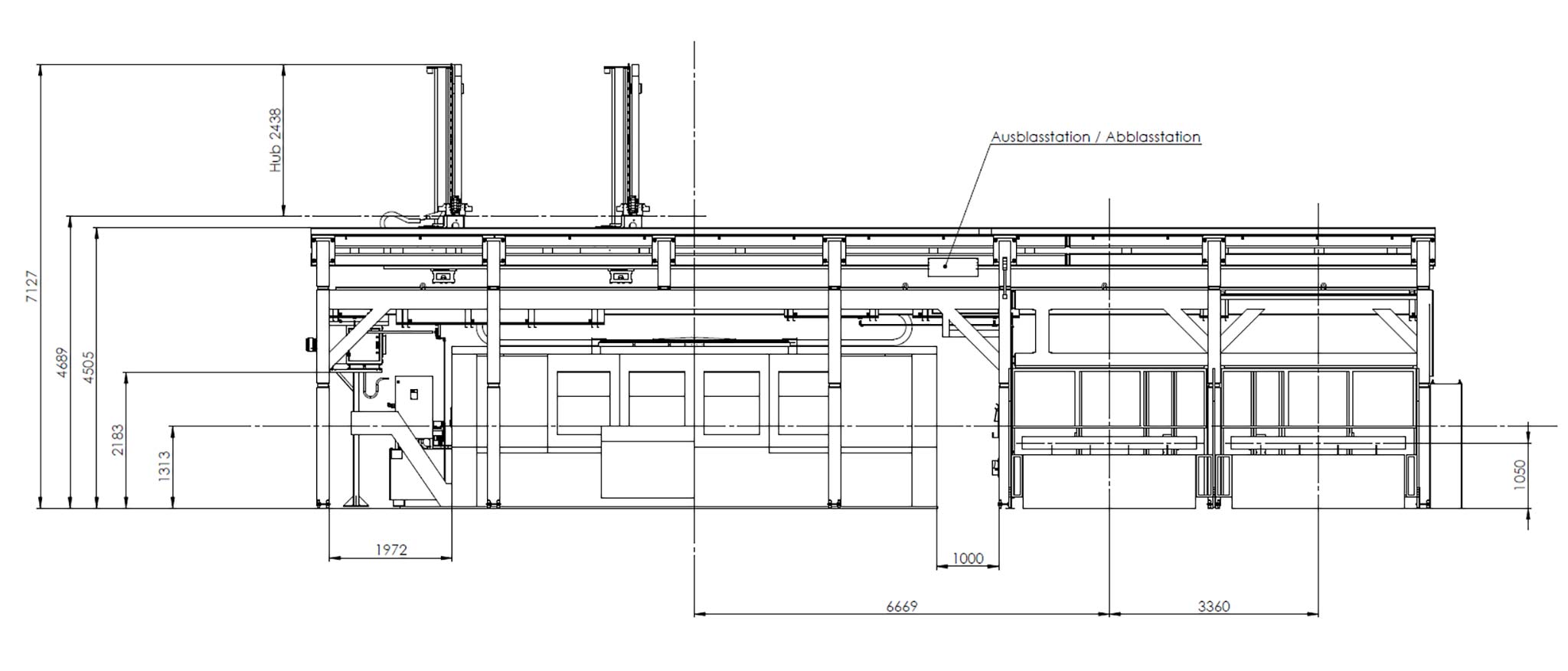

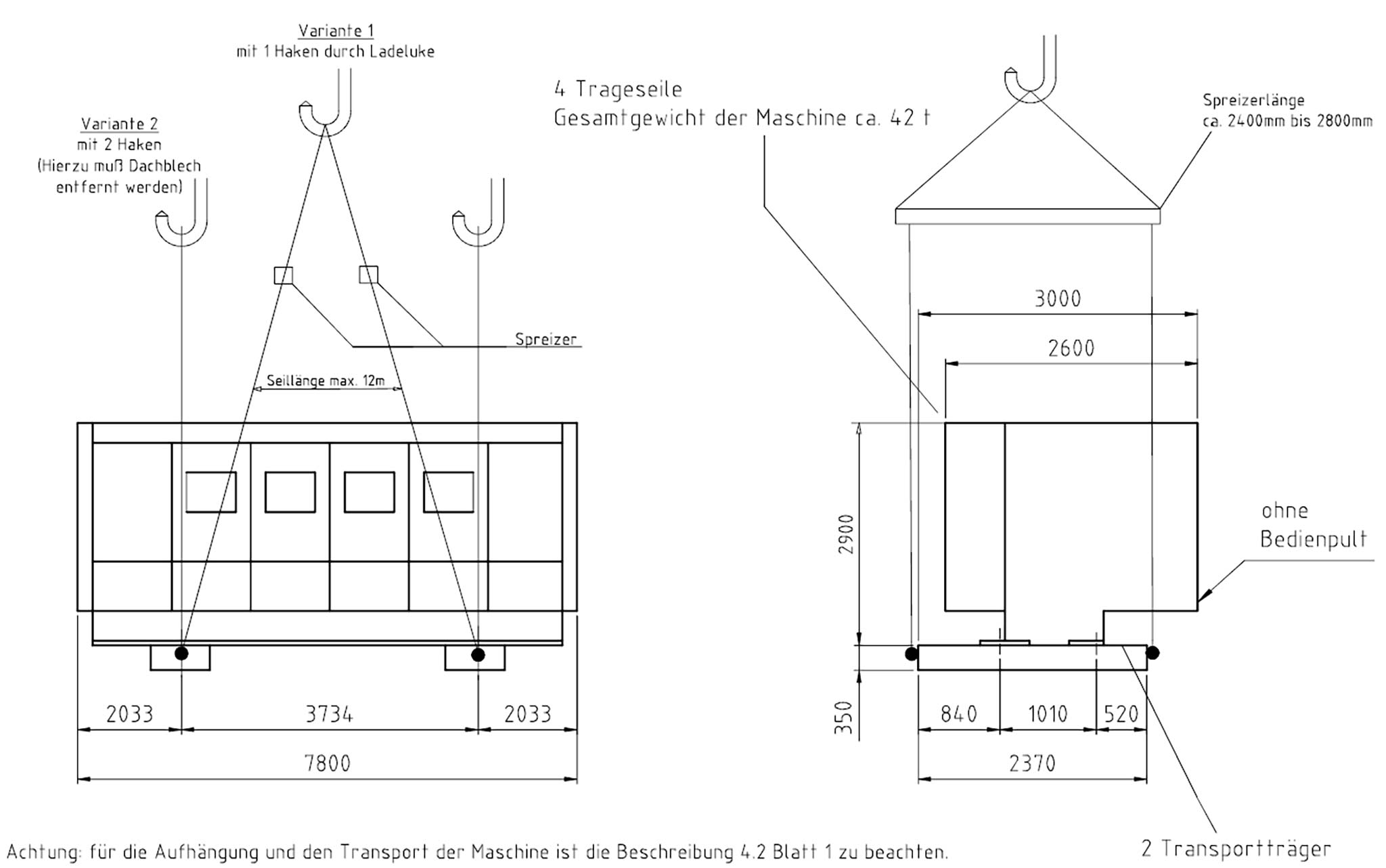

| Description Cross slide NC1-left, X1-axis: 450mm, cross slide NC1-left, Z1-axis: 1980mm, cross slide NC2-right, X2-axis: 450mm, cross slide NC2-right, Z2-axis: 1980mm, M-head slide-left, Q1-axis: 1980mm, M-head slide-right, Q2-axis: 1980mm, tailstock + steady rest slide-left, W1-axis: 1980mm, tailstock + steady rest slide-right, W2-axis: 1980mm, Y-axis: +/-65mm, workpiece length: 760-3000mm, workpiece clamping diameter: 20-200mm, main drive power: 2x 37kW, main drive speed (stepless): 0-2200/min, tool drive speed (stepless): 0-2320/min, tool holder: VDI50, tailstock center: MK 5, number of tool holders: 12, steady rest: SLU-5 SO, steady rest clamping diameter: 20-200mm, working height: 1300mm, max. workpiece diameter: 20-200mm, max. workpiece weight: 250kg, workpiece drive/clamping: 2x hydraulically operated SAV front-end chucks, max. chuck through-bore diameter: 210mm, spindle power: 2x 37kW, max. rapid traverse speed: 20m/min, control: Siemens 840D SL, connected load: 135kW, length: 7800mm, width: 3000mm, height: 3250mm, weight: 42t, with machine documentation, installation plan, foundation plan, transport plan, Knoll coolant system, Knoll chip conveyor, ILT extraction system and Promot loading and unloading gantry. Regularly serviced by the manufacturer, the machine was completely overhauled by the manufacturer in 2016. An on-site inspection is possible. |
|
| Make | Werkzeugmaschinenbau Sinsheim |
|---|---|
| Model | CM 704 |
| Year of manufacture | 2003 |
| Price | On application |
| Offer No | INNO32135 |
