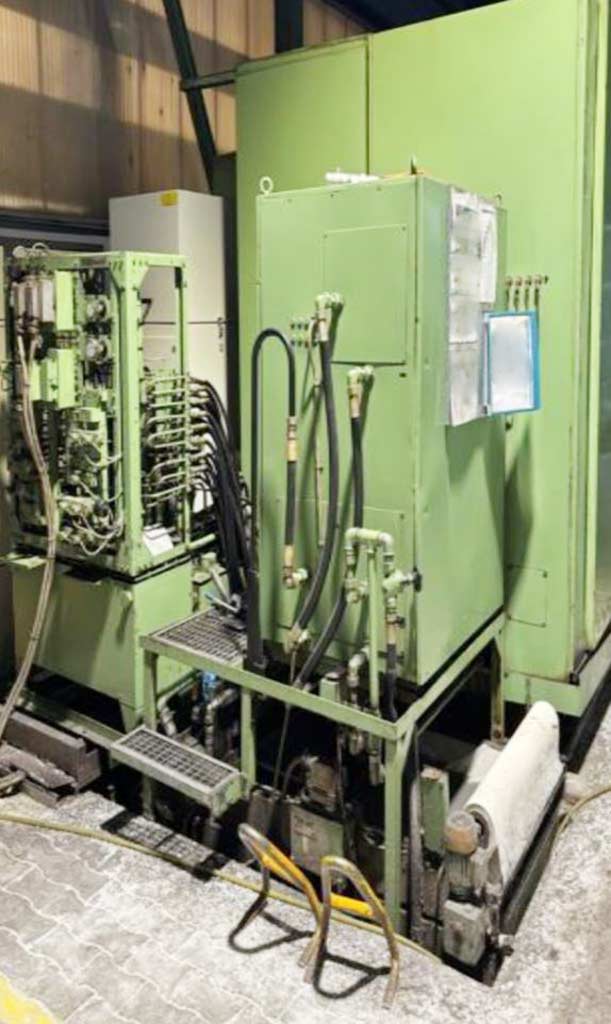

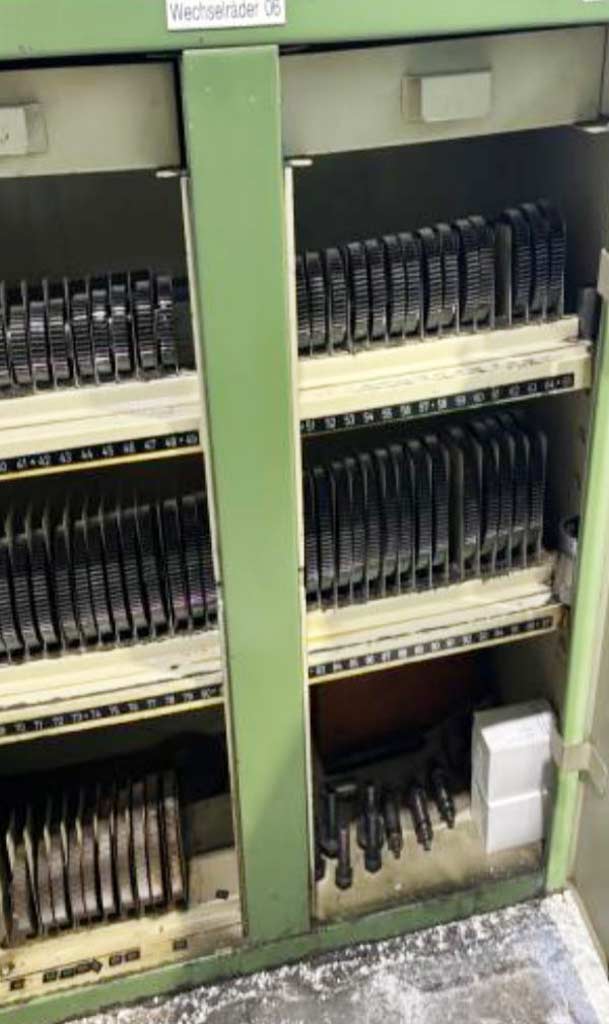

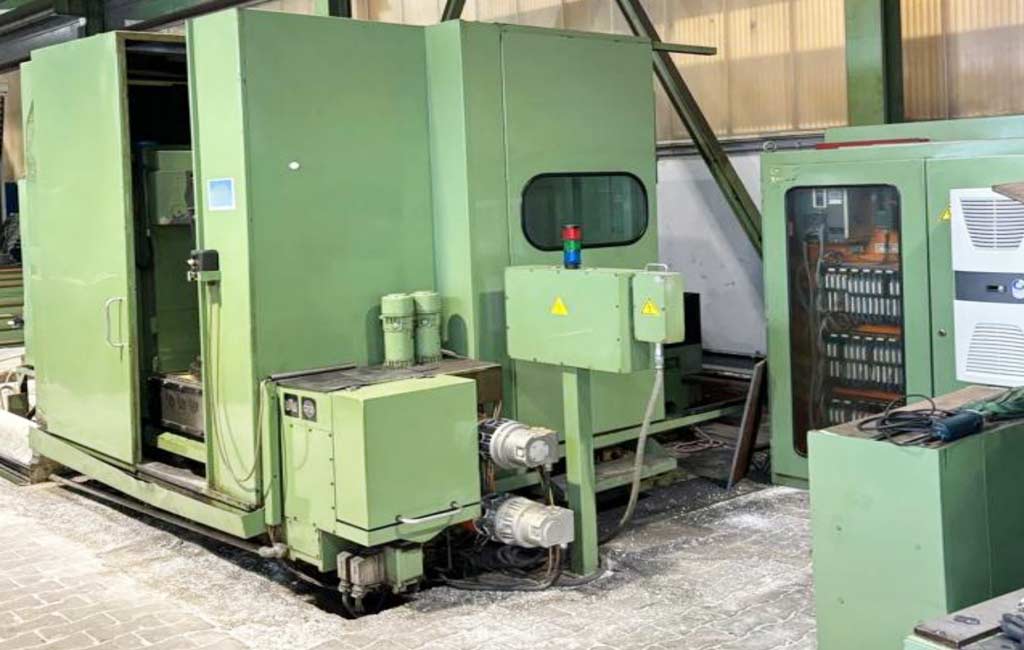

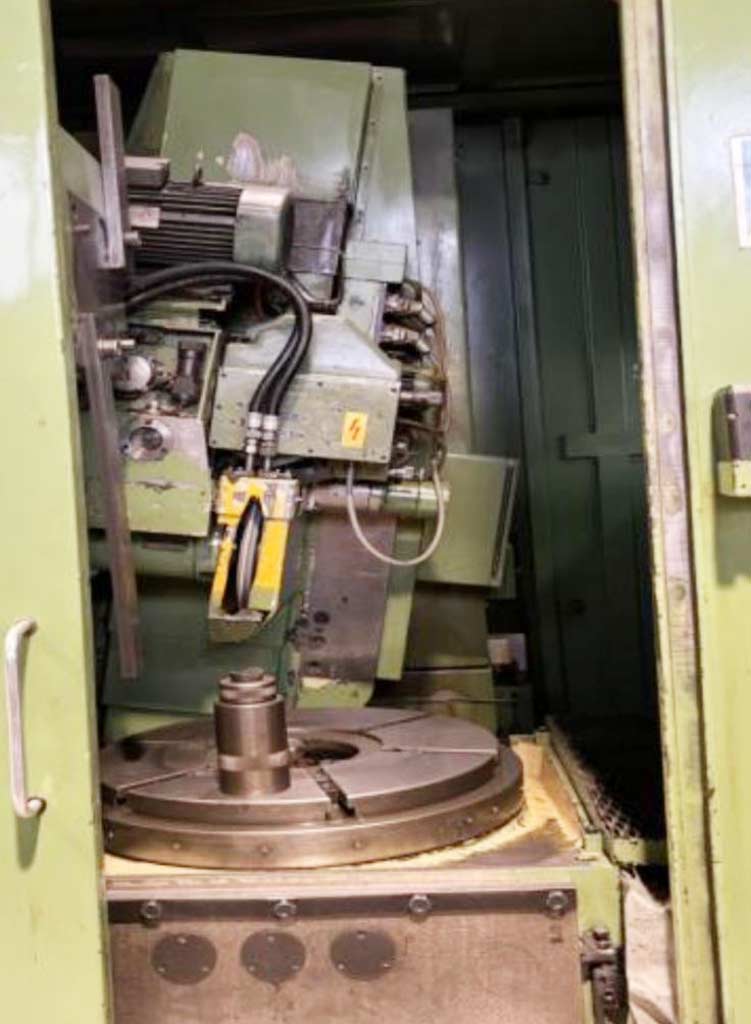

| Description A Niles gear grinding machine is offered. Module range: 2-14, table diameter: 630mm, workpiece dimensions X/Y/Z: 800mm/290mm/1500mm, min./max. generating grinding stroke: 20mm/280mm, ram stroke rate range: 20-280double strokes/min, min./max. number of teeth: 5/360, root diameter: 50mm, max. tip diameter: 800mm, min./max. grinding wheel diameter: 270mm/350mm, grinding wheel bore: 127mm, grinding wheel speed: 2450rpm, weight: approx. 10000kg. Including paper band filter, cabinet with change gears and oil mist extraction unit. Inspection possible by appointment. |
|
| Make | Niles |
|---|---|
| Model | ZSTZ 06 |
| Year of manufacture | 1983 |
| Price | On application |
| Offer No | INNO32113 |
