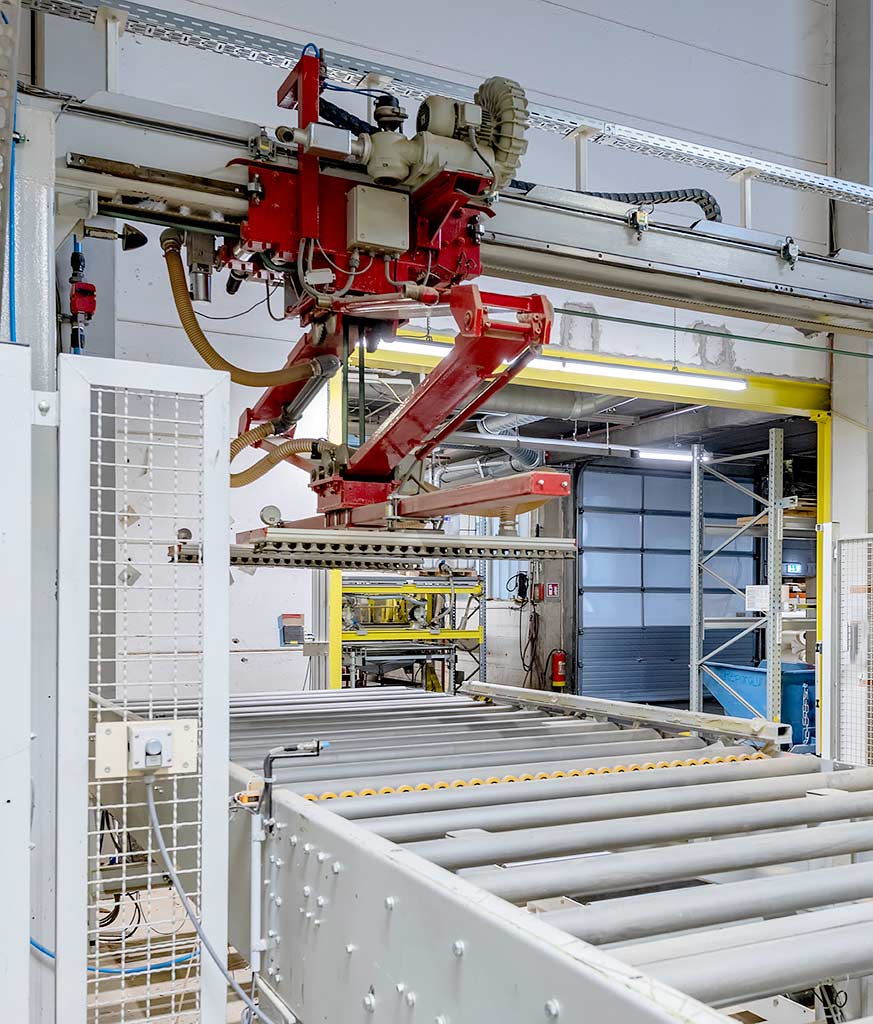

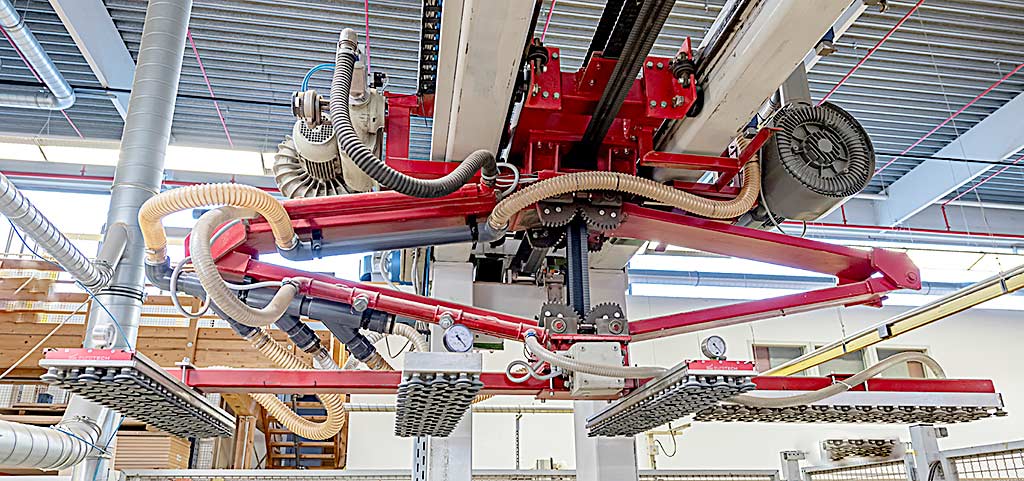

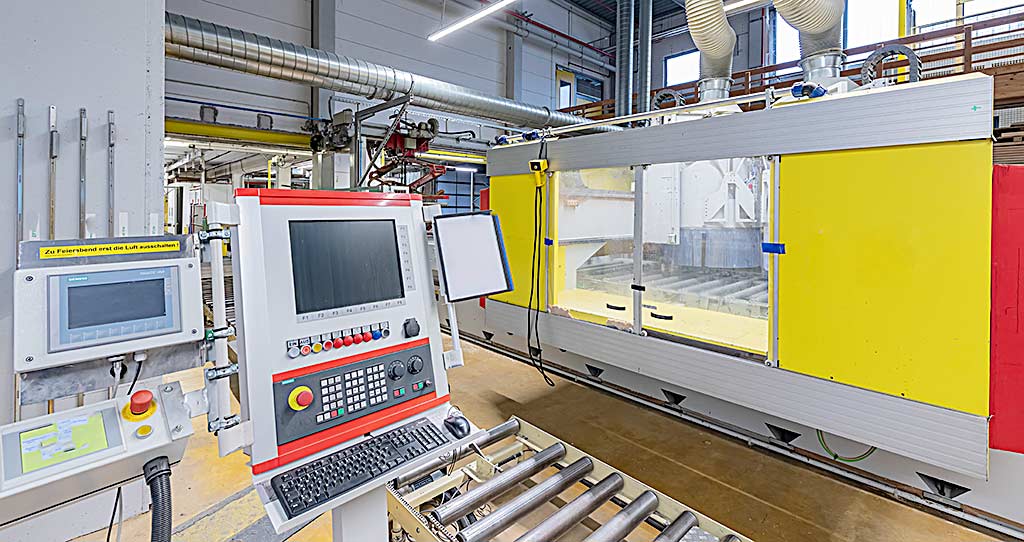

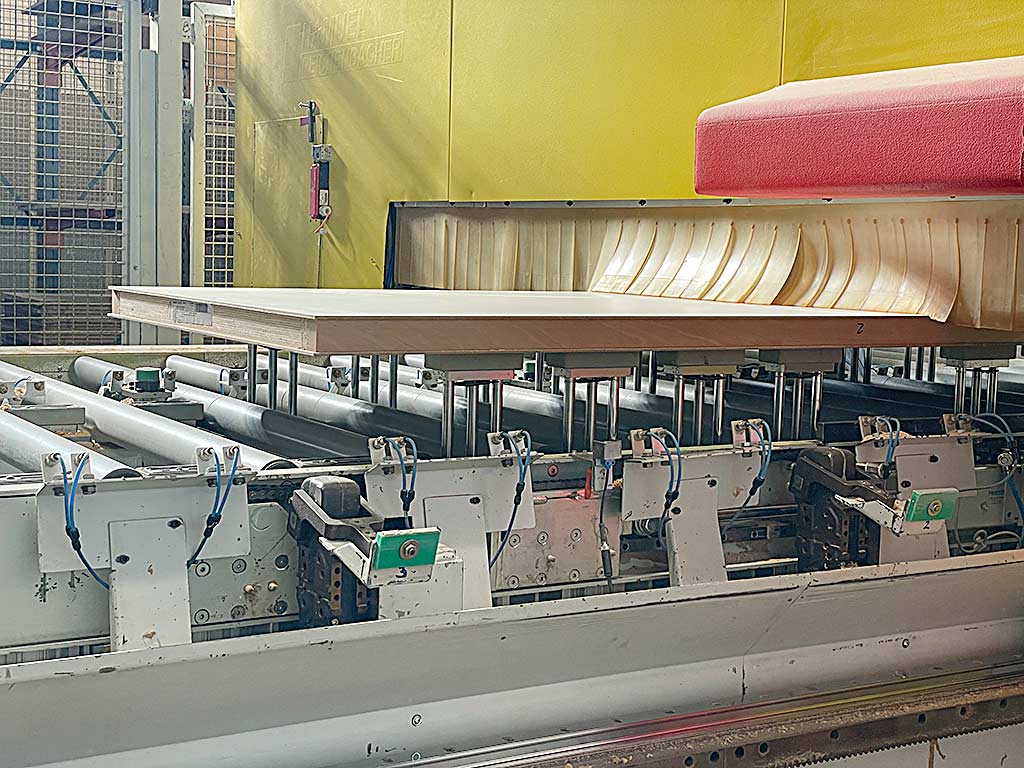

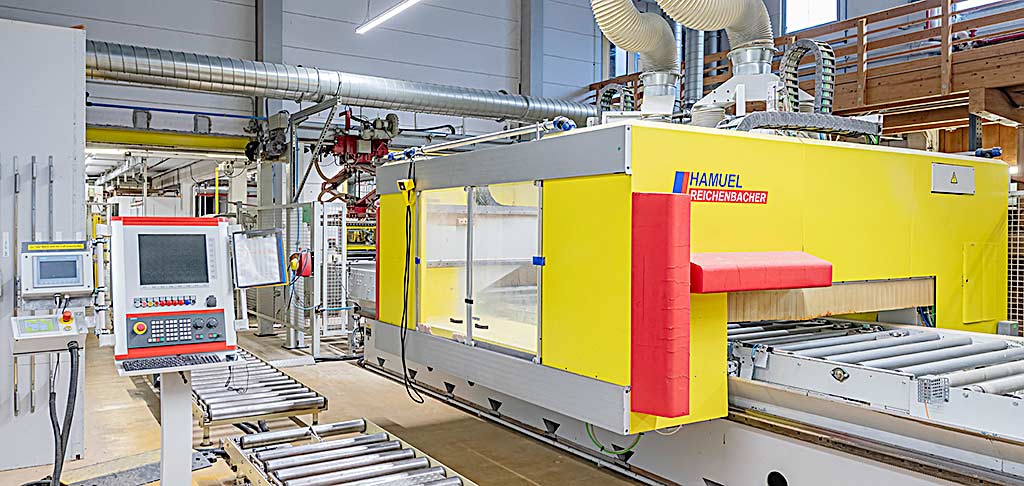

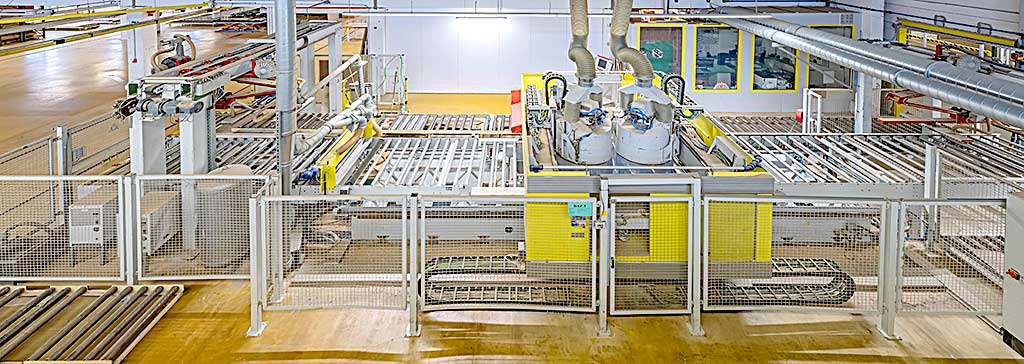

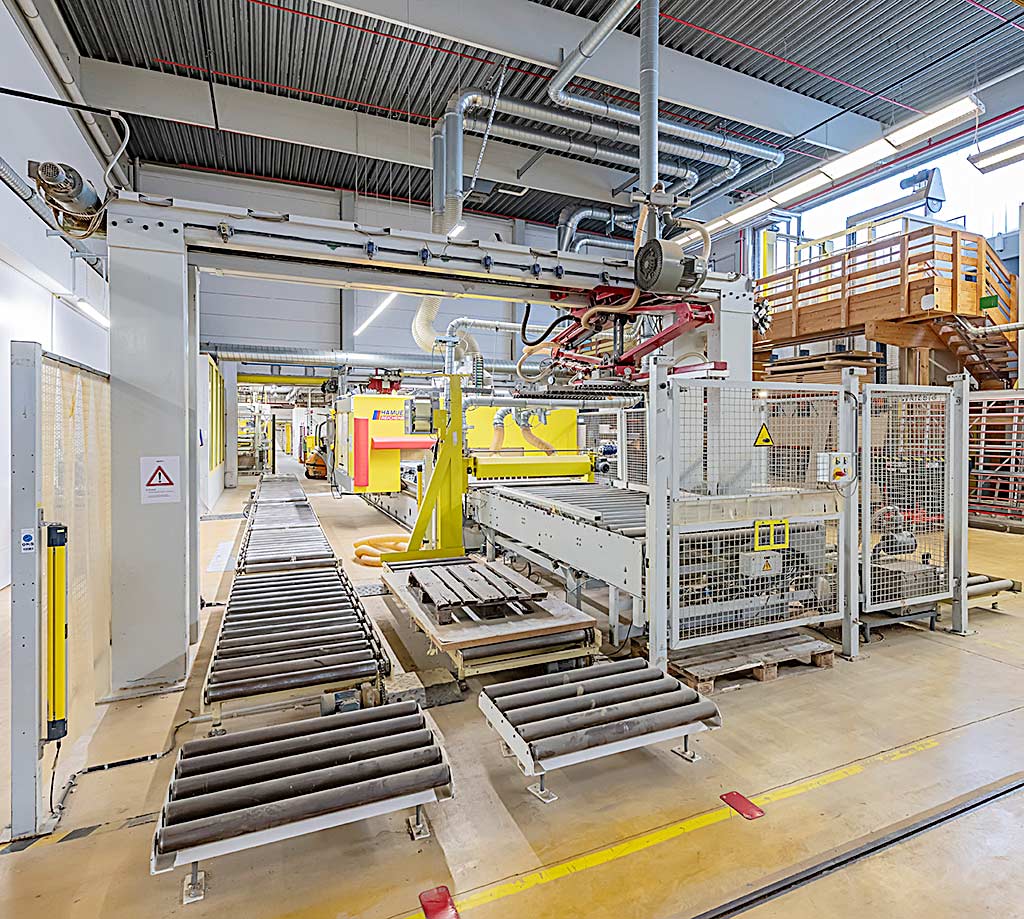

| Description A Reichenbacher CNC 5-axis twin-head machining center for the door manufacturing industry is available. Spindle power: 15kW, Speed: 24000rpm, Tool interface: HSK-F63, Tool positions: 60, Milling spindle spacing: 1040mm, Spindle housing dimension: 150mm, Travel X/Y/Z: 5100mm/2100mm/2650mm, Tool change stroke: 550mm, Max. travel speed X/Y/Z: 60m/min/90m/min/20m/min, Clamping beam speed: 40m/min. Vacuum support rails: 2, Vacuum cups: 2×30, Stop stroke: 150mm, Stop pin diameter: 30mm, Through-feed stop 1/2: 300mm/700mm, Max. veneer overhang: 5mm, Max. veneer thickness: 5.5mm. Workpiece length range: 800mm-3200mm, Workpiece width range: 600mm-1400mm, Workpiece thickness range: 38mm-72mm, Max. workpiece weight: 200kg. Chip conveyor belt width: 700mm, Infeed roller conveyor dimensions X/Y: 6000mm/1600mm, Outfeed roller conveyor dimensions X/Y: 6350mm/1600mm. Overall system dimensions X/Y/Z: approx. 18300mm/9750mm/3500mm, Machine dimensions X/Y/Z: approx. 4200mm/1600mm/3000mm, Machine weight: approx. 10500kg, Control system: Siemens Sinumerik 840D power-line. Including fully automatic infeed and unloading, 2×gantry cranes, safety equipment, various tools and a self-lowering roller table. This system was modernized in 2016. Documentation vorhanden. An on-site inspection is possible. |
|
| Make | Reichenbacher |
|---|---|
| Model | Vision II Sprint |
| Year of manufacture | 2006 |
| Price | On application |
| Offer No | INNO32084 |
