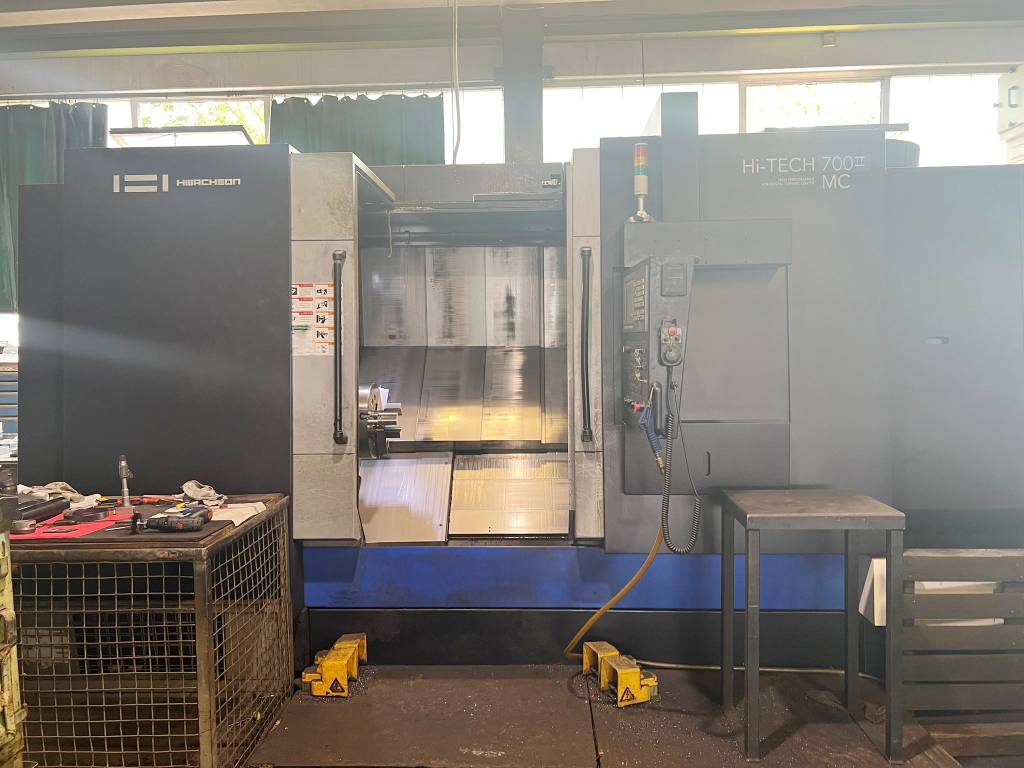

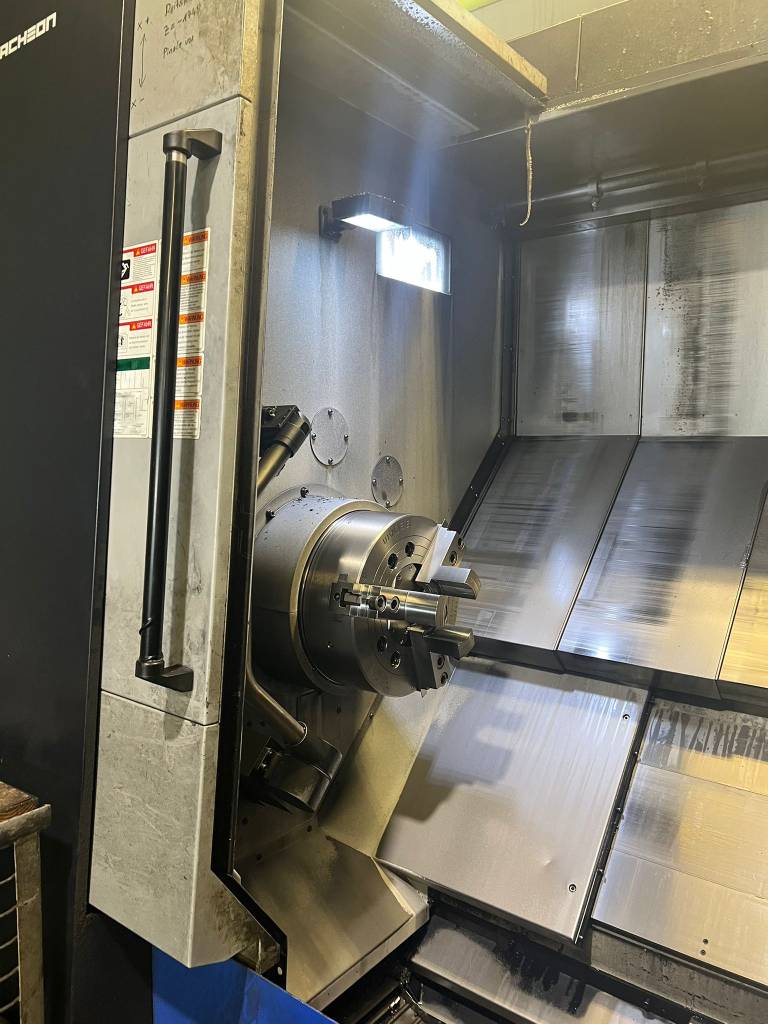

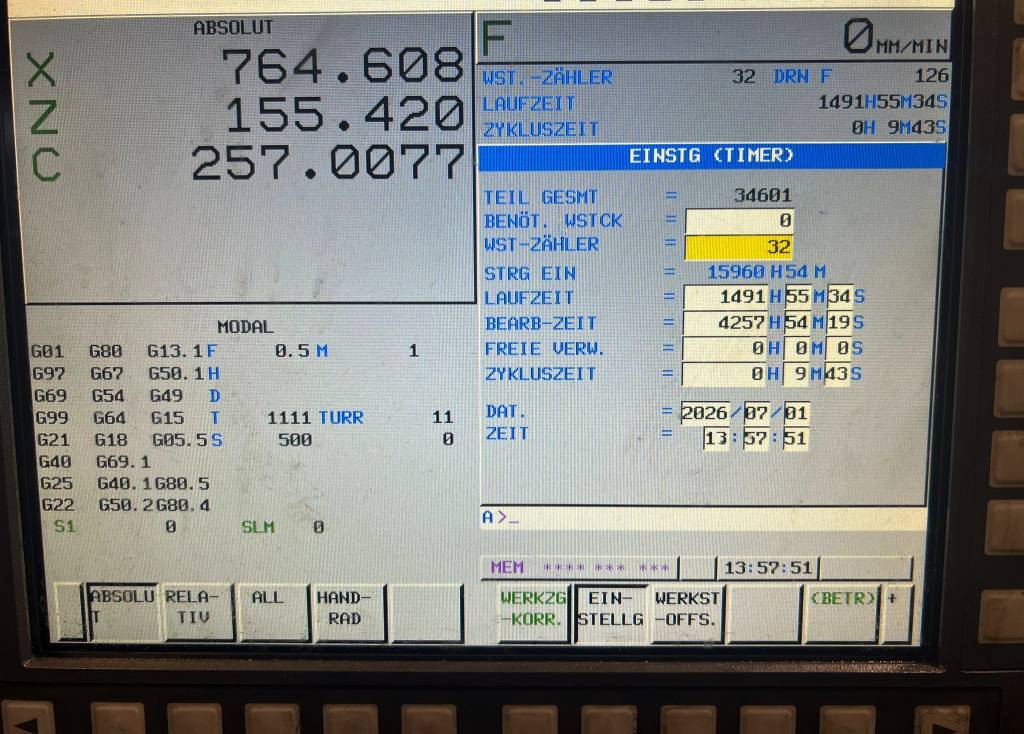

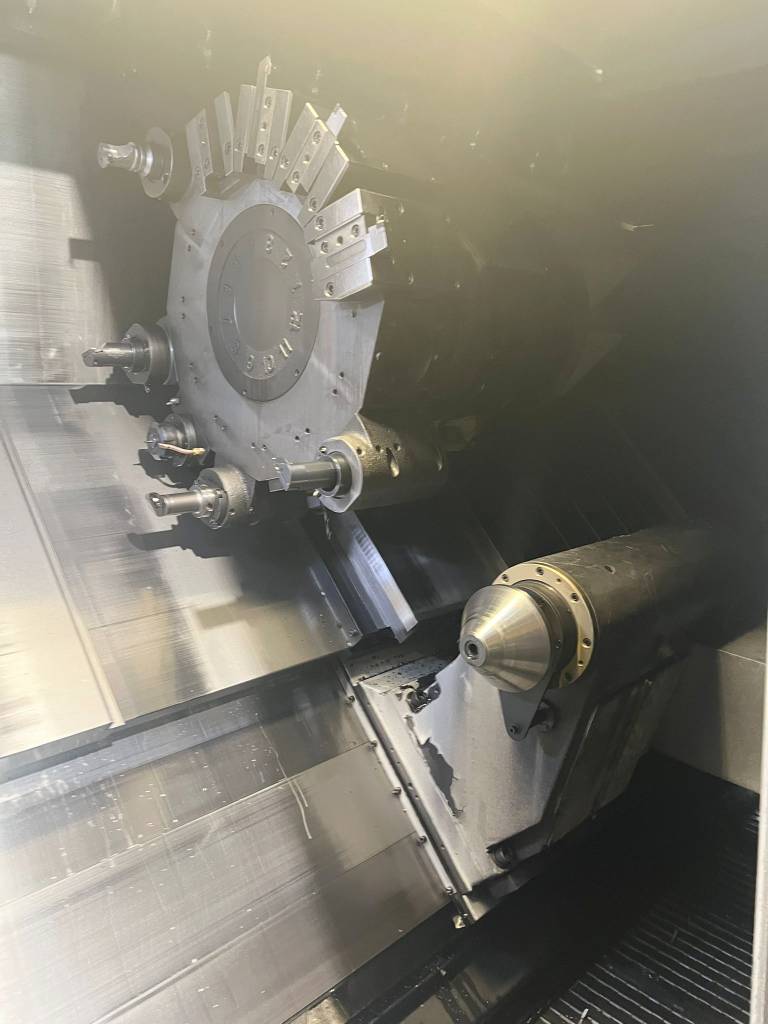

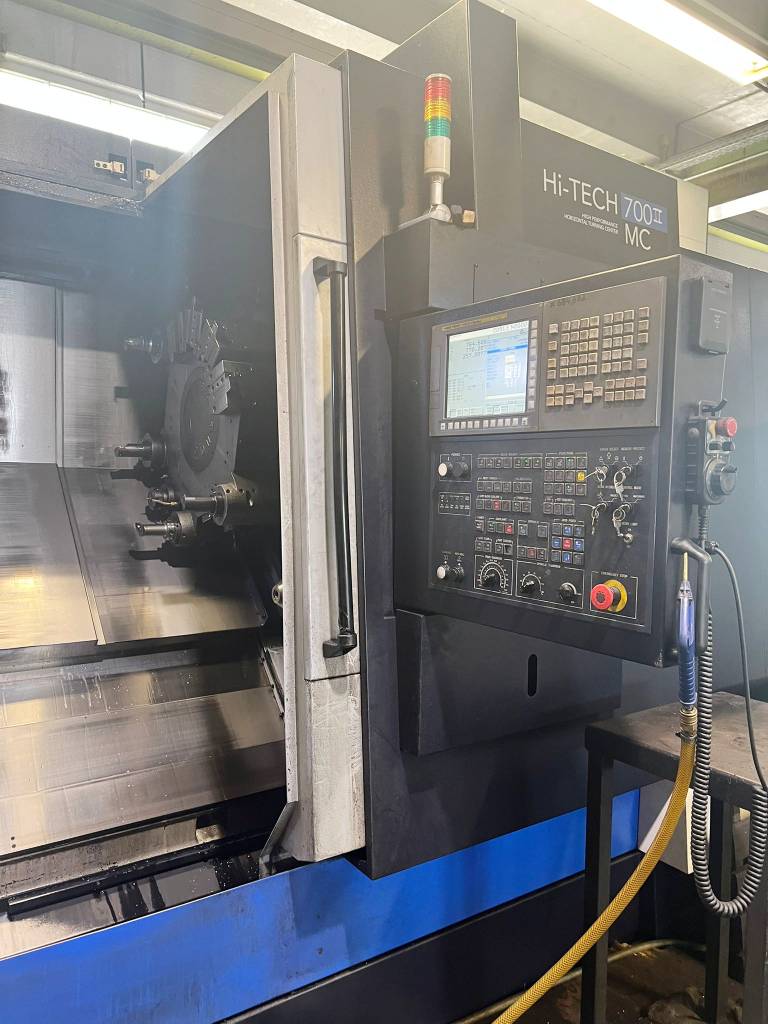

| Description A Hwacheon CNC lathe is offered. Max. turning diameter: 680mm, swing over bed: 900mm, max. turning length: 1986mm, chuck diameter: 380mm, max. bar capacity: 116mm, max. spindle speed: 1800rpm, spindle power: 37kW/30kW, max. spindle torque: approx. 3071Nm/2493Nm, tool turret: 12 stations, tool interface: BMT-75, X/Z-axis travel: 360mm/2050mm, X/Z-axis rapid traverse: 18m/min, coolant tank capacity: 300l, control: Fanuc 0i-TF. Equipment: C-axis, driven tools, automatic in-process tool measurement, programmable tailstock and programmable quill, C-axis spindle clamp, chucking pressure monitoring, centralized lubrication and hinge-belt chip conveyor with chip container. Control ON: approx. 15961h, machining time: approx. 4258h, total part count: 34601. Weight: approx. 15000kg. Documentation, spare parts list and electrical diagram available. Inspection possible by appointment. |
|
| Make | Hwacheon |
|---|---|
| Model | Hi-TECH 700 II MC |
| Year of manufacture | unknown |
| Price | On application |
| Offer No | INNO32004 |
