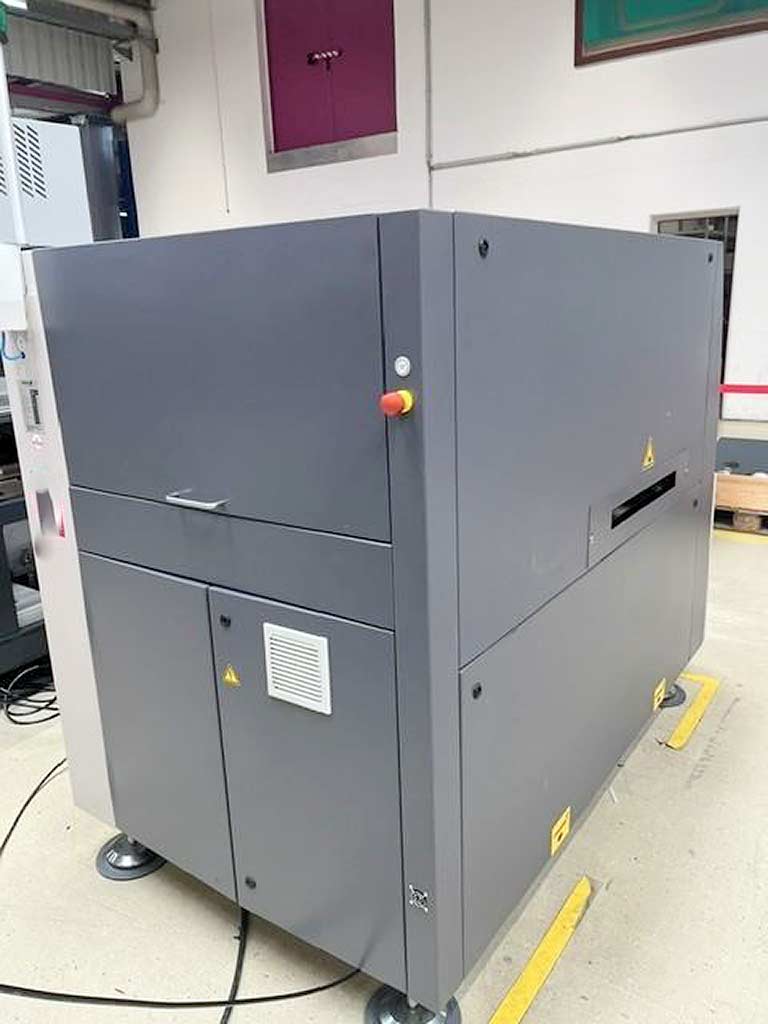

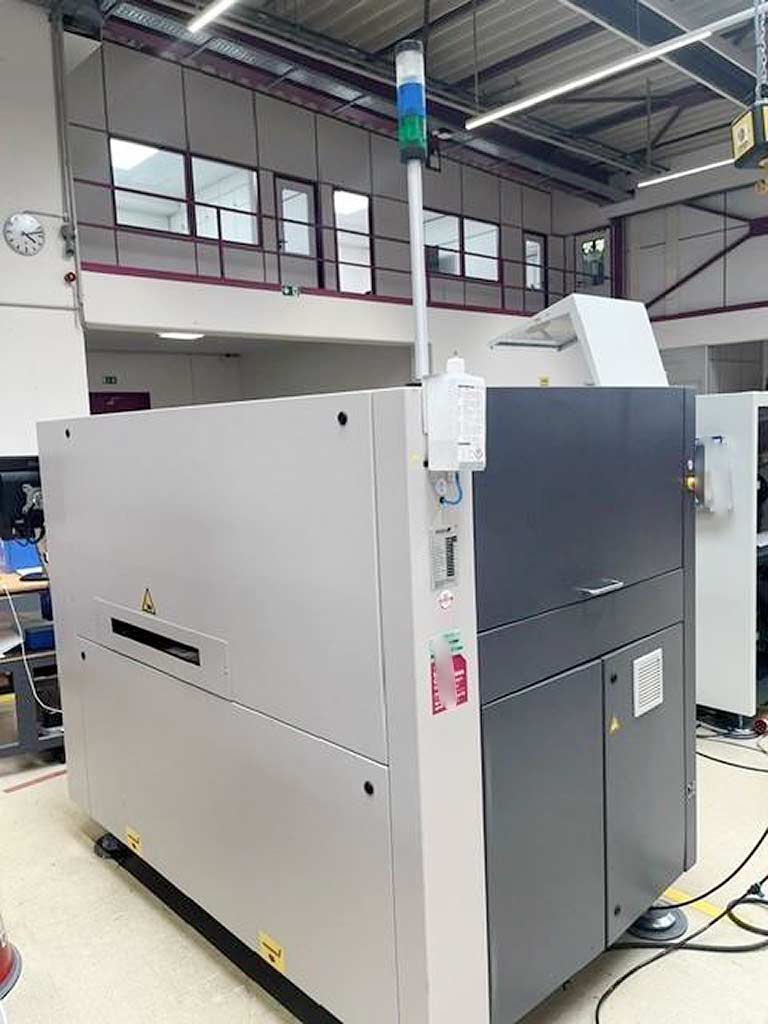

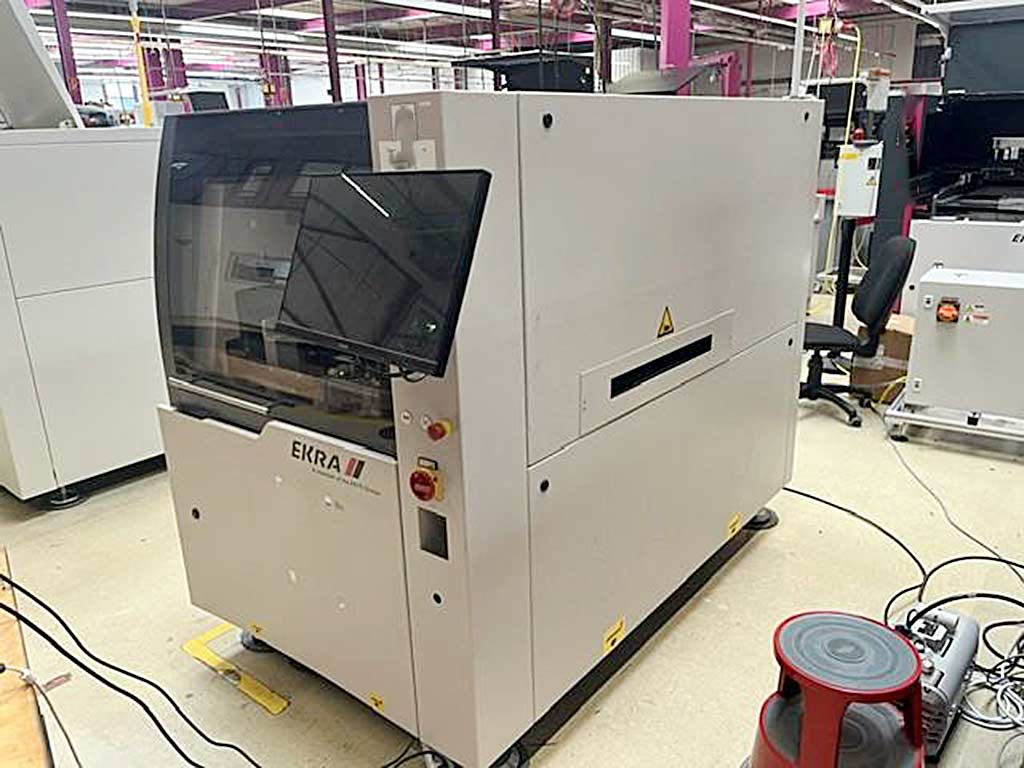

| Description Two identical Ekra stencil printers, both fully overhauled in 2026, are available. Year of manufacture: 2009/2012, overhaul: 2026/2026, min. printing area X/Y: 80mm/50mm, max. printing area X/Y: 508mm/508mm, substrate thickness range: 0.5mm-6mm, max. substrate weight: 2kg, min. stencil dimensions X/Y: 450mm/450mm, max. stencil dimensions X/Y: 740mm/740mm, repeat accuracy at 6 Sigma: +/-12.5µm, squeegee speed: 200mm/s, squeegee pressure: 10kN-250kN, snap-off min./max.: -1.5mm/6mm, separation distance: 0mm-3mm, separation speed: 100mm/s, transport height range: 830mm-950mm, machine dimensions X/Y/Z: approx. 1150mm/1900mm/1550mm, weight: approx. 750kg. Including operator computer, steel squeegees, accessories, EVA Vision System and automatic stencil cleaner. Documentation available. On-site inspection is possible. |
|
| Make | Ekra |
|---|---|
| Model | X5 Prof |
| Year of manufacture | 2012 |
| Price | On application |
| Offer No | INNO31985 |
