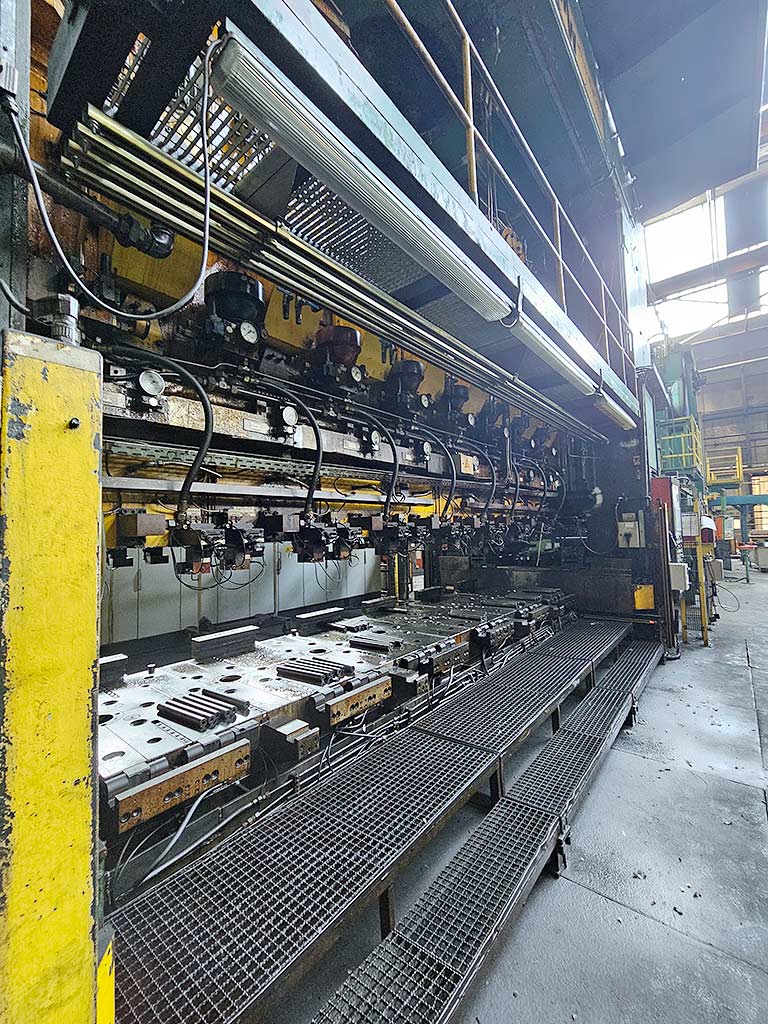

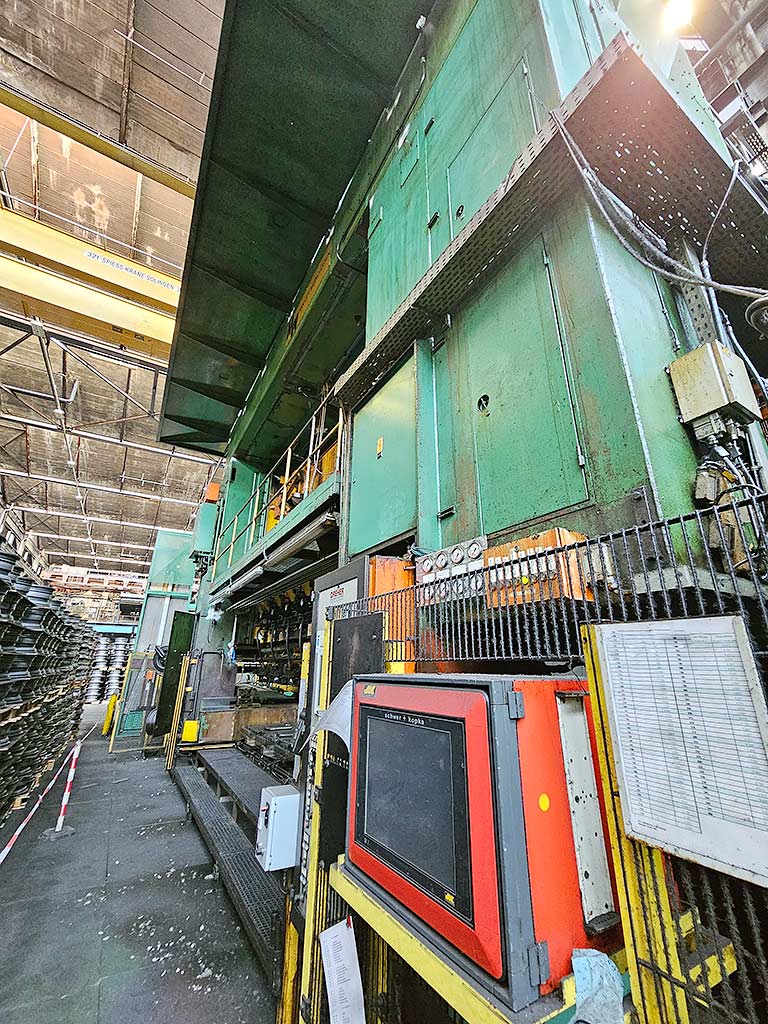

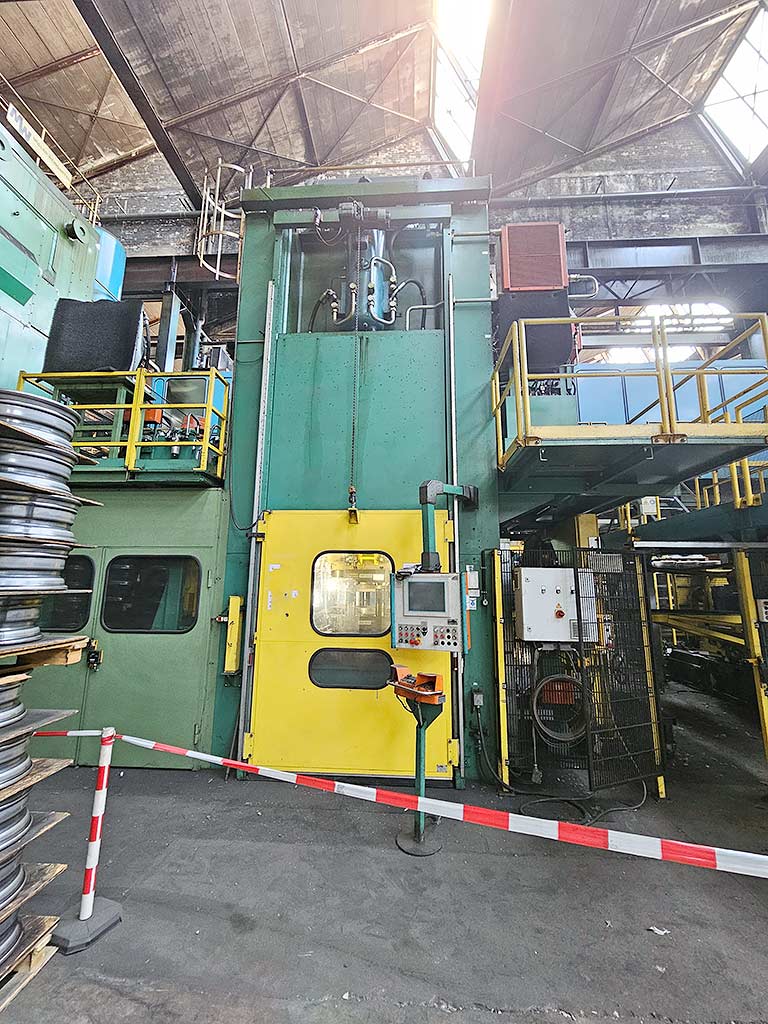

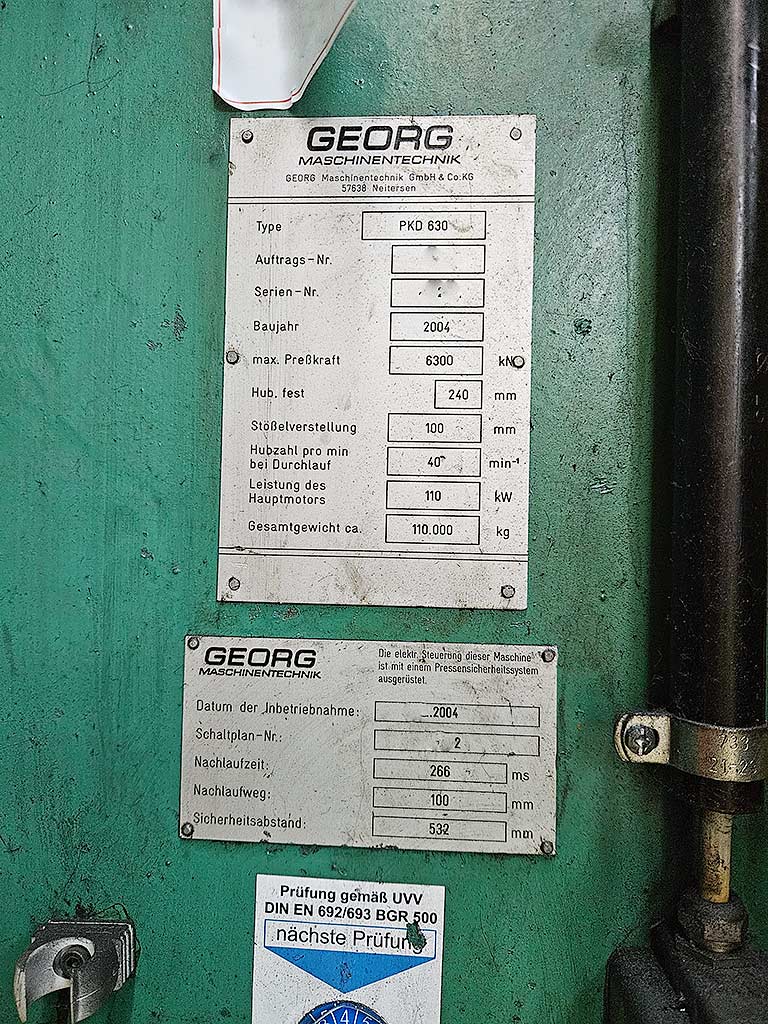

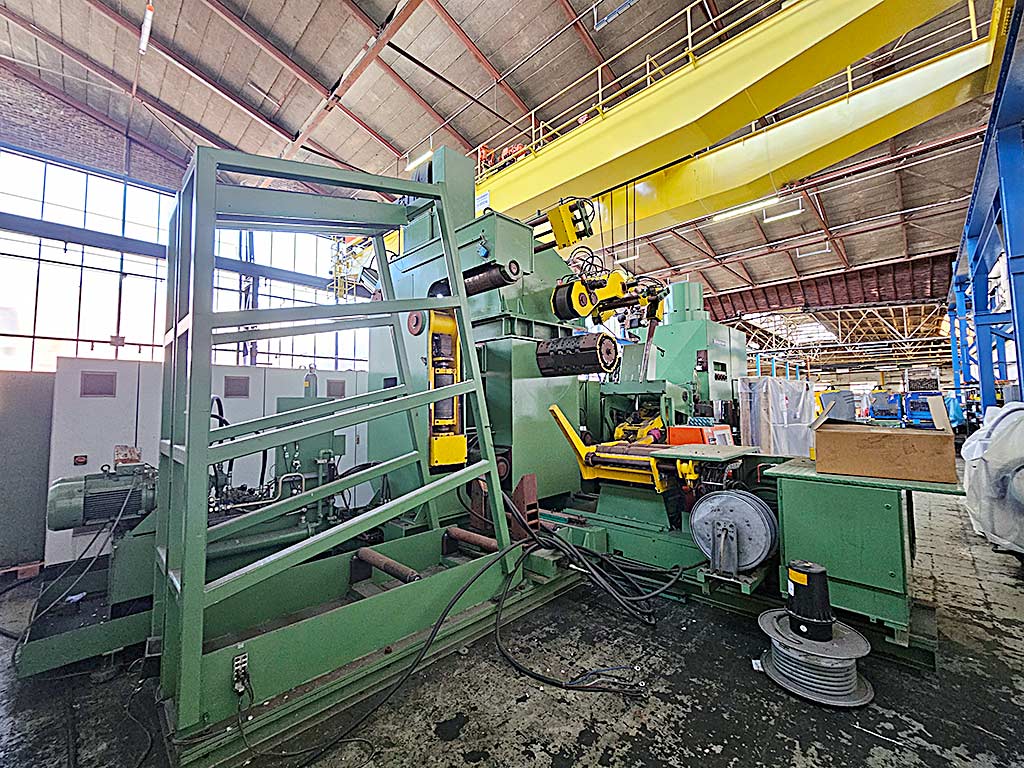

| Description A complete 8-stage transfer press line with a Weingarten double-column transfer press is available. 1) Mechanical double-column transfer press Weingarten S.3100.08.70.1, year of manufacture: 1969, tool stations: 9, forming stages: 8, total press force: 3100t, press force blanking slide/drawing slide: 300t/2800t, strokes: 28/min, blanking slide stroke: 200mm, drawing slide stroke: 500mm, max. drawing depth: 120mm, drawing slide ejector stroke: 100mm, blank holder stroke: 50mm, drawing cushion force: 25t, transfer pitch: 700mm, max. blank dimensions X/Y: 450mm/450mm, max. blank diameter: 540mm, table dimensions X/Y: 1200mm/5600mm, main motor power: 300kW, machine dimensions X/Y/Z: approx. 10500mm/7500mm/9700mm, weight (according to documentation): approx. 524t, stroke counter reading (September 2024): approx. 25 million. 2) Blanking and cutting press Georg Maschinentechnik PKD 630, year of manufacture: 2004, max. press force: 6300kN, slide stroke: 240mm, strokes: 40/min, max. slide adjustment: 100mm, max. shut height: 525mm, table dimensions X/Y: 1200mm/1500mm, slide dimensions X/Y: 1050mm/1100mm, main motor power: 110kW, weight: approx. 110t. 3) Decoiler Roland Dreher 2398 G-SP, year of manufacture: 2004, max. load capacity: 25500kg, max. strip width: 1050mm, coil inner diameter range: 475mm-615mm, max. coil outer diameter: 2000mm. 4) Straightening feeder Roland Dreher 1689 G-SP, year of manufacture: 2004, strip width range: 100mm-1050mm, max. strip thickness: 12.4mm, max. strip cross-section: 6000mm², straightening rolls: 6, straightening roll diameter: 100mm, infeed and outfeed rolls: 4, diameter: 140mm, max. feed speed: 50m/min, feed accuracy: 0.1mm, transverse travel: +/-400mm. 5) Transfer feeder Roland Dreher 700/160/50, year of manufacture: 1994, feed length: 700mm, closing stroke: 160mm, lifting stroke range: 0mm-50mm, max. rail spacing: 1190mm, strokes: 24/min. 6) Central component oiling and processing system Leblein, control system: Siemens S7-300. 7) Line control system and electrical cabinet Siemens S7-317 with two decentralized Siemens ET200M units, modernization year: 2011. Including additional peripheral equipment such as feeding, marking, hydraulics, conveying, etc. Documentation available. An on-site inspection is possible. |
|
| Make | Weingarten |
|---|---|
| Model | S.3100 |
| Year of manufacture | 1969 |
| Price | On application |
| Offer No | INNO31960 |
