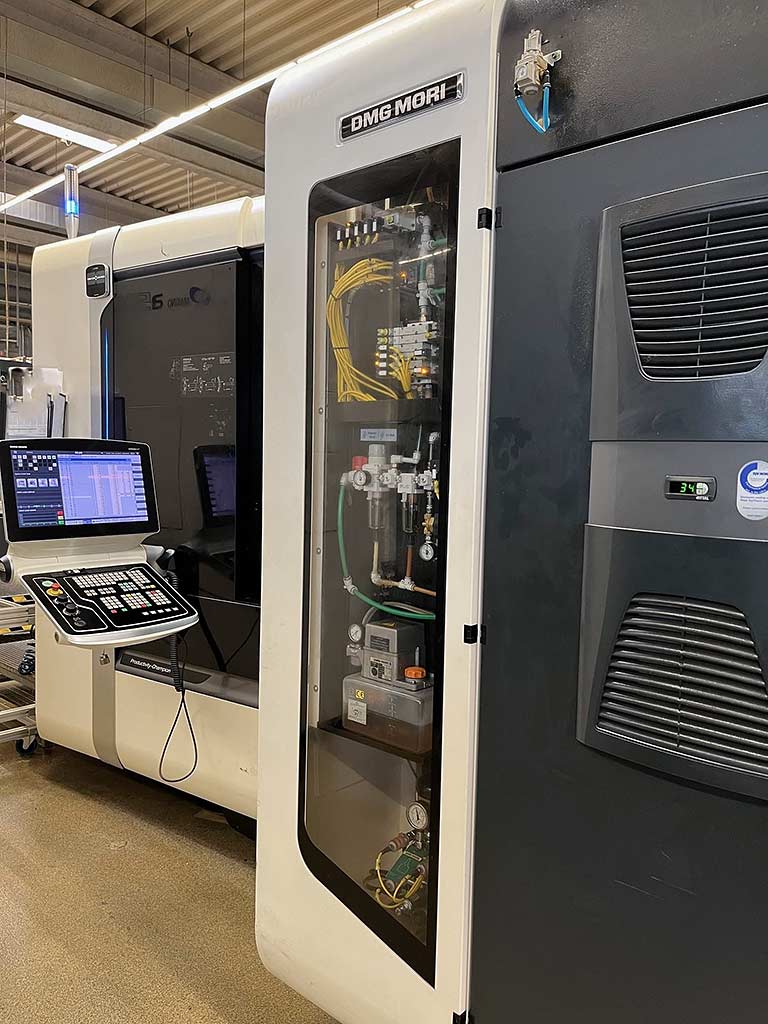

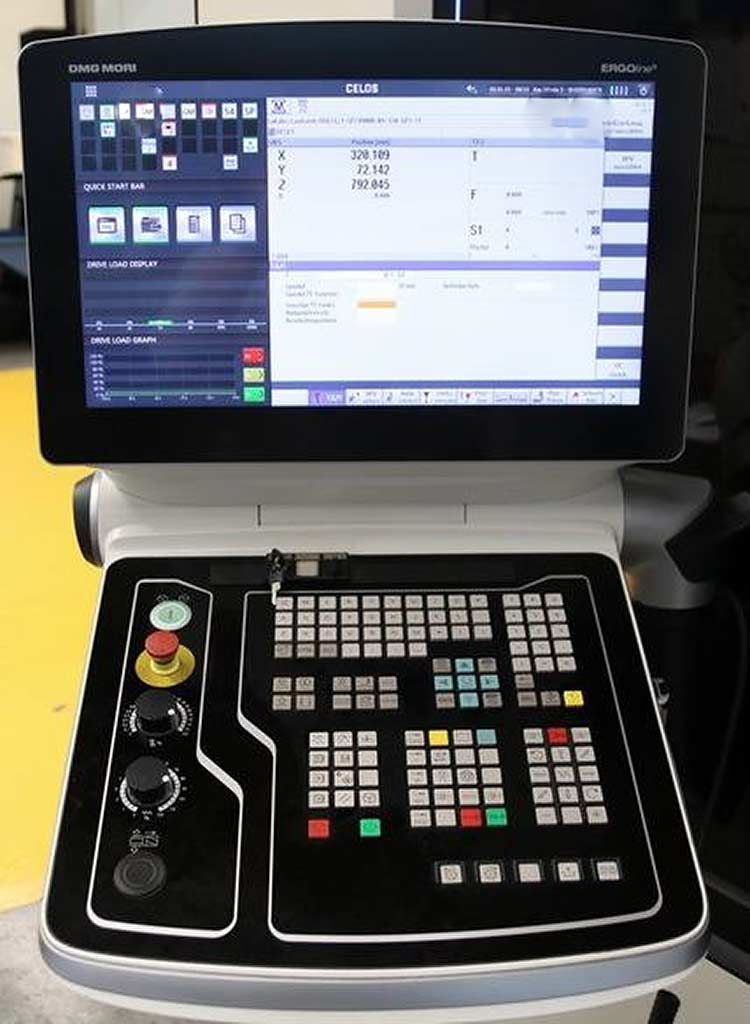

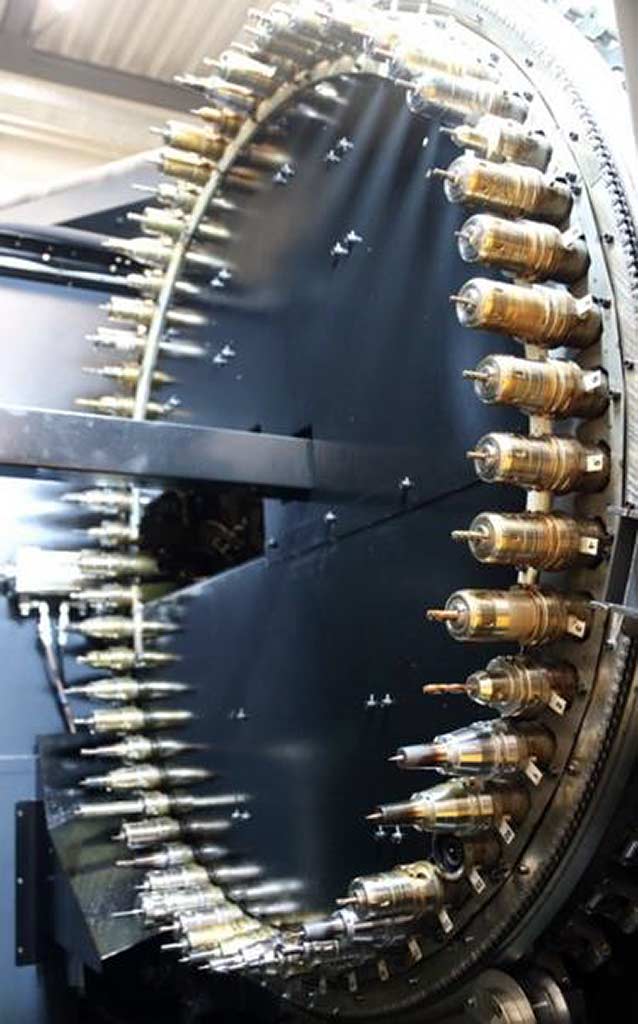

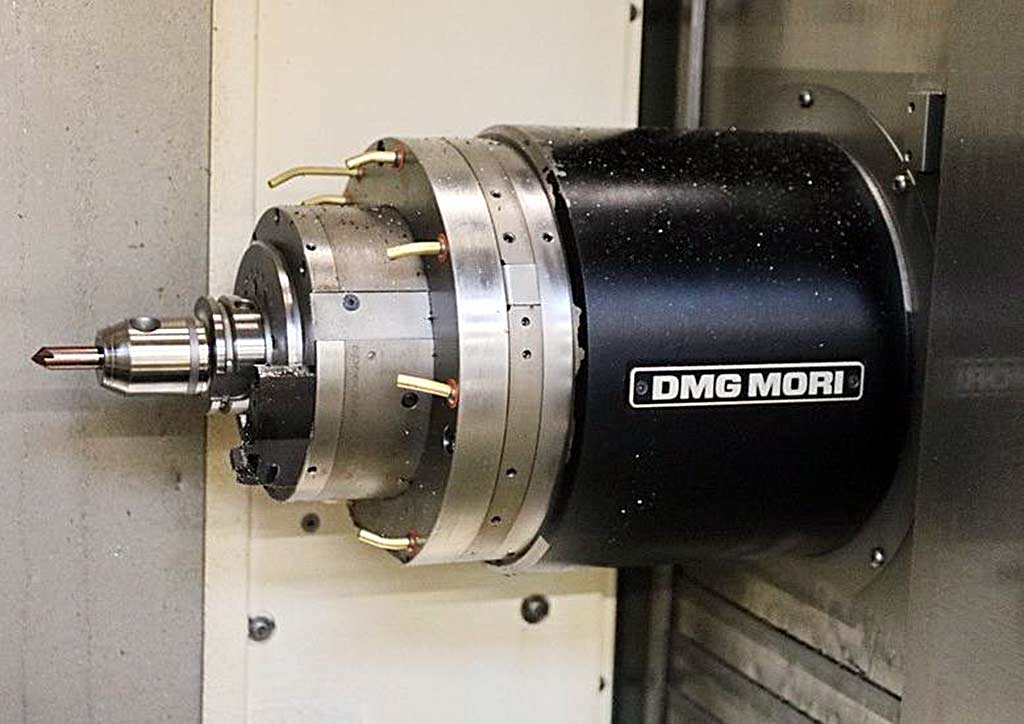

| Description A DMG MORI CNC 4-axis machining center is available. X/Y/Z-axis travel: 730mm/730mm/880mm, spindle speed: 15000rpm, torque: 250Nm/104Nm, tool interface: HSK-A63, spindle-to-table distance: 80mm-810mm, spindle nose-to-table distance: 70mm-950mm, pallets: 2, pallet dimensions X/Y: 500mm/500mm, max. workpiece weight: 700kg, max. workpiece diameter: 800mm, max. workpiece height: 1000mm, tool positions: 60, rapid traverse: 60m/min, feed rate: 60m/min. Machine dimensions X/Y/Z: approx. 6000mm/4000mm/2700mm, weight: approx. 12000kg, control: Siemens Sinumerik 840D sl, power-on hours: 33184h, operating hours: 10601h. Including 70bar internal coolant supply and Knoll KF 110/700. Documentation available. An on-site inspection is possible. |
|
| Make | Dmg Mori |
|---|---|

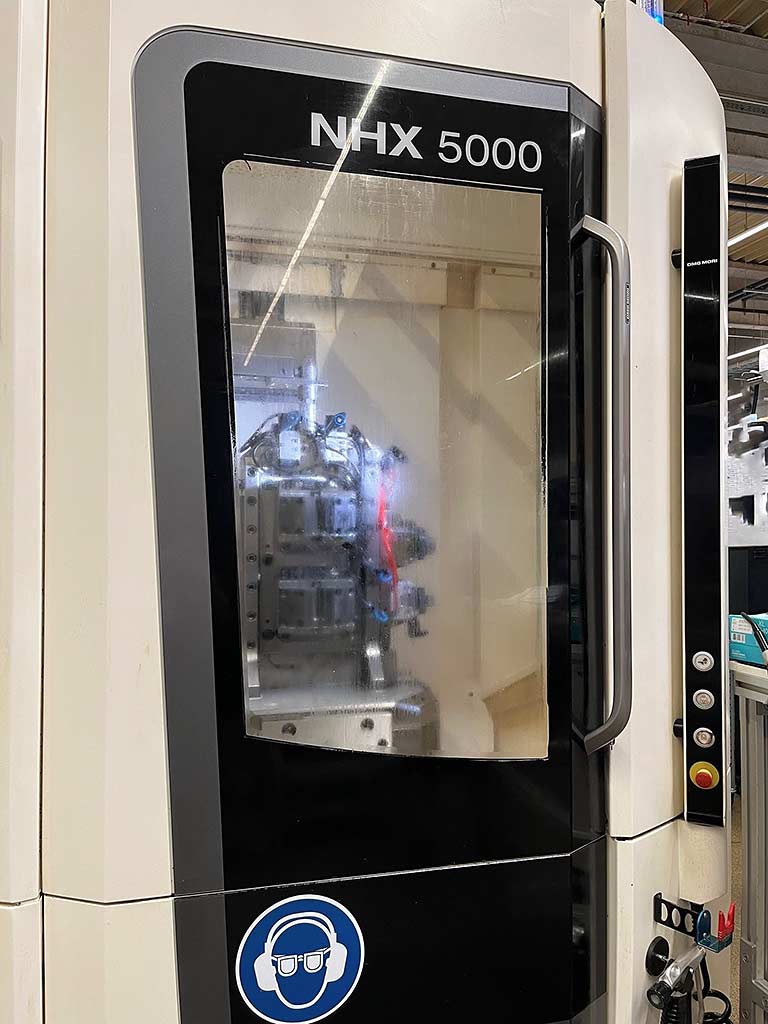

| Model | NHX 5000 |
| Year of manufacture | 2017 |
| Price | On application |
| Offer No | INNO31944 |
