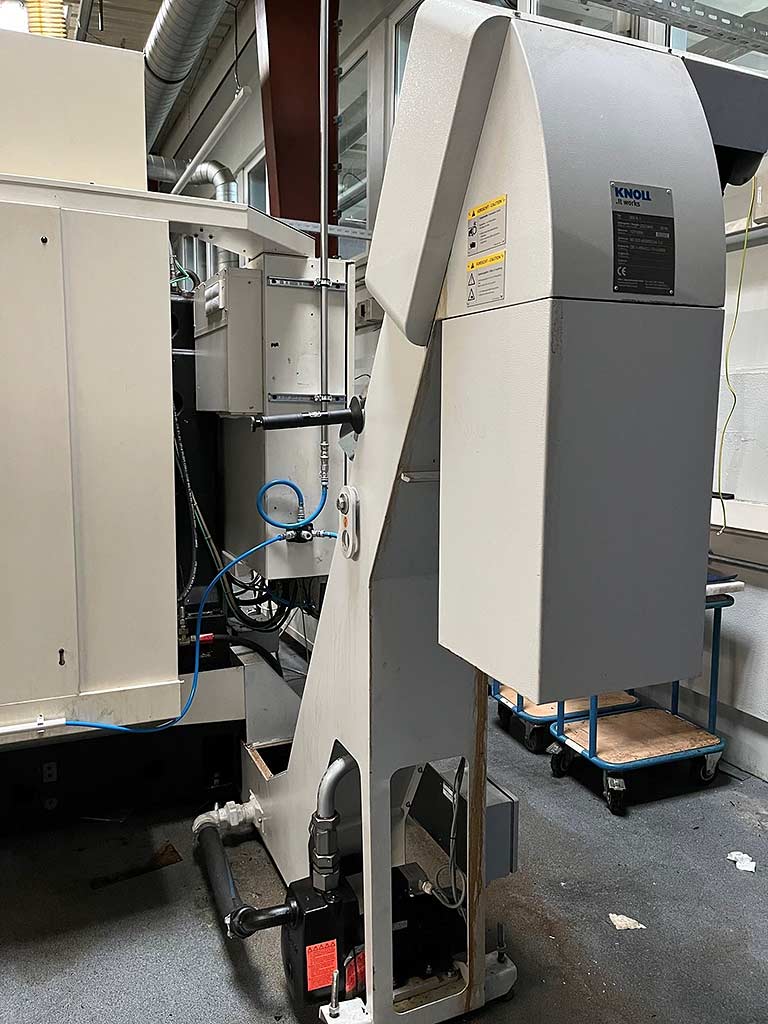

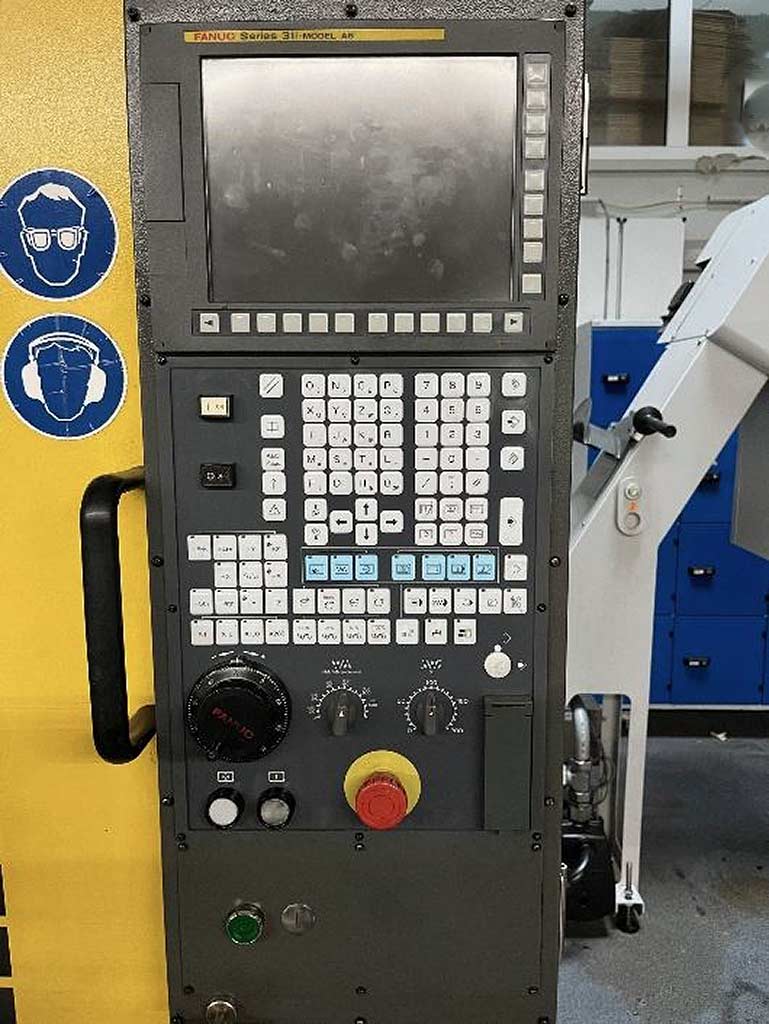

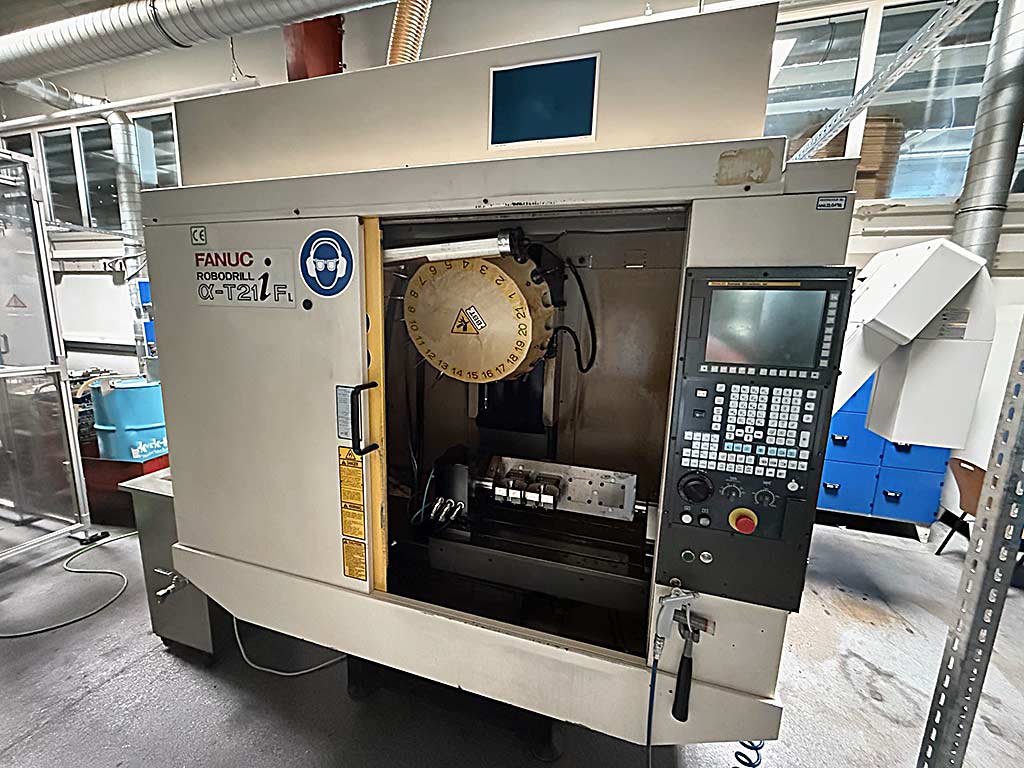

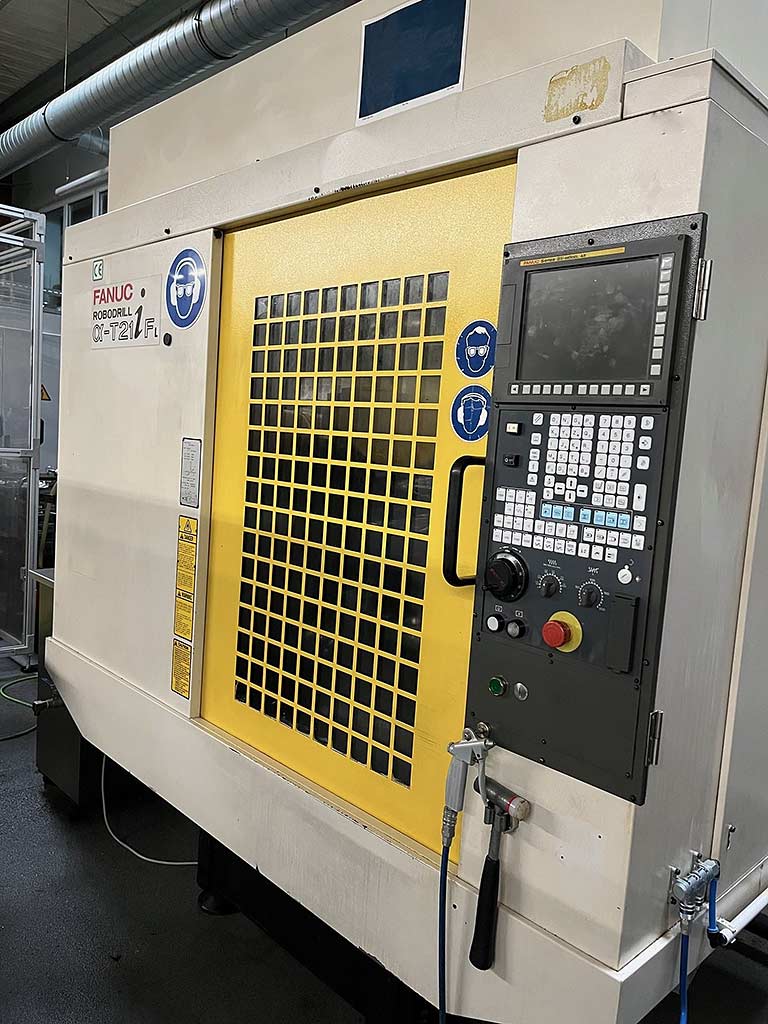

| Description A Fanuc CNC drilling and machining center is available. Travel X/Y/Z: 700mm/400mm/330mm, distance from table to spindle nose: 180mm-580mm, table dimensions X/Y: 850mm/410mm, max. table load: 300kg, max. spindle speed: 10000rpm, spindle power: 26kW/5.5kW, torque: 35Nm/7.5Nm, feed rate: 30m/min, rapid traverse: 54m/min, tool stations: 21, tool interface: BBT30, positioning accuracy: 0.006mm, repeatability: 0.004mm, machine dimensions X/Y/Z: 2150mm/2050mm/2350mm, weight: approx. 2100kg, control: Fanuc 31i-B5, operating hours: approx. 9547h. Including chip conveyor and coolant tank. Documentation available. An on-site inspection is possible. |
|
| Make | Fanuc |
|---|---|
| Model | Robodrill Alpha-T21iF |
| Year of manufacture | 2008 |
| Price | On application |
| Offer No | INNO31942 |
