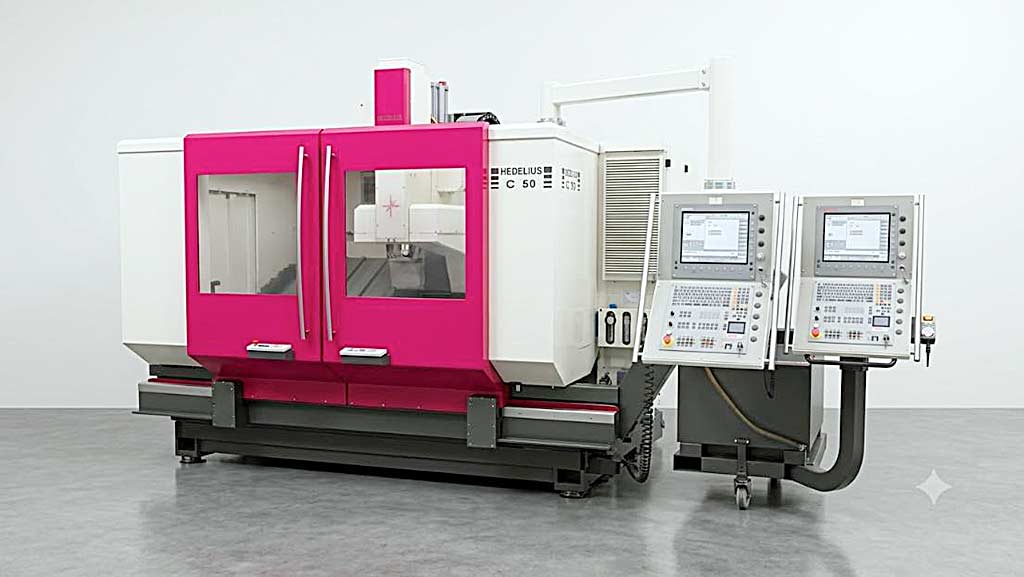

| Description A vertical CNC traveling column machining center Hedelius is available. Travel X/Y/Z: 1800mm/510mm/480mm, pendulum operation: 2x700mm, table dimensions X/Y: 2x1000mm/510mm, tool holder: SK40, spindle speed: 8000rpm, spindle power: 25kW/16kW, torque: 102Nm, rapid traverse: 45m/min, tool stations: 20, max. tool diameter: 63mm/80mm, max. tool length: 250mm, max. tool weight: 6kg. Machine dimensions X/Y/Z: approx. 6500mm/4000mm/2700mm, weight: approx. 5500kg, control: Heidenhain iTNC530. Documentation available. An on-site inspection is possible. |
|
| Make | Hedelius |
|---|---|
| Model | C50/40/530/1800/8 |
| Year of manufacture | 2010 |
| Price | On application |
| Offer No | INNO31877 |
