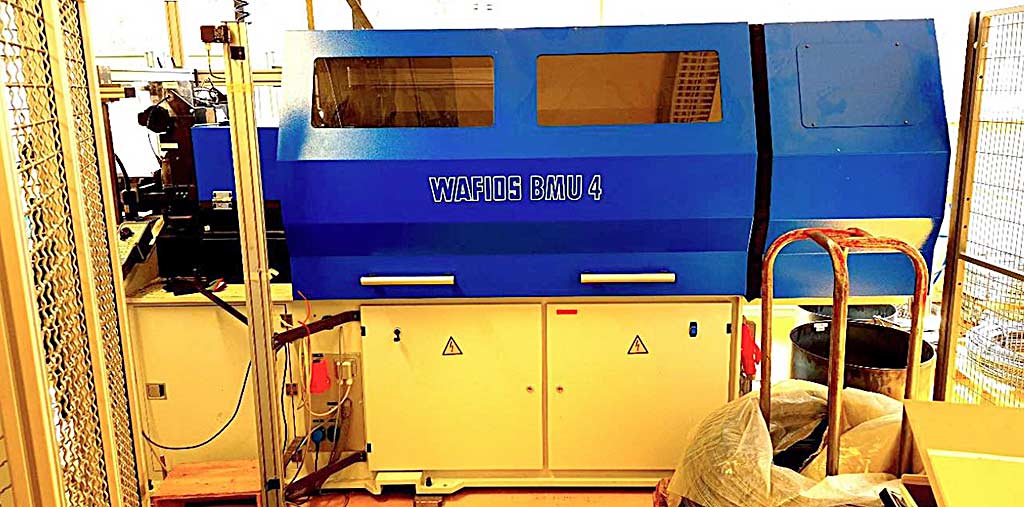

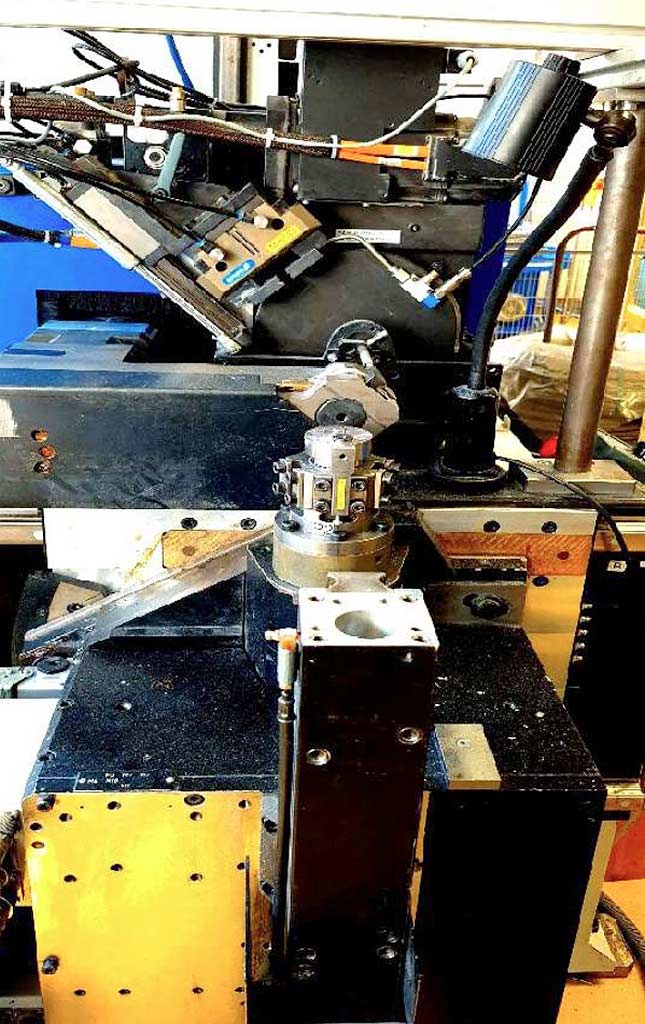

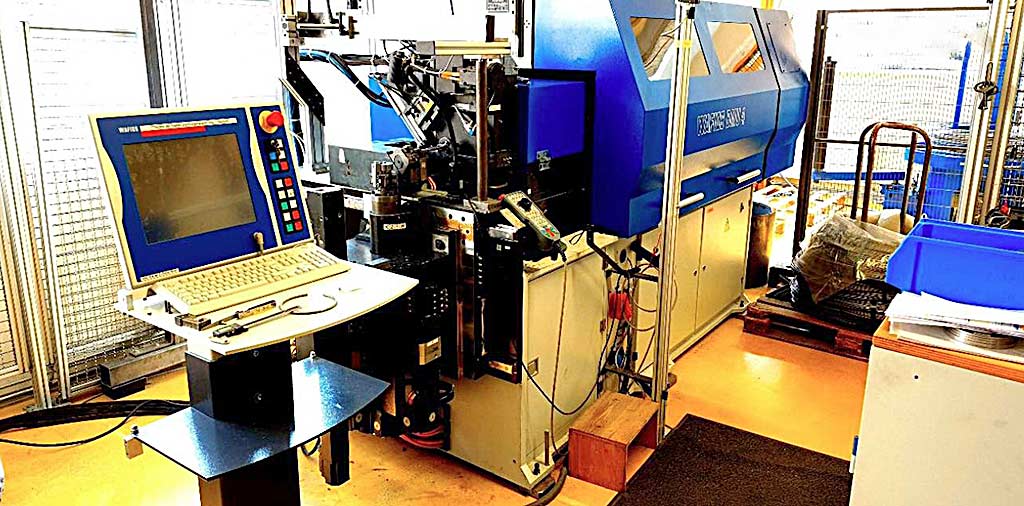

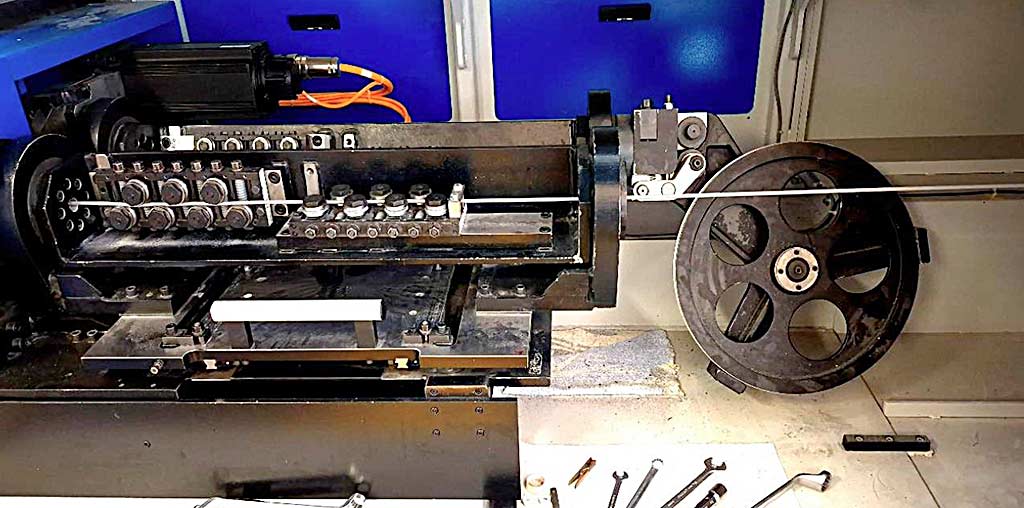

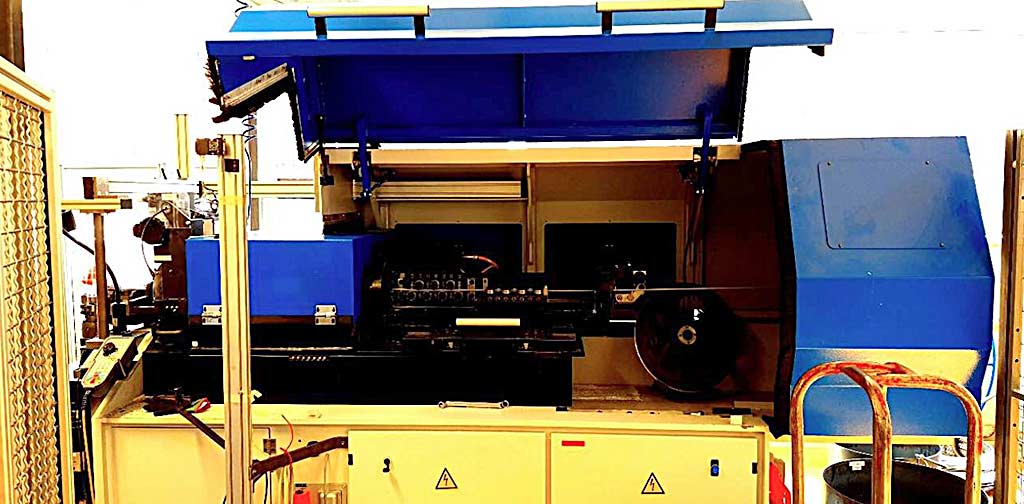

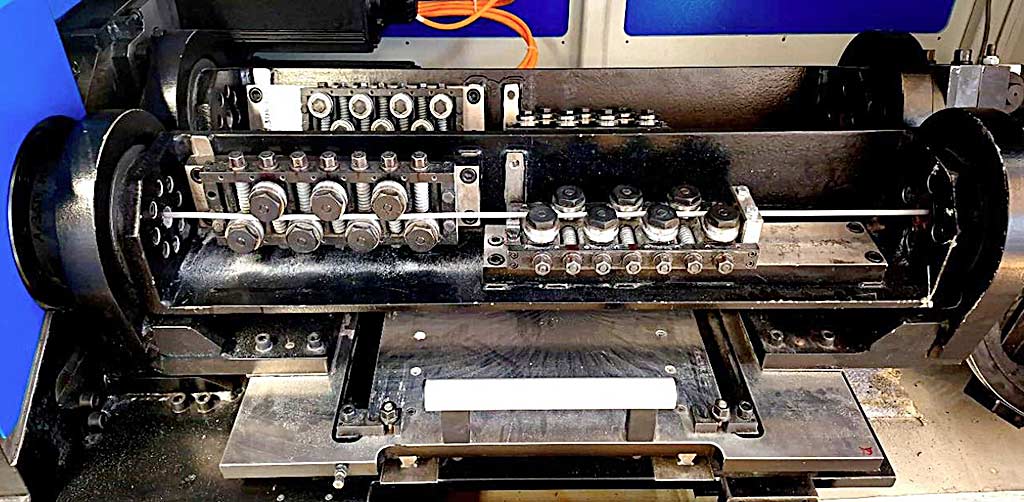

| Description A Wafios CNC wire and tube bending center is available. Axes: 9, wire diameter range: 1.5mm-8mm, tube diameter range: 3mm-10mm, wire tools: 2.5mm/4mm/5mm, tube tools: 6×1mm, feed speed: 120m/min, feed roller pairs: 3, bending head transverse stroke min./max.: -200mm/200mm, bending head stroke min./max.: -120mm/25mm, bending head orientation: 0°/30°, return length range: 400mm-1300mm, bending moment: 520Nm, upsetting force: 10kN. Machine dimensions X/Y/Z: approx. 3500mm/1800mm/2300mm, weight: approx. 5800kg. Documentation available. An on-site inspection is possible. |
|

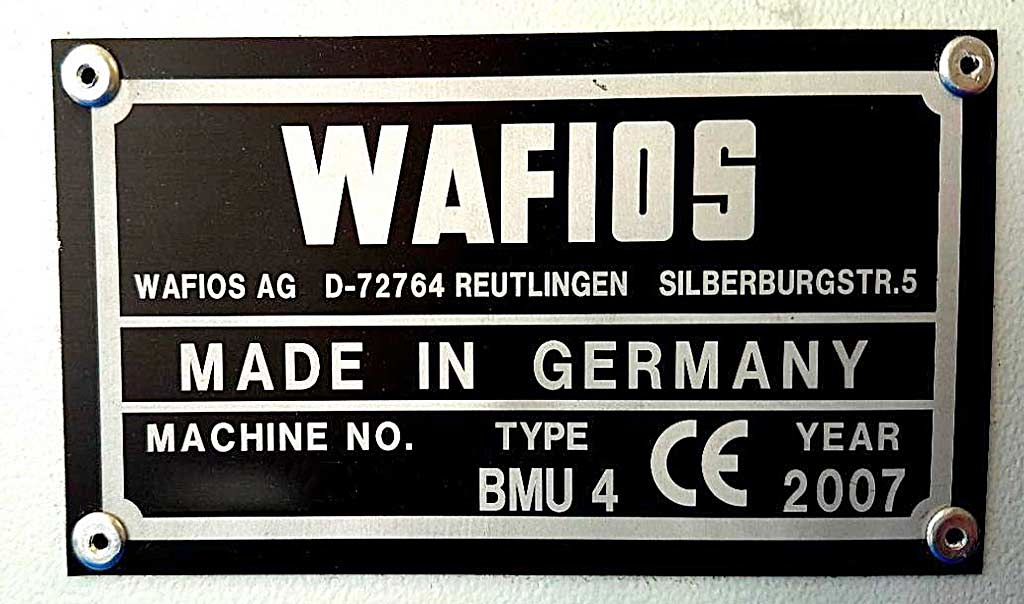

| Make | Wafios |
|---|---|
| Model | BMU 4 |
| Year of manufacture | 2007 |
| Price | On application |
| Offer No | INNO31862 |
