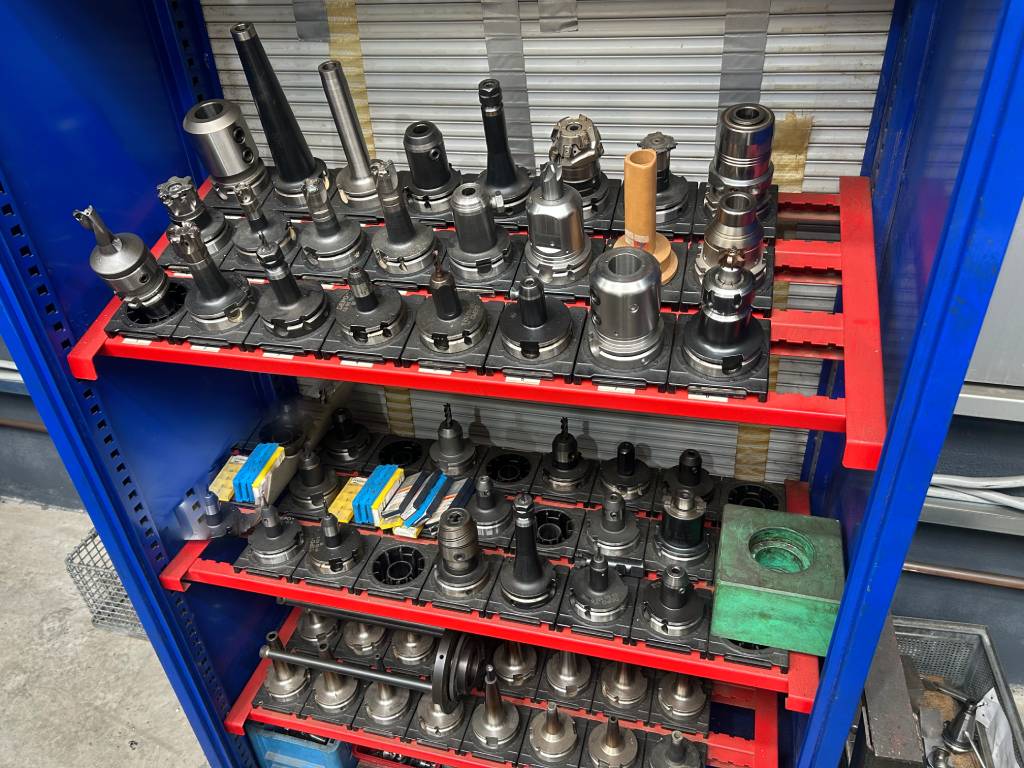

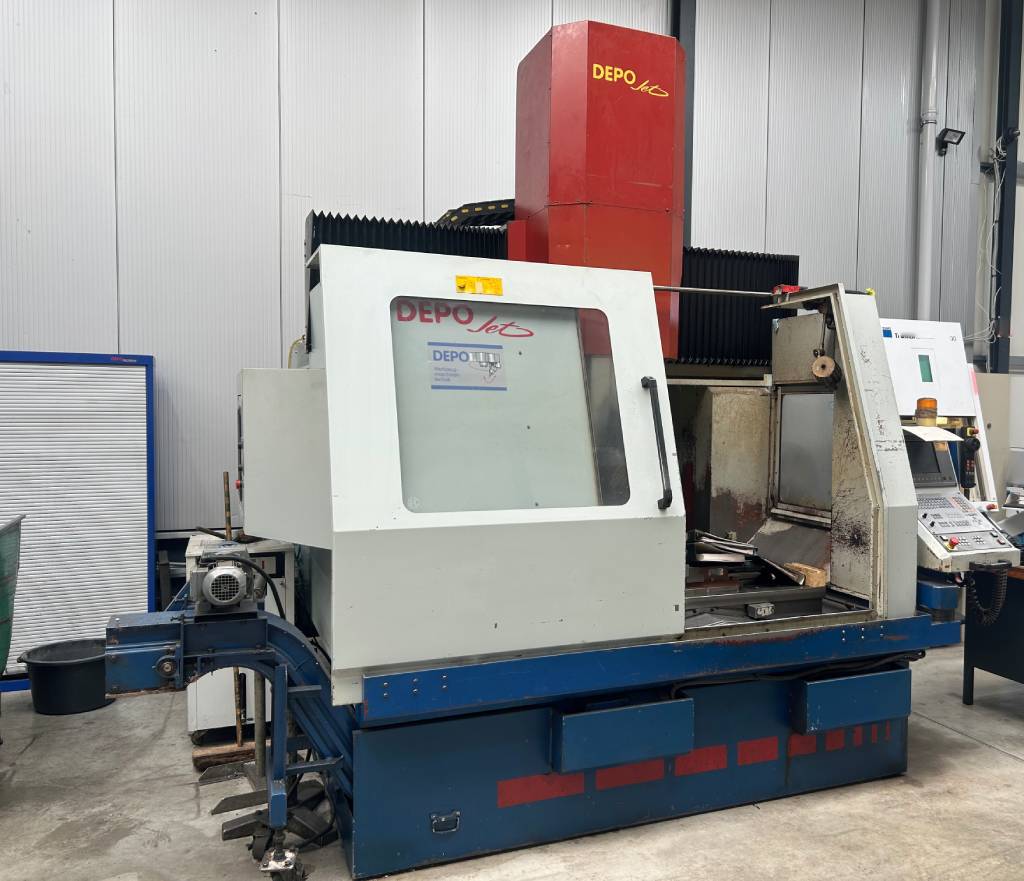

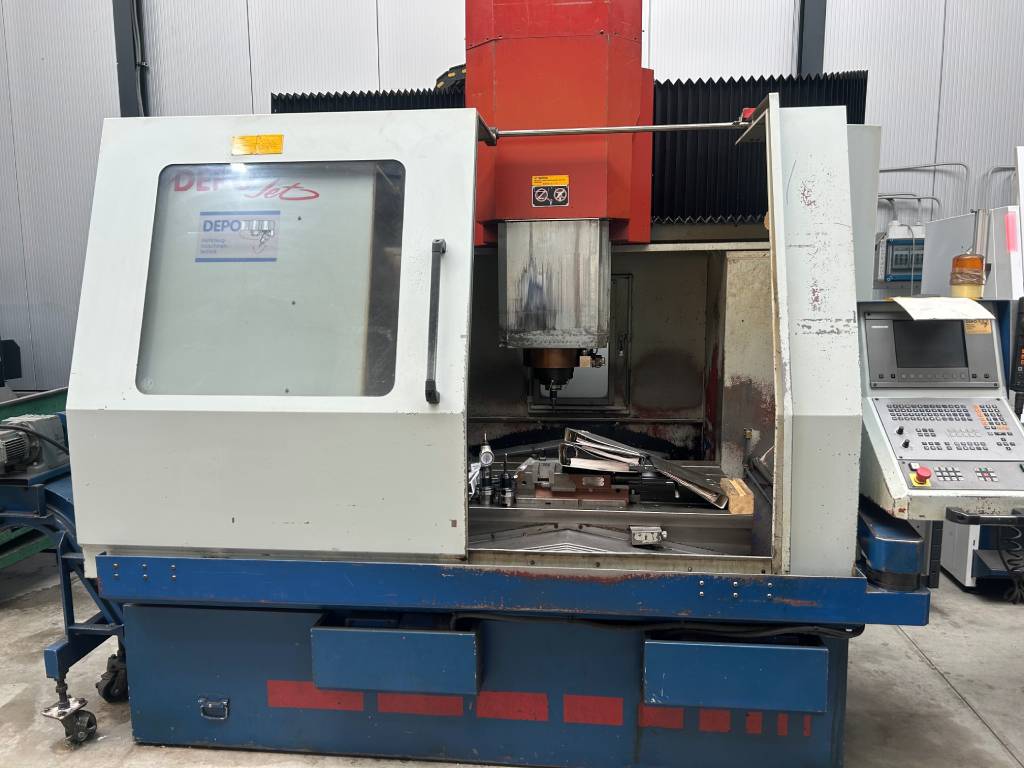

| Description A CNC vertical machining center Quick Jet is offered. Travel X/Y/Z: approx. 1200mm/800mm/700mm, spindle taper: HSK-A80, max. spindle speed: 14000rpm, spindle power: 25kW, spindle torque: 170Nm, tool magazine: 16, max. tool length: approx. 300mm, max. tool diameter: 100mm, max. tool weight: 7kg, rapid traverse X/Y/Z: 24m/min, distance between table surface and spindle nose: 100mm-800mm, table size X/Y: 1350mm/1300mm, max. workpiece weight: 8000kg, control: Heidenhain TNC 530. Including HSK-A80 tool holder inventory. Machine dimensions X/Y/Z: approx. 3335mm/2780mm/3595mm, weight: approx. 11050kg. Inspection possible by appointment. |
|
| Make | Quick Jet |
|---|---|
| Model | Depo-Jet |
| Year of manufacture | 2001 |
| Price | On application |
| Offer No | INNO31840 |
