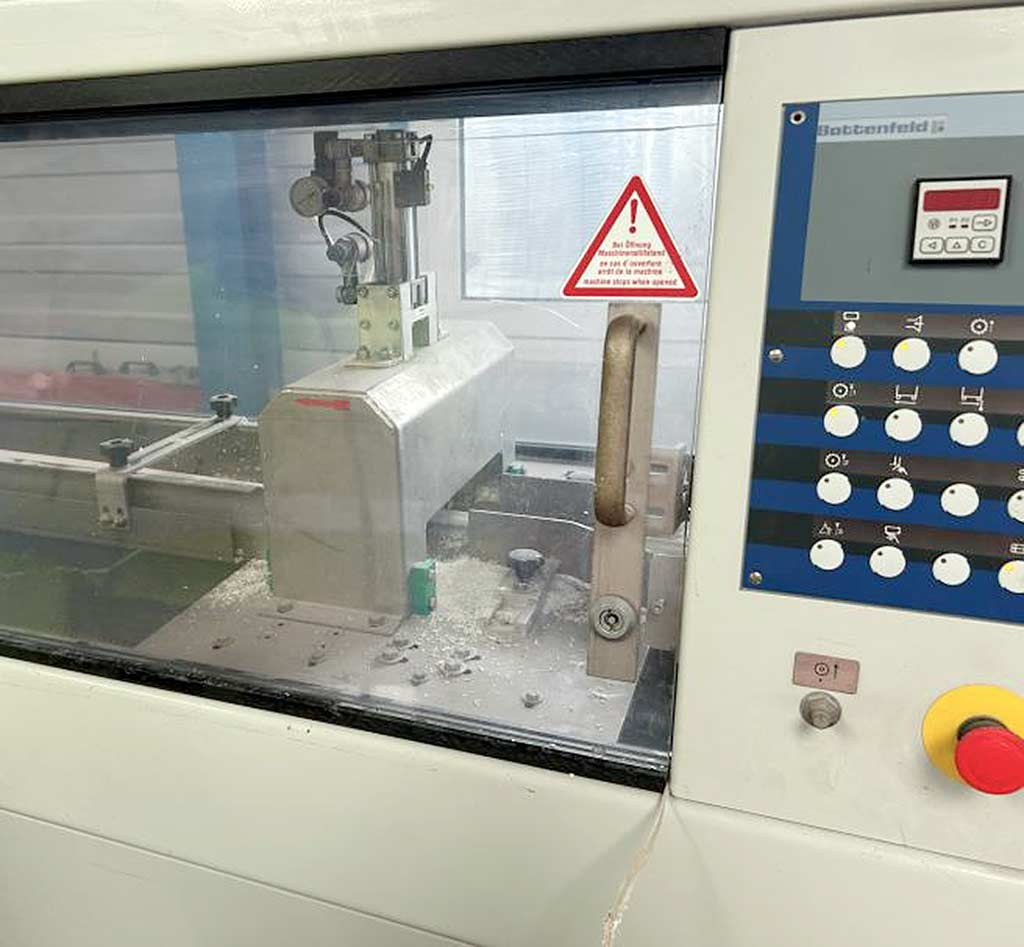

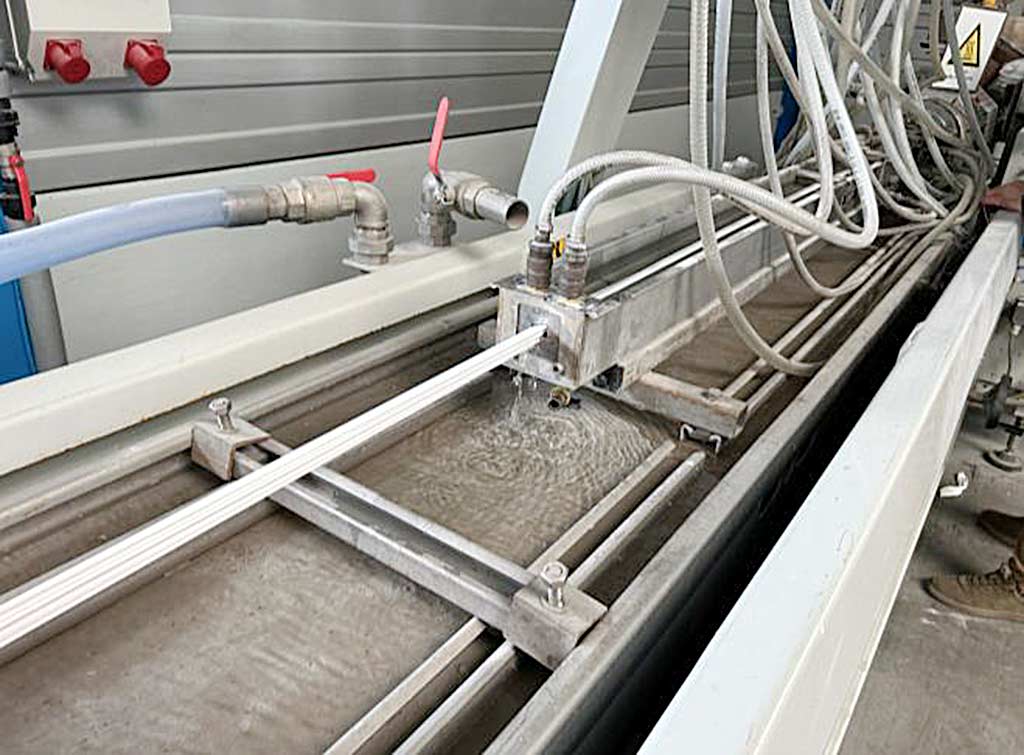

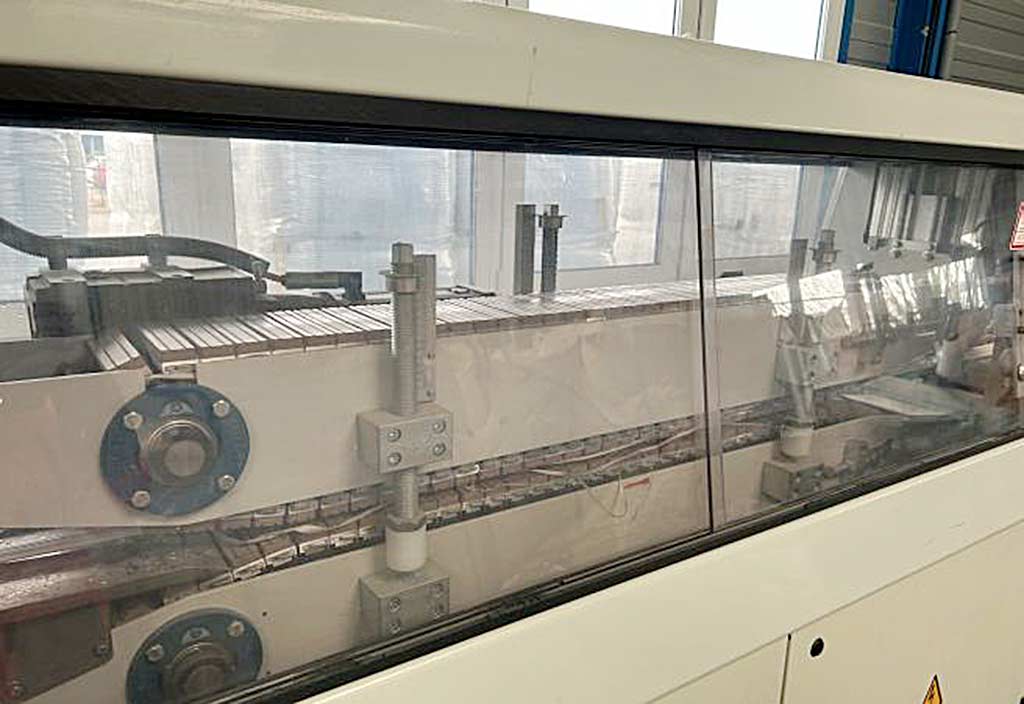

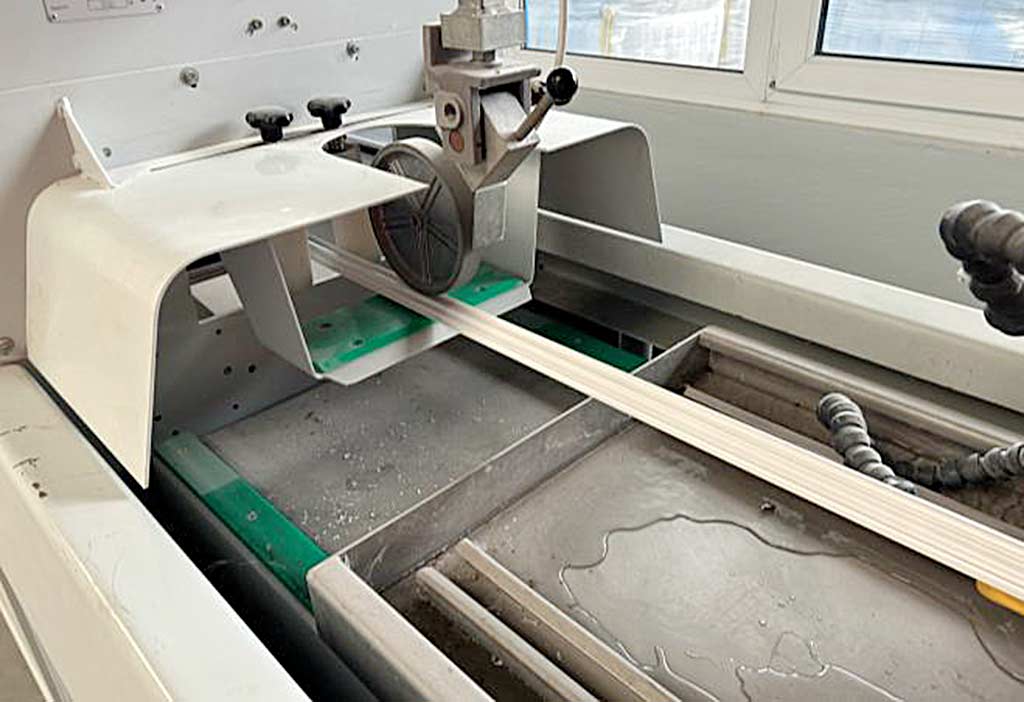

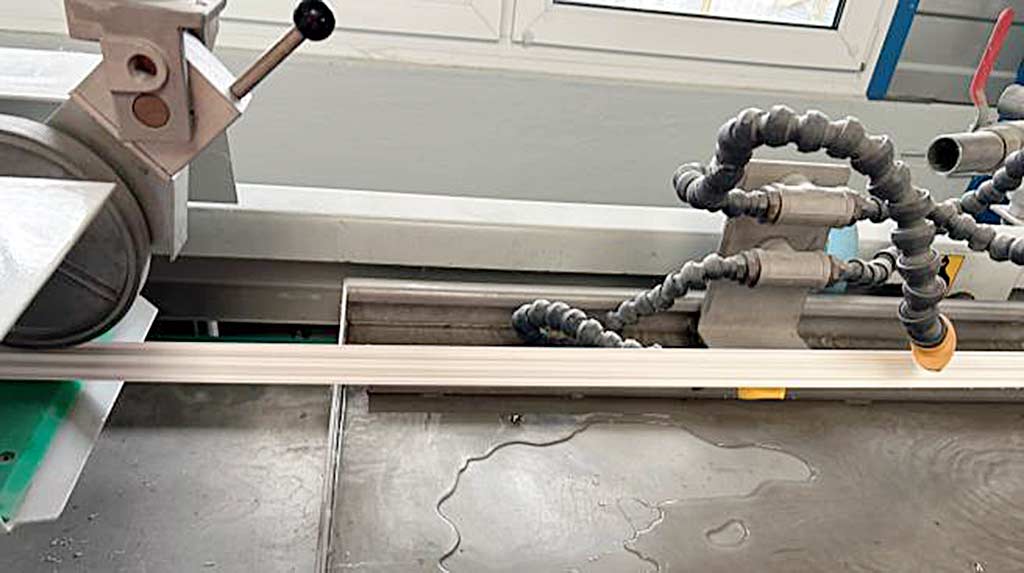

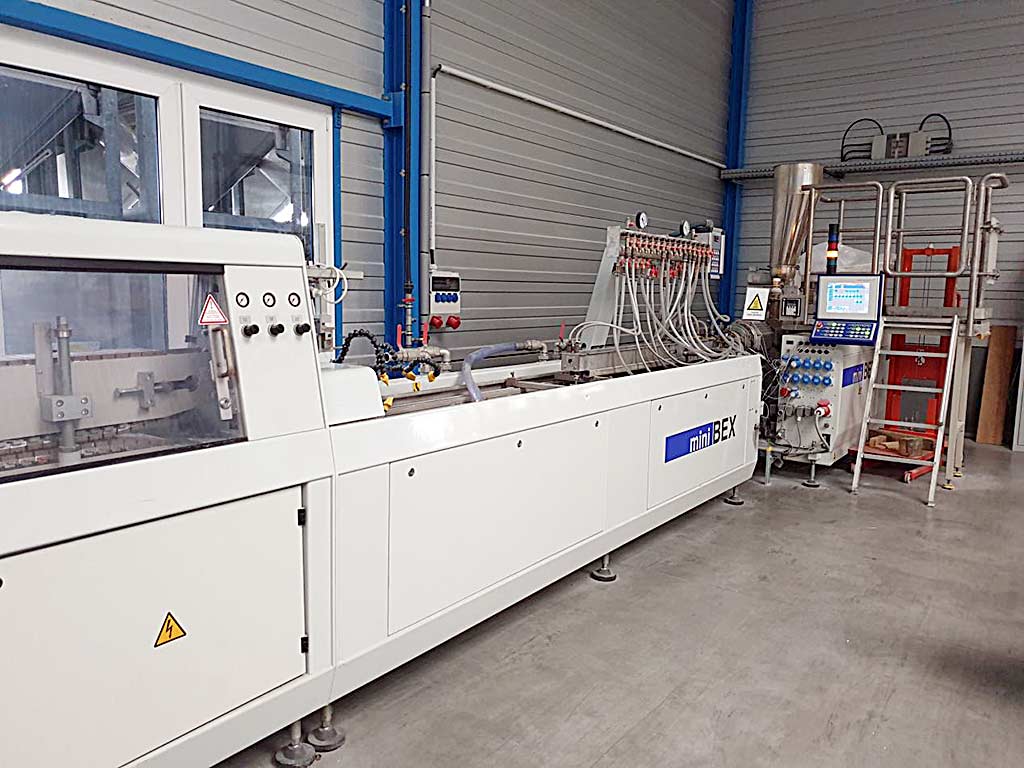

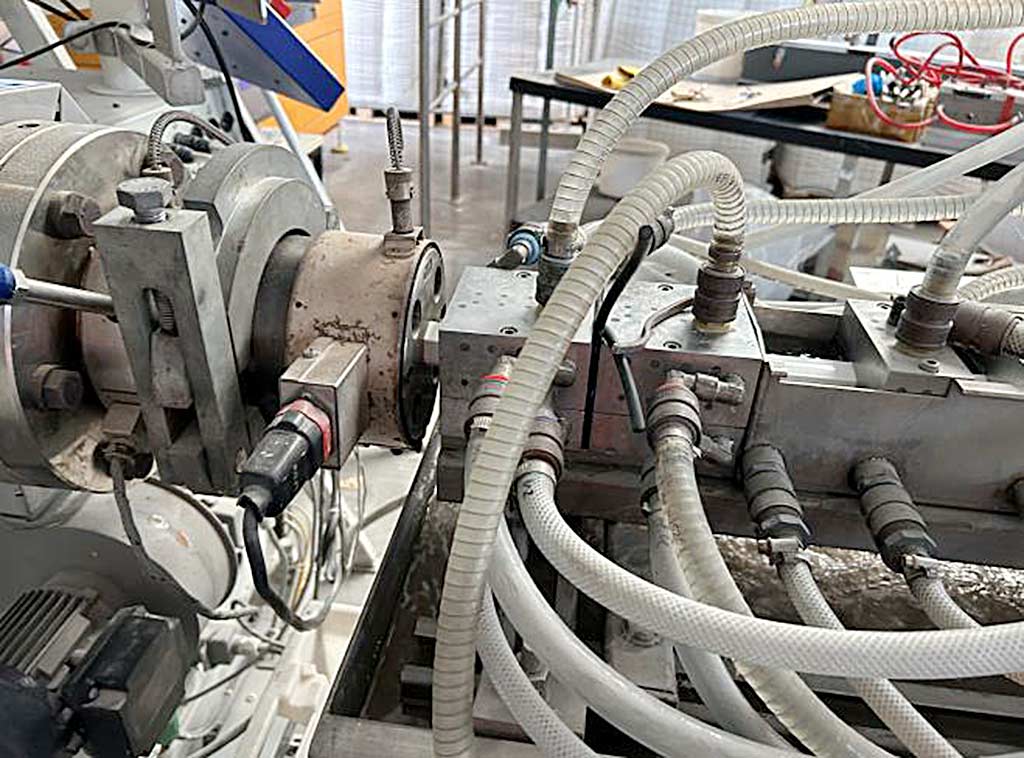

| Description A complete Battenfeld compact extrusion line for the production of PVC profiles is available. 1) Twin-screw extruder Battenfeld MBEX 2-50-16 V, year of manufacture: 2006, output capacity: 15kg-60kg/h, screw diameter: 52mm, screw length: 16×D, barrel zones: 4, barrel cooling zones: 3, adapter zones: 1, die heating zones: 9, control system: BMCtouch. Including dry vacuum pump, pressure measuring points, clamping flange, water-air separator, blow-off device, mounting elements and hopper cover. 2) Calibration table Battenfeld KP 125 V 2/4m, mounting frame length: 4100mm, mounting rail width: 320mm, longitudinal adjustment: 500mm, transverse adjustment: +/-15mm. 3) Speck vacuum system, pumps: 2, motor power: 2×4kW, operating pressure: 200mbar, max. air capacity: 2×140m³/h. 4) Battenfeld RP 125 SE caterpillar haul-off, passage height: 100mm, contact length: 1100mm, pad width: 160mm, haul-off speed: 15m/min, max. haul-off force: 7kN. 5) Battenfeld SP 63 E underfloor saw, max. cross-section capacity X/Y: 200mm/300mm, sawing accuracy: +/-0.5mm. Overall line dimensions X/Y/Z: approx. 12000mm/1200mm/2000mm, weight: approx. 4500kg, operating hours: approx. 319h. Including chip extraction. The line touchscreen is defective (nothing is visible), however, the line can be operated using an external monitor, mouse and keyboard. Documentation available. An on-site inspection is possible. |
|
| Make | Battenfeld |
|---|---|
| Model | miniBEX/MBEX 2-50-16 V |
| Year of manufacture | 2006 |
| Price | On application |
| Offer No | INNO31738 |
