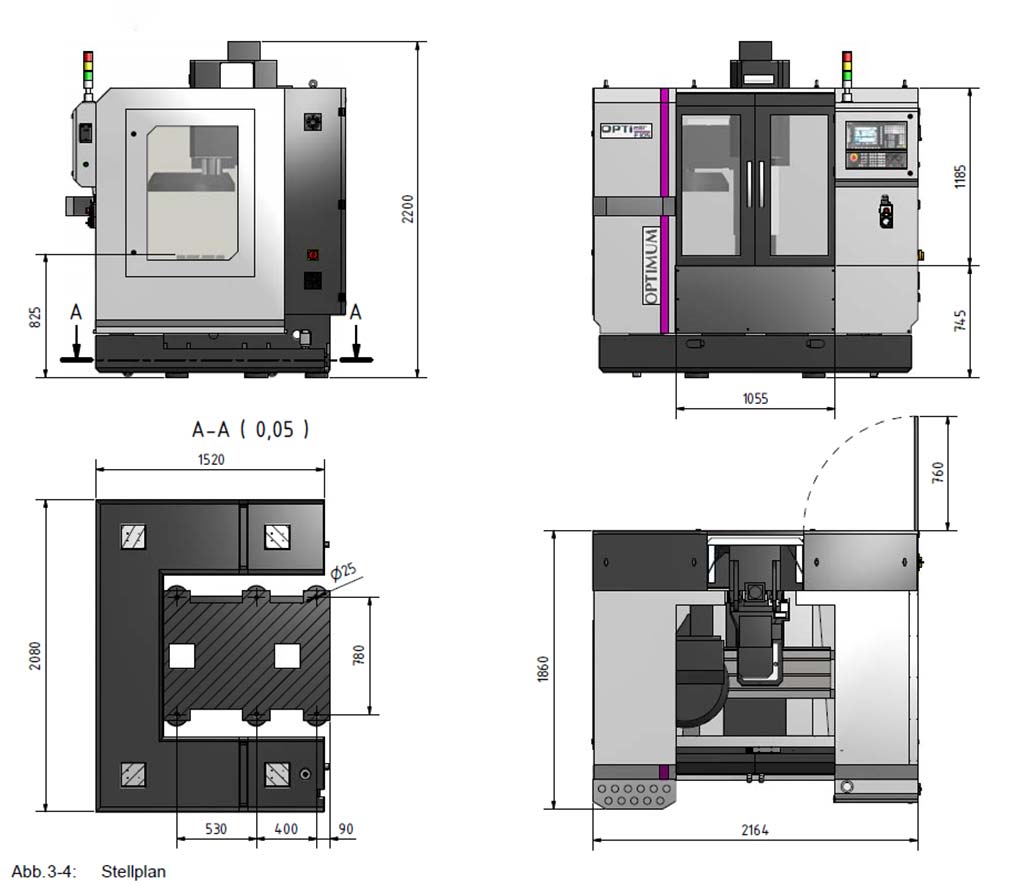

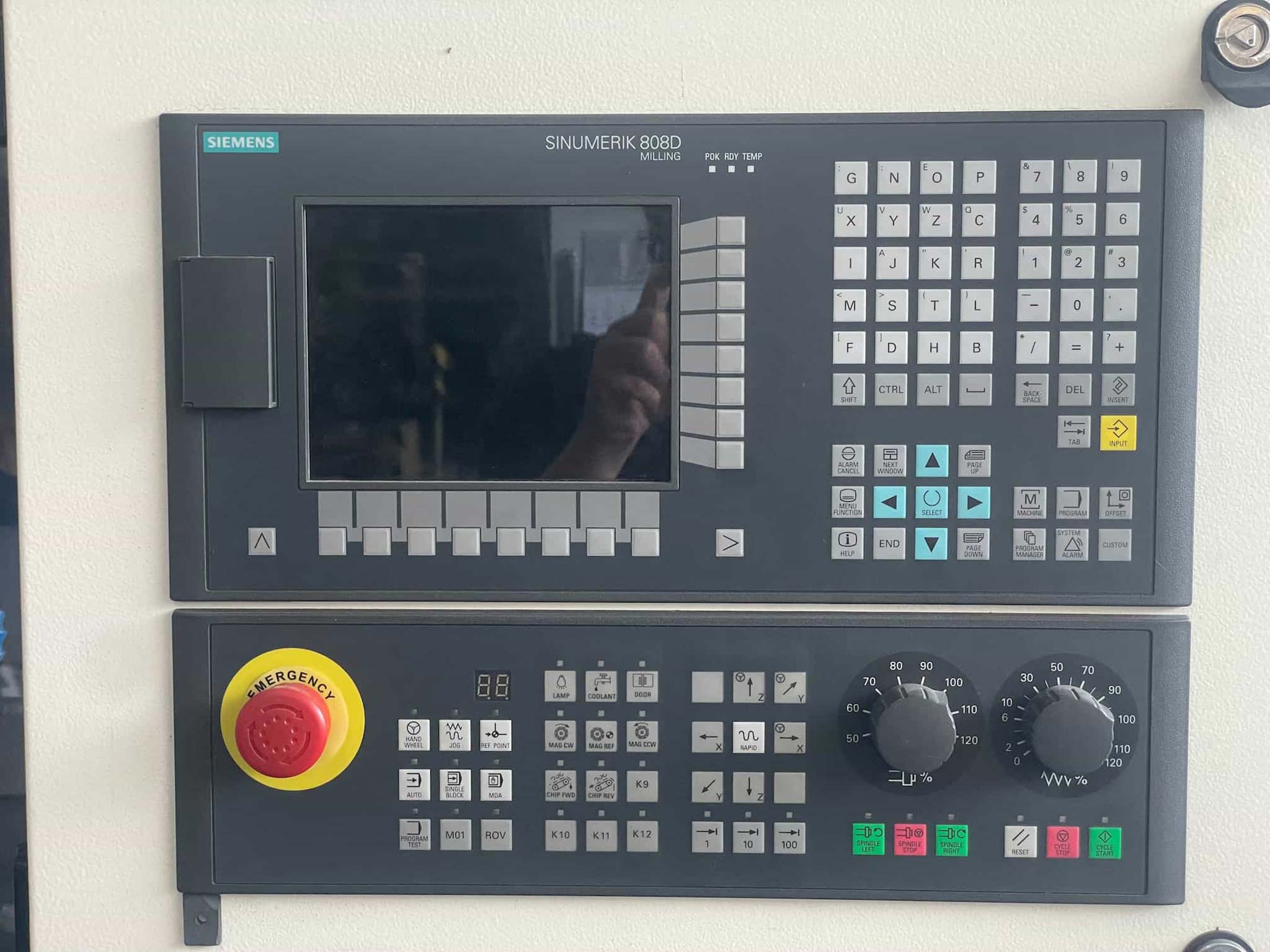

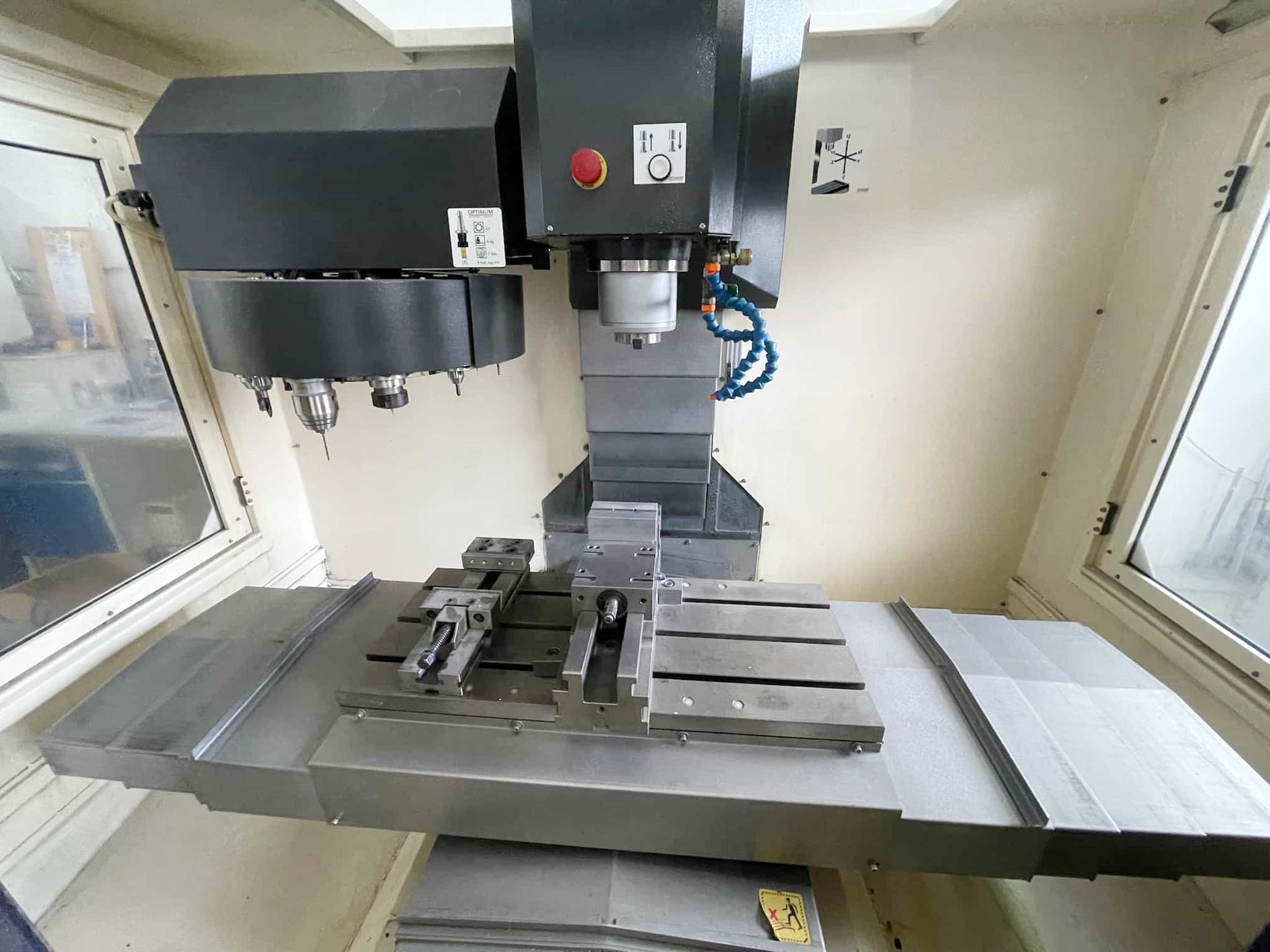

| Description X-axis: 550mm, y-axis: 305mm, z-axis: 460mm, milling table dimensions: 800x320mm, T slots: 14mm/3 pieces/distance 100mm, max. table load: 300kg, spindle to table distance: 100-600mm, number of tool positions: 12, max. tool diameter: 70mm, max. tool length: 300mm, max. tool weight: 6kg, tool change time (T to T): 7s, milling spindle power S1 operation: 5.5kW, power S6 30% operation: 7.8kW, torque S1 operation: 35Nm, torque S6 30% operation: 50Nm, spindle holder: ISO 40/BT40x45°, coolant system pump output: 650W, tank capacity: 120l, compressed air minimum connection pressure: 0.6MPa (6bar), air consumption: 0.1-0.15m³/h at 0.6MPa, compressed air quality: ISO 8573.1 class 2, compressed air connection: 3/8 inch, connected load: 12.5kVA, control: Siemens SINUMERIK 808D MILLING, length: 2164mm, front width: 1520mm, side width: 1860mm, height: 2200mm, door opening range: 760mm, door opening width: 1055mm, foundation/installation area: 1520x2080mm, weight: 2.8t. An on site inspection is possible. |
|
| Make | Optimum |
|---|---|

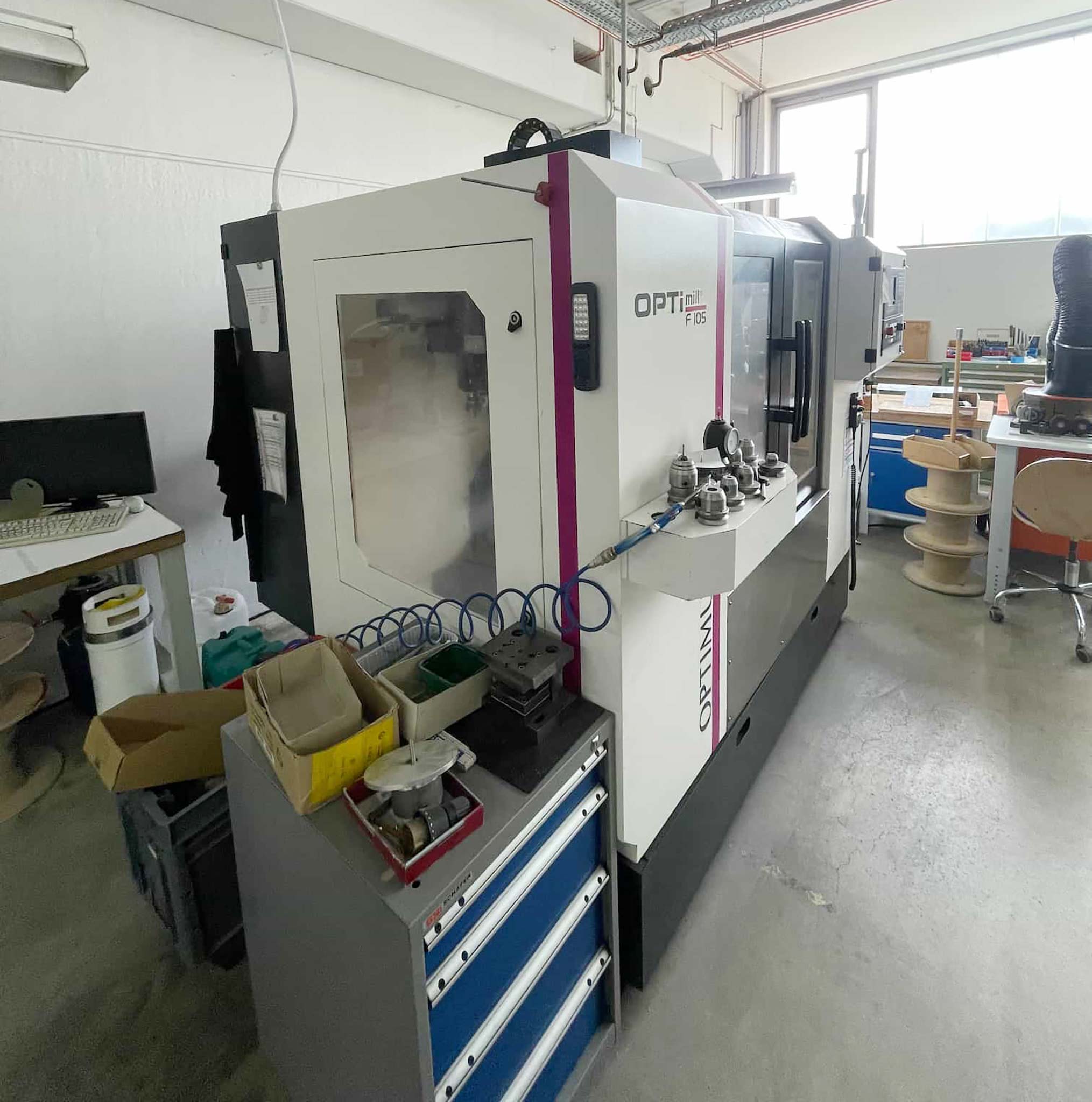

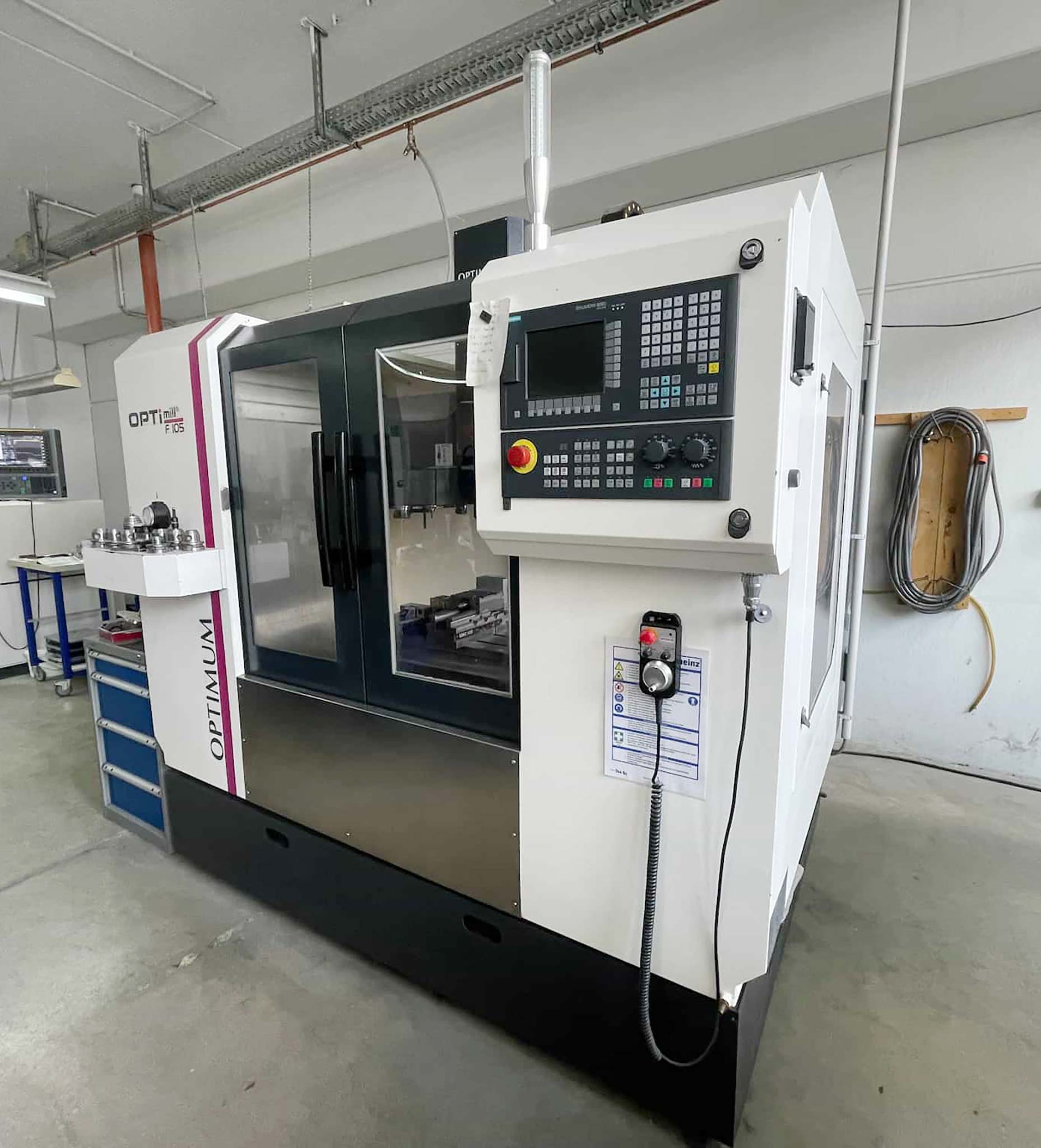

| Model | OPTI mill F 105 |
| Year of manufacture | 2017 |
| Price | On application |
| Offer No | INNO31622 |
