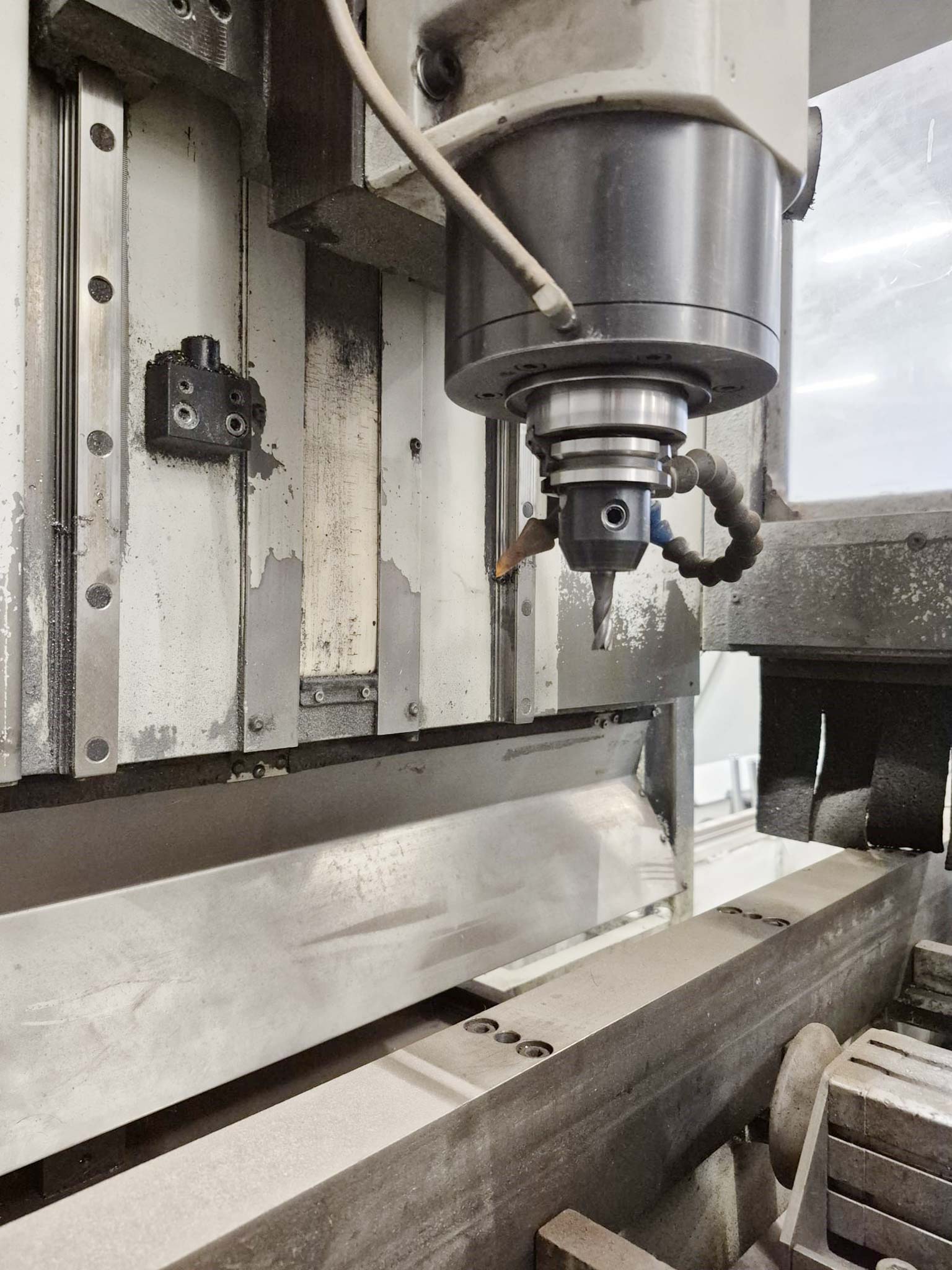

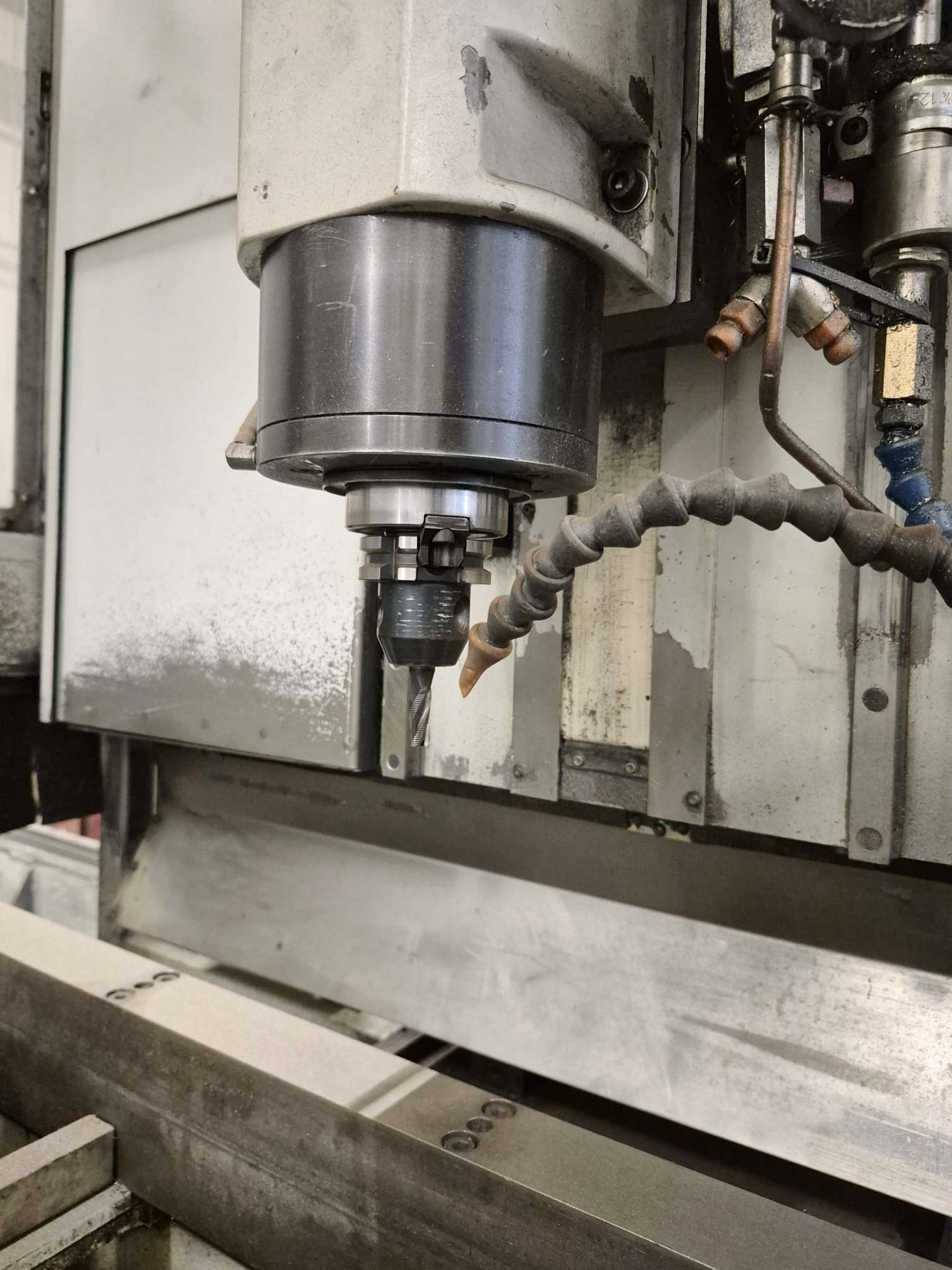

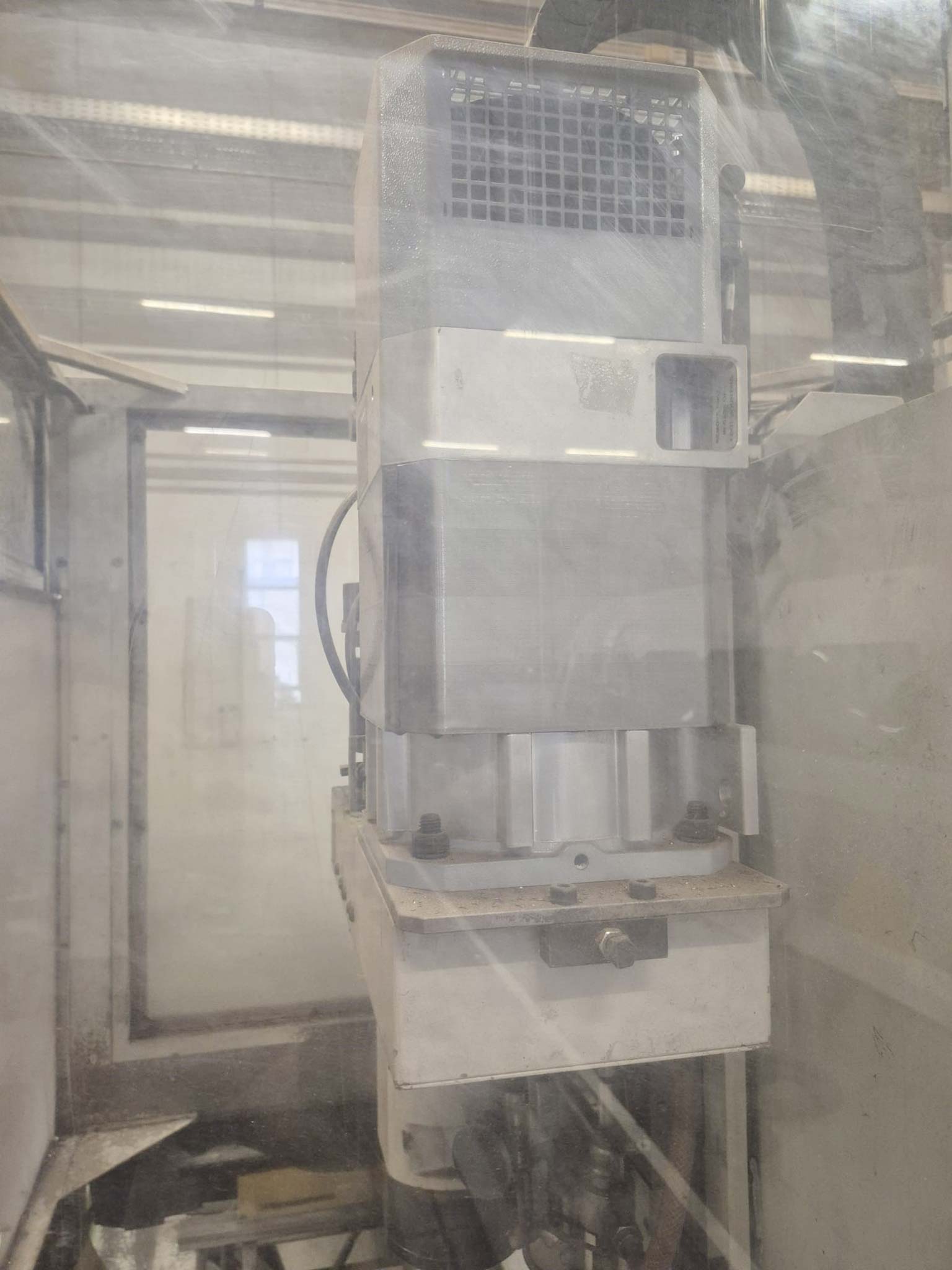

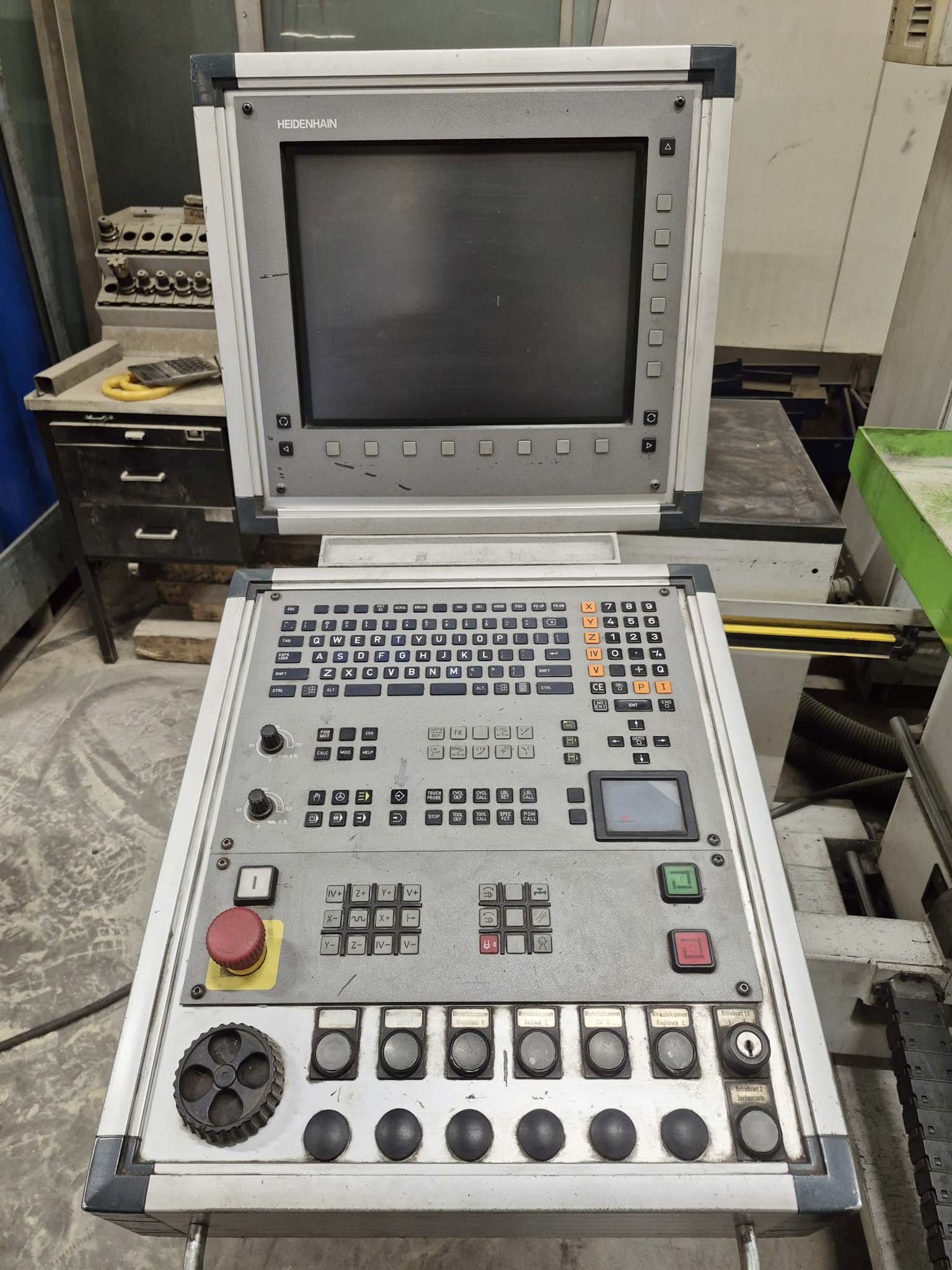

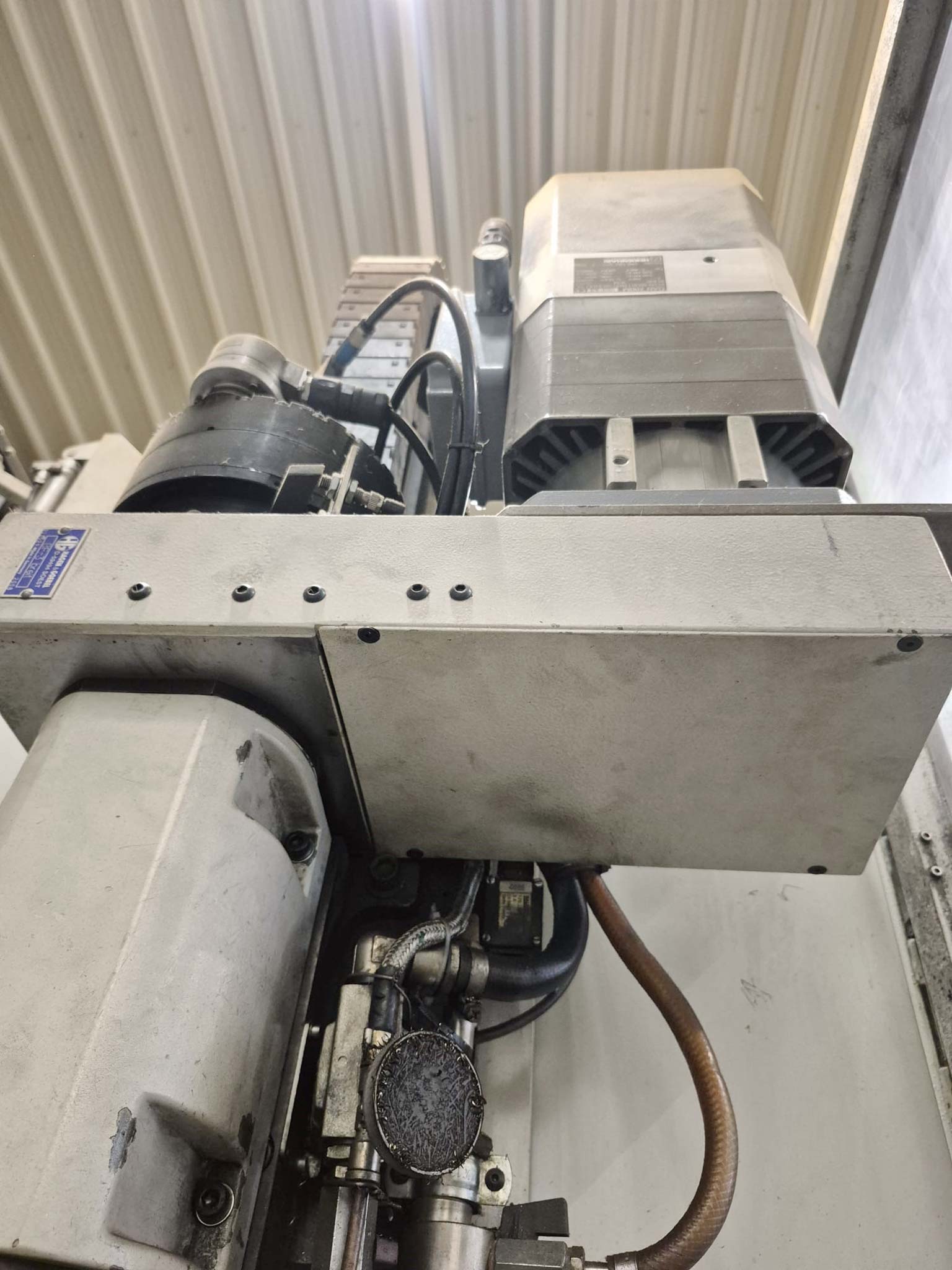

| Description Machining length: 6500mm, equipment: fencing, control cabinet, Hagen & Göbel spindle unit, power: 5.5kW S1/7.9kW S6, speed range: 100 to 6000/min continuously variable, tool holder: SK30/DIN69871 form A, drilling capacity in steel 60/aluminium: 18/20mm, thread in steel 60/aluminium: M14/M16, spindle throat: 150mm, vertically opening protective cabin, pneumatically movable up and down, operation via push button, coolant system emulsion AP3000/6500, delivery rate: 70l/min, tank capacity: 150l, support table with T slot strips size 16, ten clamping cylinders, support surface: 6500x330mm, equipped with ten double acting pneumatic cylinders (50x40), tool changer plate magazine, travelling plate magazine for eight tools, change time: approx. 8 to 10s, max. tool holder diameter: 50mm, max. length for tool holder with tool: 250mm, Heidenhain HR130 handwheel integrated in control housing, chip tray, 6 removable chip drawers, pendulum operation for normal table, protection by light barrier, device for efficient production of series parts, machine table with separating discs for 900mm safety zone, spray mist device, tank capacity: approx. 1l, laser technology, retrofit AP6500 HK laser technology. Control: HEIDENHAIN iTNC530, length: 8000mm, width: 2400mm, height: 2450mm, weight: 4.5t, with documentation. An on site inspection is possible. |
|

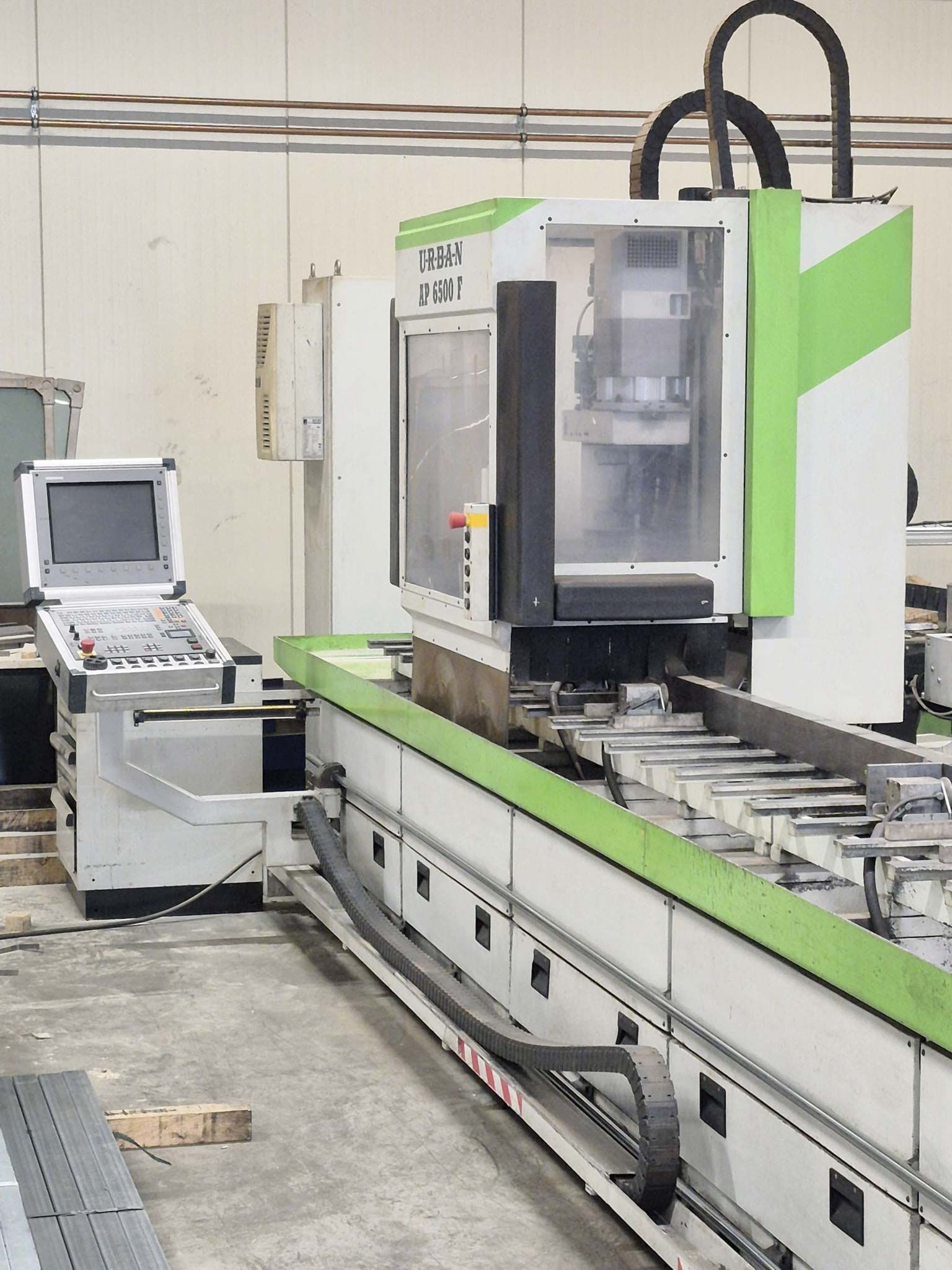

| Make | Urban |
|---|---|
| Model | AP 6500 F |
| Year of manufacture | 2012 |
| Price | On application |
| Offer No | INNO31617 |
