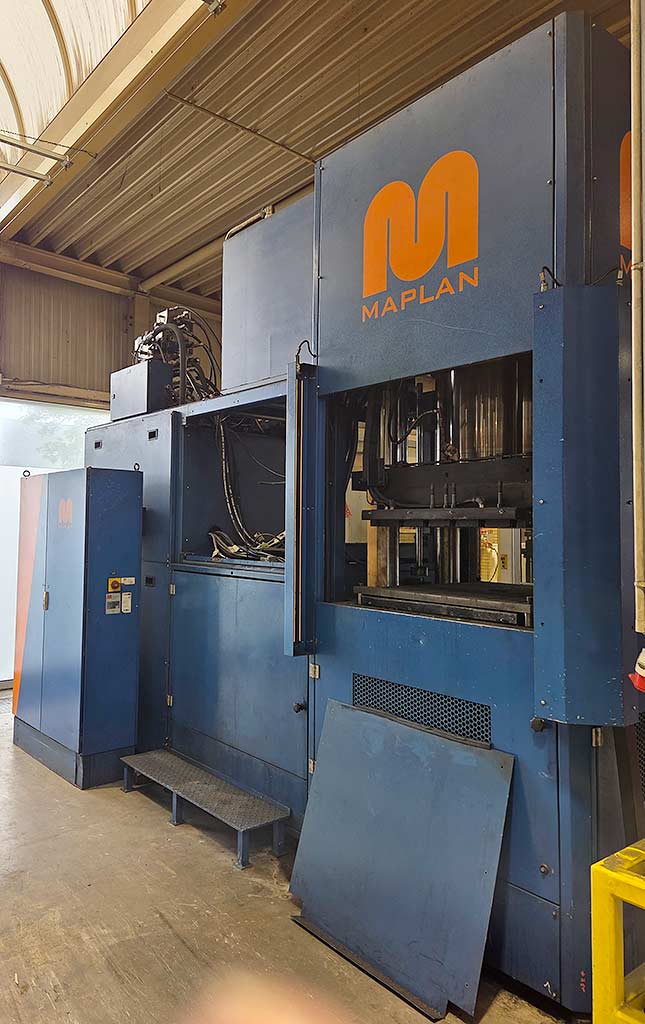

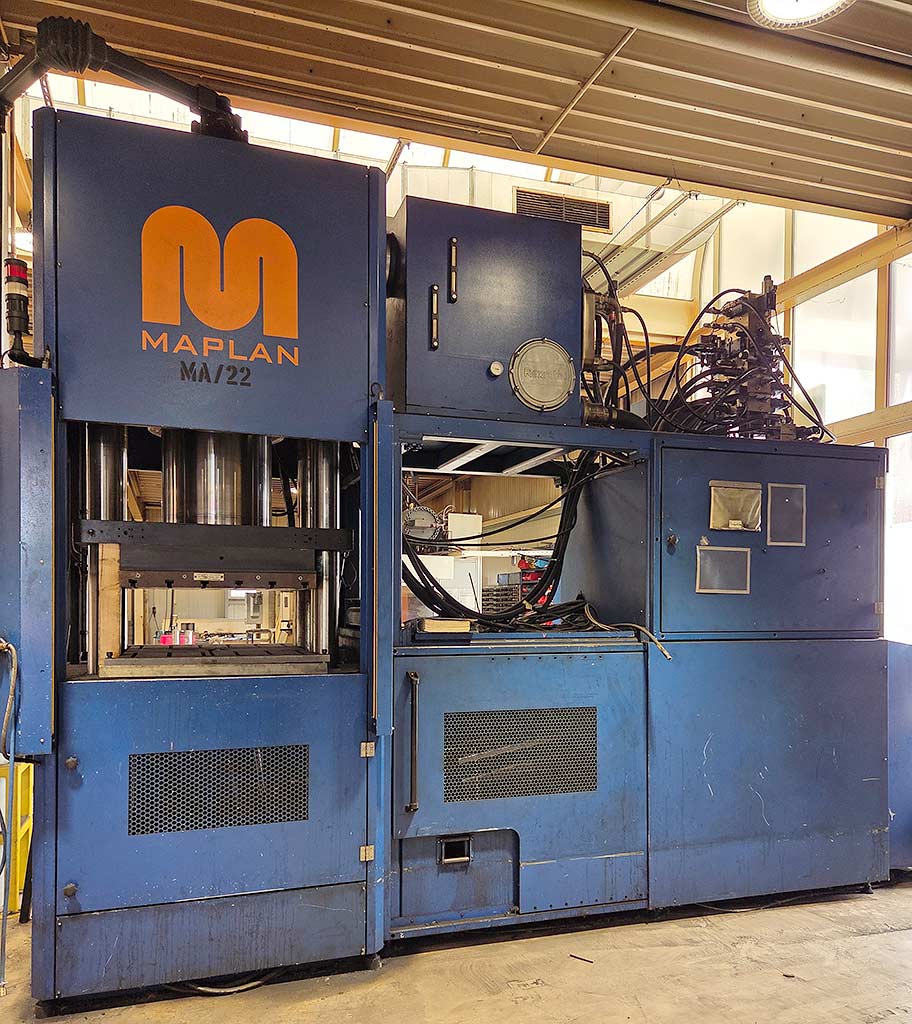

| Description An injection molding machine Maplan for elastomers requiring repair is available. Design: hydraulic vertical press, hydraulic oil type: ISO VH 46 HLP, hydraulic oil filling quantity: approx. 600l, max. hydraulic pressure: 250bar, heating cartridge diameter: 25mm, insulation plate thickness: 14mm, max. operating temperature: 250°C, L/D ratio: 12:1, max. back pressure: 400bar, max. stroke: 260mm, vacuum pump capacity: 63m³/h, weight: approx. 17500kg, control system: B&R PLC. The temperature control units and the hydraulic clamping system have failed. Documentation available. An on-site inspection is possible. |
|
| Make | Maplan |
|---|---|
| Model | MA/22 |
| Year of manufacture | unknown |
| Price | On application |
| Offer No | INNO31616 |
