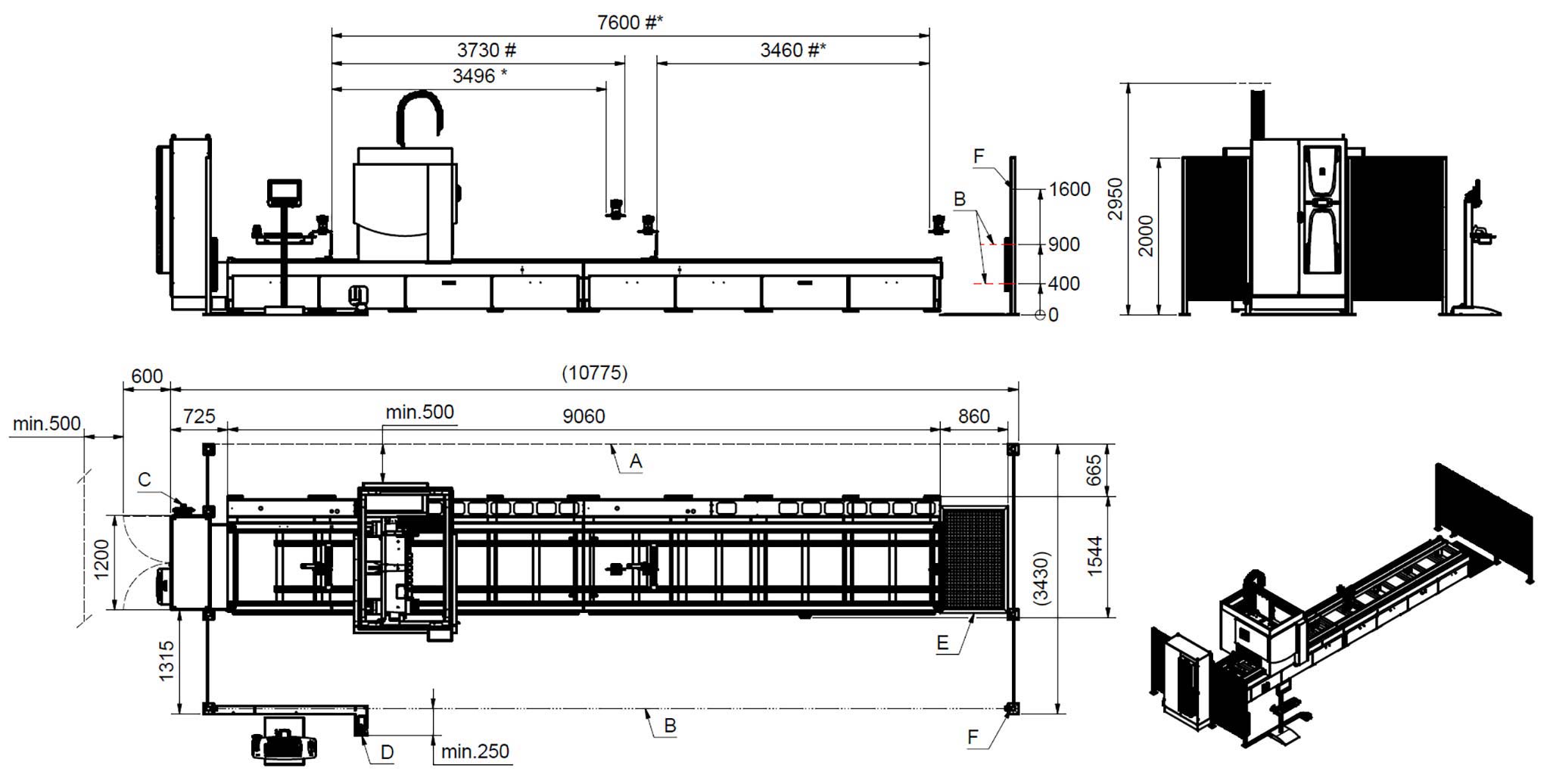

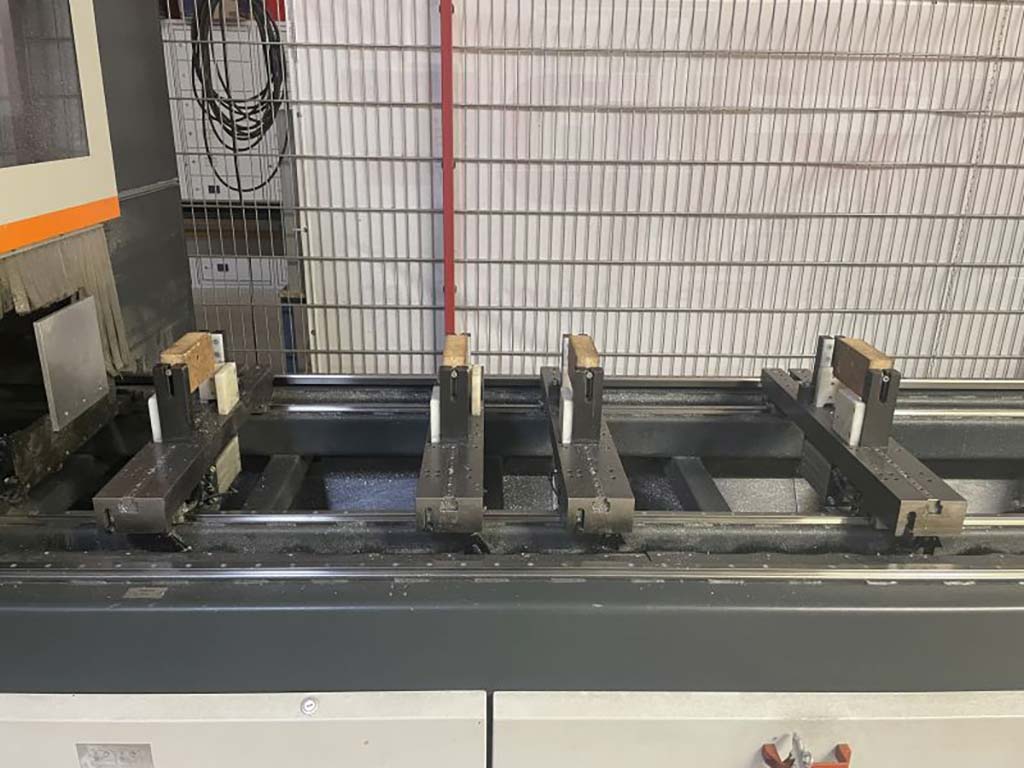

| Description Max. profile length for 3 side machining: 7600mm, Y axis: 845mm, Z axis: 620mm, max. travel speed X axis: 63m/min, max. travel speed Y axis: 60m/min, max. travel speed Z axis: 60m/min, swivel range A axis: −90°, 0°, +90°, max. spindle speed: 24,000/min, spindle power: 11kW S1, machining direction: top/front/rear/left/right, positioning accuracy: 0.1mm/m, tool holder: HSK-63F, disc milling cutter diameter: 120mm, saw blade diameter: 180mm, software: eluCam, connected load: 30kVA, compressed air connection: 7bar, compressed air consumption: approx. 180l/min, length: 10,775mm, width: 3430mm, height: 2950mm, weight: 4.9t, operating hours reading: 1550h, standby: 6300h. Accessories: length measurement for profile bar, HSK-63F tool holder set, five chucks, eight collets, 2 layer length machining with second light barrier, camera system, additional stationary tool magazine for eight tools, barcode scanner for reading orders/machining operations and documentation. Was serviced regularly, an on-site inspection is possible. |
|
| Make | Elumatec |
|---|---|
| Model | SBZ 140 |
| Year of manufacture | 2018 |
| Price | On application |
| Offer No | INNO31571 |
