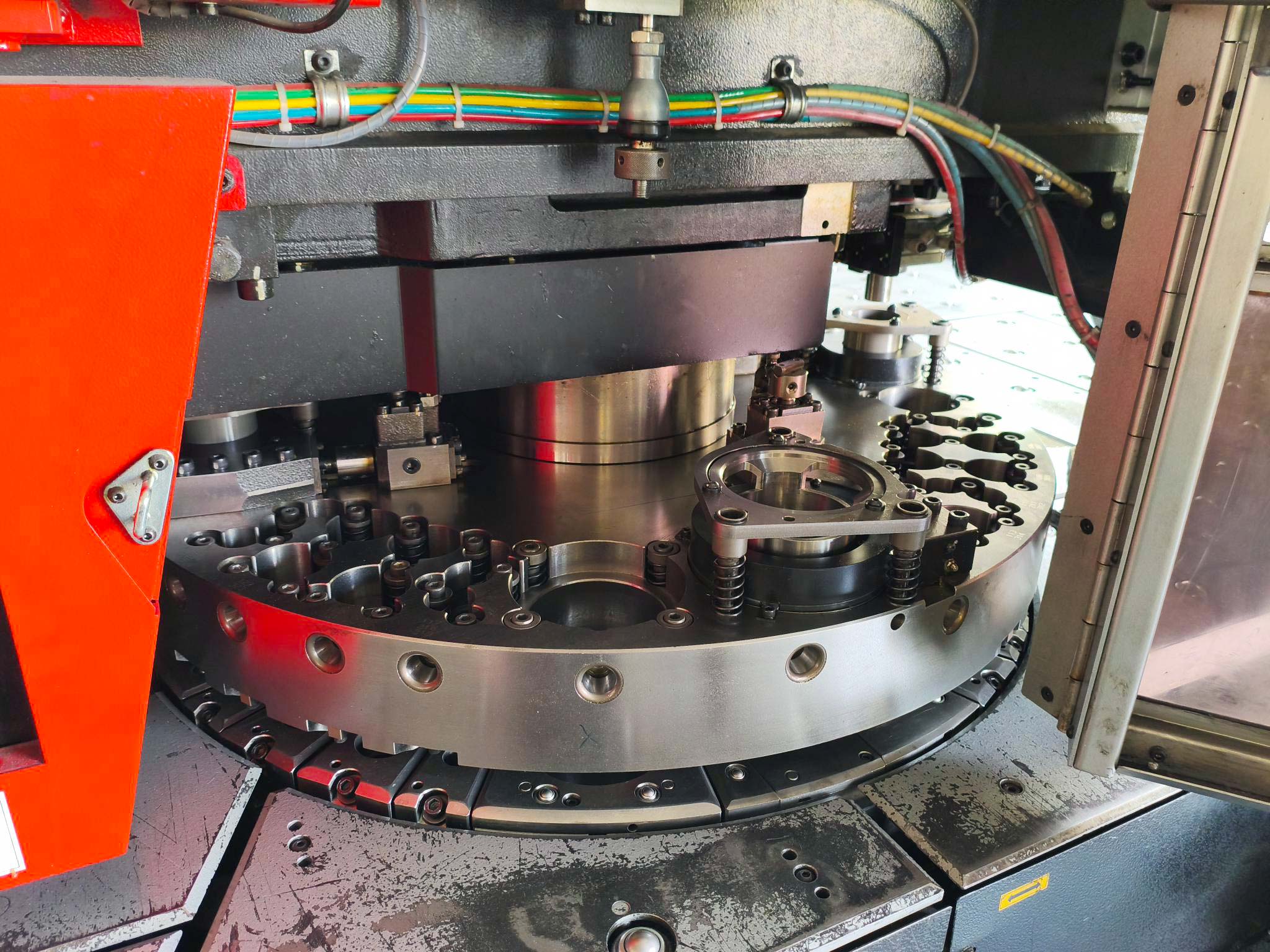

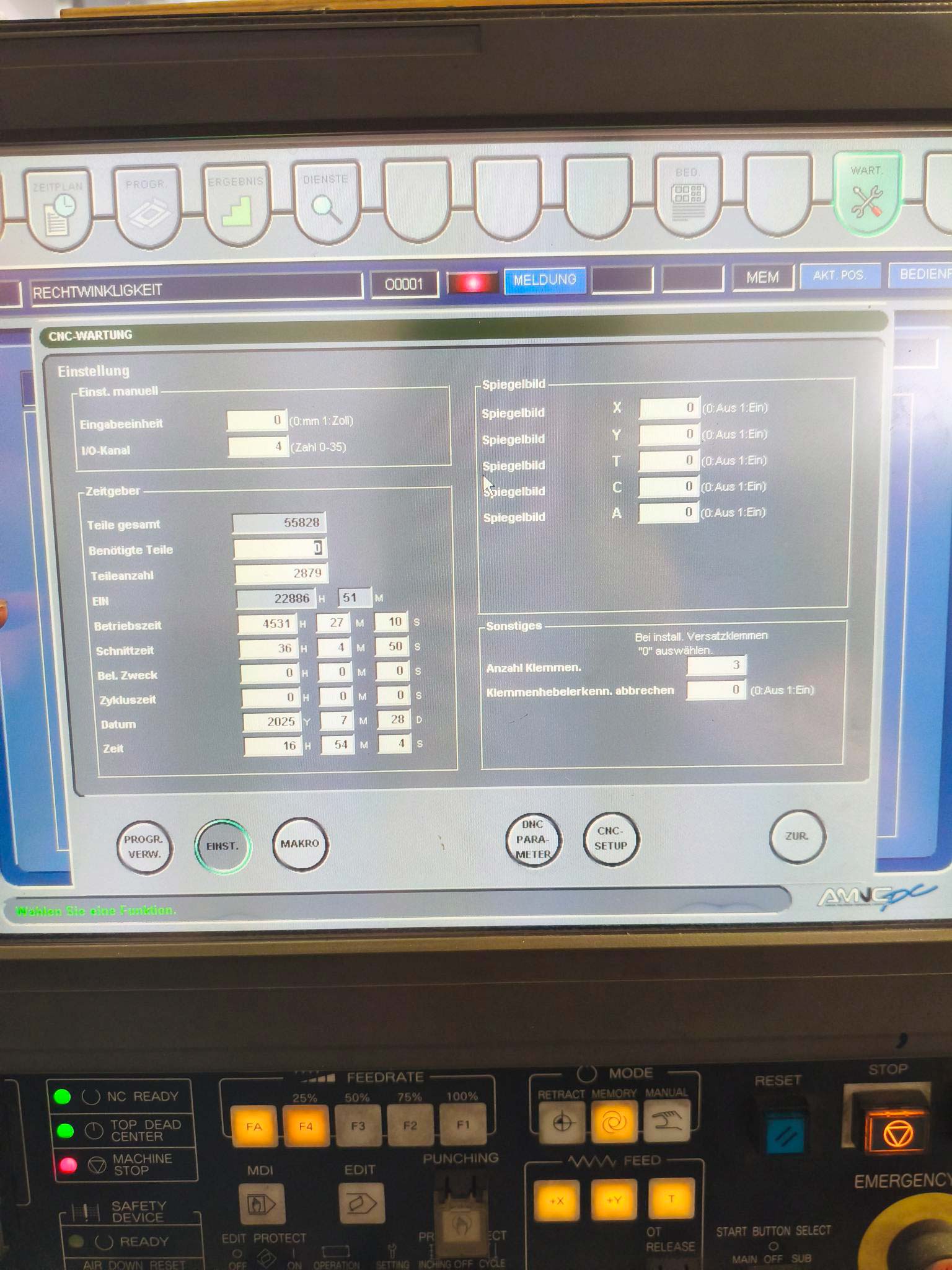

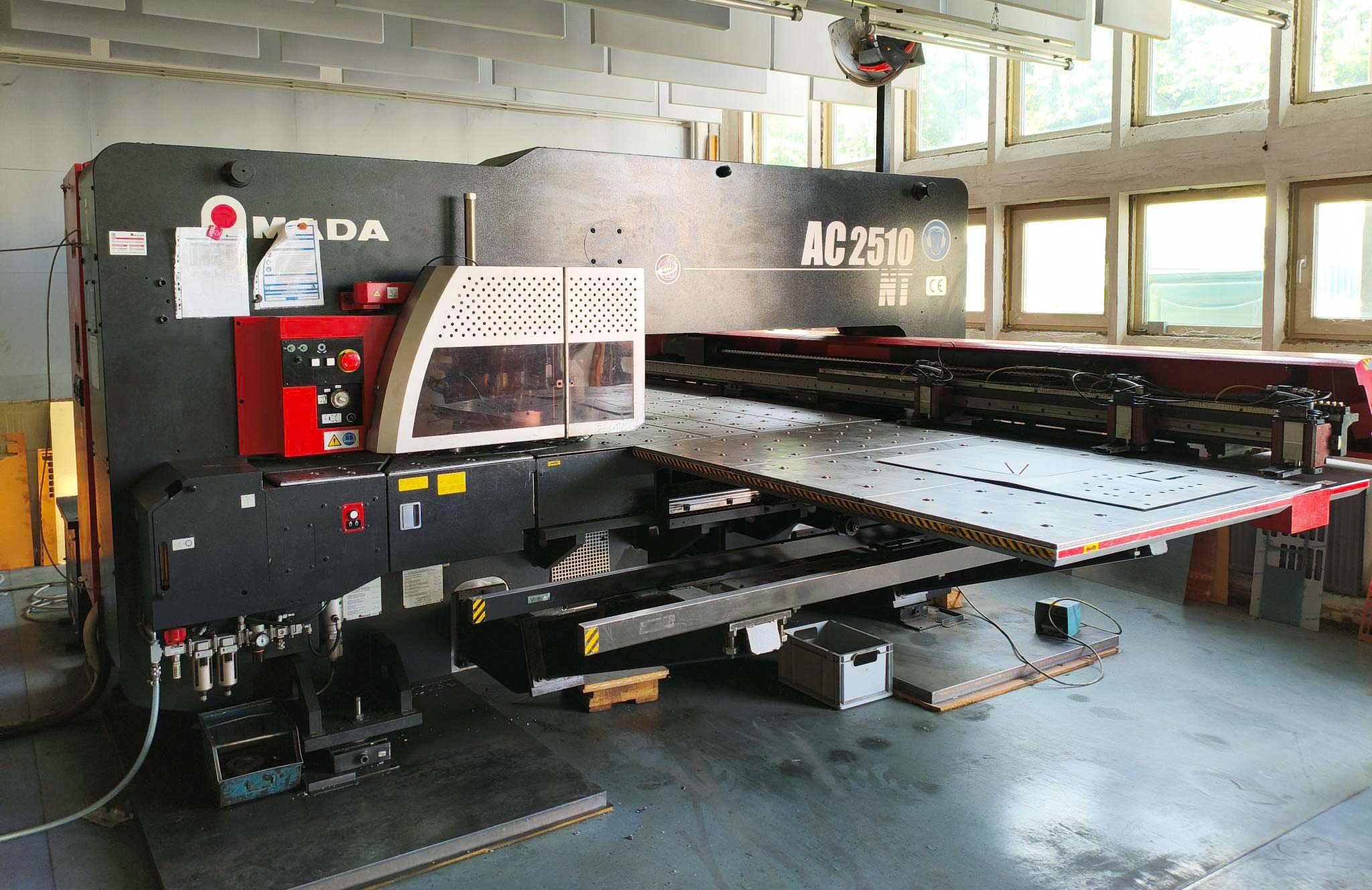

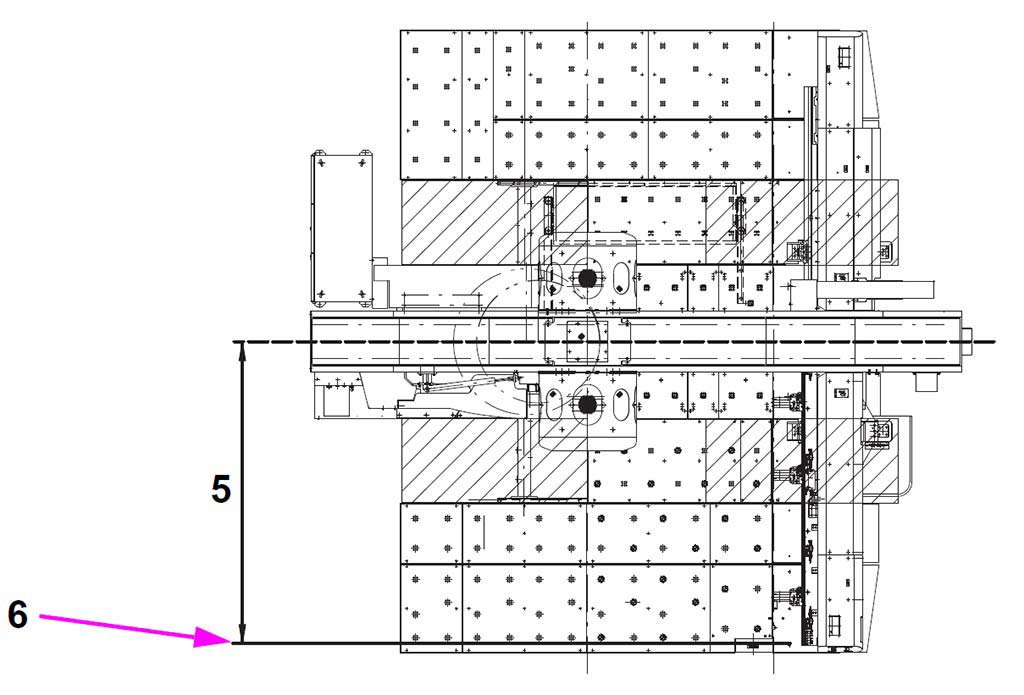

| Description X-axis: 2500mm, Y-axis: 1270mm, positioning speed X-axis/Y-axis: 80/90m/min, simultaneous axis speed: 100m/min, punching capacity: 200kN, number of turret stations: 51, max. material thickness mild steel: 3.2mm, max. material weight at traverse speed F1/F4: 50/150kg, positioning accuracy: ±0.1mm, stroke rate X-axis: 350/min, stroke rate Y-axis: 260/min, max. stroke length: 42mm, max. feed speed X-axis/Y-axis: 80/60m/min, turret speed: 30rpm, compressed air requirement: 500l/min, operating air pressure: 5bar, connected load: 19kVA, length: 4165mm, width: 5120mm, height: 2082mm, height with mirror: 3028mm, weight: 13t, operating hours: 4531h, regularly maintained by the manufacturer, with documentation, without punching tools. An on-site inspection is possible. |
|
| Make | Amada |
|---|---|
| Model | AC-2510 NT |
| Year of manufacture | 2008 |
| Price | On application |
| Offer No | INNO31570 |
