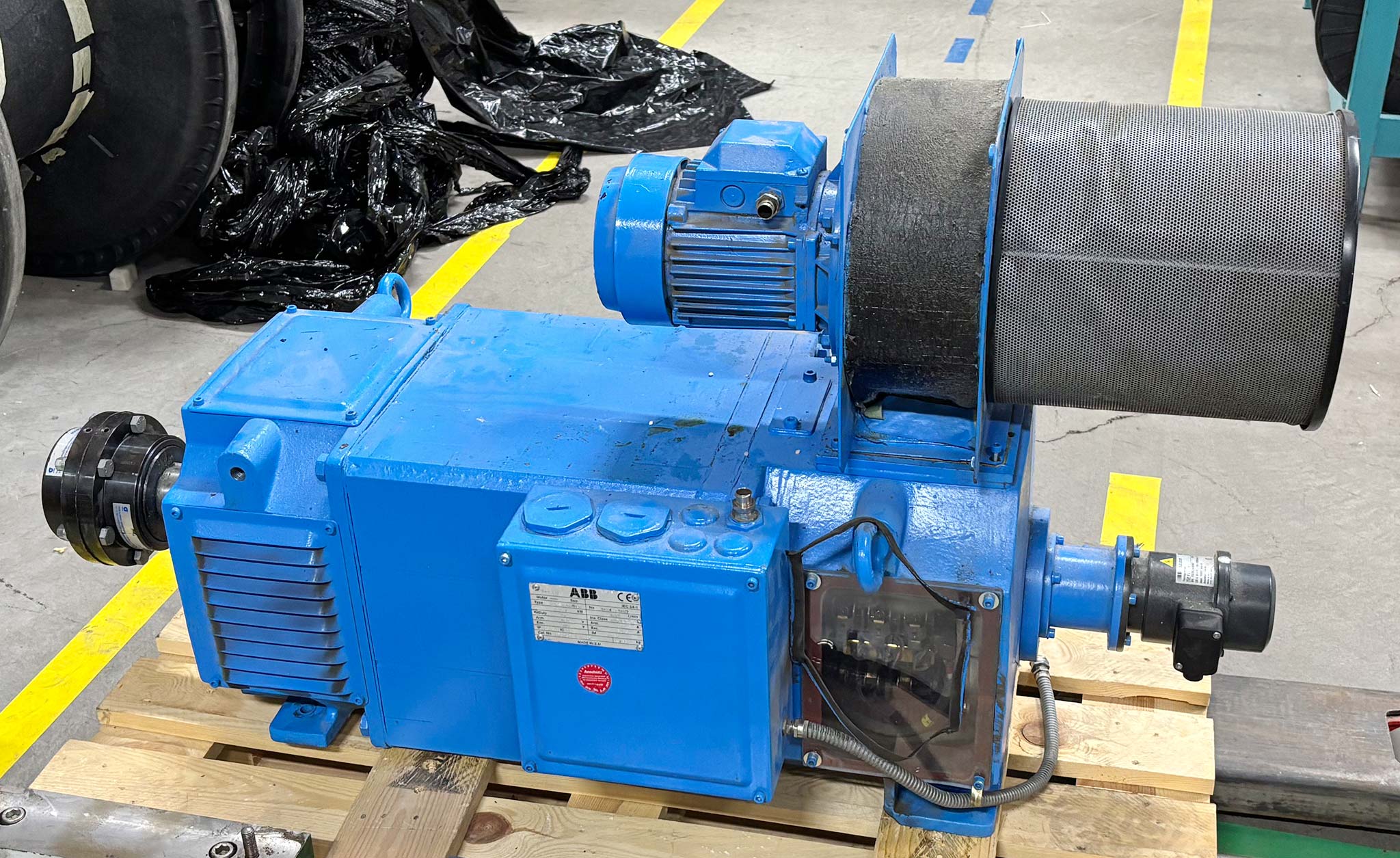

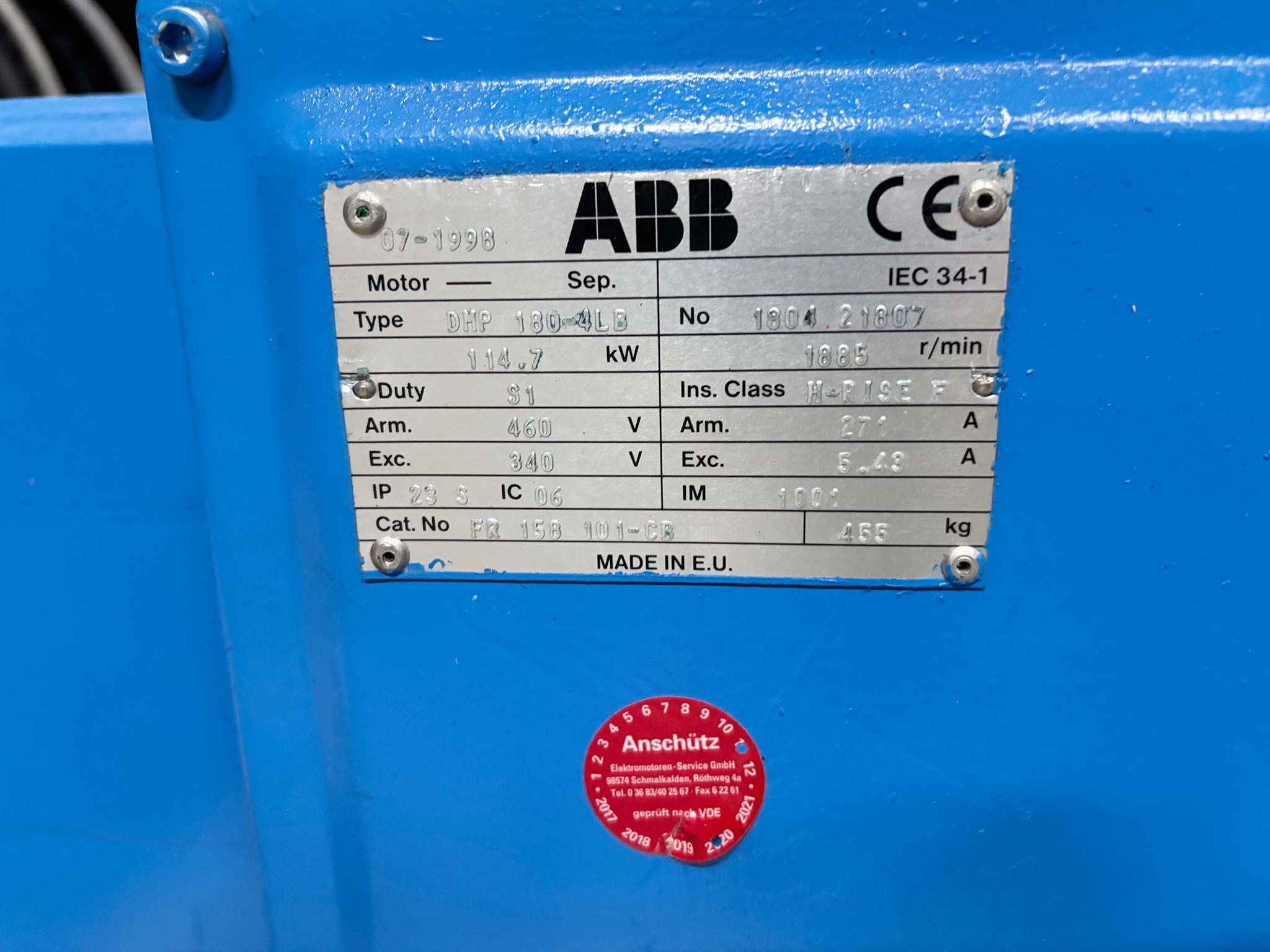

| Description Standard: IEC 34-1, rated power: 114.7kW, rated speed: 1,885rpm, duty type: S1 (continuous duty), insulation class: H-RISE F, armature voltage (Arm.): 460V, armature current (Arm.): 271A, excitation voltage (Exc.): 340V, excitation current (Exc.): 5.43A, protection class: IP23S (drip-proof, open ventilated), cooling: IC06 (forced ventilation by mounted fan), mounting arrangement: IM1001 (B3 foot-mounted design), weight: 455kg, standardized dimensions (IEC frame size 180), shaft height (H): 180mm, foot mounting hole spacing width (A): 279mm, foot mounting hole spacing length (B): 279mm (L version), shaft diameter (D): 48mm (optional 55mm reinforced version), shaft extension length (E): 110mm, mounting hole diameter (K): 15mm, CE marking available. An on-site inspection is possible. |
|
| Make | Abb |
|---|---|
| Model | DMP 180-4LB |
| Year of manufacture | 1998 |
| Price | On application |
| Offer No | INNO31557 |
