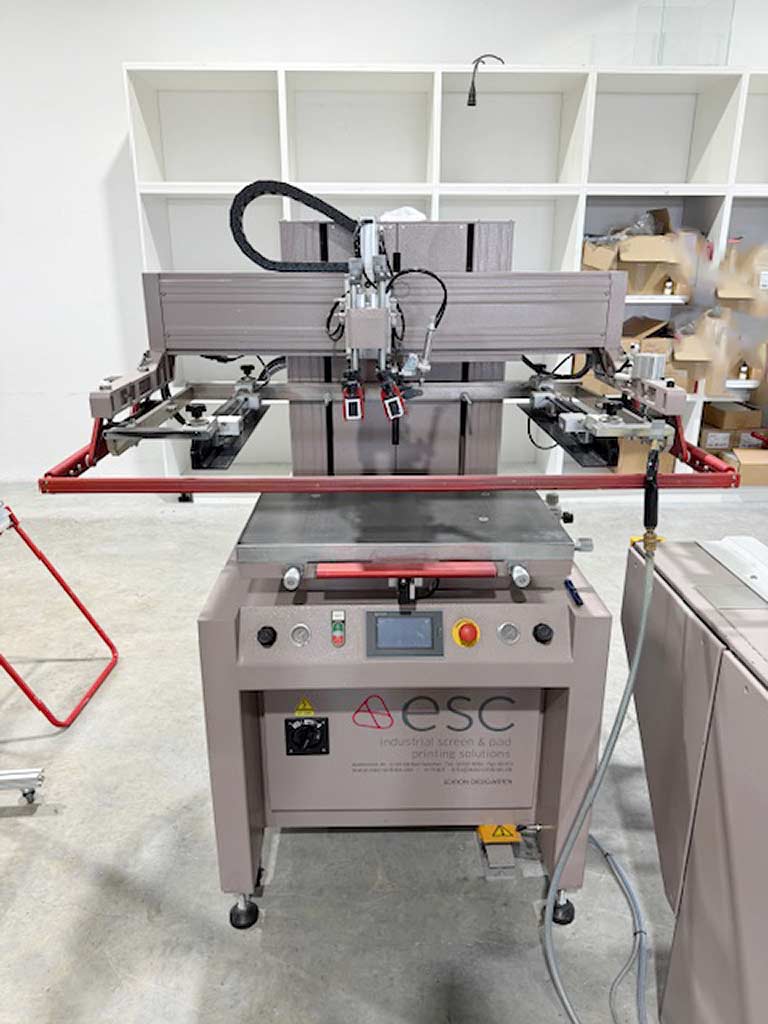

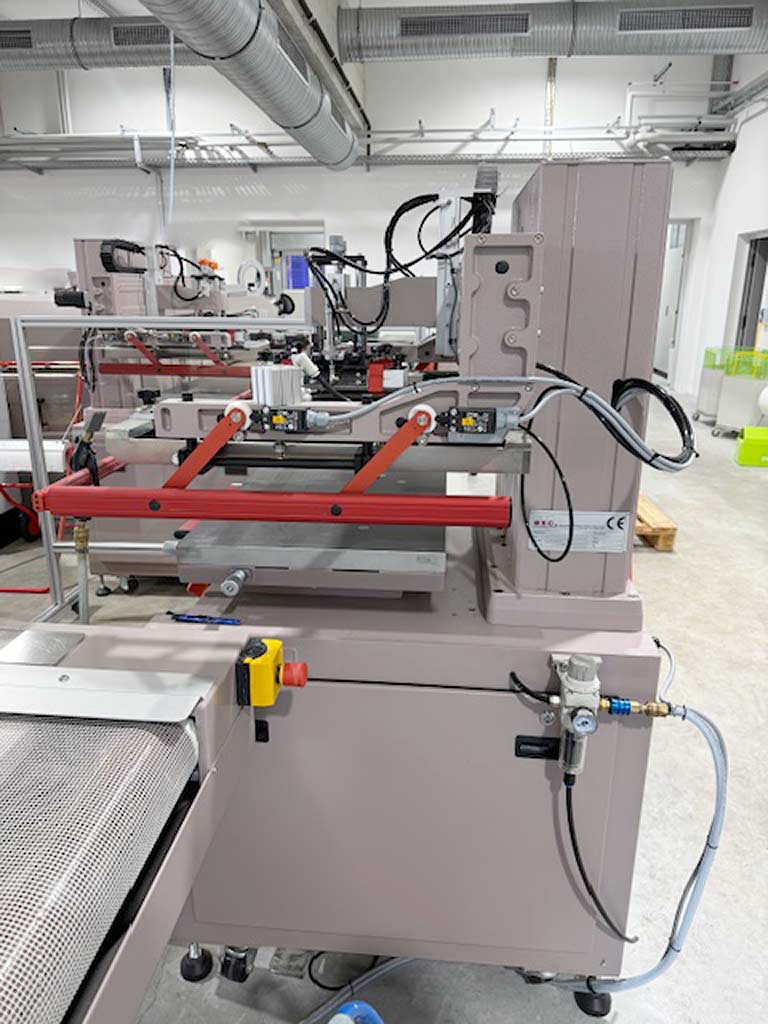

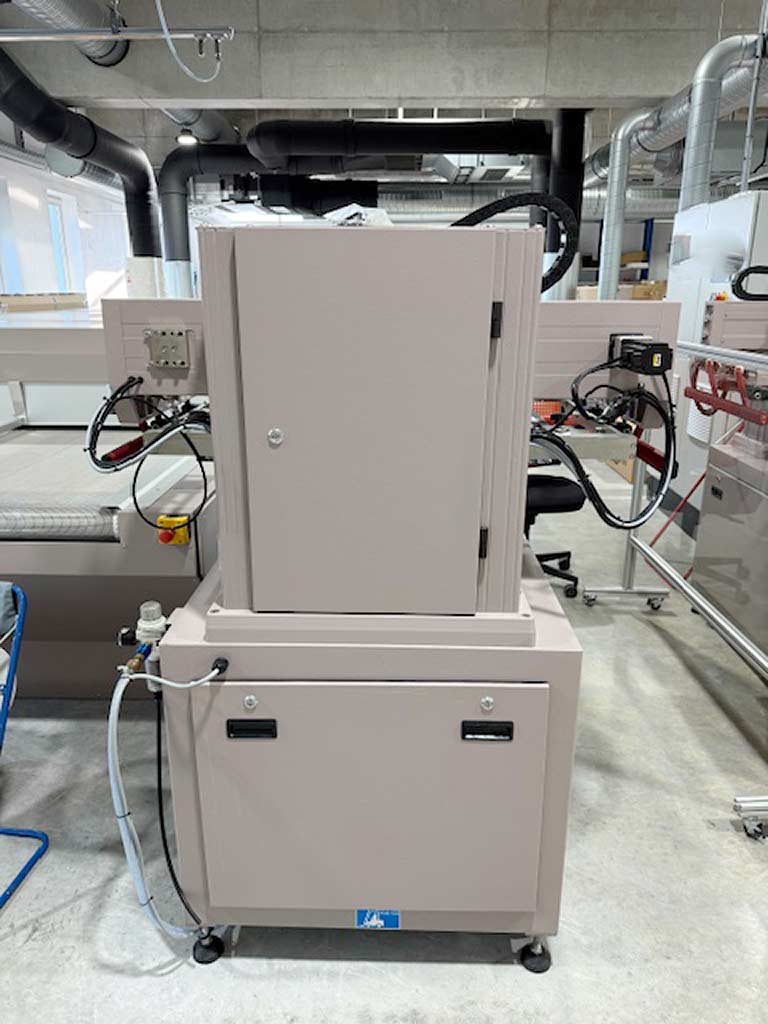

| Description Four identical screen printing machines ESC are available. Rigid material thickness: 200mm, max. print format X/Y: 400mm/600mm, vacuum plate dimensions X/Y: 500mm/700mm, vacuum area dimensions X/Y: 405mm/600mm, max. frame dimensions X/Y: 600mm/940mm, frame profile range: 25mm-47mm, max. print material thickness: 200mm, working height: 960mm, frame lift: 270mm, printing speed range: 125mm-750mm/s, max. cycle rate: 600p/h, fine adjustment: +/-10mm, squeegee angle adjustment: +/-9°, working pressure range: 5bar-7bar. Machine dimensions X/Y/Z: approx. 1300mm/1100mm/1600mm, weight: approx. 500kg. Documentation available. An on-site inspection is possible. Individual sale possible. |
|
| Make | Esc |
|---|---|
| Model | AT-60PD |
| Year of manufacture | unknown |
| Price | On application |
| Offer No | INNO31287 |
