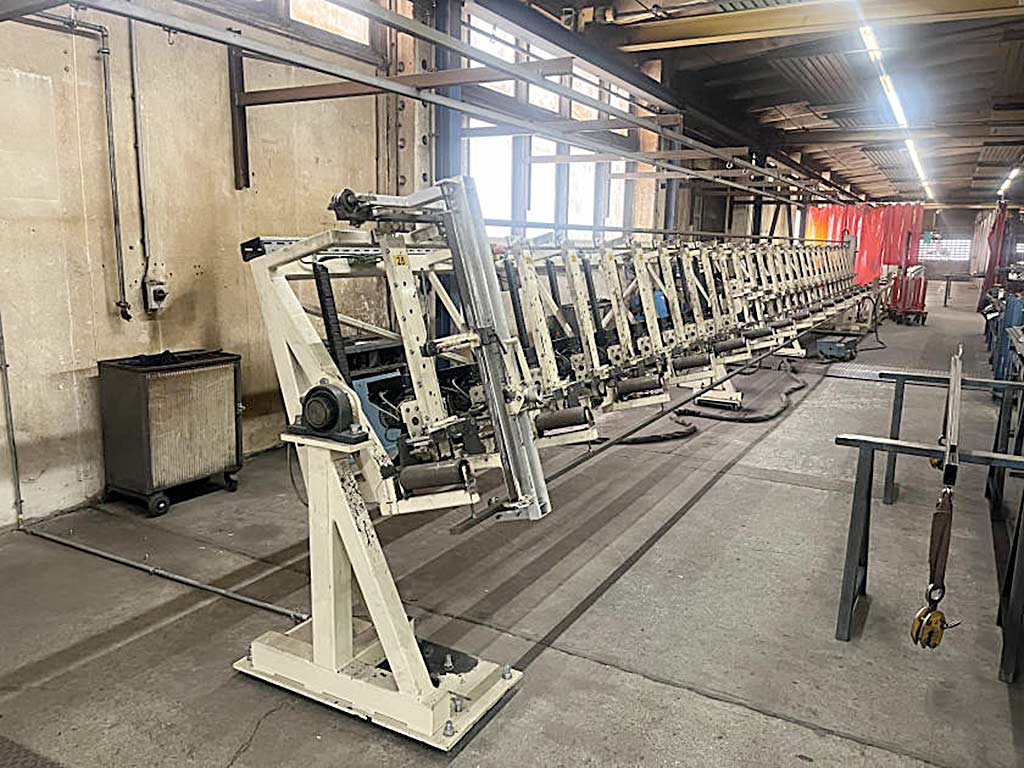

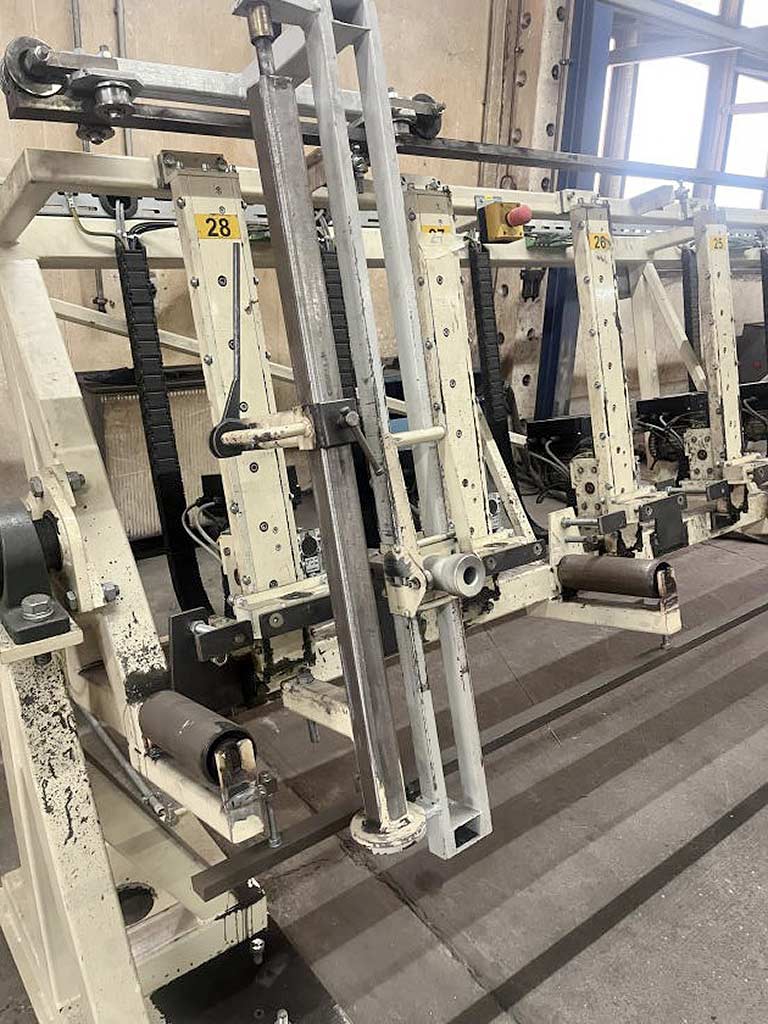

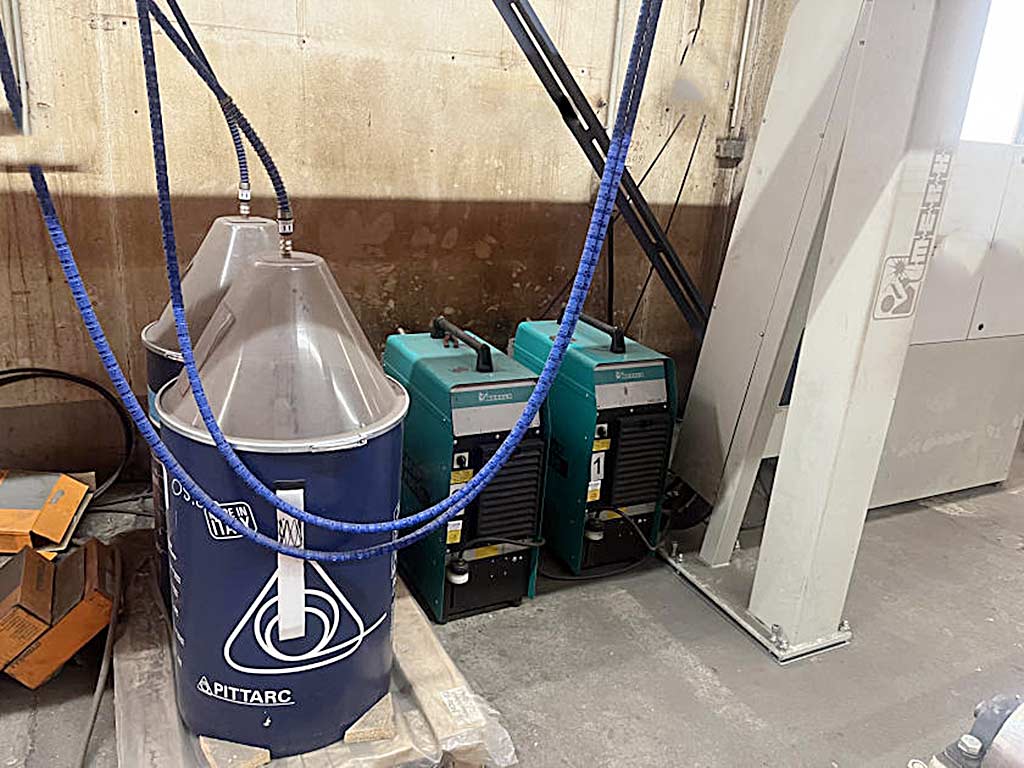

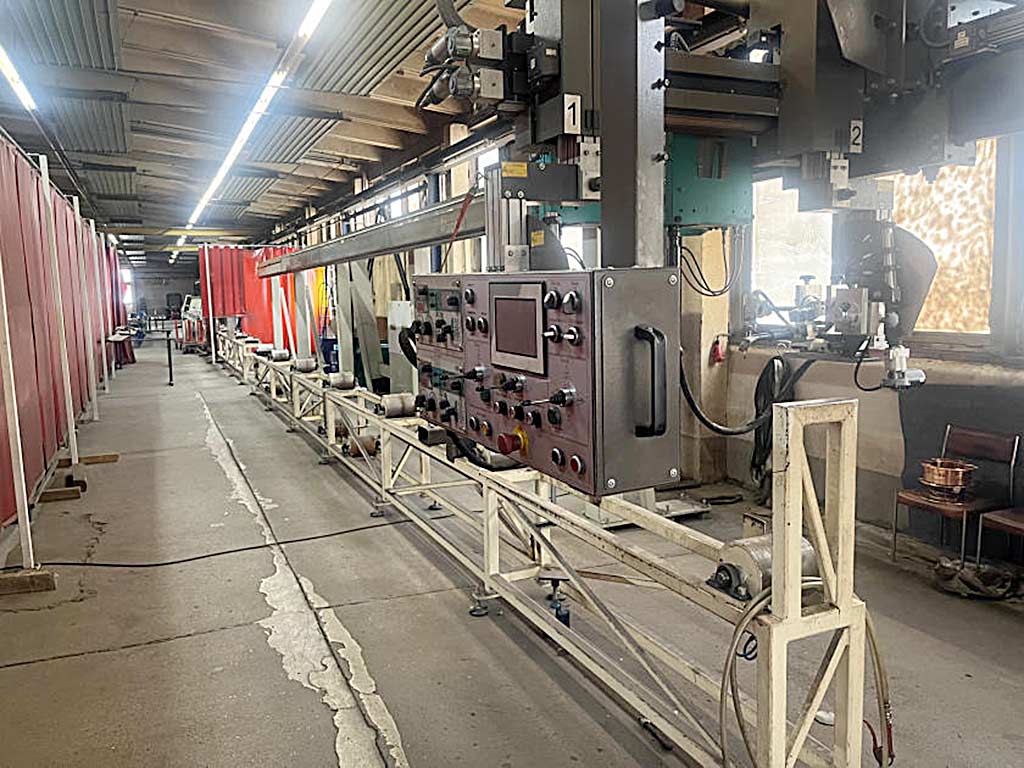

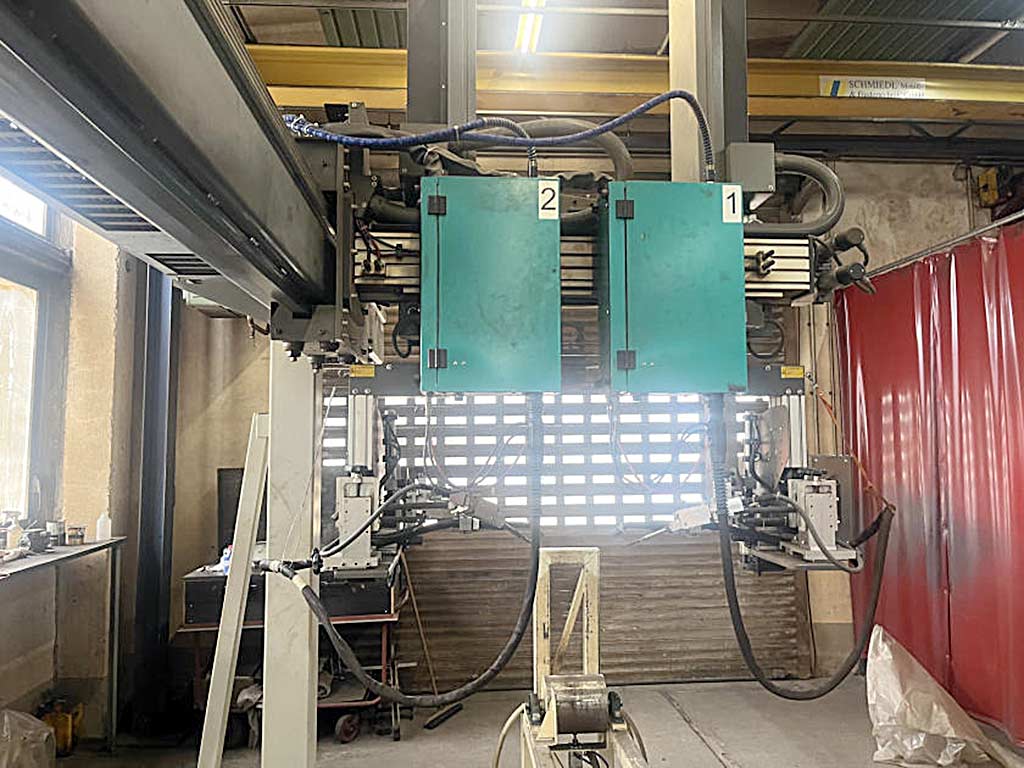

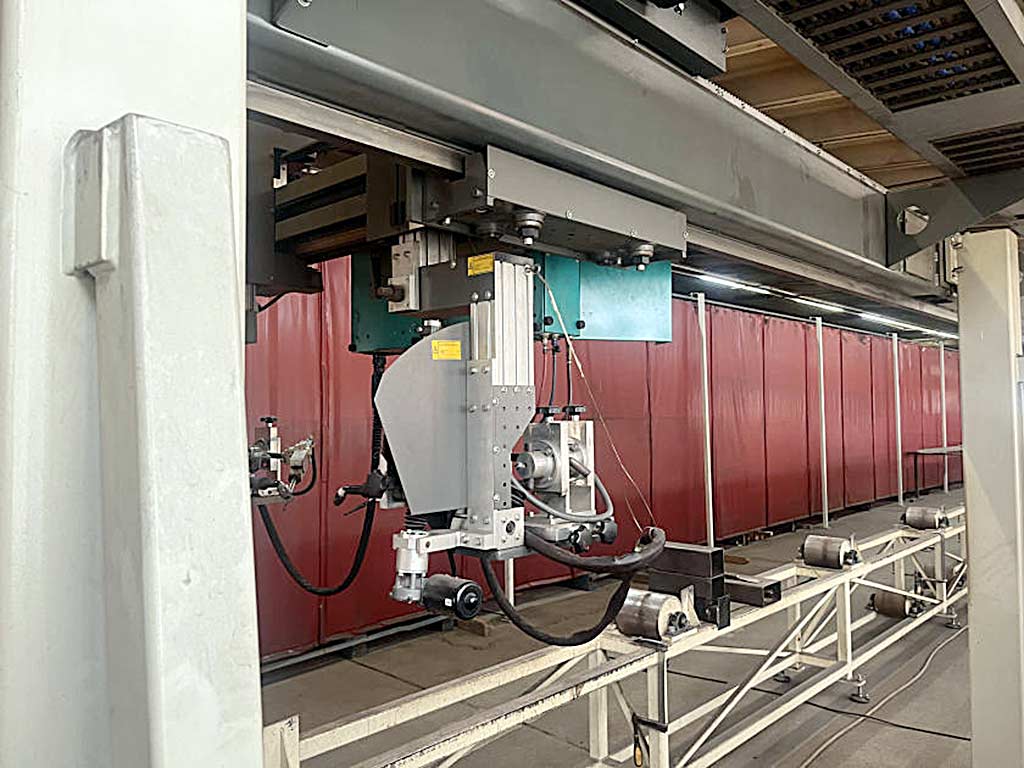

| Description A complete longitudinal beam welding system (vehicle carrier) Merkle with a tack welding station, a cooling station and a longitudinal beam welding machine is available. Beam height range: 70mm-500mm, max. beam length: 13700mm, flange width: 120mm/150mm, flange thickness range: 5mm-20mm, web plate thickness range: 3mm-10mm, clear width: 85mm-500mm, web offset at 15° transition: 50mm. 1) Welding system, track length: 20m, rotating device: 0°-45°, total clamping and tack welding range: 14300mm, guide spacing: 500mm, roller conveyor height: 800mm, welding process: MIG/MAG-Pulse-Arc, travel speed: 6m/min, vertical stroke: 800mm, horizontal stroke: 2x270mm, power sources: 2x HighPulse 550 RS, torch: MSB 400W. 2) Tack welding device, tack welding position: 45°, max. changeover time: 10min. 3) Transport and cooling line, tack welding area roller conveyor length: 15000mm, buffer and cooling area roller conveyor length: 15180mm, welding area roller conveyor length: 18055mm, roller diameter tack/buffer/welding: 80mm/80mm/200mm, roller width: 245mm/245mm/2200mm. Documentation vorhanden. An on-site inspection is possible. |
|
| Make | Merkle |
|---|---|

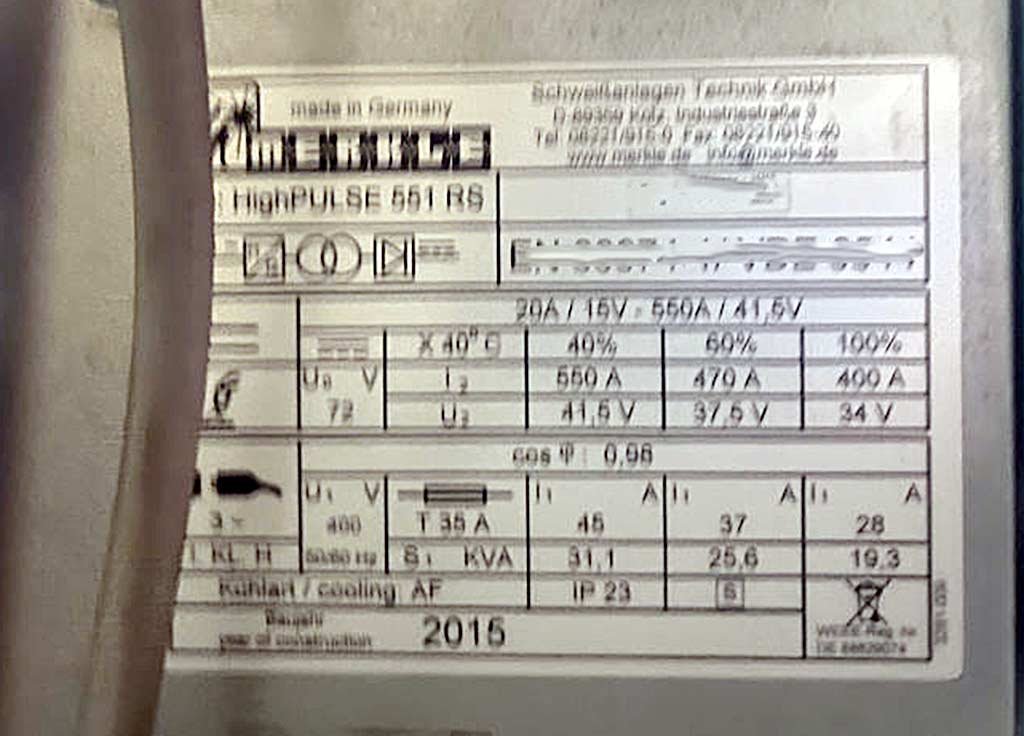

| Model | HighPulse 551 RS |
| Year of manufacture | 2015 |
| Price | On application |
| Offer No | INNO31122 |
