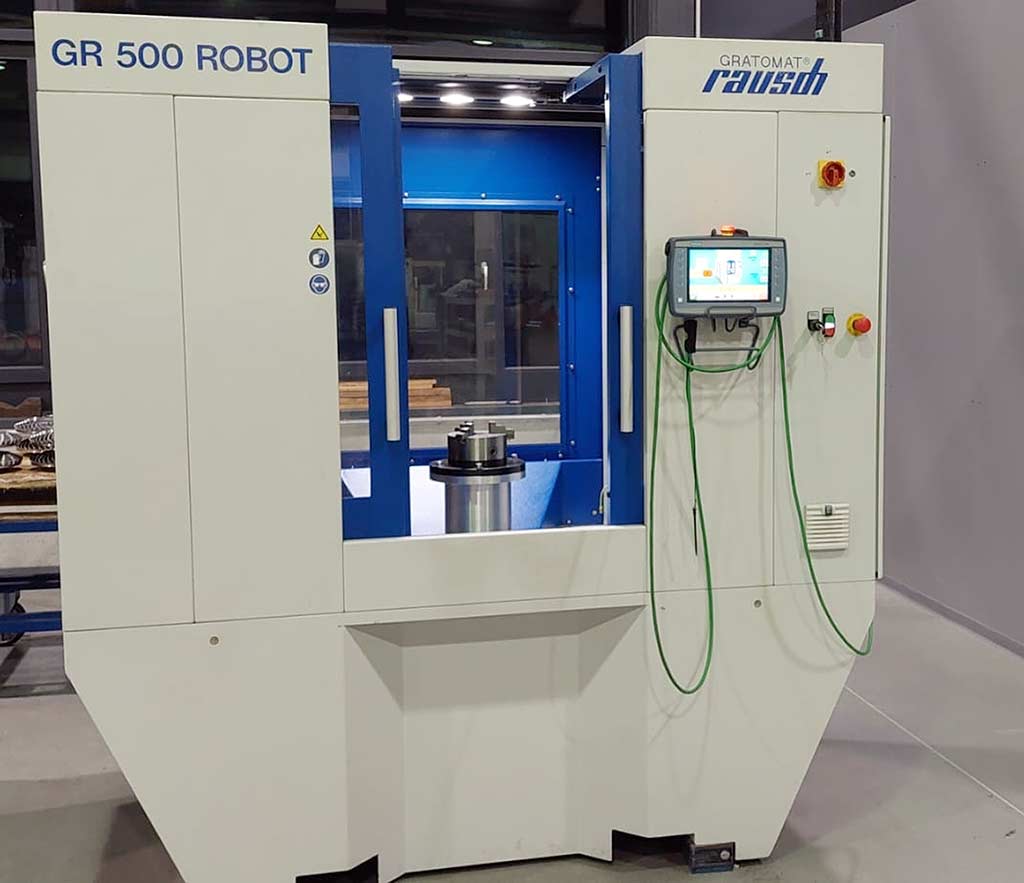

| Description A Rausch robot-based deburring machine is available. Support height: 1050mm, spindle speed: 50000rpm, power: 1kW, max. burr thickness: 0.2mm, max. workpiece diameter: 500mm, gear types: straight/helical/angled, max. helix angle: 40°, max. chamfer angle: 45°, max. workpiece length over chuck: 450mm, max. workpiece weight: 50kg. Machine dimensions X/Y/Z: approx. 2050mm/1200mm/2100mm, weight: approx. 1300kg, operating hours: 1271h, utilization time: approx. 8h. Documentation available. An on-site inspection is possible. |
|
| Make | Rausch |
|---|---|
| Model | Gratomat 500 Robot |
| Year of manufacture | 2014 |
| Price | On application |
| Offer No | INNO31108 |
