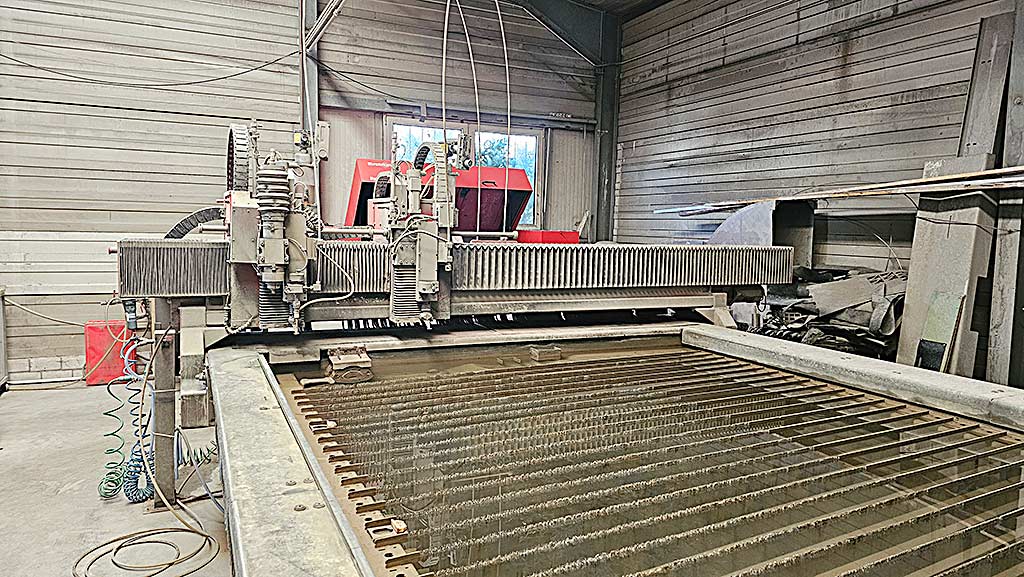

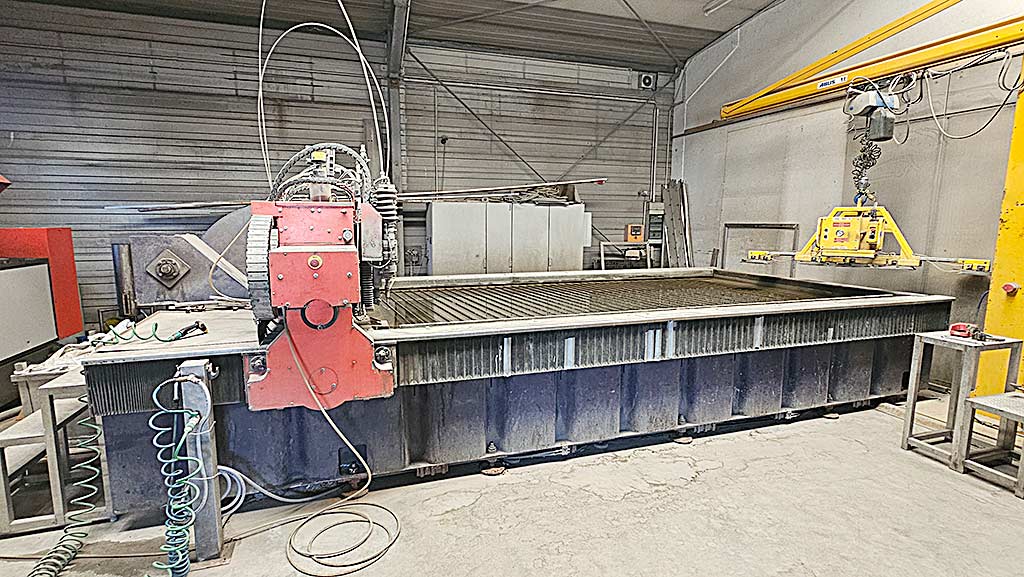

| Description A CNC dual-head waterjet cutting system Bystronic is available. Working dimensions X/Y/Z: 4000mm/2250mm/230mm, cutting heads: 2, max. cutting carriage distance: 1150mm, simultaneous movement: 84m/min, machine tolerance: +/-0.1mm, repeatability: +/-0.05mm, max. frame load capacity: 7000kg, max. workpiece weight: 6300kg, max. round part diameter and length: 440mm/3700mm, max. operating pressure: 3800bar. Machine dimensions X/Y/Z: approx. 9000mm/7550mm/2050mm, weight: approx. 10000kg, operating hours: approx. 41130h, cutting hours head 1/head 2: 13720h/956h. The second head was removed and the cutting unit was mounted on head 1 as a spare part. However, after procurement of a new cutting head, the system can operate with two abrasive tools. The drilling spindle is seized. Including a desalination system and all spare parts. Documentation available. An on-site inspection is possible. |
|
| Make | Bystronic |
|---|---|

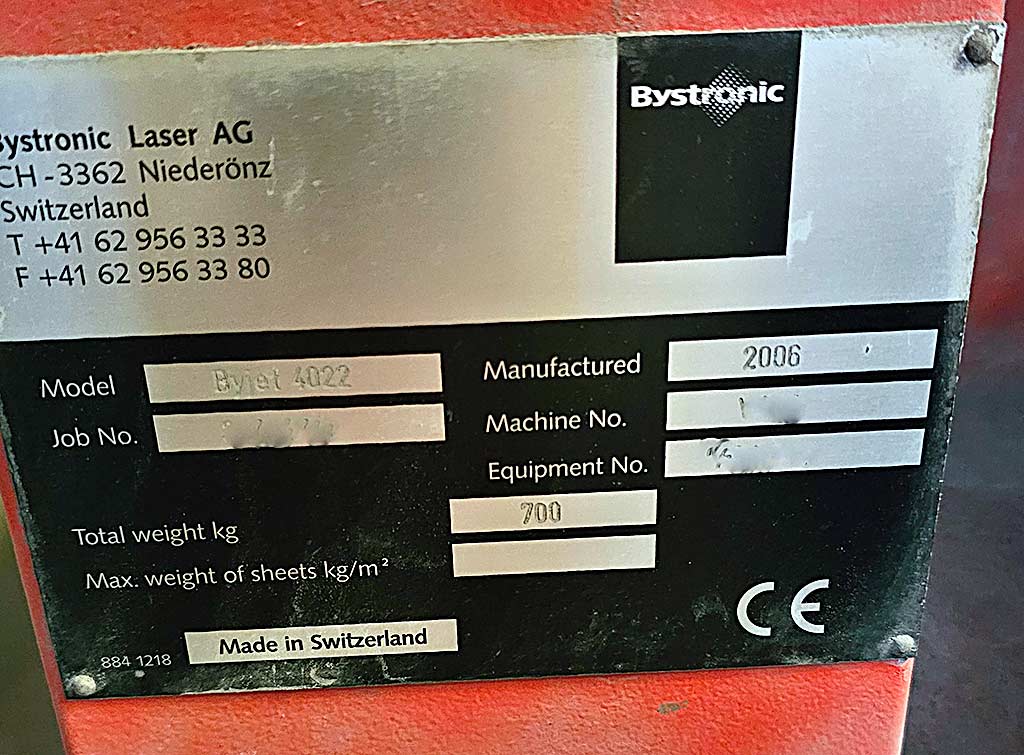

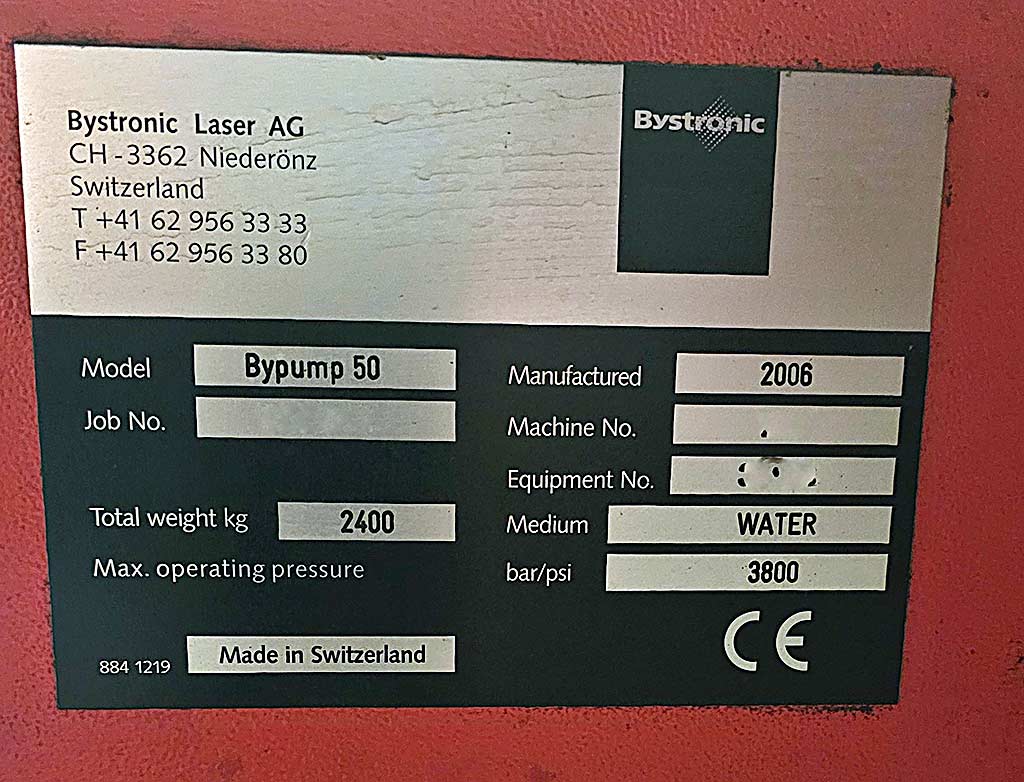

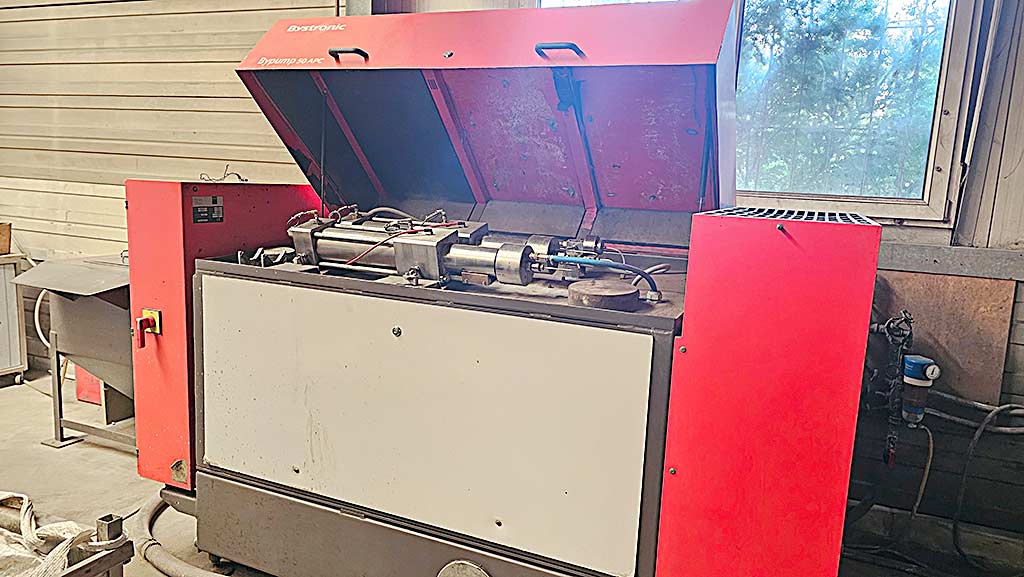

| Model | Byjet 4022/Bypump 50 APC |
| Year of manufacture | 2006 |
| Price | On application |
| Offer No | INNO31079 |
