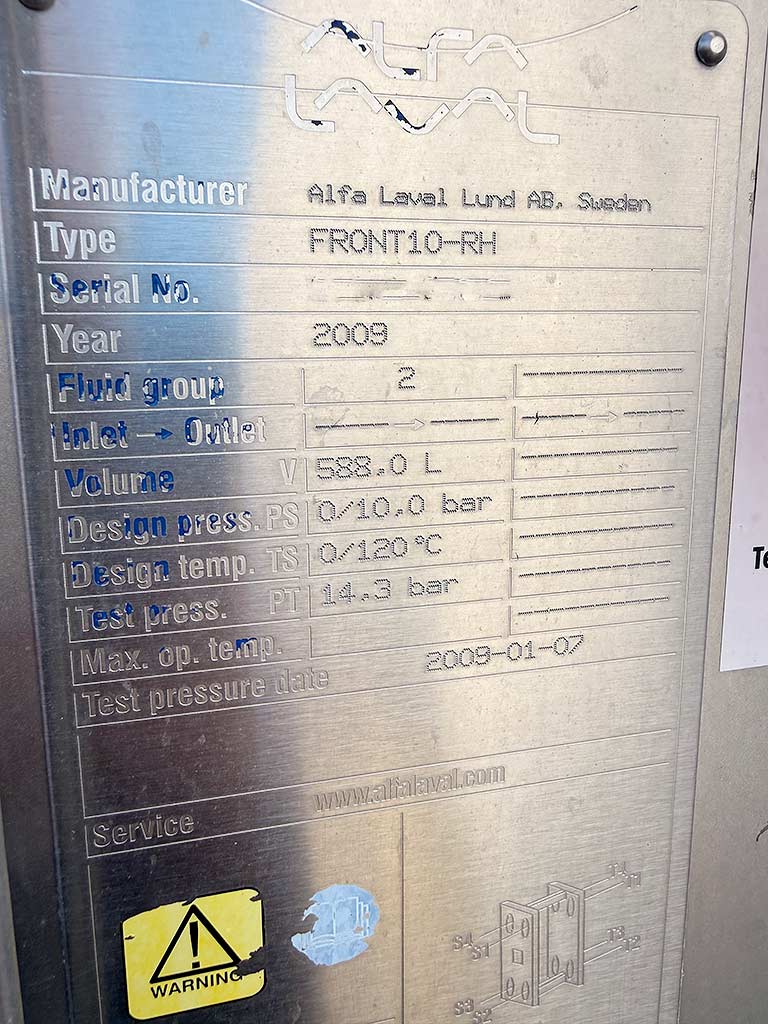

| Description A complete plate heat exchanger pasteurization system Alfa Laval, consisting of four sections, is available. Product: 13% whole milk, throughput capacity: 25000kg/h, total capacity: approx. 2000kW, volume: 588l, max. pressure: 10bar, max. temperature: 120°C, test pressure: 14.3bar, number of plates: 338, expansion option: 82 plates, heat transfer area: 210m², plate thickness: 0.6mm, gasket system: Clip-On, gasket material: NBRFF, total pressure loss on the product side: 422kPa, heat exchange stages: regeneration/heating/intermediate stage/cooling, plate pack length: 1856mm, carrying bar length: 3600mm, tightening bolt length: 3560mm. Overall system dimensions X/Y/Z: approx. 3850mm/850mm/2200mm, weight: approx. 2850kg. Documentation available. An on-site inspection is possible. |
|
| Make | Alfa Laval |
|---|---|
| Model | E 110/E 210 |
| Year of manufacture | 2009 |
| Price | On application |
| Offer No | INNO31046 |
