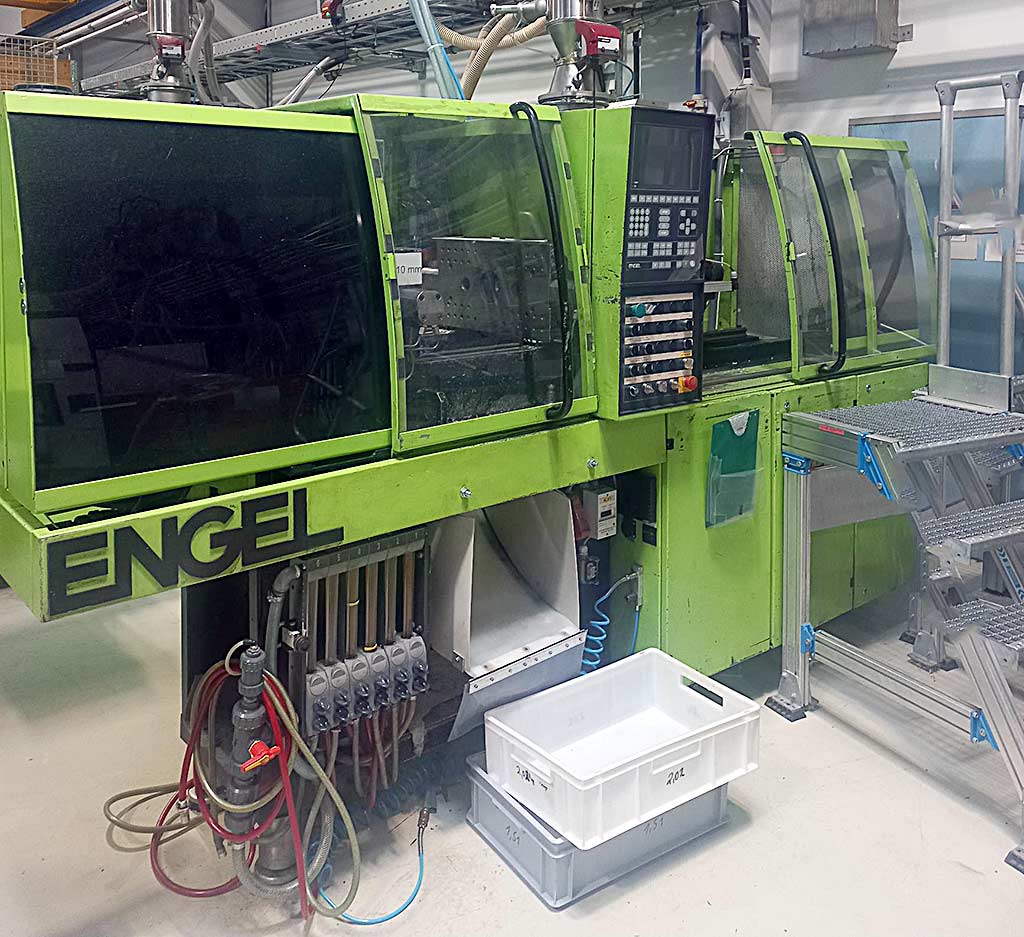

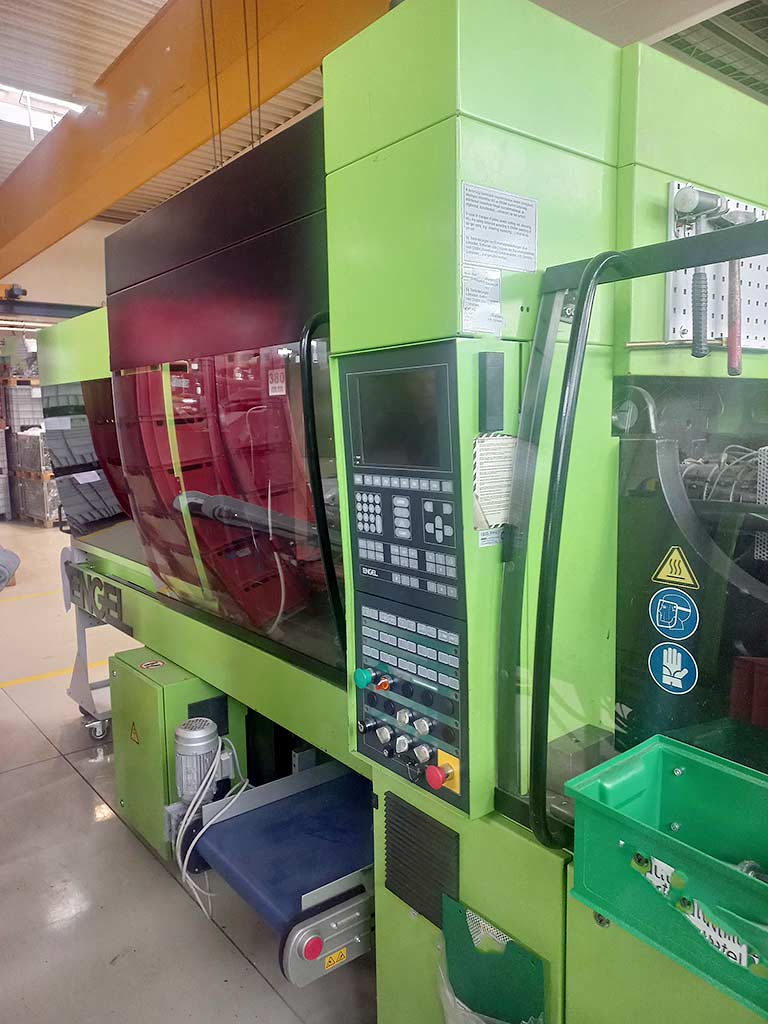

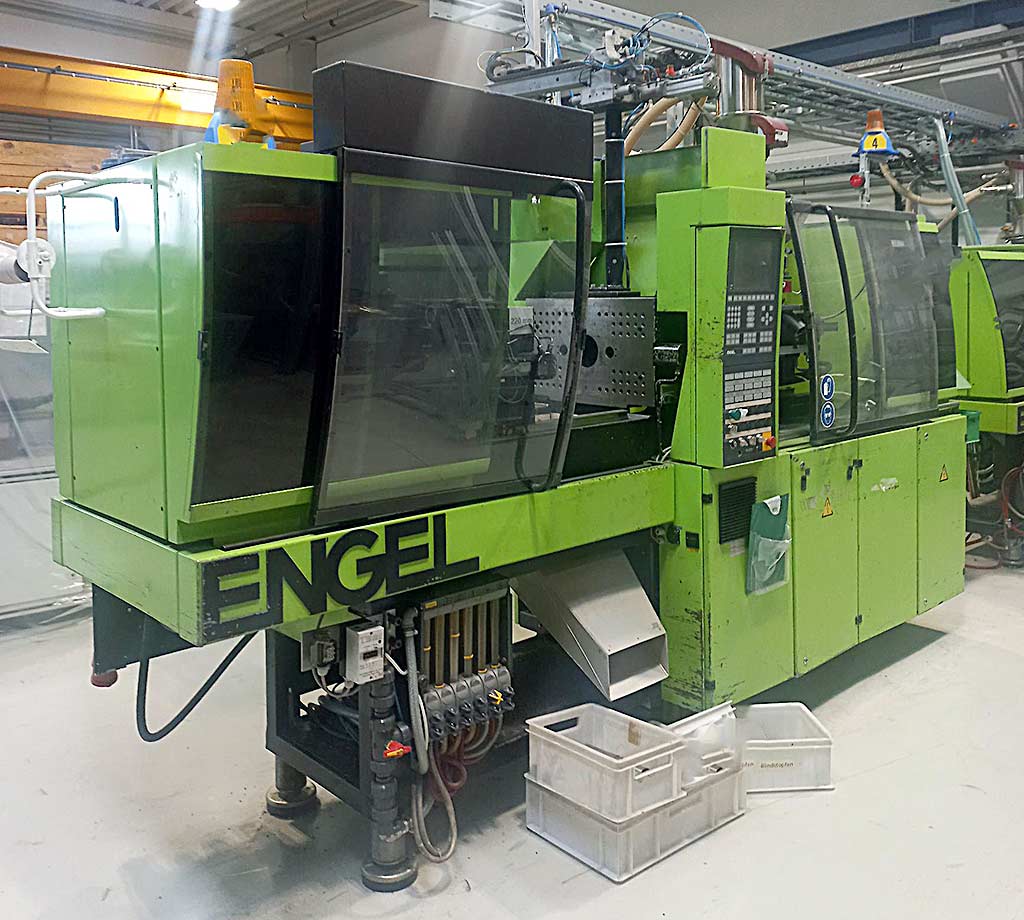

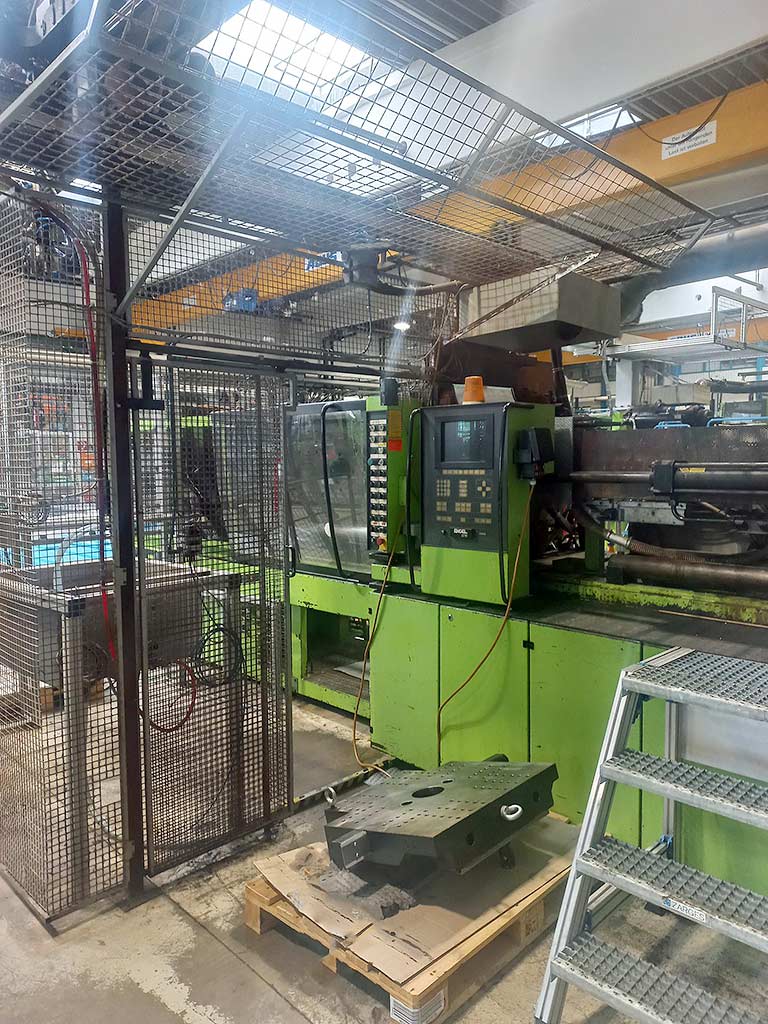

| Description Four Engel injection molding machines are available. 1) Engel ES 750/150 HL, year of manufacture: 2006, core pulls: 2, screw diameter: 55mm, shot volume: 511cm³, injection pressure: 1616bar/2052bar, nozzle stroke: 350mm, nozzle contact force: 67kN, clamping force: 1500kN, opening stroke: 606mm, ejector force: 60kN, ejector stroke: 150mm, min. mold installation height: 294mm, platen dimensions X/Y: 750mm/520mm, weight: approx. 9500kg, control system: CC100, operating hours: approx. 79000h. Including Engel HLi automation robot. 2) Engel ES 80/30 HL, year of manufacture: 1995, core pulls: 2, screw diameter: 22mm, shot volume: 38cm³, injection pressure: 1500bar/2050bar, nozzle stroke: 200mm, nozzle contact force: 28kN, clamping force: 300kN, opening stroke: 330mm, ejector force: 24kN, ejector stroke: 70mm, min. mold installation height: 110mm, platen dimensions X/Y: 550mm/380mm, weight: approx. 2500kg, control system: CC100, operating hours: approx. 113300h. 3) Engel ES 2000/250, year of manufacture: 1993, core pulls: 3, injection unit: PVC, screw diameter: 70mm, shot volume: 1154cm³, injection pressure: 1400bar/1700bar, nozzle stroke: 450mm, nozzle contact force: 150kN, clamping force: 2500kN, opening stroke: 600mm, ejector force: 70kN, ejector stroke: 200mm, min. mold installation height: 200mm, platen dimensions X/Y: 910mm/910mm, weight: approx. 16000kg, control system: CC90, operating hours: approx. 109300h. Including Wittmann W322 automation robot. 4) Engel ES 750/150 HL, year of manufacture: 1998, core pulls: 2, screw diameter: 35mm, shot volume: 135cm³, injection pressure: 1060bar/1600bar, nozzle stroke: 200mm, nozzle contact force: 28kN, clamping force: 600kN, opening stroke: 450mm, ejector force: 40kN, ejector stroke: 100mm, min. mold installation height: 150mm, platen dimensions X/Y: 600mm/560mm, weight: approx. 4700kg, control system: CC100, operating hours: approx. 108600h. Including Engel sprue picker automation robot. Documentation available. An inspection on site is possible. |
|
| Make | Engel |
|---|---|
| Model | ES 80 HL/ES750 HL/ES 2000 HL |
| Year of manufacture | 2006 |
| Price | On application |
| Offer No | INNO31031 |
