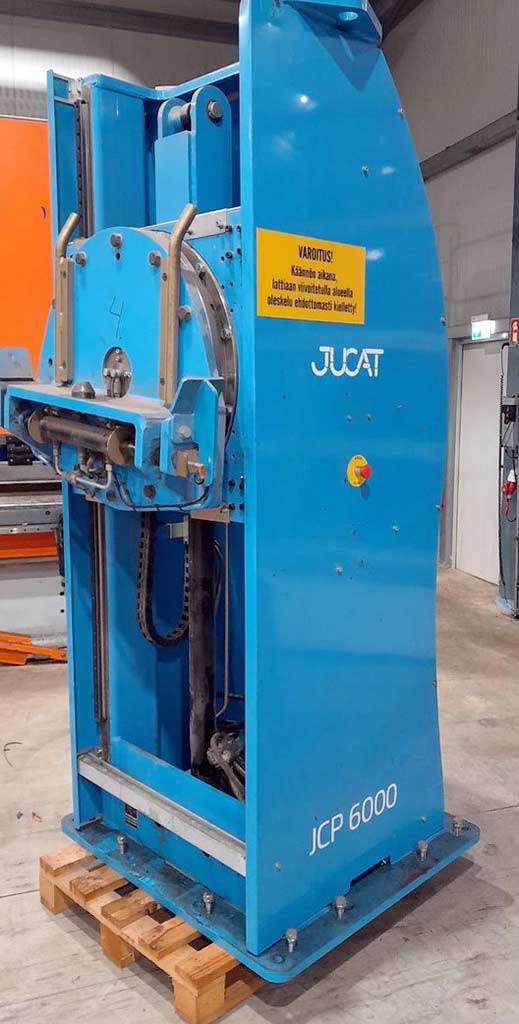

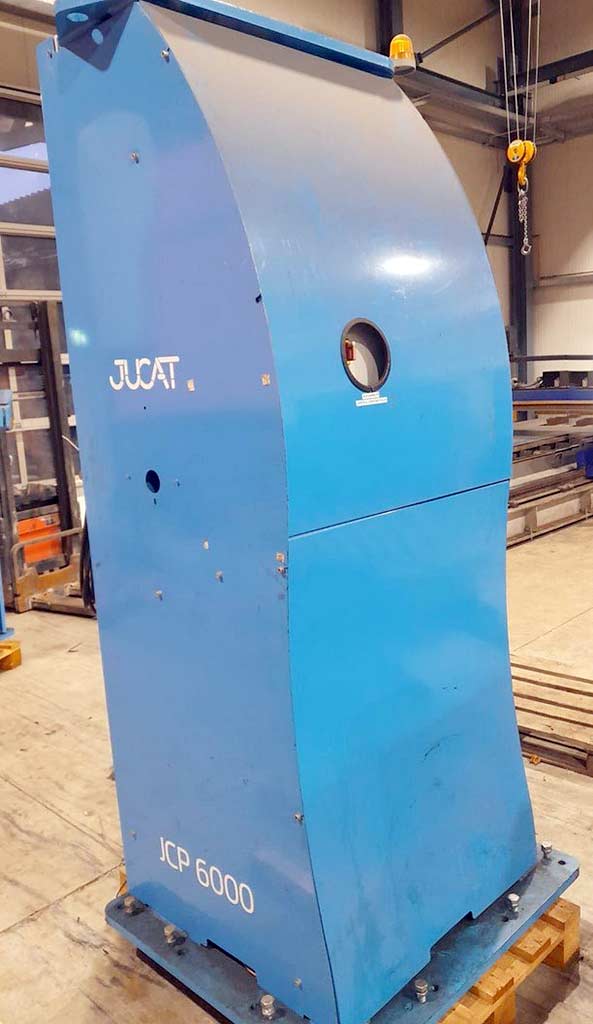

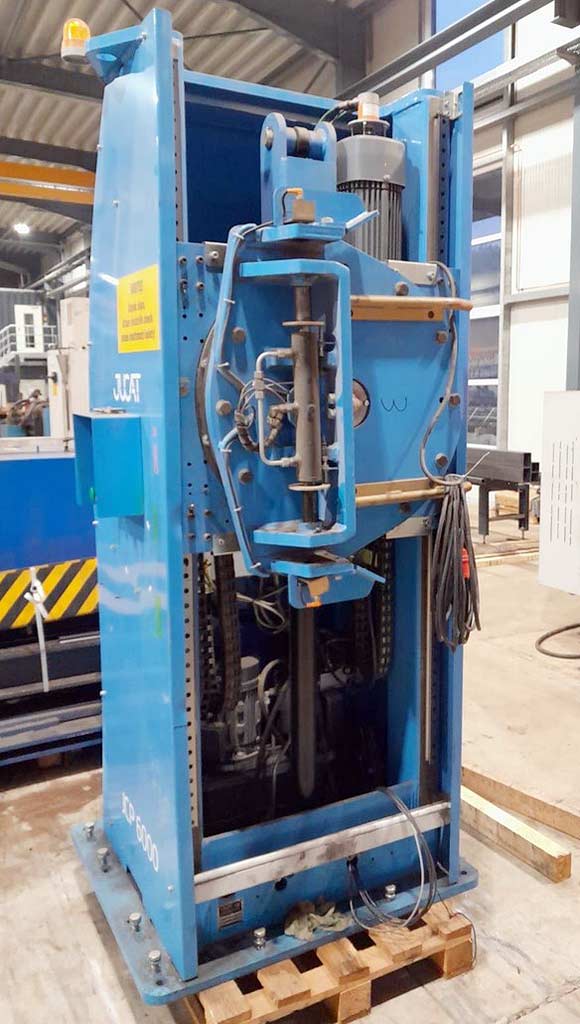

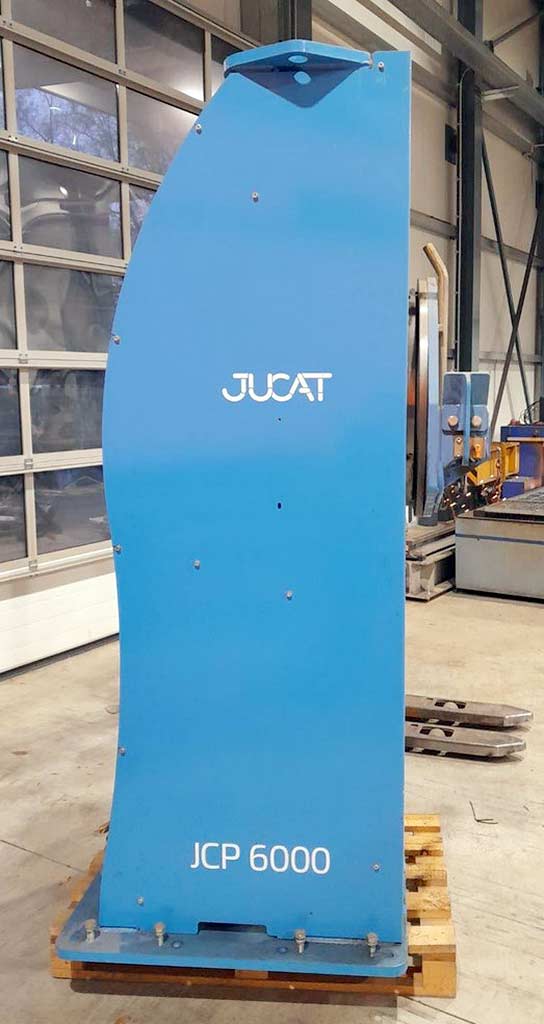

| Description A welding turning device Jucat, consisting of two parts with the workpiece in the middle, is available. Design: 2-column system, max. load capacity: 6000kg, rotation torque: 800Nm, tilting torque: 7500Nm, lifting range: 800mm-2000mm, lifting speed: 40mm/s, max. rotational speed: 2rpm, clamping plate diameter: 750mm, operating pressure: 120bar. Machine dimensions X/Y/Z: approx. 2500mm/1100mm/1100mm, weight: approx. 2x1000kg. Without blinds. Documentation available. An on-site inspection is possible. |
|
| Make | Jucat |
|---|---|
| Model | JCP 6000 |
| Year of manufacture | 2015 |
| Price | On application |
| Offer No | INNO30952 |
