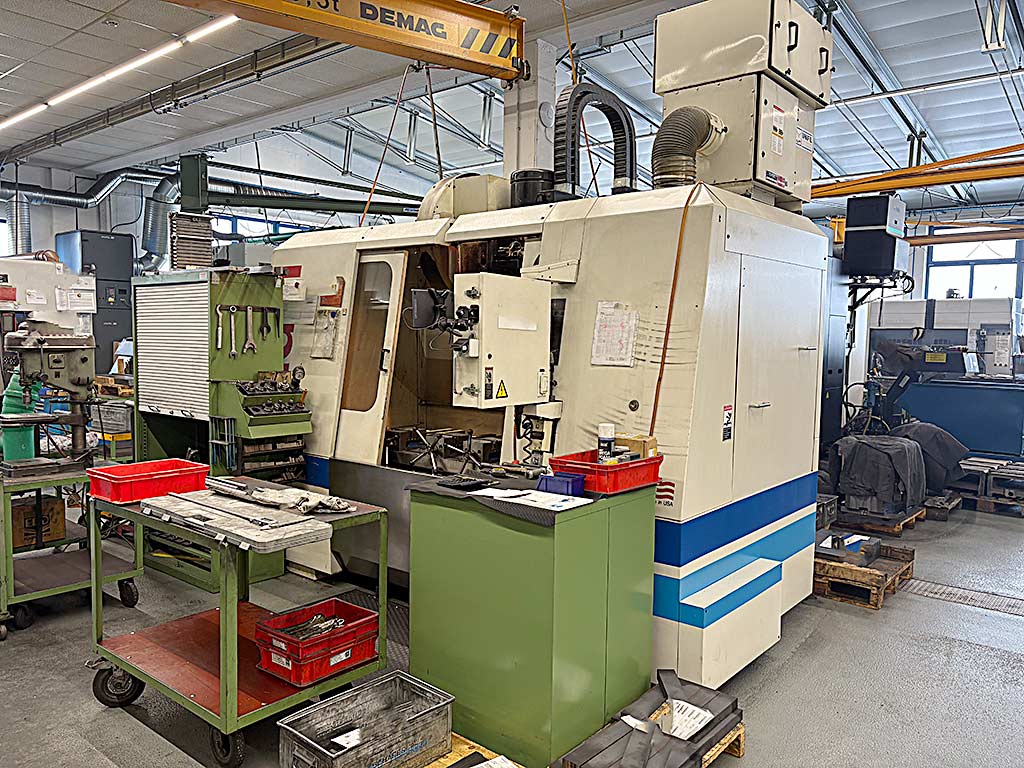

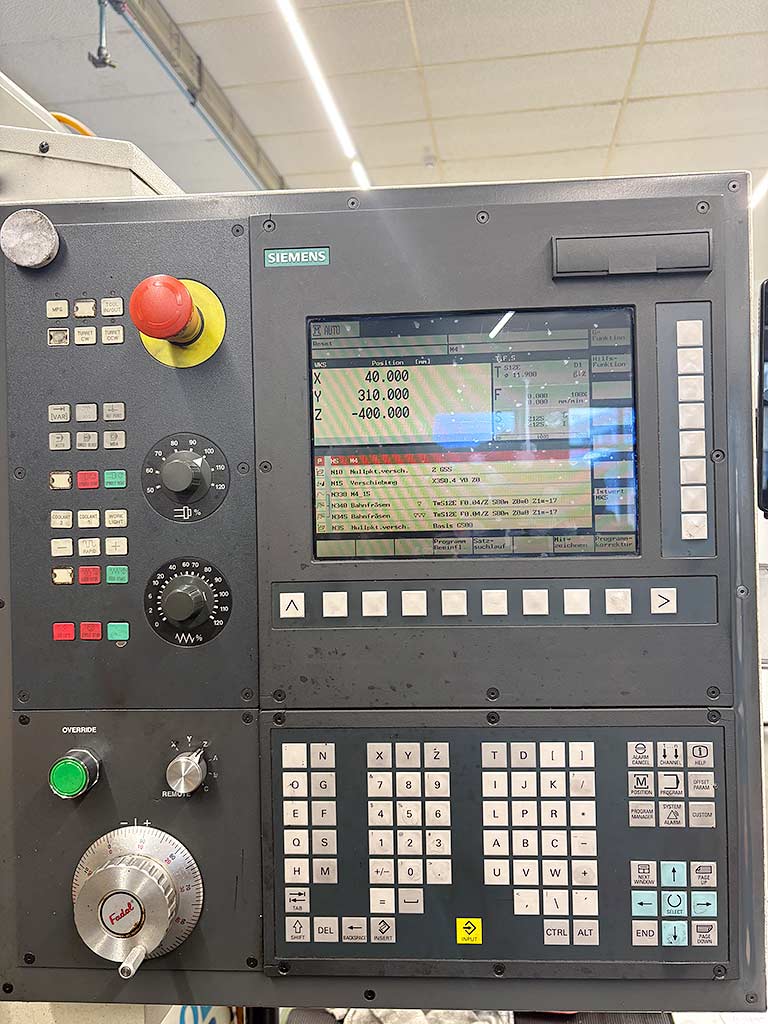

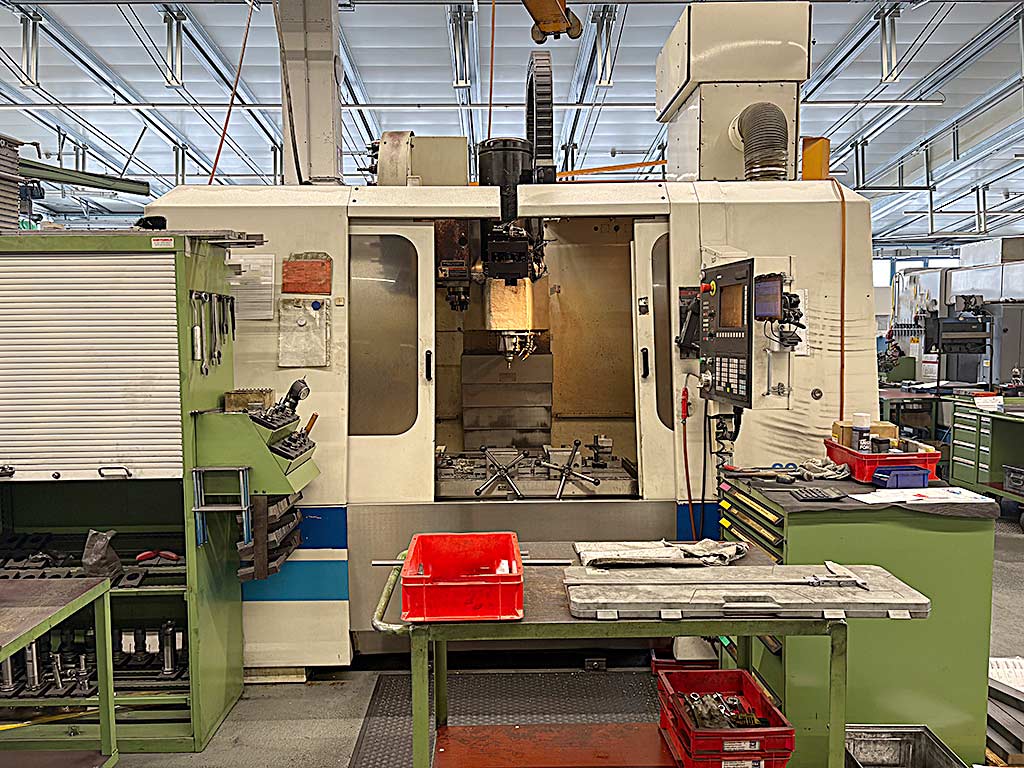

| Description A CNC vertical machining center Fadal with increased torque is available. Travel X/Y/Z: 1140mm/635mm/61mm, table dimensions X/Y: 1350mm/635mm, rapid traverse X/Y: 25m/min, rapid traverse Z: 17m/min, max. feed rate: 15m/min, positioning accuracy: +/-0.004mm, repeatability: +/-0.0015mm, spindle speed: 10000rpm, tool interface: SK40, max. spindle torque: approx. 360Nm, tool stations: 24. Machine dimensions X/Y/Z: approx. 3300mm/2600mm/3050mm, weight: approx. 6000kg, control: Siemens. Documentation available. On site inspection is possible. |
|
| Make | Fadal |
|---|---|
| Model | 922 VMC 4525 VHT |
| Year of manufacture | 2000 |
| Price | On application |
| Offer No | INNO30764 |
