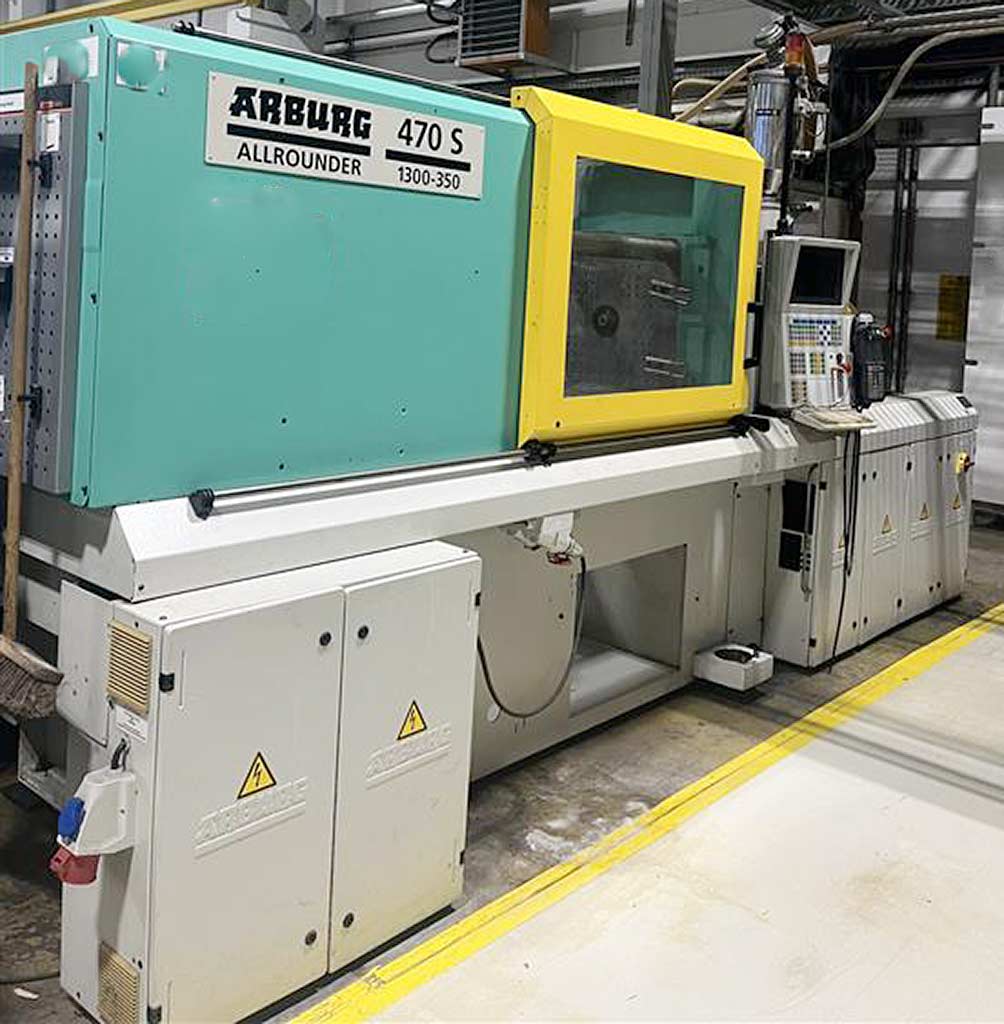

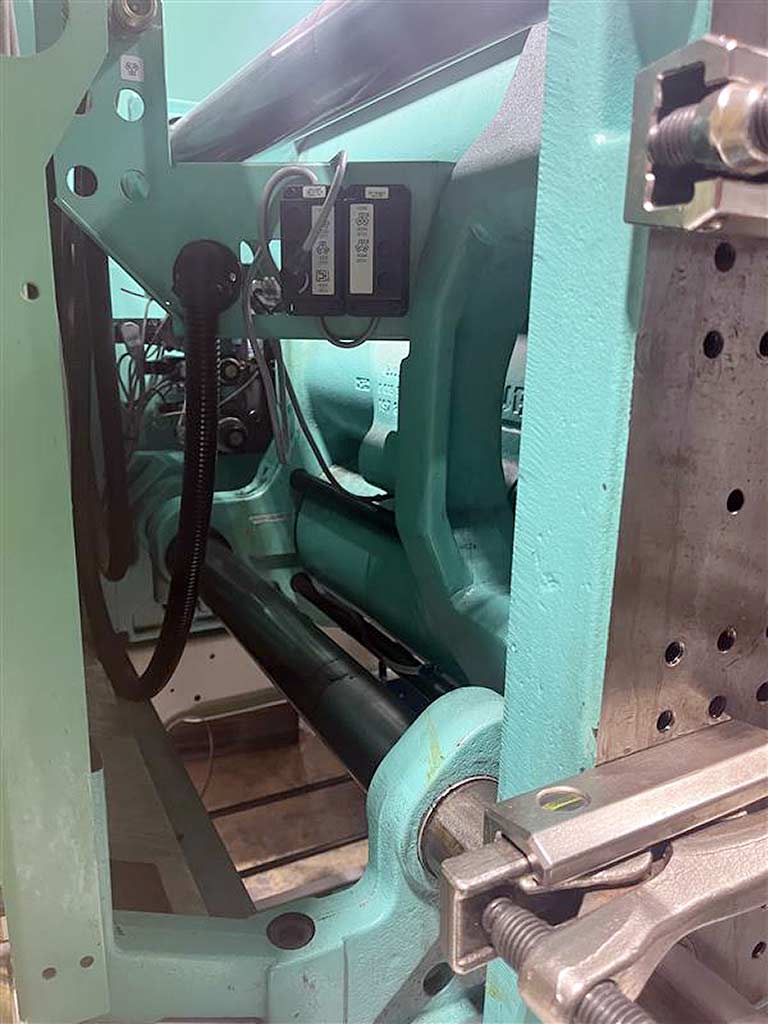

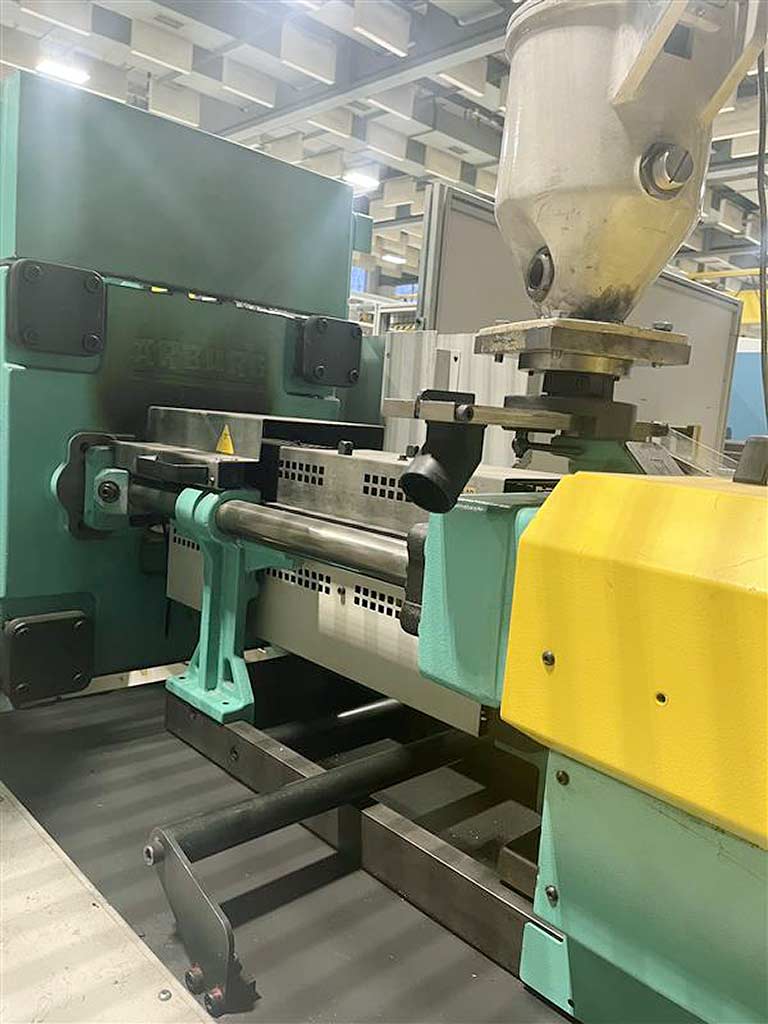

| Description Clamping force: 1300kN, screw diameter: 40mm, max. injection pressure: 2120bar, shot volume: 182m³, shot weight: 153g, tie bar spacing: 470mm/470mm, platen dimensions X/Y: 650mm/650mm, min. mold installation height: 275mm, max. opening stroke: 850mm, centering: 125mm. Machine dimensions X/Y/Z: approx. 4600mm/1600mm/2200mm, weight: approx. 5500kg. The clamping unit shows an oil leakage at the clamping cylinder. Documentation available. An on site inspection is possible. |
|
| Make | Arburg |
|---|---|
| Model | Allrounder 470S 1300-350 |
| Year of manufacture | 2003 |
| Price | On application |
| Offer No | INNO30739 |
